Amana ABL1922FES12 Fehlerbehebungshandbuch

CABINET PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel) (Stainless Steel)

05−08 Litho in U.S.A. (MAT) (eeb) Part No. W10205146 Rev. B

CABINET PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175445

Owners Manual

W10183296

Energy Tag

W10165418

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001131 Black

4 67005064 Label, Fill Tube

5 67006118 Roller Assembly

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Rear)

9 67006521 Screw

10 67001098 Cover, Fill Tube

11 67006380 Screw

12 67006473 Screw (8)

13 A3076901 Plug, Button

14 67006303 Screw (3)

15 Hinge, Center

67007043 Black

16 67003868 Foot Brake (2)

17 Cover, Corner

67003485 Black

12566604ED

Hinge, Top

19 12479901 Plate, Cover

20 67006564 Screw (8)

21 Cover, Hinge

67001012 Black

22 Grille Assembly

(Includes Clips)

67006886 Black

24 67006662 Screw

25 67006425 Screw (9)

26 67007174 Bracket, Foot

27 67001173 Cover, Water Valve

28 67006101 Cover, Unit

29 67003796 Insulation, Sound

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

33 B5759649 Gasket

(Stainless Steel)

REFRIGERATOR LINER PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

(Stainless Steel)

REFRIGERATOR LINER PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

3 67004279 Overlay

W10185244

Housing,

Electronic Control

W10165748

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 M0310343 Plug Button

Following Parts Not Illustrated

67004033 Harness, Controls

(Refrigerator)

(Includes # 16)

(Stainless Steel)

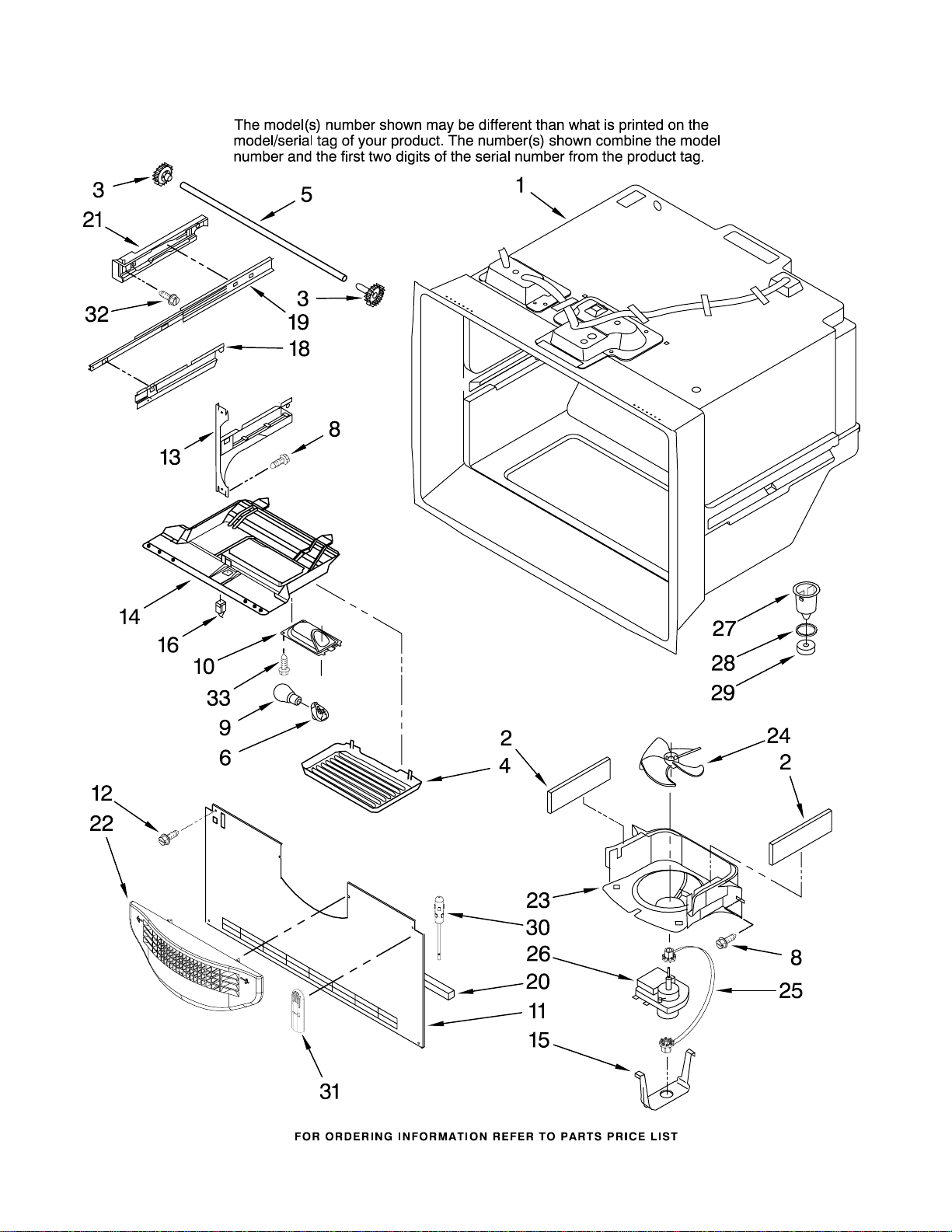

FREEZER LINER PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

(Stainless Steel)

FREEZER LINER PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam (2)

3 12002497 Gear (2)

(Includes RH & LH)

4 67003905 Cover, Light

5 67004067 Shaft

Y12570701

Socket, Light

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Frz. Light

11 67005871 Cover, Evaporator

12 67005822 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

18 Bracket, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer (2)

20 67002286 Gasket, Bottom

21 Bracket, Slide

W10128118

Left

W10128119

Right

W10175909

Cover, Fan Shroud

W10167023

Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

(Stainless Steel)

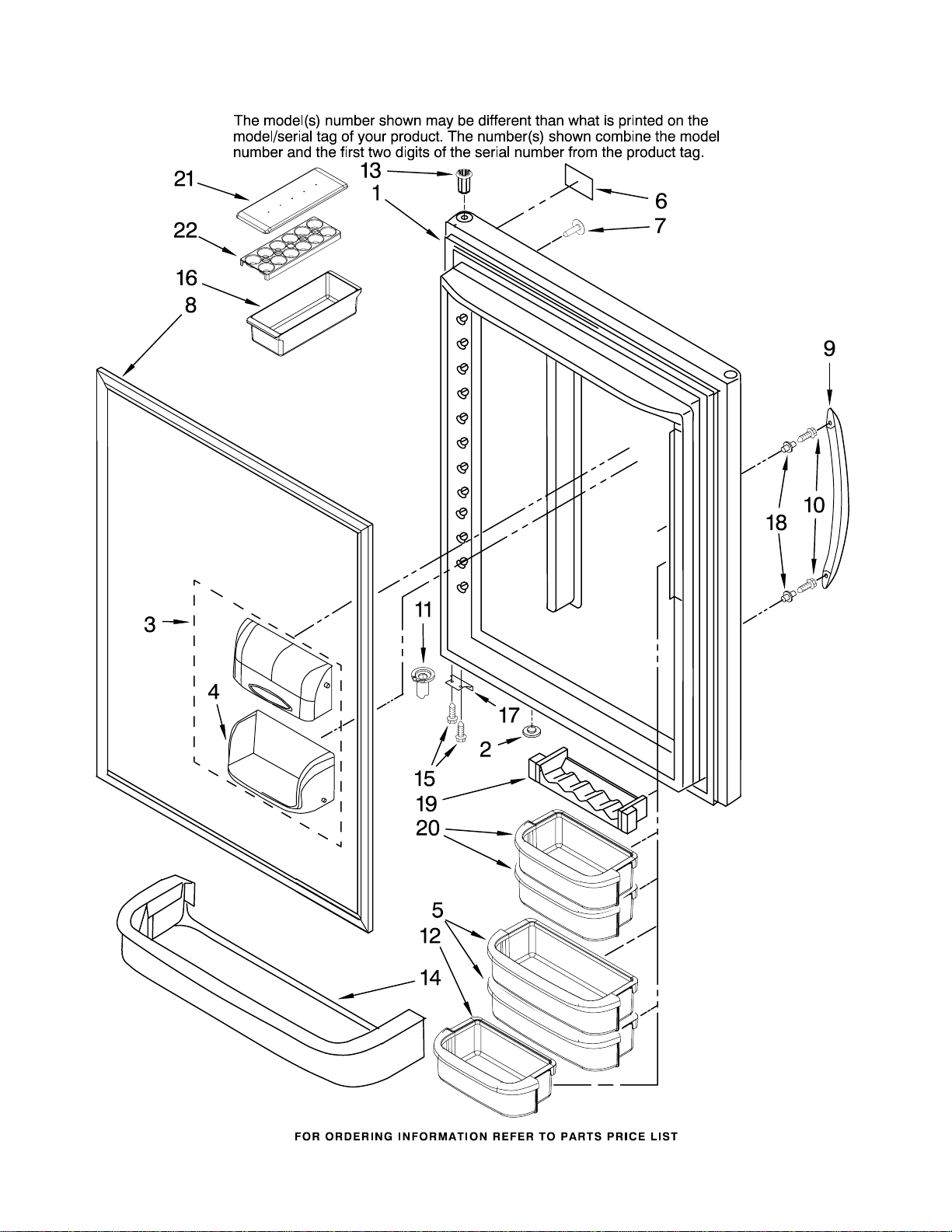

REFRIGERATOR DOOR PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

(Stainless Steel)

REFRIGERATOR DOOR PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

Stainless Steel

W10203482

Left

W10182772

Right

2 Plug, Vent

67004838 Black

3 67003819 Door, Compartment

4 67001279 Tray, Dairy

5 67001021 Bucket (2)

(Medium)

Y12528501

Nameplate

7 Plug, Button (2)

67001131 Black

8 Gasket, Door

Magnetic

12683815B

Black

9 Handle, Door

W10159105

Stainless Steel

10 67002935 Screw

11 Closure, Door

67003639 Black

12 67004124 Bucket (1)

(Short)

13 Bushing

67004978 Black

14 67001296 Retainer, Door

15 67006287 Screw

16 10423131 Bin, Utility

17 Stop, Door

67003780 Black

18 67006113 Mount, Handle

19 67005626 Caddy, Can

20 67001141 Bucket (2)

(Small)

21 10436404 Lid, Utility

22 10436506 Tray, Egg

(Stainless Steel)

FREEZER DOOR PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

(Stainless Steel)

FREEZER DOOR PARTS

For Model: ABL1922FES12, ABR1922FES12

(Stainless Steel)

W10205146

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10174587

Stainless Steel

2 Handle, Door

W10159105

Stainless Steel

3 67006113 Mount, Handle

4 Gasket, Door

W10153328

Black

5 67006682 Screw

6 Plug, Vent (2)

67004838 Black

(Stainless Steel)
