DATA SHEET

ADC660N and ADC660P

1/3-inch Black & White CCD Camera

Features That Make a Difference:

1/3-inch interline black & white CCD

580 TV lines resolution

0.03 lux low light sensitivity

Sensitive to IR illumination

Supports DC-type or EE-type auto iris lenses

CS lens mount

Aperture correction

Automatic electronic shutter

Automatic gain control

Automatic backlight compensation

Phase adjustable line-lock

Flicker-less mode

24 VAC or 12 VDC input

Internal isolation transformer

Low power consumption

The ADC660N and ADC660P black & white 1/3-inch CCD

cameras are full-performance, high-resolution imagers.

Incorporating the latest in CCD technology, the camera provides

improved control of video processing; this allows it to deliver

higher resolution (580 TV lines) and enhanced sensitivity

(0.03 lux).

The camera can operate in extremely low light conditions,

making it the perfect choice for any type of video application

that requires higher levels of sensitivity and image quality.

These cameras are sensitive to infrared light and are suitable

for use in covert applications when used in conjunction with IR

illuminators.

The performance features of this camera make it the ideal

choice to be used with other peripheral CCTV equipment such

as indoor and outdoor housings.

SPECIFICATIONS

Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features.

Availability varies by region; contact your sales representative. Certain product names mentioned herein may be trade names and/or registered trademarks of

other companies.

www.americandynamics.net

Model Numbers

ADC660N . . . . . . . . . . . . . . .EIA RS-170 Camera

ADC660P. . . . . . . . . . . . . . . . CCIR Camera

Operational

Imager . . . . . . . . . . . . . . . . . . Interline transfer 1/3-inch CCD array

Video Output . . . . . . . . . . . . .1.0 Vp-p / 75Ω, composite

Active Pixel Count

EIA.....................768(H)x494(V)pixels

CCIR . . . . . . . . . . . . . . . . . . .752 (H) x 582 (V) pixels

Minimum Scene

Illumination. . . . . . . . . . . . . . . 0.03 lux (f1.2 lens)

Horizontal Resolution. . . . . . . 580 TV lines

Light Compensation

Modes . . . . . . . . . . . . . . . . . . Automatic electronic shutter, On/Off

(EIA 1/60 -1/100,000 sec)

(CCIR 1/50 - 1/100,000 sec)

Auto Iris Drive. . . . . . . . . . . . .DC or EE-type

Backlight Compensation . . . .On/Off selectable

Aperture Correction. . . . . . . .Yes

Synchronization Modes . . . . .Line-lock with phase adjustment

S/NRatio................-50dB

Controls

AES....................On/Off

BLC....................On/Off

Back Focus . . . . . . . . . . . . . . Self locking mechanism

Auto Iris . . . . . . . . . . . . . . . . .DC/EE-type, switchable

DC Iris . . . . . . . . . . . . . . . . . . Level control

Connectors

Composite Video . . . . . . . . . .BNC

Auto Iris

EE-type . . . . . . . . . . . . . . . . .Screw terminals

DC-type . . . . . . . . . . . . . . . . .4 pin square

Electrical

Voltage. . . . . . . . . . . . . . . . . .24 VAC ±20%, 50 Hz (CCIR), 60 Hz (EIA)

12VDC ±10%, 50 Hz (CCIR)

Power Consumption . . . . . . .2.2 watts

Mechanical

Lens Mount . . . . . . . . . . . . . . CS standard with C adapter included

Camera Mount. . . . . . . . . . . . 1/4-inch - 20 (top or bottom)

Dimensions (H x W x D) . . . . .55 x 55 x 120 mm (2.16 x 2.16 x 4.72 in)

Unit Weight . . . . . . . . . . . . . .400 g (0.9 lbs)

Shipping Weight. . . . . . . . . . .680 g (1.51 lbs)

Color...................Lightgray

Environmental

Operating Temperature . . . . .-10° to 50°C (14° to 122°F)

Storage Temperature . . . . . . . -30° to 60°C (-22° to 140°F)

Humidity . . . . . . . . . . . . . . . . 85% RH (non-condensing)

Regulatory

Emissions . . . . . . . . . . . . . . .FCC: Part 15 Subpart B Class A

CE EN 55022:2006

Immunity . . . . . . . . . . . . . . . .CE: EN50130-4 :1995+A2 :2003

Safety. . . . . . . . . . . . . . . . . . . UL2044; CAN/CSA 22.2

Recommended Housings*

ADCH10, AD1314, AD1301, AD1303, AD1305

*Dependent on lens dimensions.

Recommended Camera Mounts

ADMC1361, ADMC1362, ADMC1363, ADMC1365,

ADMC1366, ADCM100T

Rear View Top View Bottom View - Mounting Base

55 mm (2.2 in)

141 mm (5.55 in)

55 mm (2.2 in)

9 mm (0.35 in)

141 mm (5.55 in)

55 mm (2.2 in)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere American Dynamics Sicherheitskamera Handbücher

American Dynamics

American Dynamics ADC732 Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra 8 35x Bedienungsanleitung

American Dynamics

American Dynamics ADCA330CN Bedienungsanleitung

American Dynamics

American Dynamics DeltaDrone II Bedienungsanleitung

American Dynamics

American Dynamics ADCDW Series Bedienungsanleitung

American Dynamics

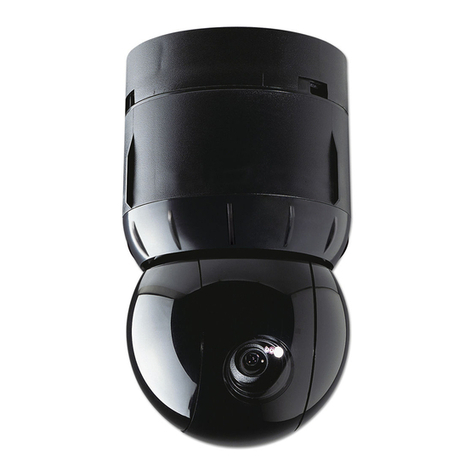

American Dynamics SpeedDome Optima LT Handbuch
