American Dynamics SpeedDome Ultra VI Montage- und Wartungsanleitung

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 1of 34

SpeedDome®Ultra VI

Camera Domes

Installation and Service Guide

RAS816LS and RAS816WLS Series

Figure 1. SpeedDome Ultra camera dome

Contents

About this Guide ....................................................1

About the Camera Dome .......................................2

Data Cable Requirements .....................................8

Install/Removal Tool for Base with I/O Board........8

Power-Up Routine..................................................9

Synchronizing Domes............................................9

Diagnostic LEDs ....................................................9

Warnings and Cautions .......................................10

Indoor Installation.................................................11

Using the Install/Removal Tool ............................18

Troubleshooting Indoor Domes ...........................20

Illustrated Parts List .............................................30

Specifications-Indoor Dome.................................32

Specifications-Outdoor Housing ..........................33

Specifications-23X Camera .................................33

Declarations .........................................................34

About this Guide

This guide explains how to connect the camera

dome to a mounting base and how to service it.

It does not explain how to:

•Determine a mounting location for the camera

dome. The mounting location is determined by

customer requirements; therefore, this

information is provided separately.

•Attach the mounting base. There are two types

of mounting bases. See information shipped

with the base.

•Assemble housings and structures used with

this dome. See information shipped with the

housing and structure.

•Program the dome. See operator's guide

shipped with the dome.

Mounting

Base

Housing

Eyeball

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 2of 34

About the Camera Dome

The SpeedDome Ultra VI camera dome (Figure 1)

comes in black or white finish (to blend into

surrounding areas), mounts indoors or outdoors,

and can communicate with the video controller

over a SensorNet 485, RS-422, or Manchester

network. The dome consists of a mounting base,

and a housing and rotating eyeball assembly.

Mounting Base

The housing and eyeball assembly connects to the

base using a twist and lock action, enabling it to be

moved easily from one location to another. The

base attaches directly to a hard or tile ceiling, or

indirectly to walls or ceilings using one of many

optional housings and mounting structures. As

shown in Figure 2, two base types are offered: a

standard base and a base with I/O board.

•Standard Base. With this base, video, data,

and power cables are inserted through the base

and attached to the top of the housing and

eyeball assembly, which is then connected to

the base. A lanyard connects between the base

and the housing and eyeball assembly to

prevent cables from being pulled during

disassembly. The base comes in black

(RUPTB) or white (RUWPTB).

•Base with I/O Board. With this base, video,

data, and power cables are pre-connected to an

I/O PC board. A spring-finger connector on the

board makes electrical contact with the housing

and eyeball assembly as it connects to the

base. The base comes in black (RUIOB) or

white (RUWIOB).

Housing and Eyeball Assembly

The housing and eyeball assembly consists

of the following:

•Housing. The housing contains the dome's

power supply, pan motor, and electronics used

to operate the eyeball. The housing provides

one alarm input and one alarm output using the

standard base, or four alarm inputs and four

alarm outputs using the base with I/O board.

•Eyeball. With a diameter of 120mm (4.75"), the

eyeball contains a camera, tilt motor, and

associated electronics. The eyeball enables the

camera to pan and tilt to track a target moving in

any direction even as it moves under the dome.

Two slot covers in the eyeball facilitate access

to the camera, one of which incorporates an

opening for the camera lens. Remove both

covers to improve ventilation when the dome is

to be used outdoors.

As shown in Table 1, the housing and eyeball

assembly can be ordered:

•With no base for existing indoor installations or

for mounting outdoors.

•With a standard base or base with I/O board for

new indoor installations.

•With one of two CCD cameras

−Color NTSC (for black or white domes)

−Color PAL (for black domes only)

Each camera has 23X optical zoom with cont-

inuous auto focus and back light compensation.

Electronic zoom provides selectable

magnification up to 184X.

Table 1. Product codes for housing and eyeball assembly configurations

Black Assy. Color NTSC Color PAL

No Base RAS816LS RAS816LS-1

RUPTB Base RAS816LSP RAS816LSP-1

RUIOB Base RAS816LSI RAS816LSI-1

White Assy. Color NTSC

No Base RAS816WLS

RUWPTB Base RAS816WLSP

RUWIOB Base RAS816WLSI

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 3of 34

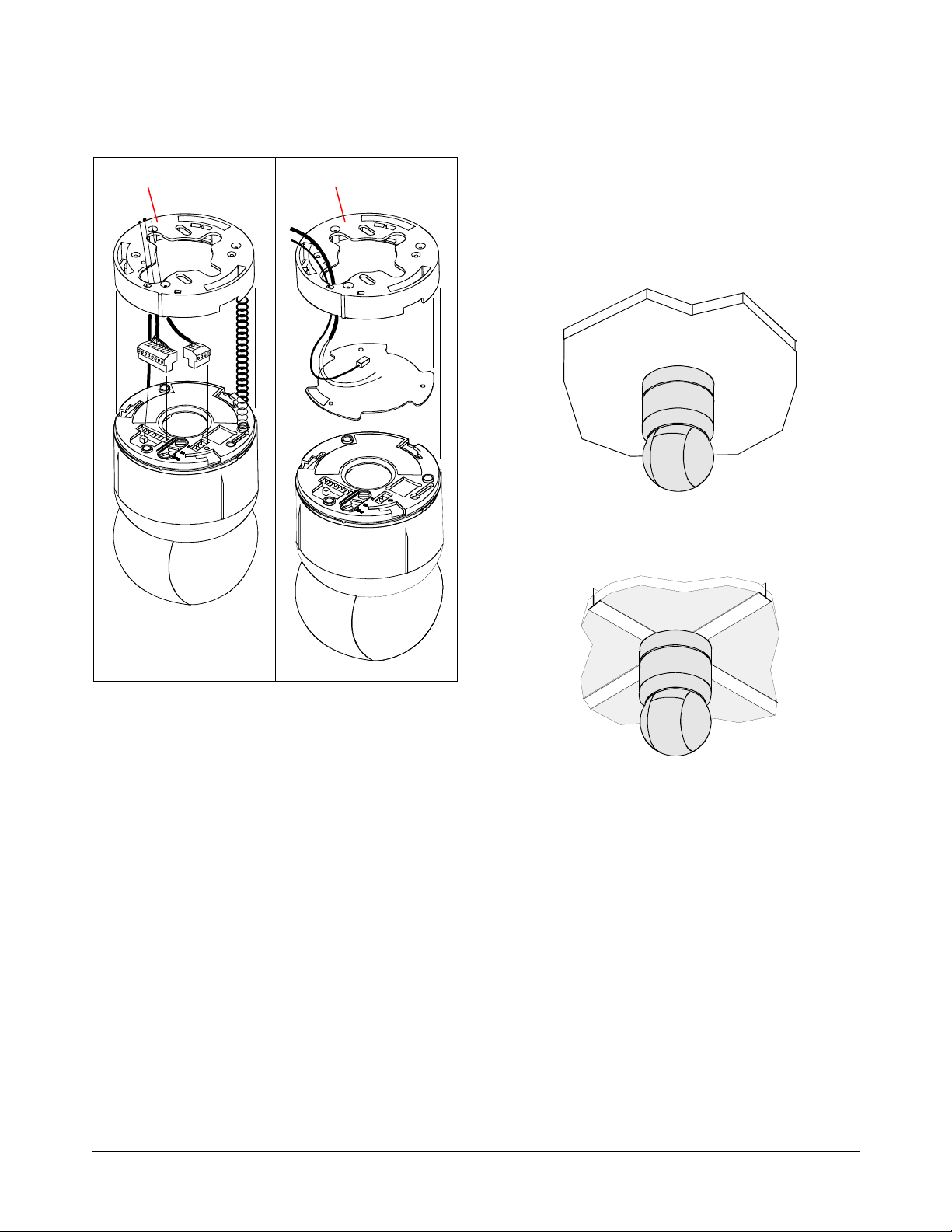

Figure 2. Mounting base and housing and

eyeball assembly

Standard Base

Base with I/O Board

Indoor Ceiling Mounting

Using hardware shipped with the base, the dome

attaches directly to indoor ceilings made of sheet

rock, wood, metal, or concrete (Figure 3), or to tile

ceiling T-bars where they intersect (Figure 4).

Figure 3. Surface mounting to hard ceilings

Figure 4. Surface mounting to tile ceilings

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 4of 34

Indoor Ceiling/Wall Mounting

(Optional)

The camera dome attaches to one of the following

optional indoor mounting structures (Figure 5).

Sheet Rock, Plaster or Wood Ceilings

RHIUTH Top hat housing with trim ring

This housing attaches to a ceiling or

to most indoor mounting structures. A

bubble and trim ring provide

concealment. Optional bubbles:

RUCLR (clear), RUSLV (silver),

RUSMK (smoked), or RUGLD (gold).

Plenum adapter RHPLA may be

required to meet local fire codes.

RHIUHC Hard ceiling bracket

Enables top hat housing to be

recessed in ceiling (requires top hat

RHIUTH).

RHIUFB* Fixed bracket

Enables top hat housing to be

recessed in ceiling (requires top hat

RHIUTH).

RHIUPNDT† Pendant mount

Suspends dome from a hard ceiling.

Electrical Box in Ceiling

RHIU3X3† 3 X 3 mounting plate

Attaches dome to a standard

3.5 x 3.5 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage

mains.

RHIU4X4† 4 X 4 mounting plate

Attaches dome to a standard

4 x 4 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage

mains.

Structural I-Beams

RHIUIB† I-beam mount

Enables dome to suspend from an I-

beam.

Tile Ceilings

RHIUFB Fixed bracket

Enables top hat housing to be

recessed in a 2x2 tile (requires

top hat RHIUTH).

RHIUAB Adjustable bracket

Enables top hat housing to be

recessed in a 2x4 tile (requires

top hat RHIUTH).

RHIU2X2* 2 X 2 tile mount

Enables top hat housing to be

recessed in 2x2 openings

(incorporates top hat housing).

RHIU2X2P* 2 X 2 tile pendant mount

Enables dome to be suspended

from 2x2 openings.

Wall Mounting

RHIUWM* Wall mount

Attaches dome to a flat vertical

surface.

RHIUCM* Wall mount with corner feature

Attaches dome to attach to a wall,

inside corner, or outside corner.

RHIULWM*† Long .6m (24") wall mount

Positions dome away from wall to

enable it to see over furniture,

shelving, and displays. This mounting

structure attaches to the wall, inside

corner, or outside corner.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 5of 34

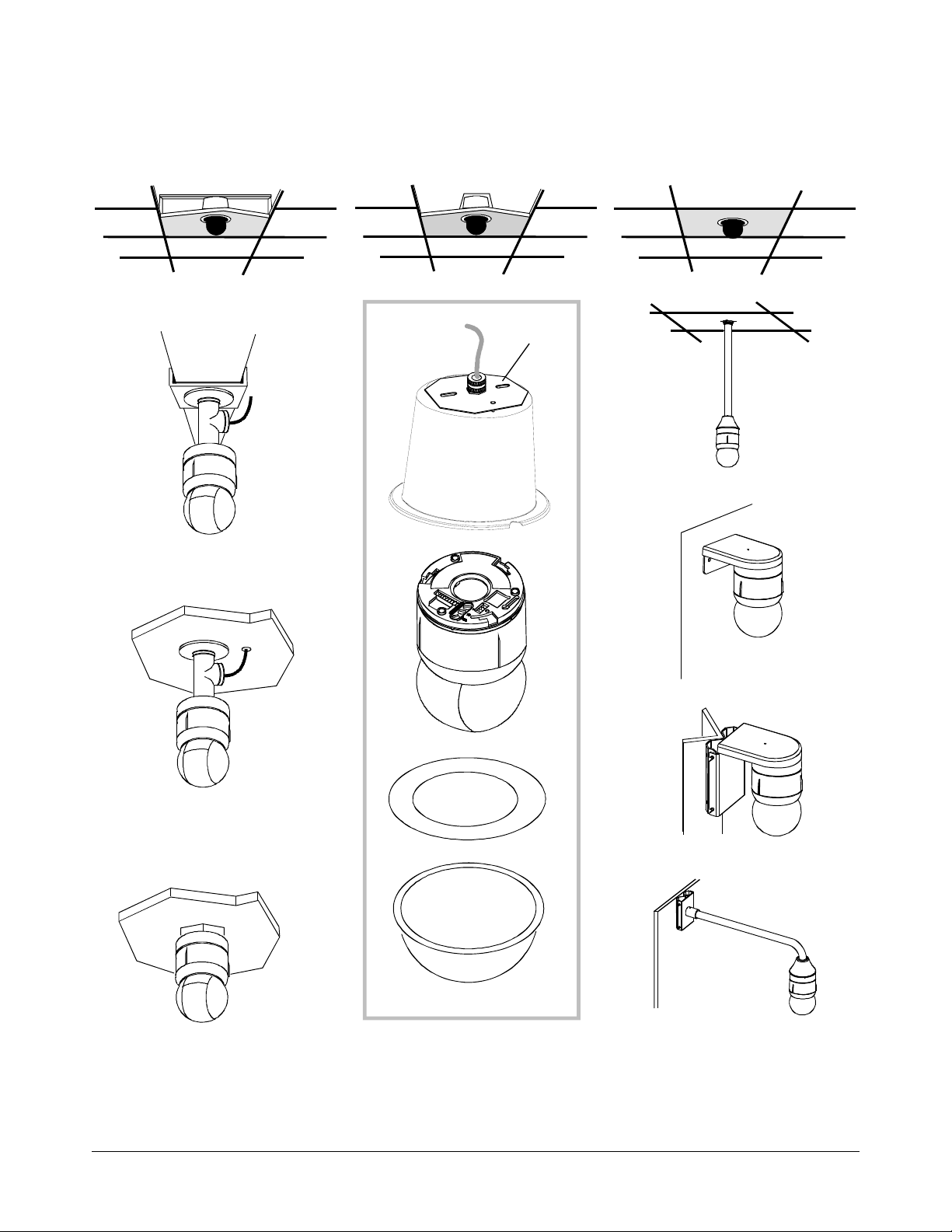

Figure 5. Indoor mounting structures (optional)

RHIUFB

RHIUAB RHIUHC RHIU2X2

RHIUTH

RHIUTR

RUCLR

RUSLV

RUSMK

RUGLD

RHIULWM

RHIUCM

RHIUWM

RHPLA

RHIU3X3

RHIU4X4

RHIUPNDT

RHIUIB

RHIU2X2P

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 6of 34

Outdoor Mounting (Optional)

Note: This document does not include outdoor

installation and service instructions. For these

instructions, see Installing the RHODUL Outdoor

Housing, 8000-2573-04.

The camera dome attaches to outdoor walls and

ceilings using an RHODUL outdoor housing

(Figure 6) and one of the following optional

mounting structures (Figure 8):

•RHOTR Over Roof Mount

•RHOTRF Over Roof Floor Mount

•RHOPN Pendant Mount

•RHOWPA Pole Mount

•RHOSW/RHOLW Wall Mount

•RHOWCA Corner Bracket.

The outdoor housing contains a pre-installed

mounting base, a cooling fan for hot weather, a

heater for cool weather and to prevent icing, and

surge protection circuitry to protect against

lightning strikes.

An environmental PC board is used to pre-wire

cables. A round spring-finger connector on the

board makes electrical contact with the housing

and eyeball assembly as it connects to the base.

Note: Do not use the I/O board (designed for

indoor use) in place of the environmental board.

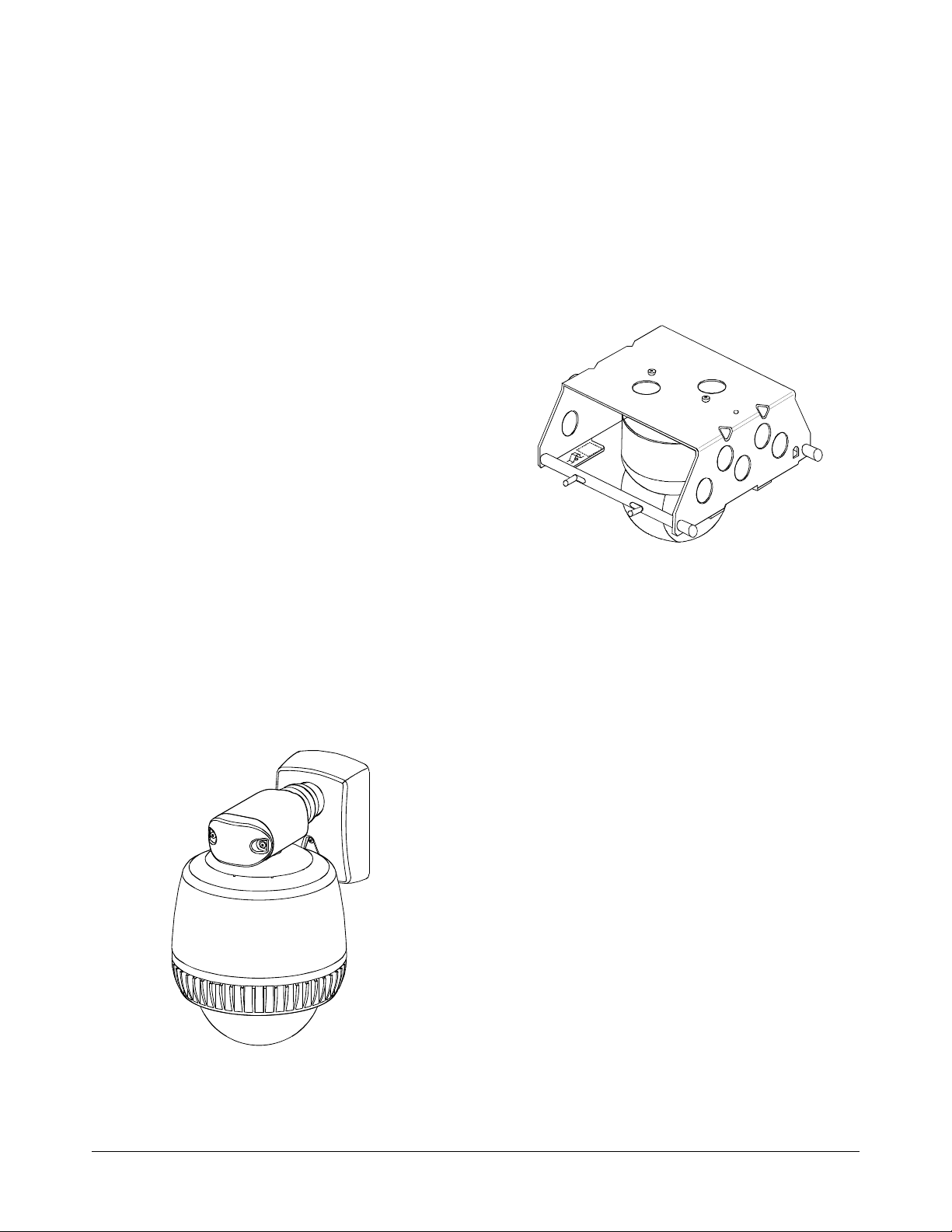

Figure 6. RHODUL outdoor housing (optional)

SpeedDome Housing Adapter

Bracket (Optional)

An RHSDA adapter bracket (Figure 7) enables the

dome to fit into SpeedDome indoor and outdoor

housings. Locking pins in the bracket enable the

dome to swing out for servicing or removal.

Figure 7. RHSDA adapter bracket (optional)

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 7of 34

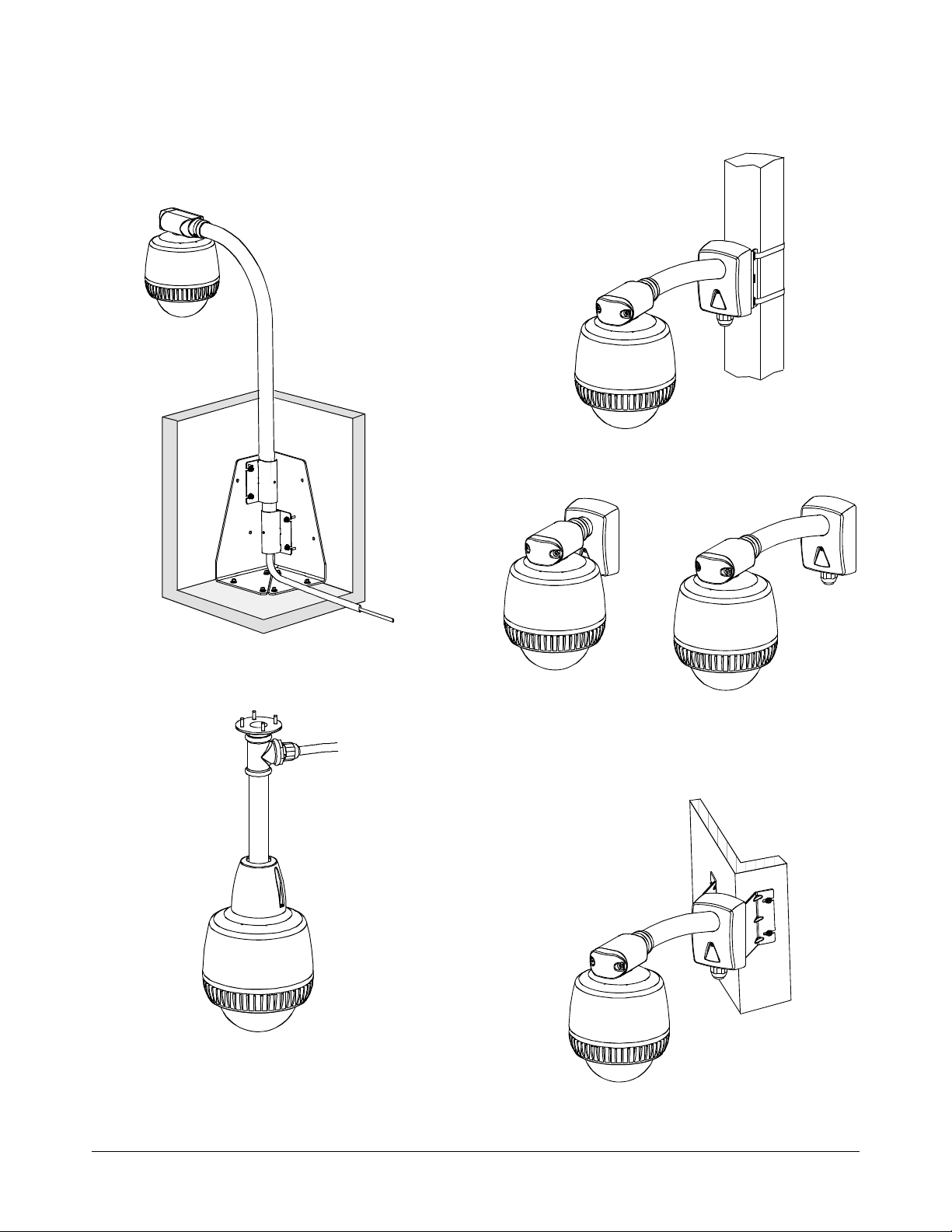

Figure 8. Outdoor mounting structures

(optional)

RHOTR over roof mount

(shown with RHOTRF bracket)

PHOPN pendant mount

RHOWPA pole mount

RHOSW/RHOLW wall mount

RHOWCA corner bracket

(shown with RHOLW mount)

RHOSW

RHOLW

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 8of 34

Data Cable Requirements

Table 2 shows the data cable requirements for

SensorNet, RS-422, and Manchester networks. For

more information about communication protocols

and cable networks, see Communication Protocols

and Cable Networks, 8000-2573-19.

Table 2. Data cable requirements

SensorNet RS-422 Manchester

Cable type 1

unshielded,

twisted

pair*

shielded,

twisted

pair*

shielded

twisted

pair**

Wire gauge 22 AWG 22 AWG 18 AWG

Connection Non-

polarized

Polarized Polarized

Max.

devices on

line

32 10 3

* Power, data, and video cables can be ordered

separately or within a composite cable that can be

ordered in various lengths. Plenum-rated cables

must be used in indoor ceilings used for environ-

mental air return (called "other air space" in the

National Electrical Code). Order parts through

your distribution network.

Note: If you order cable from an outside

source, wire colors may be different.

** Belden 88760 (plenum), or Belden 8760 cable

(non-plenum) cable is recommended. Plenum-

rated cables must be used in indoor ceilings used for

environmental air return (called "other air space" in

the National Electrical Code). Order cable directly

from Belden by calling 1-800-235-3361.

Install/Removal Tool for Base

with I/O Board

The install/removal tool (Figure 9) enables you to

connect or disconnect the housing and eyeball

assembly from the base with I/O board, and to

attach/detach skirts and bubbles to a top hat

housing, without the need for a ladder. The tool

attaches to a telescopic pole (purchased

separately). See page 20.

CAUTION: Do not use this tool to connect the

dome the standard base.

Figure 9. RHIRT indoor install/removal tool

RHIRT Removal Tool

Telescopic Pole 08140

by Recreational Water

Products. See page 20

to order.

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 9of 34

Power-Up Routine

After power is connected to the dome, the dome

performs the following homing routine.

1. After a few seconds, the camera lens tilts up

into the housing and eyeball assembly.

2. The lens tilts downs until it looks at the floor.

3. Eyeball pans slowly.

4. Lens tilts up 90° (home position).

Once the lens is in its home position, you can

then use the controller to call up the camera

and control it.

Synchronizing Domes

To prevent picture rolling when switching from

camera to camera, all domes can be synchronized

to a 50Hz or 60Hz ac source. A V-phase

adjustment at the control console enables the

dome to sync to any line phase.

Diagnostic LEDs

If a standard base is used, LEDs in the housing

and eyeball assembly enable you to check for

power and data.

If a base with I/O board is used, LEDs on the

underside of the mounting base enable you to

check for power and data. If an RS-422 network is

used, other LEDs on the board indicate that wiring

is correct, reversed, open, or grounded.

SPEEDDOME ULTRA VI 8000-2830-03, REV. C

INSTALLATION AND SERVICE GUIDE 10 of 34

Warnings and Cautions

Please review the following warnings and cautions

before you begin installation or service.

WARNINGS

!WARNING!

ALWAYS USE:

•Proper safety equipment for the location and

type of installation.

•Proper lift equipment to reach the installation.

•Safety features of the lift equipment.

BE SURE:

•Electrical power is not connected to the dome

when connecting wires. Dome will move when

power is applied.

•Electrical power is not connected to nearby

fixtures that you might touch during installation.

!WARNING!

DO NOT install this camera dome in hazardous

areas where highly combustible or explosive

products are stored or used.

!WARNING!

This dome runs on 24Vac. DO NOT connect line

voltage to this dome.

North America power requirements: In North

America, this device is intended to be supplied

from a Class 2 power supply. For outdoor

installations, use Class 3 wiring techniques, liquid-

tight conduit, or liquid-tight pipe.

This installation should be made by a qualified

service person and should conform to all local

codes.

!WARNING!

EU power requirements: This product runs on

24Vac. In the EU, it is intended to be powered from

a Limited Power Source. A limited power source is

a certified source of SELV, and if inherently limited,

with 8 amps maximum output current, and a

maximum of 100VA available; or if not inherently

limited, fused with a maximum value of 3.3 Amps,

meeting section 2.11 of IEC950, and a maximum of

250VA available. The power supply can be

obtained through Sensormatic or through another

source where the provider can furnish the

verification. This is required to assure electrical

safety in the product.

Stromanforderungen in der EU: Dieses Produkt

wird mit 24 V Wechselstrom betrieben. In der EU

ist es für den Betrieb durch eine begrenzte

Stromquelle vorgesehen. Eine begrenzte

Stromquelle ist eine zertifizierte SELV-Quelle

(Schutzkleinspannung), bei inhärenter Begrenzung

mit einem maximalen Ausgangsstrom von 8 A und

100 VA maximaler Verfügbarkeit, bei nicht

inhärenter Begrenzung mit einer maximalen

Sicherung von 3,3 A gemäß Abschnitt 2.11 der

IEC950 und 250 VA maximaler Verfügbarkeit. Das

Netzteil kann über Sensormatic oder eine andere

Quelle bezogen werden, wobei der Anbieter den

Nachweis der Konformität bereitstellen sollte. Dies

ist zur Gewährleistung der elektrischen Sicherheit

des Produktes erforderlich.

CAUTIONS

For indoor domes, the maximum length of

power cable allowed between the Class 2 LPS

(low voltage) ac source, such as a J-box, and

the dome is 250m (820').

Do not run data and power cables adjacent to or

in the same conduit as line voltage mains

power.

SensorNet 485 networks require 22 AWG

unshielded cable. Do not exceed 32 devices per

cable run.

RS-422 networks require 22 AWG shielded

cable. Do not exceed 10 devices per cable run.

Manchester networks require 18 AWG shielded

cable. Do not exceed 3 devices per cable run.

Always terminate the camera dome connected

at the end of a cable run.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere American Dynamics Sicherheitskamera Handbücher

American Dynamics

American Dynamics IP speedDome Ultra 8 Bedienungsanleitung

American Dynamics

American Dynamics ADC 660P Bedienungsanleitung

American Dynamics

American Dynamics VideoEdge IP Indoor Mini-dome 8200-2646-02... Original Betriebsanleitung

American Dynamics

American Dynamics SpeedDome Optima LT Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome RASEL Series Montage- und Wartungsanleitung

American Dynamics

American Dynamics ADCA330 Bedienungsanleitung

American Dynamics

American Dynamics ADC500 Bedienungsanleitung

American Dynamics

American Dynamics ADC780 Bedienungsanleitung

American Dynamics

American Dynamics illustra 600 Bedienungsanleitung

American Dynamics

American Dynamics ADC 660N Bedienungsanleitung

American Dynamics

American Dynamics ADCI625-P221 Bedienungsanleitung

American Dynamics

American Dynamics Discover 600 Series Bedienungsanleitung

American Dynamics

American Dynamics ADC522WP Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Optima LT Bedienungsanleitung

American Dynamics

American Dynamics ADCA330CN Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra Handbuch

American Dynamics

American Dynamics ADCIPE3312ISN Bedienungsanleitung

American Dynamics

American Dynamics AD715LS Series Betriebsanleitung

American Dynamics

American Dynamics RT3300MC Bedienungsanleitung

American Dynamics

American Dynamics ADC660 Bedienungsanleitung

American Dynamics

American Dynamics ADC523PIR Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra 8 35x Bedienungsanleitung

American Dynamics

American Dynamics ADC733 Bedienungsanleitung

American Dynamics

American Dynamics ADC531 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
