Ameriwood HOME 2854872COM Bedienungsanleitung

B342854872COM00

Do Not Return This Product!

Contact our customer service team for help rst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Remington Tv Stand

2854872COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diculty Meter

Follow Ameriwood Home

042019PK

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

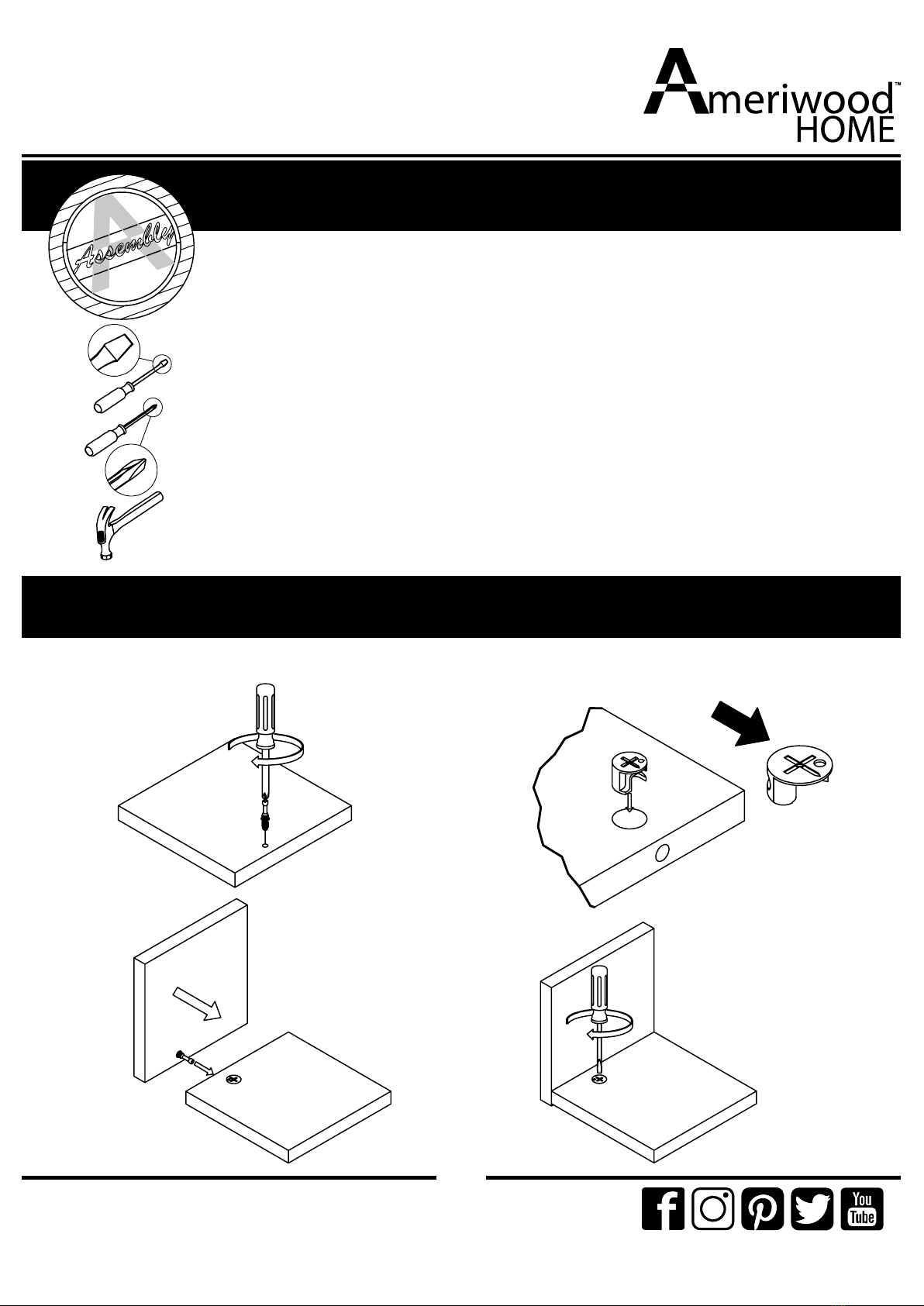

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be usedthroughoutthe assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Idencaon

Notactual size

ameriwoodhome.com

T2854872010PK

TOP PANEL

T2854872020PK

BOTTOM PANEL

T2854872030PK

LEFT SIDE PANEL

T2854872040PK

LEFT PARTITION

T2854872050PK

CENTER PARTITION

T2854872080PK

DOOR

T2854872090PK

SHELF

T2854872060PK

RIGHT PARTITION

T2854872070PK

RIGHT SIDE PANEL

8 9

2 3

Board Idencaon

Notactual size

ameriwoodhome.com

T2854872100PK

LEFT FRONT DRAWER

T2854872110PK

RIGHT FRONT DRAWER

T2854872120PK

LEFT SIDE DRAWER

T2854872130PK

RIGHT SIDE DRAWER

T2854872140PK

BACK DRAWER

T2854872150PK

BOTTOM DRAWER

14 15

11 12

T2854872160PK

SIDE BACK PANEL

T2854872170PK

CENTER BACK PANEL

Part List

Actual Size

ameriwoodhome.com

x26

TPK0001

Cam Bolt

x26

TPK0003

Cam Lock 15-9

x20

TPK0004

DOWEL 8 X 30

x10

TPK0009

CBS 4 x 50

x16

TPK0010

SCREW PH 4 X 30

x20

TPK0015

NAIL

TPK0006

SHELF HOLDER

x52

TPK0007

CBS 3.5 x 16

TPK0008

CBS 4 x 38

TPK3005

HANDLE SCREW

Part List

NotActual Size

ameriwoodhome.com

TPK2002

LEG BRACKET

TPK2001

LEG

TPK3004

HANDLE

TPK4001

DOOR HINGES

TPK6001

WARNING LABEL

TPK1002

DRAWER SLIDE 350 MM

TPK2003

CENTER LEG

ameriwoodhome.com

Step 1

Properly insert Cam Bolt.

x10

TPK0001

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Slide (CL), screw posion on panel number 4. Slide (CR), screw posion on panel number 6.

TPK1002

TPK0007

TPK0003

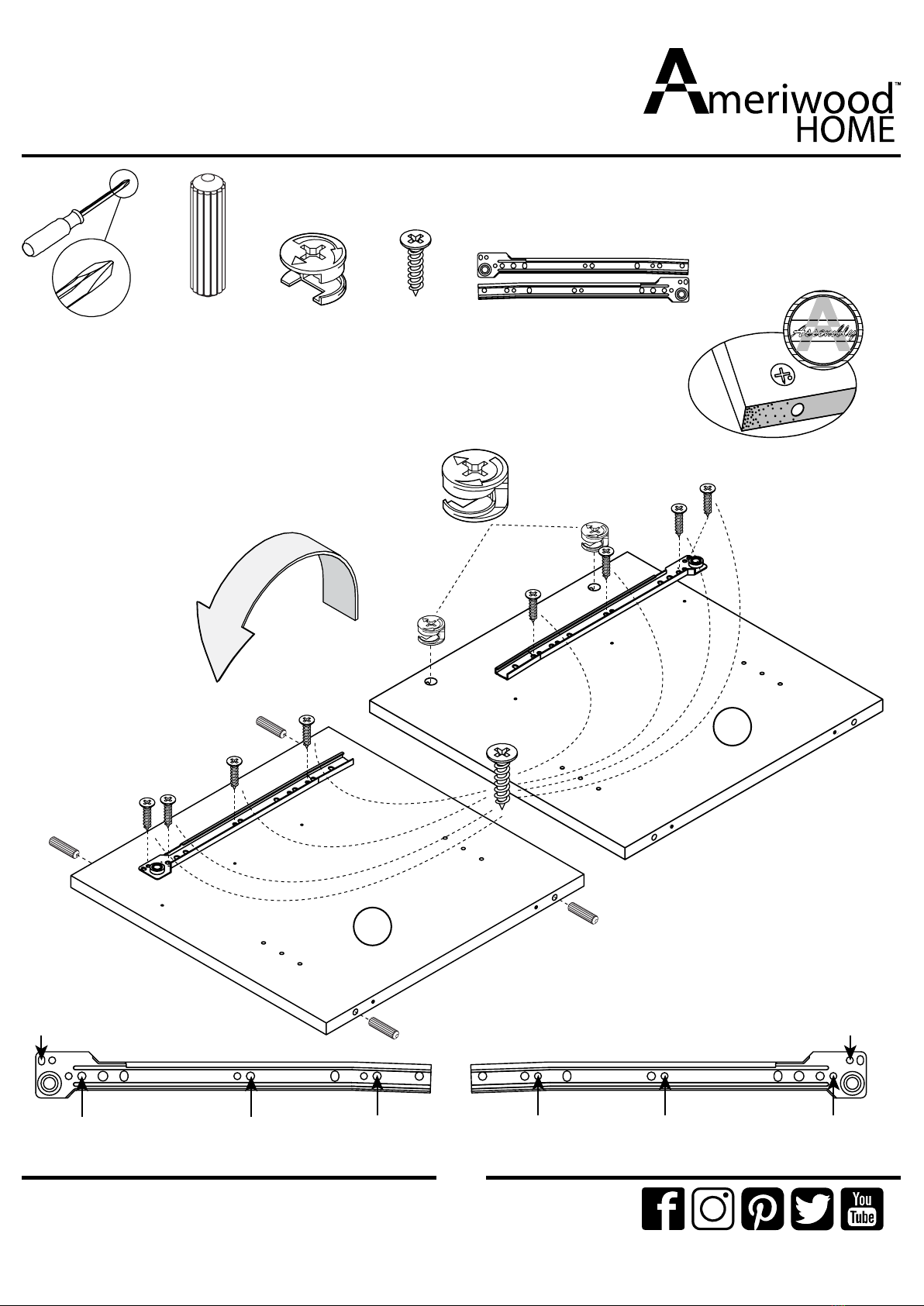

Step 2

Properly insert Cam Lock and follow slides

installaon below.

ameriwoodhome.com

Face ‘L’

Face ‘R’

TPK1002

TPK0007

TPK0003

Step 3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TPK0004

Slide (CL), screw posion on panel number 5, Face ‘L’. Slide (CR), screw posion on panel number 5, Face ‘R’.

Aach hardware on face ‘R’ rst, then

ip over the panel to aach hardware

on face ‘L’.
