Ameriwood HOME 5225305COM Bedienungsanleitung

5225305COM

Twin Bed

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345225305COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

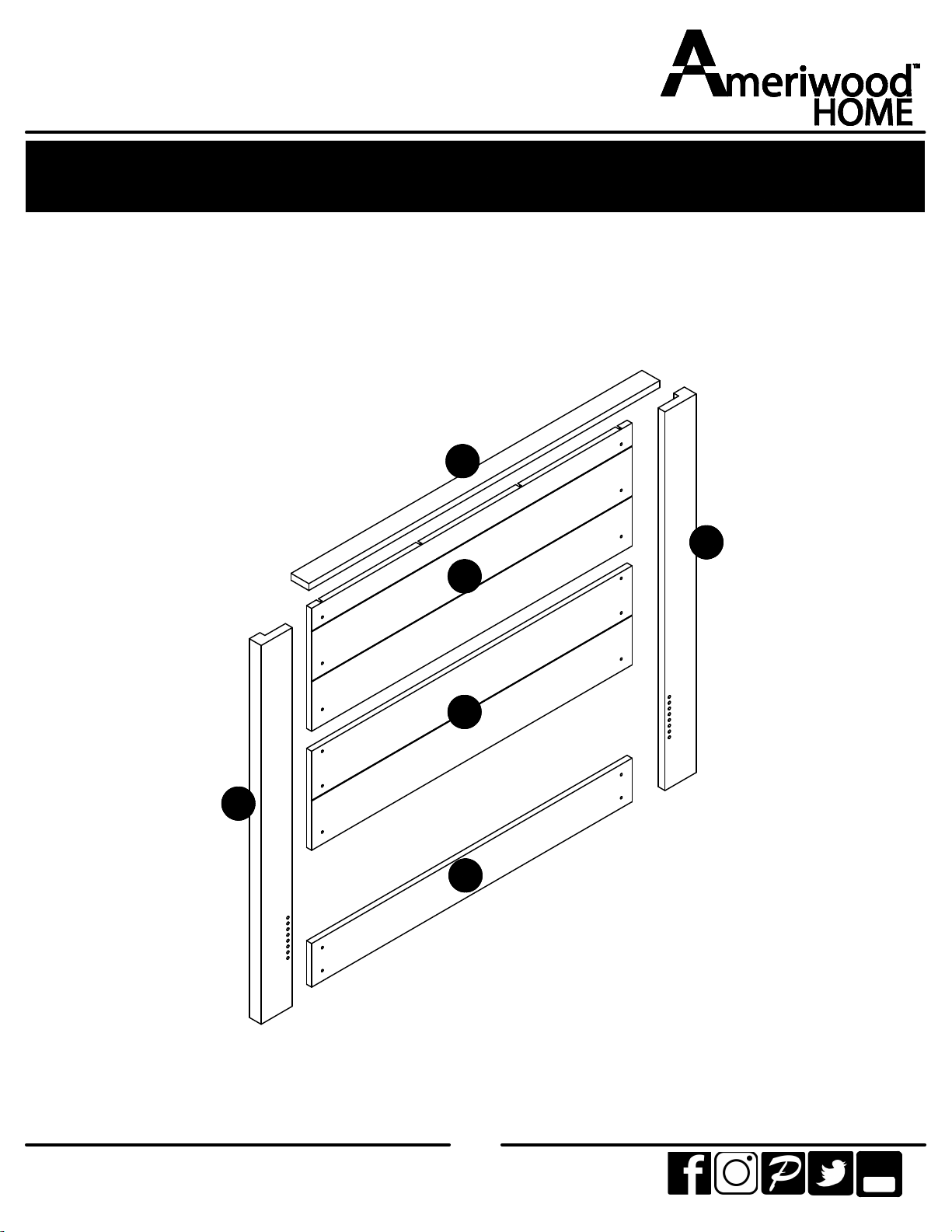

Board Identification

Not actual size

Tube

You

Top

35783305010

Left Leg

35783305020

Right Leg

35783305030

Lower Panel

35783305060

Middle Panel

35783305050

Upper Panel

35783305040

DEF

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

ameriwoodhome.com

Part List

Actual Size

Tube

You

(x4)

#A22910

connector bolt

(x4)

#A22900

connector

(x2)

#A53820

bracket

(x4)

#A12120

#8 x 7/16" screw

(x16)

#A12930

#8 x 1-1/8" screw

(x4)

#A20480

1/4-20 nut

(x4)

#A19800

1/4-20 x 2" bolt

(x8)

#A25400

1/4" washer

678

ameriwoodhome.com

STEP1

Tube

You

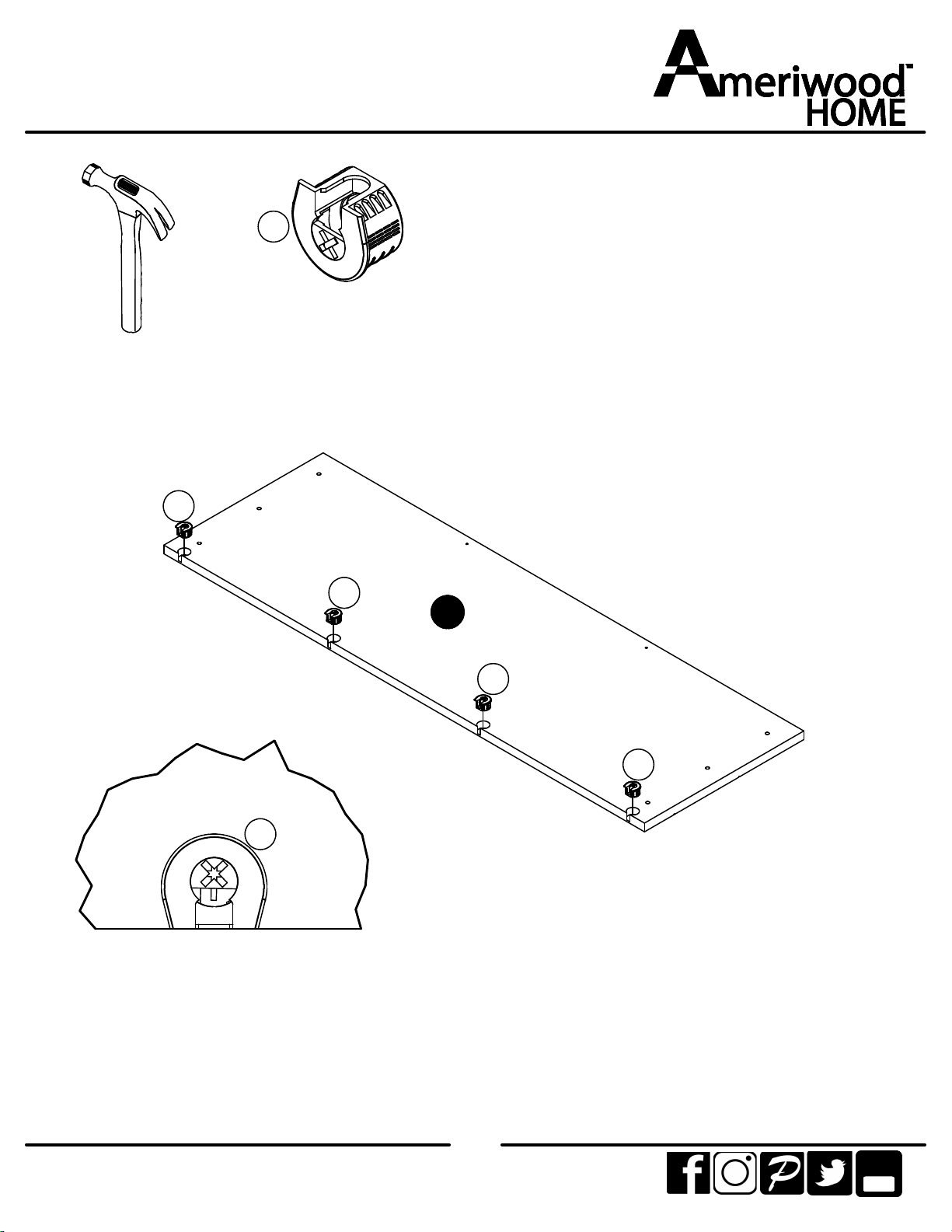

You will need to tap the connector (2) with a

hammer to fully insert. Be sure the

connector is positioned as shown before

pushing into holes.

(x4)

#A22900

ameriwoodhome.com

STEP2

Tube

You

(x6)

#A12930

555

ameriwoodhome.com

STEP3

Tube

You

(x6)

#A12930

ameriwoodhome.com

STEP4

(x4)

#A12930

Tube

You
