Ameriwood HOME 5758341COM Bedienungsanleitung

5758341COM

6 Drawer Dresser

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345758341COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

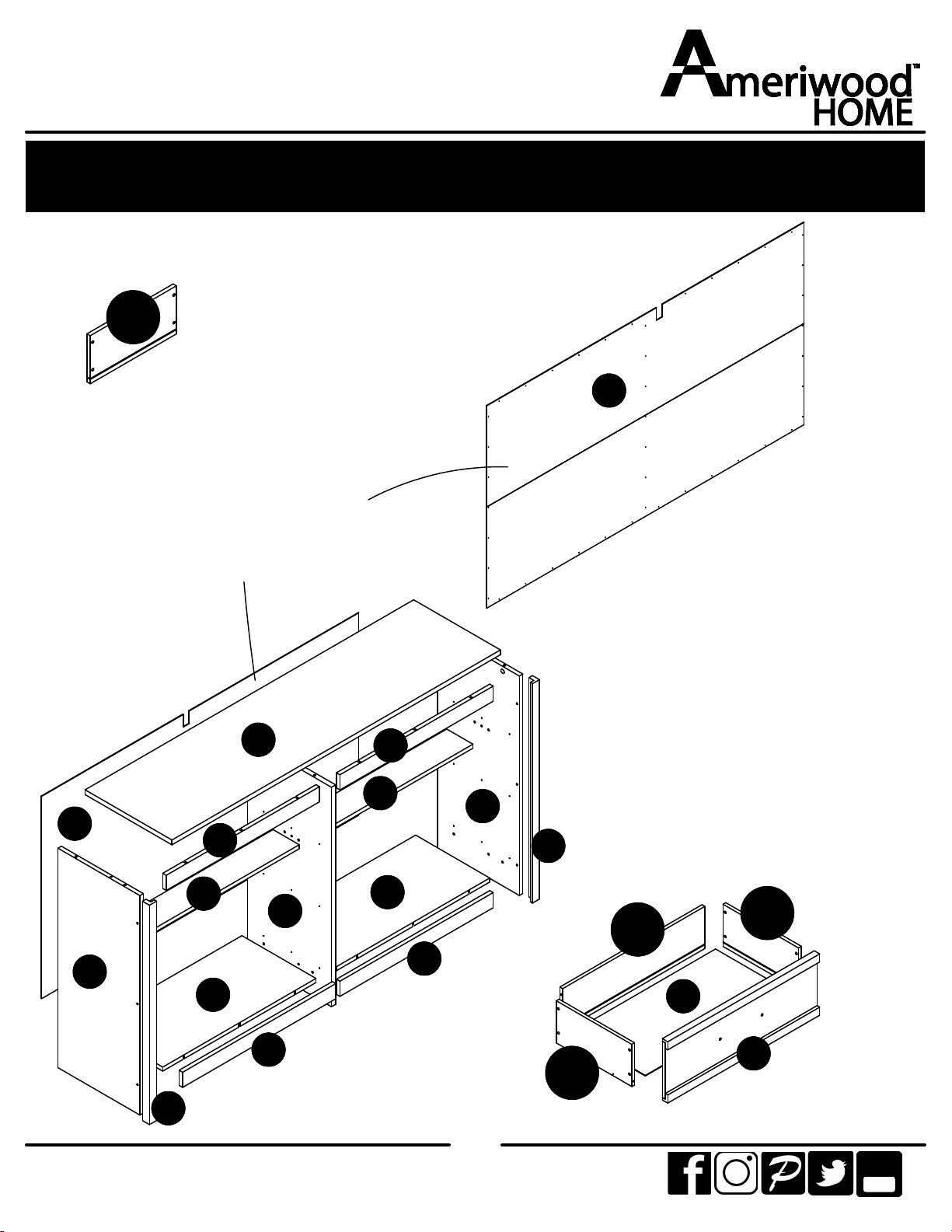

Board Identification

Not actual size

Tube

You

Left Panel

35758341010

Right Panel

35758341020

Partition

35758341030

Top

35758341040

Bottom

35758341050

Upper Rail

35757341060

Lower Rail

35757341070

Vertical Molding

35758341080

Drawer Front

35757341091

Drawer Back

39991167065240B

Drawer Bottom

35757331110

Support

35758000120

ABC

EFGH

DWR

BACK

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

x12

Drawer Side

39991167346200C

Back Panel

K575800000

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

DWR

SIDE

DWR

BACK

DWR

SIDE

DWR

SIDE

ameriwoodhome.com

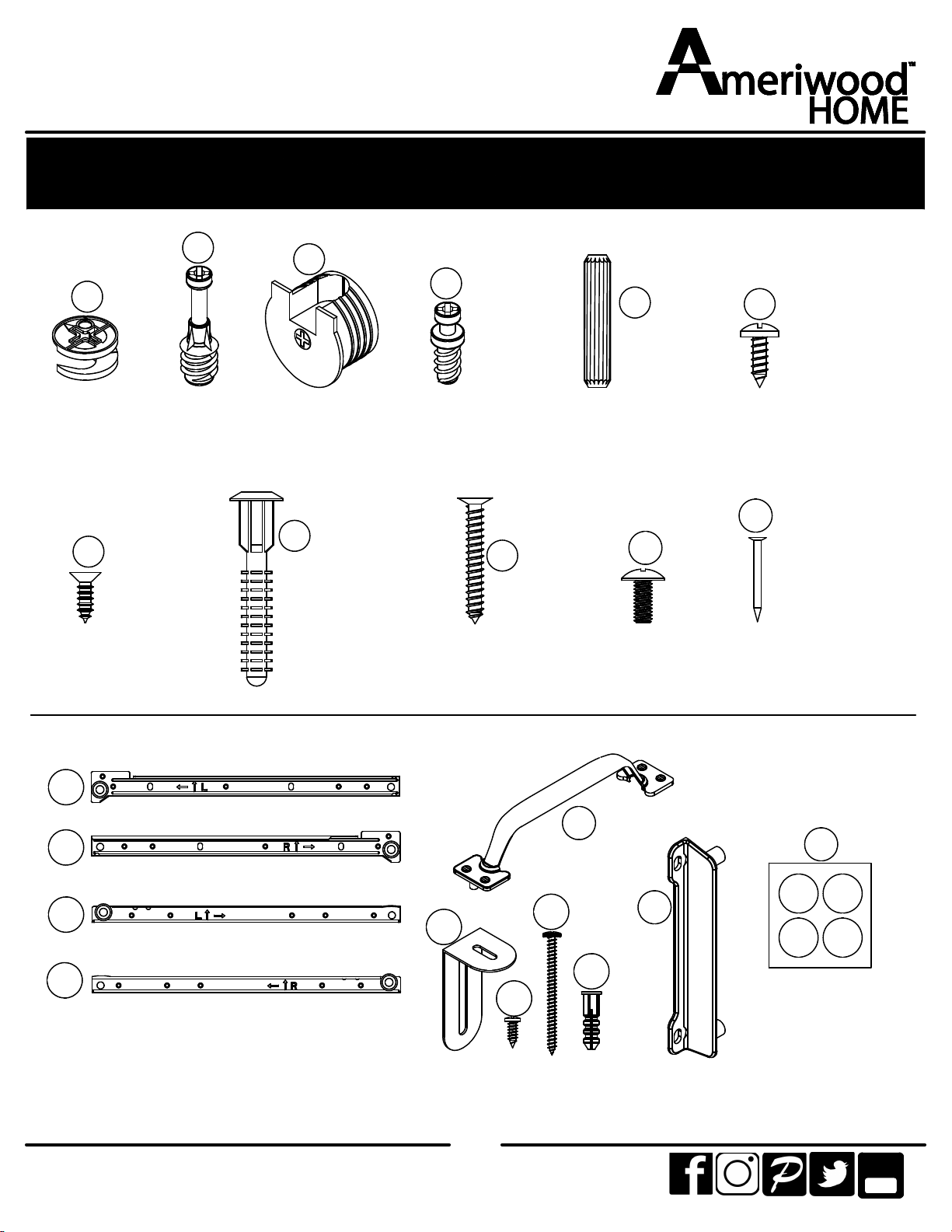

Part List

Actual Size

Tube

You

Not Actual Size

456

710

13a

13b

13c

13d 14b

14a 14c

14d

(x22)

#A22620

cam lock

(x22)

#A22610

cam bolt

(x12)

#A22920

connector

(x12)

#A22910

connector bolt

(x11)

#A21660

wood dowel

(x48)

#A12120

7/16" pan head

(x60)

#A11080

7/16" flat head

(x24)

#A21970

drive fastener

(x6)

#A12955

1-1/8" flat head

(x12)

#A17100

7/16" bolt

(x44)

#A21110

nail

Left Cabinet Member

Right Cabinet Member

Left Drawer Member

Right Drawer Member

(x6)

#A56770

Drawer Slide Kit

(x1)

#A84050

Safety Bracket Kit

(x12)

#A54520

Drawer Bracket

(x6)

#A50515

Handle

(x2 sheets)

#J21341

Paste-ons

ameriwoodhome.com

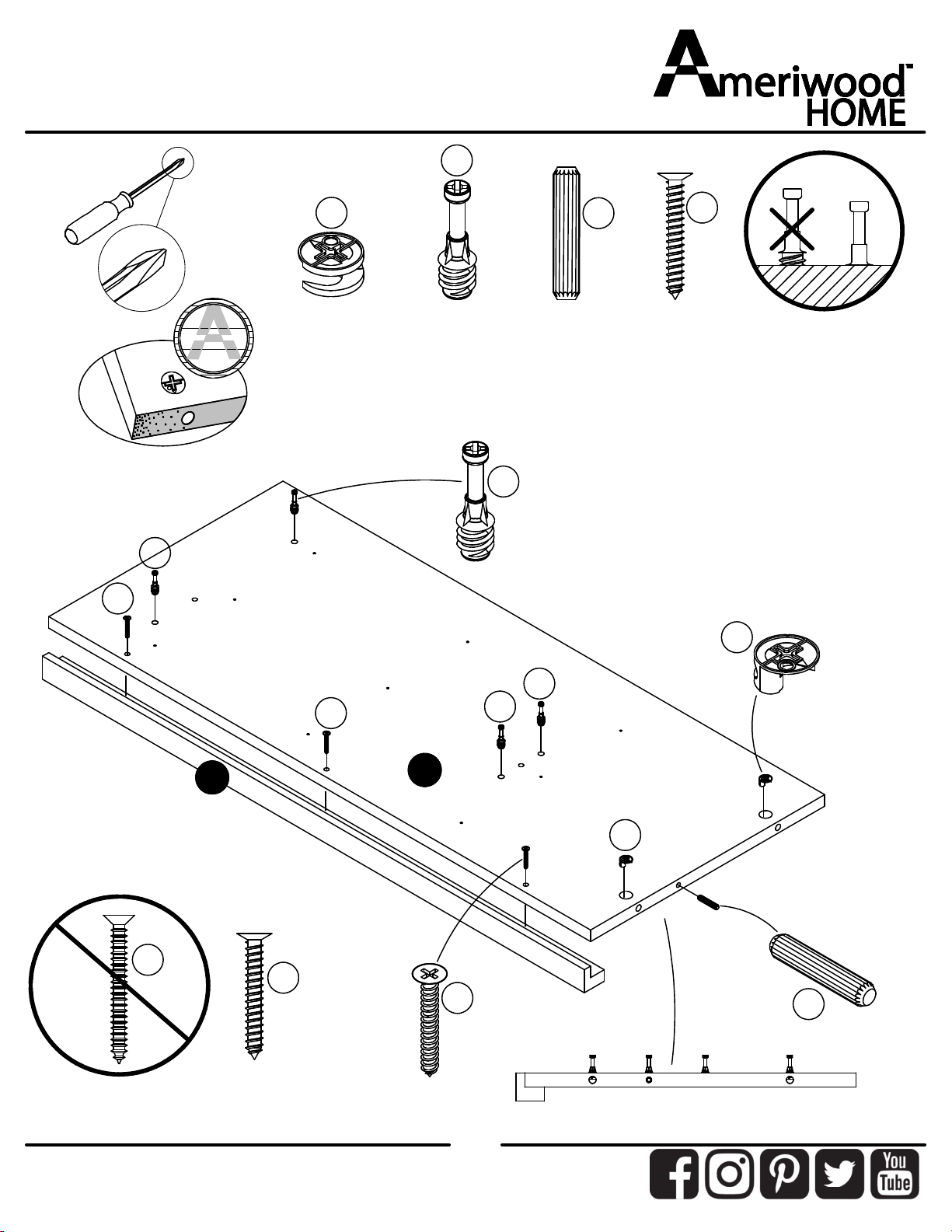

STEP1

(x2)

#A22620

(x4)

#A22510

(x1)

#A21660

(x3)

#A12955

Attach all hardware as shown. Using three screws

(9), attach the vertical molding (H) to the left panel

(A) as shown. Please note, there are three pilot

holes in the vertical molding (H) for

attachment.

end view

(x20)

#A11600

1-1/4" flat head

(x8)

#A12950

1-1/8" flat head

Do not get screws #8 & #9 mixed up. You

will use the shorter of the two in this step.

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

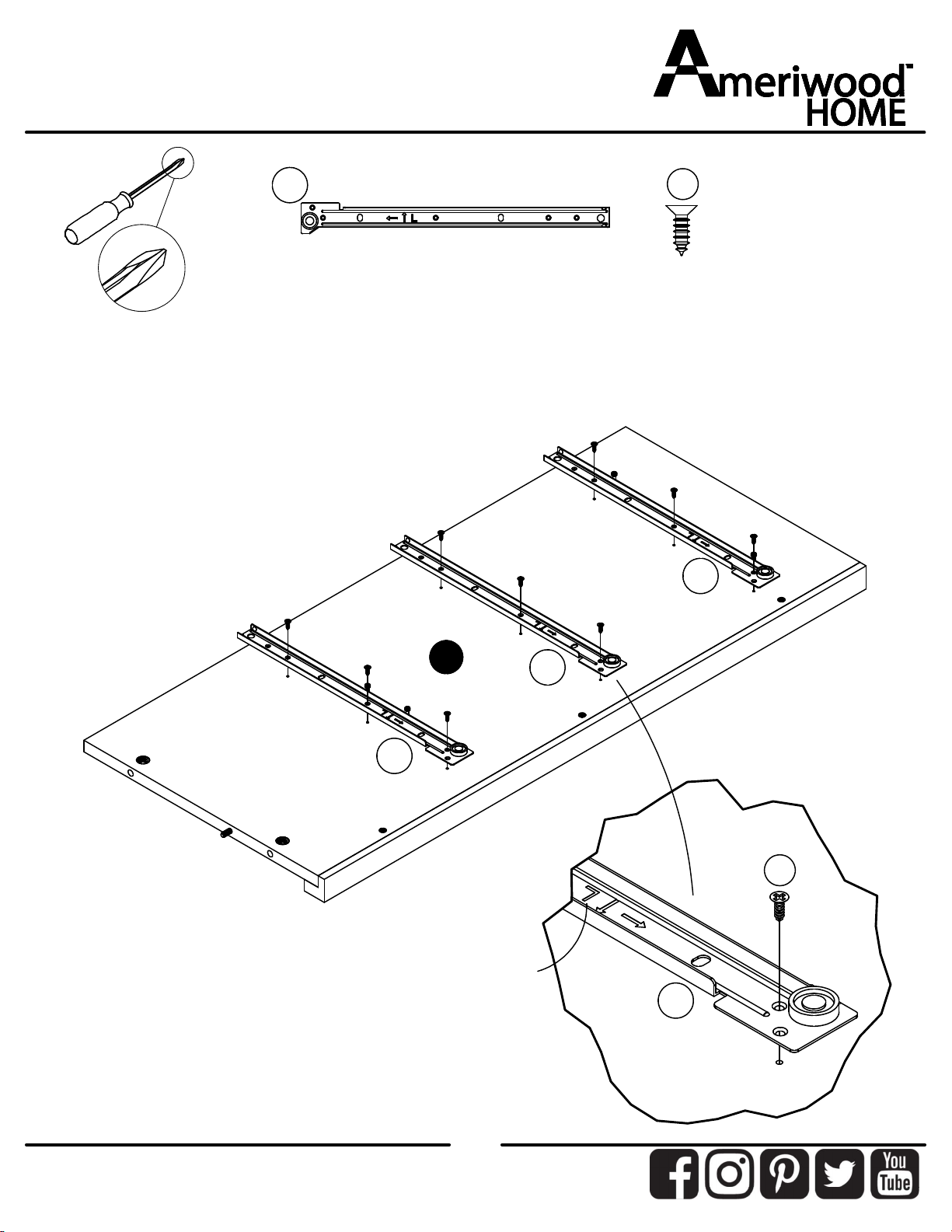

STEP2

(x3)

#A56770

Attached three left cabinet members (13a) to the left panel (A) with screws (7) as shown.

(x9)

#A11080

Marked with a "L".

Left Cabinet Member

13a

ameriwoodhome.com

STEP3

Attach all hardware as shown. Using three screws (9), attach the

vertical molding (H) to the right panel (B) as shown. Please note, there

are three pilot holes in the vertical molding (H) for attachment.

(x2)

#A22620

(x4)

#A22610

(x1)

#A21660

(x3)

#A12955

end view

(x20)

#A11600

1-1/4" flat head

(x8)

#A12950

1-1/8" flat head

Do not get screws #8 & #9 mixed

up. You will use the shorter of the

two in this step.

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP4

13b

Right Cabinet Member

(x3)

#A56770

Attach three right cabinet members (13b) to the right panel (B) with screws (7) as shown.

(x9)

#A11080

Marked with a "R".

13b
