Ameriwood HOME 5555355COM Bedienungsanleitung

B345969308COM00

WARNING

ameriwoodhome.com

Follow Ameriwood Home

Colebrook 6 Drawer Dresser

5969308COM

Keep this Assembly Manual for future reference

Unit can p over causing severe injury or death.

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Warning

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Board Idencaon

Not actual size

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

T5969308010

TOP PANEL

T5969308020

SIDE PANEL LEFT

T5969308030

SIDE PANEL RIGHT

T5969308040

PARTITION PANEL

T5969308050

DRAWER FRONT

T5969308060

DRAWER BACK

T5969308070

DRAWER SIDE LEFT

T5969308080

DRAWER SIDE RIGHT

T5969308090

SIDE RAIL LEFT

T5969308100

SIDE RAIL RIGHT

T5969308110

BRACE LEFT

T5969308120

BRACE RIGHT

10 11

7 8

2 3

Board Idencaon

Not actual size

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

T5969308150

BACK PANEL

T5969308160

DRAWER BOTTOM

T5969308130

KICK PANEL

T5969308140

BOTTOM PANEL

13 14

Part List

Actual Size

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

x10

TTA0001

Cam Bolt

x14

TTA0003

Cam Lock

15-11.5

x84

TTA0005

CBS 3.5 x 12

x38

TTA0010

CSK 4 x 32

x24

TTA0013

PHCB 4 X 12

x12

TTA0014

PH M4 X 20

x56

TTA0016

DOWEL 6 X 30

x28

TTA0018

NAIL

Part List

Not Actual Size

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

TTA0032

PULL HANDLE

96MM

x6 Set

TTA0033

DRAWER SLIDE

300 MML

x1 set

TTA0026

ANTI TIPPING KIT

TTA0036

DOUBLE END

BOLT 64MM

x12

TTA0030

DRAWER BRACKET

Before You Start

Cam Lock Fastening System

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

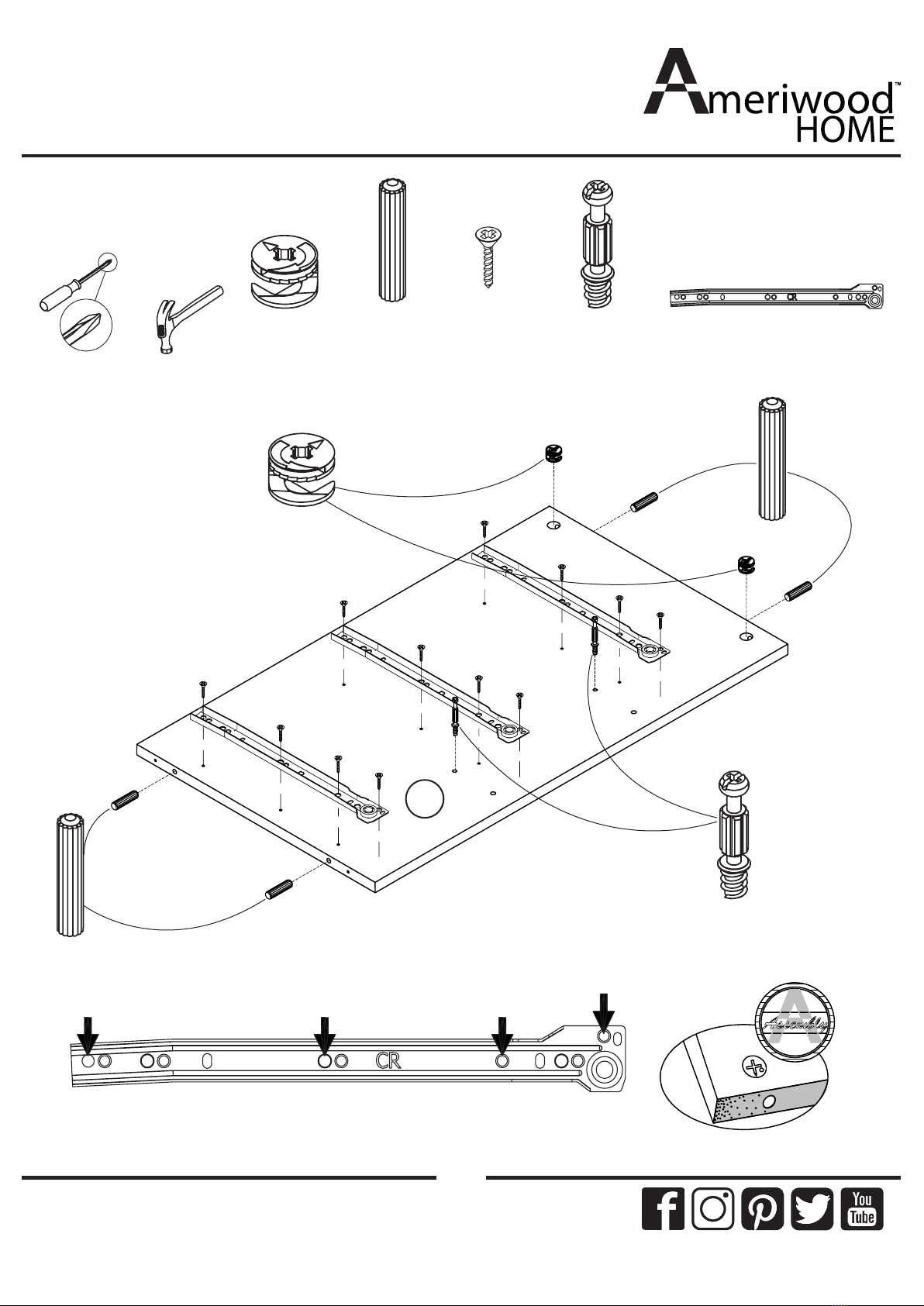

Step 1

FRONT BACK

SCREW HOLE POSITION

TTA0003 x4

TTA0016 x12

TTA0005

TTA0001 x3

TTA0033

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

Step 2

TTA0003 x4

TTA0016

x24

TTA0005

LEFT SURFACE

RIGHT SURFACE

FRONT BACK

FRONTBACK

SCREW HOLE POSITION

TTA0033

5969308COM

Colebrook 6 Drawer Dresser

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Step 3

FRONTBACK

SCREW HOLE POSITION

TTA0003 x4

TTA0016 x12

TTA0005

TTA0001 x3

TTA0033
