Ameriwood HOME 5955222COM Bedienungsanleitung

5955222COM

ARMOIRE

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345955222COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2-1/2 HOURS

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Left Panel

35955222010

Right Panel

35955222020

Partition

35955222030

Top

35955222040

Fixed Shelf

35955222050

Adjustable Shelf (x2)

35955222060

Bottom

35955222070

Apron

35955222080

Brace

35955222090

Lower Brace (x2)

35955222100

Vertical Rail

35955222110

Drawer Brace (x2)

35538000120

Left Drawer Side (x2)

36860331130

Right Drawer Side (x2)

36860331140

FGH

KLM N

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Drawer Back (x2)

35955331150

Drawer Bottom (x2)

35955331160

Drawer Front A

35955222170

Drawer Front B

35955222180

Door (x2)

35955222190

Back Panel

K595522200

This piece is paperboard

construction. It is not made

from wood, but is required for

the assembly of your unit.

OPQR

ameriwoodhome.com

Not actual size

Board Identification

Tube

You

ameriwoodhome.com

Part List

Actual Size

Tube

You

(x20)

#A22570

cam lock

(x20)

#A22510

cam bolt

(x17)

#A21660

wood dowel

(x6)

#A53600

angle bracket

(x20)

#A12120

#8 x 7/16" screw

(x2)

#A21520

compression dowel

(x8)

#A80250

shelf support

(x12)

#A11600

#6 x 1-1/4"

screw

(x40)

#A21110

nail

(x20)

#A11080

#6 x 7/16"

screw (black)

(x6)

#A22920

connector

housing

(x6)

#A22910

connector

bolt

(x2)

#A13410

#8 x 1-3/4" screw

(x4)

#A89210

rubber bumper

1234

8910 11 12

14 15

(x2)

#A11160

#6 x 5/8"

screw (silver)

(x6)

#A243207

cam cover

ameriwoodhome.com

Not Actual Size

Part List

Tube

You

(x2)

#A82020

rod bracket

(x1)

#A84050

safety bracket kit

(x4)

#A54213

drawer bracket

(x4)

#A65640

hinge

left cabinet member

right cabinet member

left drawer runner

right drawer runner

(x2)

#A56750

drawer slide

(x1)

#I20600

closet rod

20a

20b

20c

20d

19a

19b

19c

19d

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

(x2)

#A22570

(x6)

#A22510 (x1)

#A82020

(x1)

#A11160

(x1)

#A21660

2 2

ameriwoodhome.com

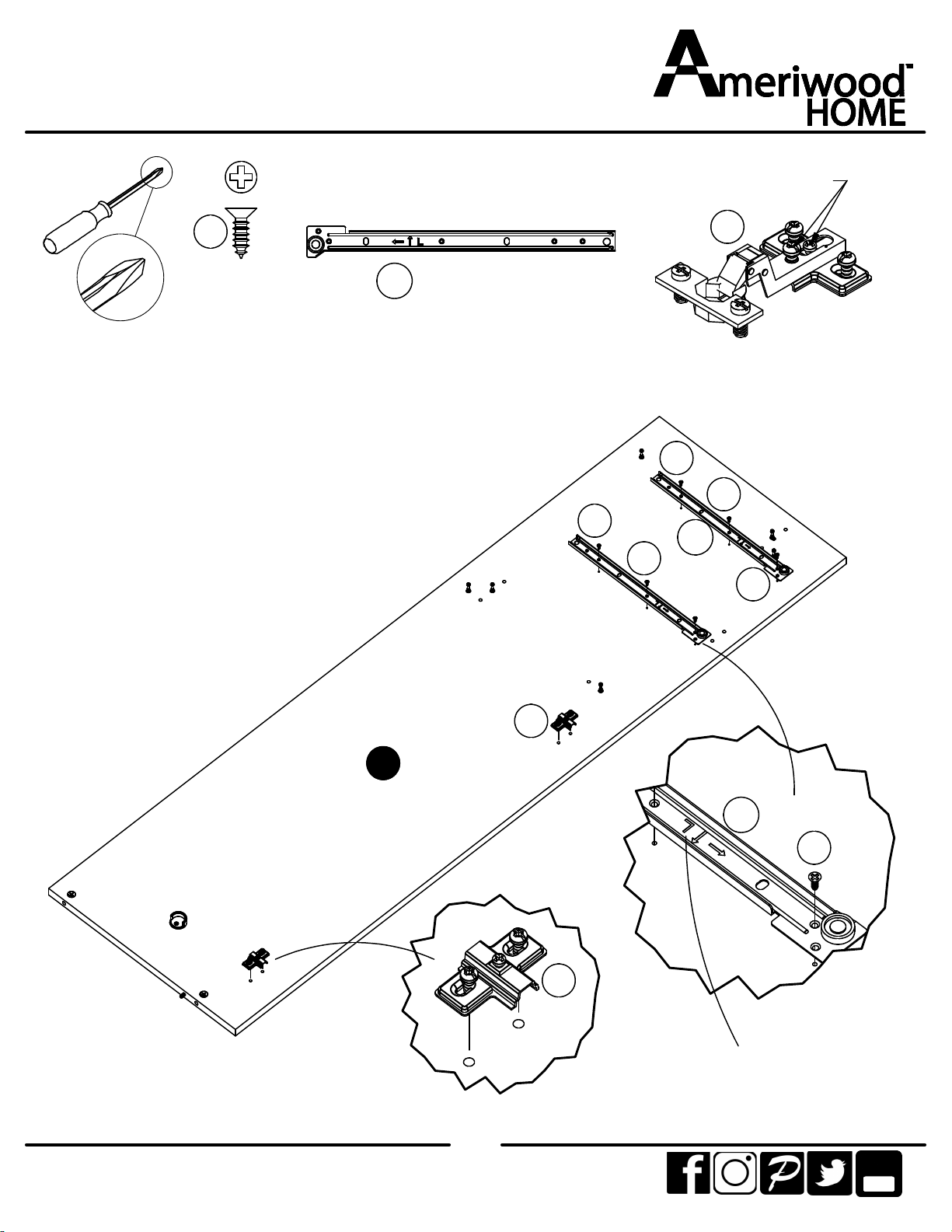

STEP2

Tube

You

* raw edges are shaded

Loosen to separate.

(x6)

#A11080

left cabinet member

Attach two left cabinet members (20a) to the left panel (A)

with screws (11) as shown.

Separate hinge (22) and attach as shown. Pay attention to

orientation when attaching to the panel.

Marked with a "L".

(x2)

#A65640

(x2)

#A56750

19a

20a
