Ameriwood HOME QUEER EYE 6531863COM Bedienungsanleitung

B346531863COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

6531863COM

Tall Dresser

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1.0-1.5 HOUR

Helpful Hints

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

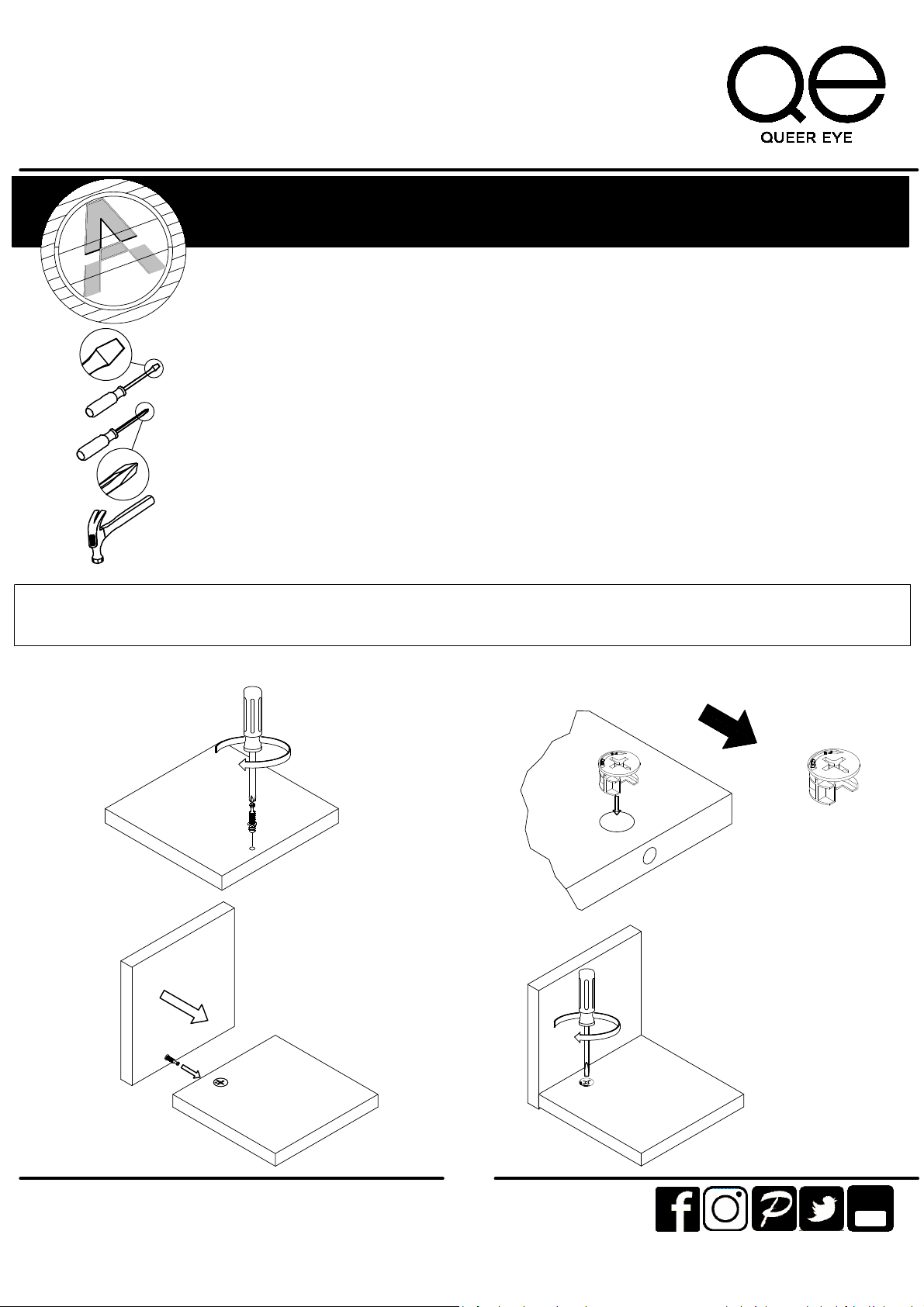

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

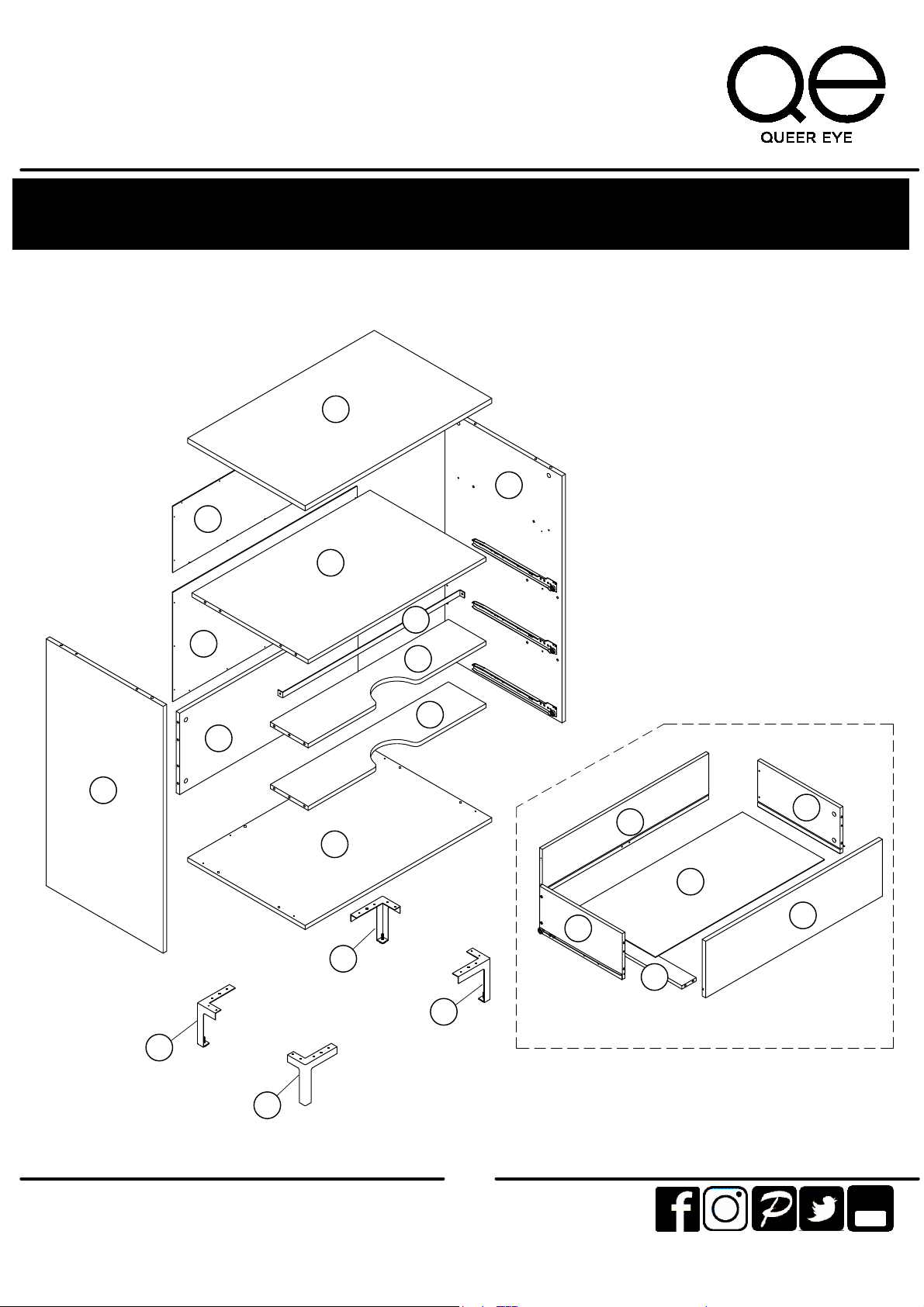

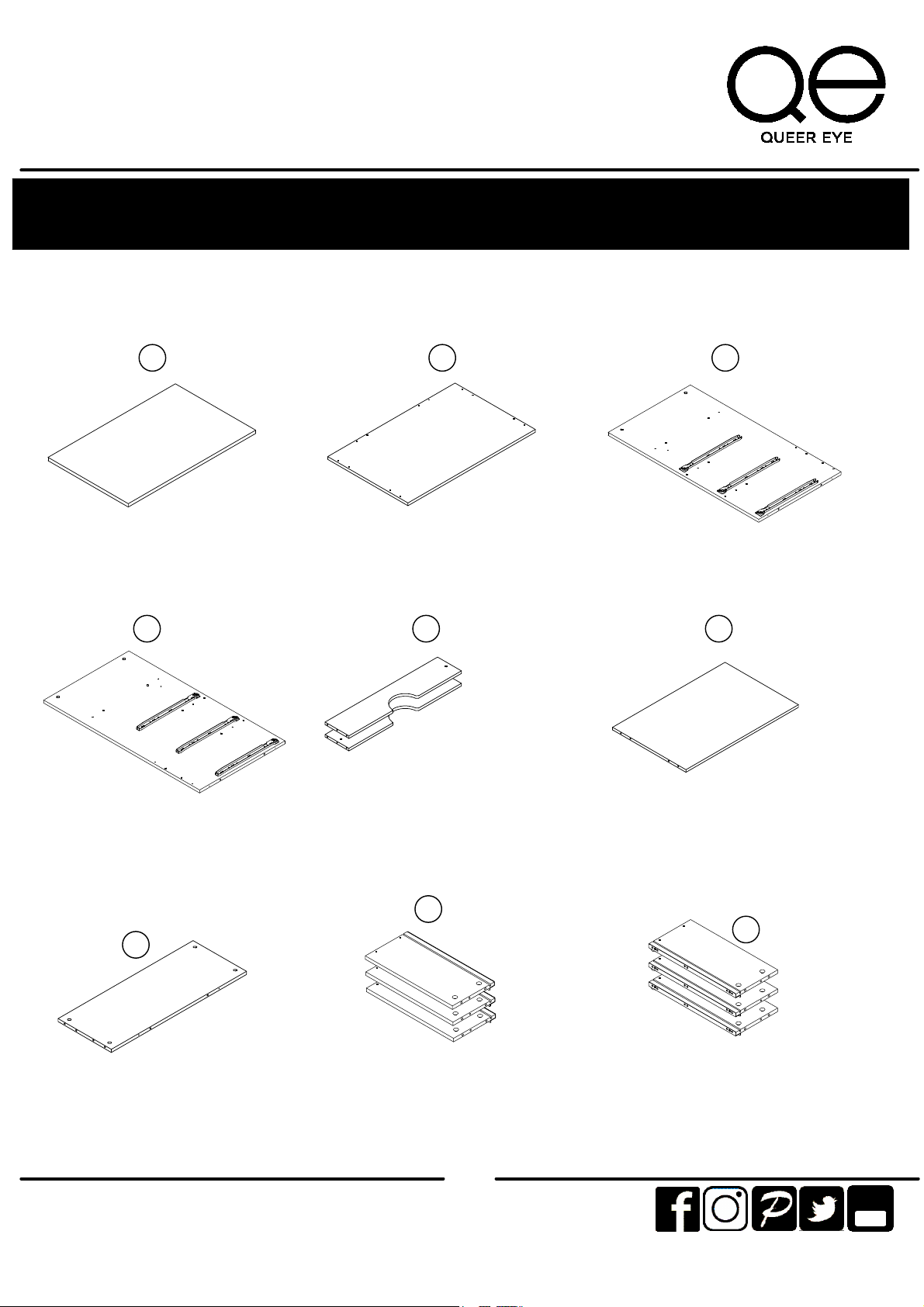

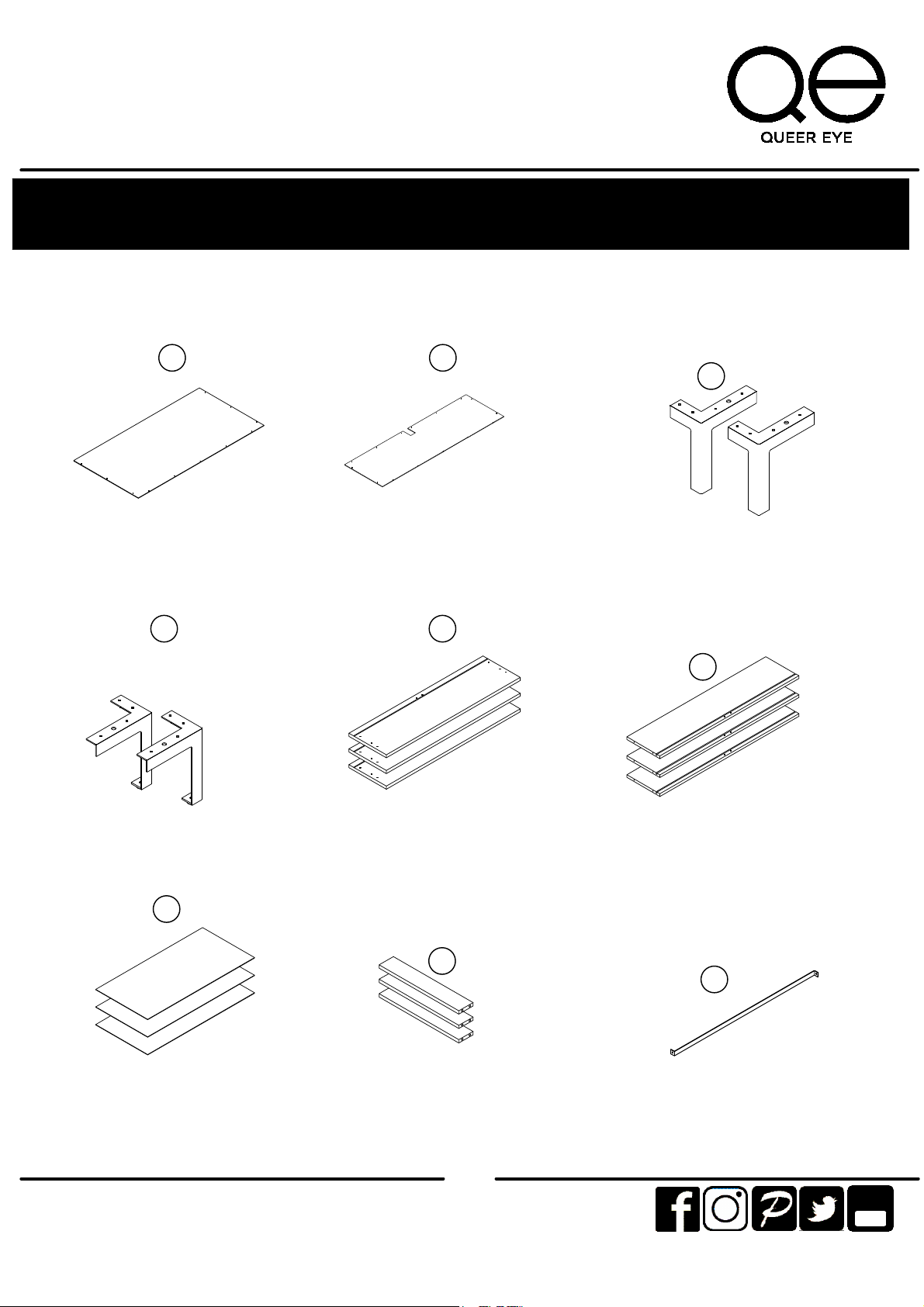

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

BOTTOM

T6531863020GO

QTY: 1 PC

BRACE BAR

T6531863050GO

QTY: 2 PCS

TOP

T6531863010GO

QTY: 1 PC

RIGHT PANEL

T6531863040GO

QTY: 1 PC

LEFT DRAWER SIDE

T6531863080GO

QTY: 3PCS

RIGHT DRAWER SIDE

T6531863090GO

QTY: 3PCS

SOLID BACK PANEL

T6531863070GO

QTY: 1PC

LEFT PANEL

T6531863030GO

QTY: 1 PC

SHELF

T6531863060GO

QTY: 1 PC

A B C

D E F

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

DRAWER BACK

T6531863150GO

QTY: 3PCS

LEGS

T6531863130GO

QTY: 2PCS

DRAWER FRONT

T6531863140GO

QTY: 3PCS

DRAWER BOTTOM

T6531863160GO

QTY: 3PCS

DRAWER SUPPORT

T6531863170GO

QTY: 3PCS

METAL SUPPORT

T6531863180GO

QTY: 1PC

LEGS

T6531863120GO

QTY: 2PCS

LOWER BACK PANEL

T6531863100GO

QTY: 1PC

UPPER BACK PANEL

T6531863110GO

QTY: 1PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

×3

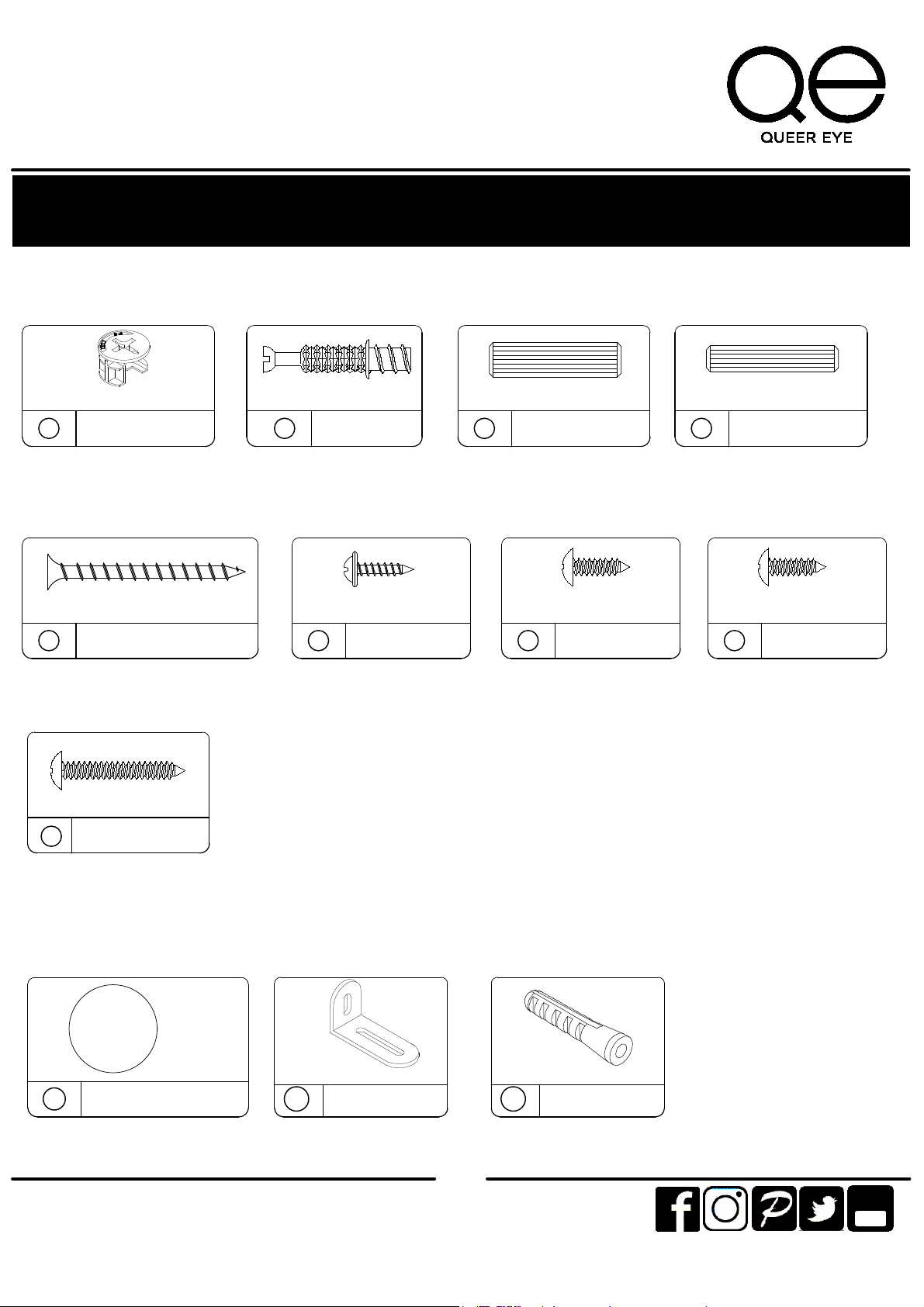

Part List

ameriwoodhome.com

Hardware Bag Reference number:

26531863COM0GO

Actual Size

×34 ×26

WOOD DOWEL

TGO2900

Ø8 x 30mm

Ø15 x 10mm

Tube

You

×34

Ø6 x 25mm

×24

CAM LOCK

TGO2100 CAM BOLT

TGO2001

SCREW

TGO1008

×26

Ø3 x 12mm

SCREW

TGO1301

×18

Ø4.2 x 13mm

SCREW

TGO1304

Ø4.2 x 45mm

×6

WOOD DOWEL

TGO2903

Ø6 x 30mm

No Actual Size

×4

COVER

TGO2298

Ø 20mm

1 2 34

5 6 7

×1

Ø4.2 x 13mm

SCREW

TGO1304

×1

SCREW

TGO1314

Ø4.2 x 28mm

×1

WALL BRACKET

TGO3502

30x50x20mm

×1

WALL ANCHOR

TGO6501

Ø6 x 30mm

11 12

ameriwoodhome.com

STEP

1.1 Cam bolt (2) into (C), (D) and (P) x 3 as illustrated.

1.2 Insert (3) into (C), (D) as illustrated.

×30

Tube

You

P x 3

×16

E x 2

ameriwoodhome.com

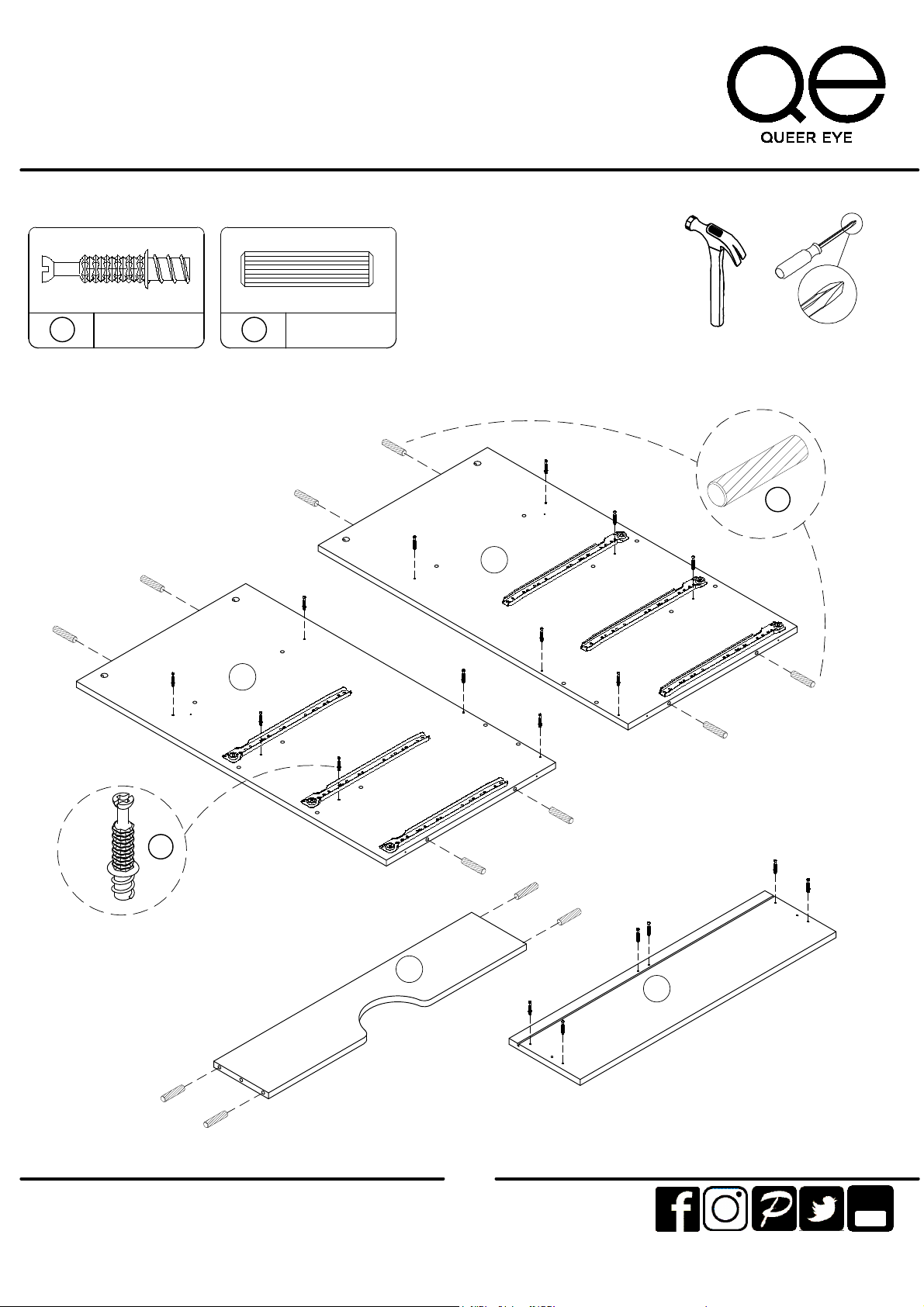

STEP

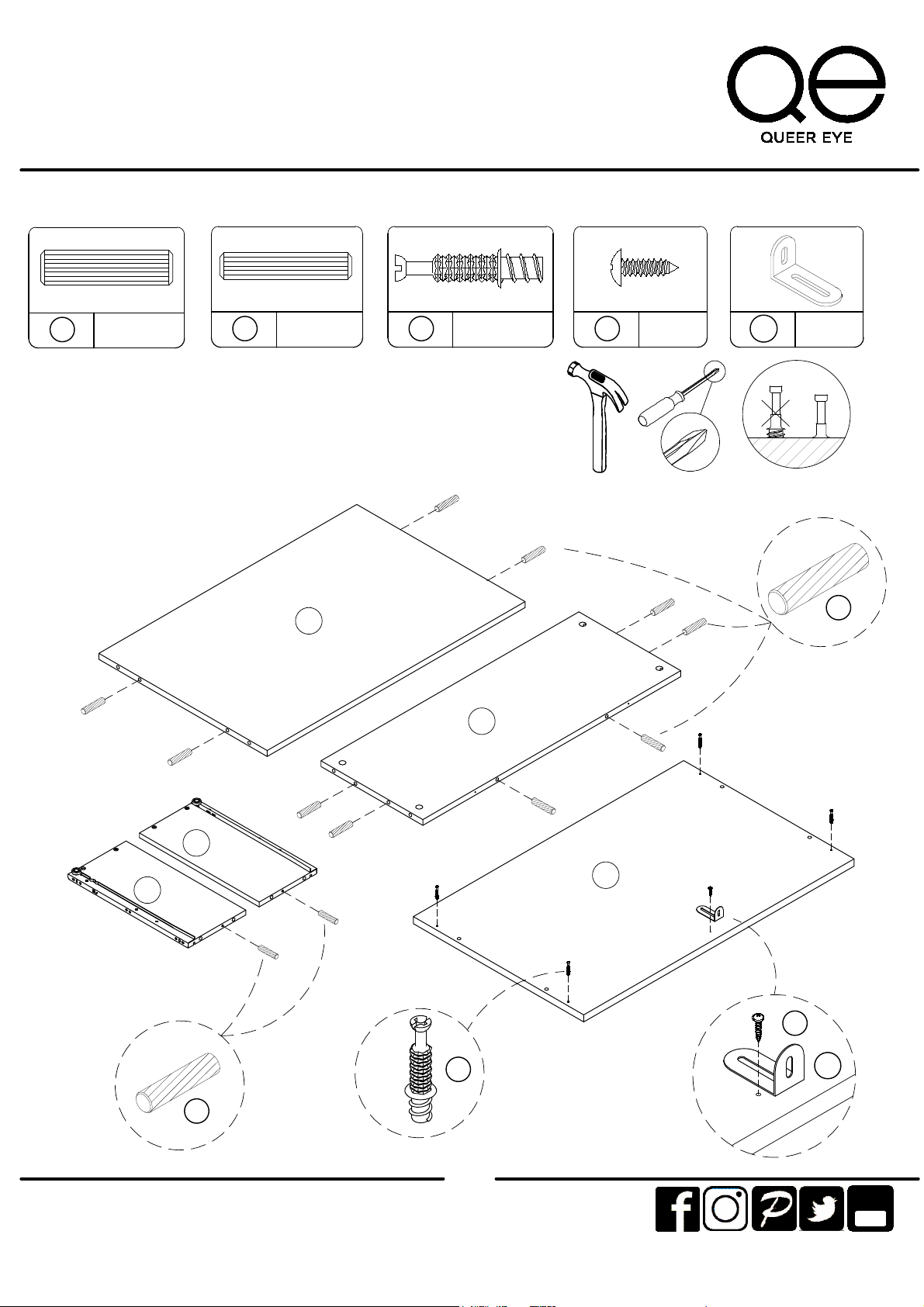

2.1 Insert (3) into (G), (F) as illustrated.

2.2 Insert (4) into (J) x 3, (H) x 3 as illustrated.

2.3 Cam bolt (2) into (A) as illustrated.

2.4 Attach (11) into (A) with (8) as illustrated. Do not fully

tighten bracket at this step.

×10

Tube

You

3 ×6

H x 3

J x 3

×4

×1

8 ×1

ameriwoodhome.com

STEP

Tube

You

FINISHED EDGE

×6

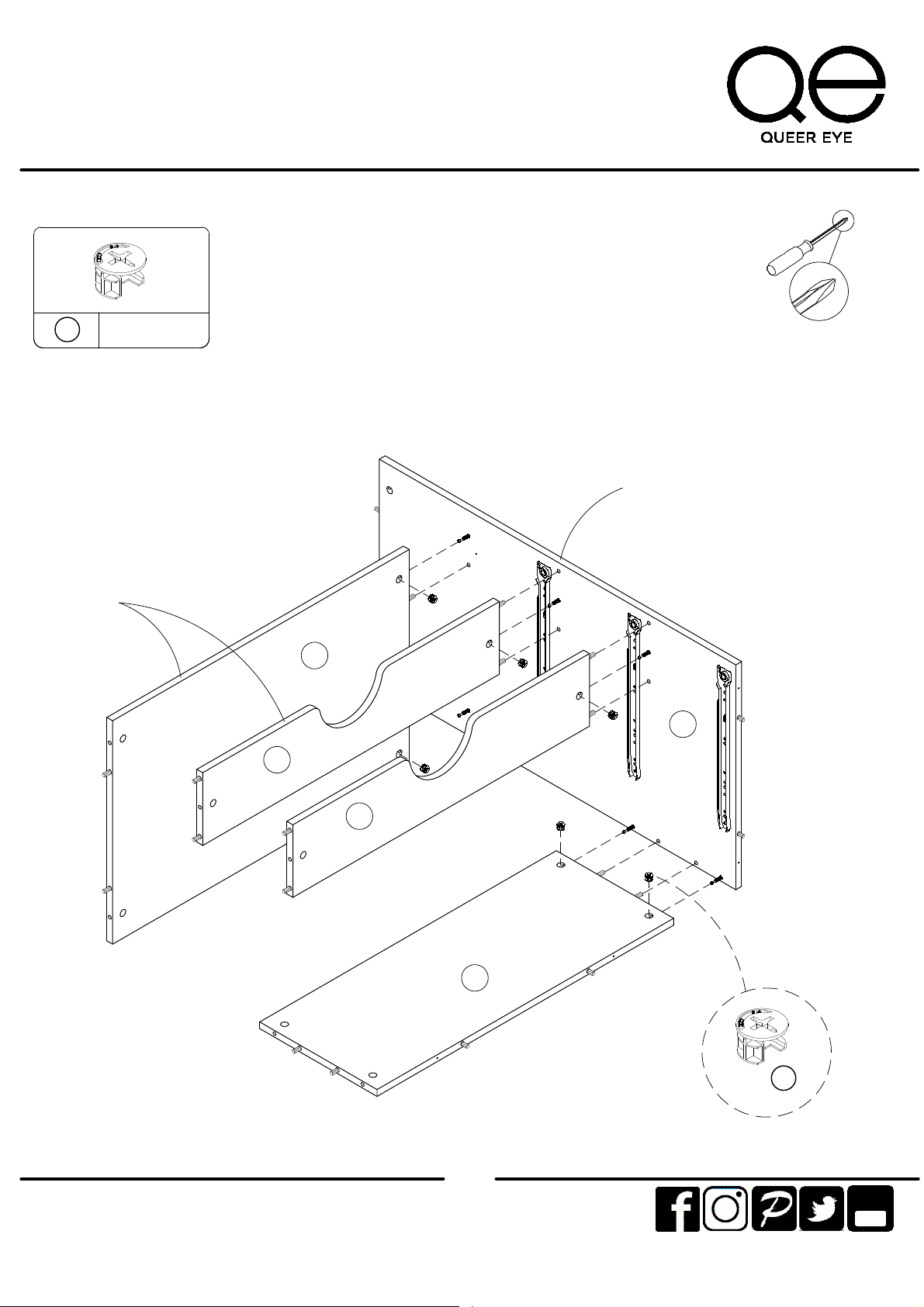

3.1 Attach (F), (G), (E) x 2 into (D) with (1) as illustrated.
