Ameriwood HOME 5974303COM Bedienungsanleitung

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Unit can p over causing severe injury or death.

Keep this Assembly Manual for future reference ameriwoodhome.com

WARNING

Follow Ameriwood Home

Tube

You

B345974303COM00

5974303COM

Crescent Point Twin Headboard

Warning

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.com

AssemblyTips

‐Openyouritemintheareayouplantokeepitforlessheavylifting



‐Identify,sortandcountthepartsbeforeattemptingassembly



‐Compressiondowelsaretappedinwithahammer



‐SlidesarelabeledwithaR(right)andL(left)forproperplacement



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally



‐Backpanelmustbeusedtomakesureyourunitissturdy



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem



‐Neverpush,pull,ordragyourfurniture

Tube

You

Tube

You

ameriwoodhome.com

Board Idenﬁcaon

Not actual size

Tube

You

5974303COM

Crescent Point Twin Headboard

Le Side

T5974303010

Right Side

T5974303020

Top Panel

T5974303030

Small Front Panel

T5974303040

Big Front Panel

T5974303050

Front Bar

T5974303060

Boom Le Panel

T5974303070

Boom Right Panel

T5974303080

ameriwoodhome.com

Part List

Actual Size

Tube

You

5974303COM

Crescent Point Twin Headboard

Miniﬁx Bolt

TPB0001

Cam (15/13)

TPB0002

1 x15 2 x15

Ø8x30mm

Wood Dowel

TPB0004

4 x10

Ø6x25mm

Ø4x25mm

JCBC Screw

TPB0018

18 x4 19 x4

Csk Screw

TPB0009

9 x8

Ø9x12mm

Allen Key

TPB0015

15 x1

Glue

TPB0016

16 x1

Not Actual Size

TPB0019

JCN NUT

ameriwoodhome.com

Before You Start



Quick

Tip

Assembly



Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.



5974303COM

Crescent Point Twin Headboard

ameriwoodhome.com

* Raw edges are shaded

Step 1

Tube

You

Ø8x30

TPB0004

4 x10

5974303COM

Crescent Point Twin Headboard

Glue

Pegamento

Colle

ameriwoodhome.com

* Raw edges are shaded

Step 2

Tube

You

TPB0001

1 x15

5974303COM

Crescent Point Twin Headboard

ameriwoodhome.com

* Raw edges are shaded

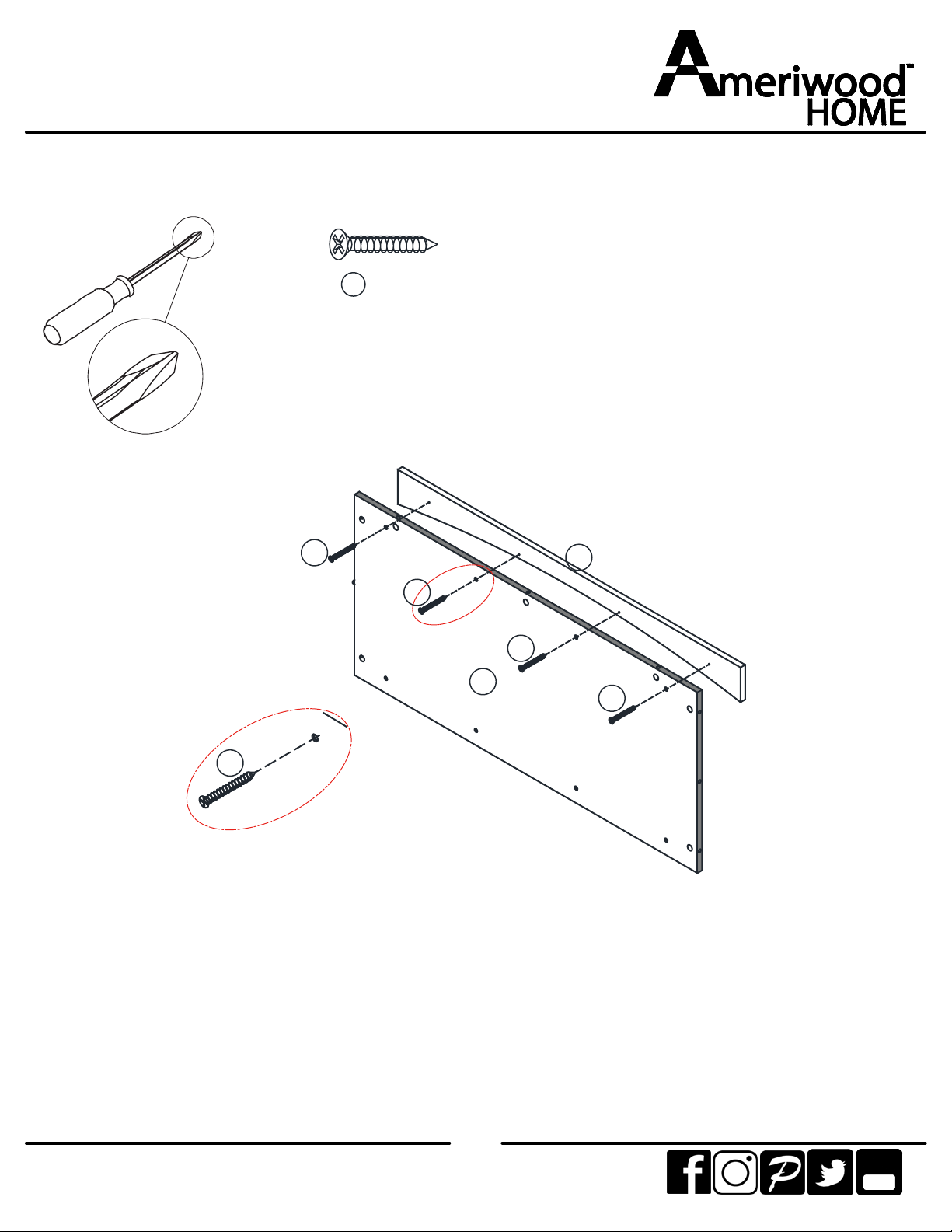

Step 3

Tube

You

5974303COM

Crescent Point Twin Headboard

TPB0009

9 x4

ameriwoodhome.com

* Raw edgesare shaded

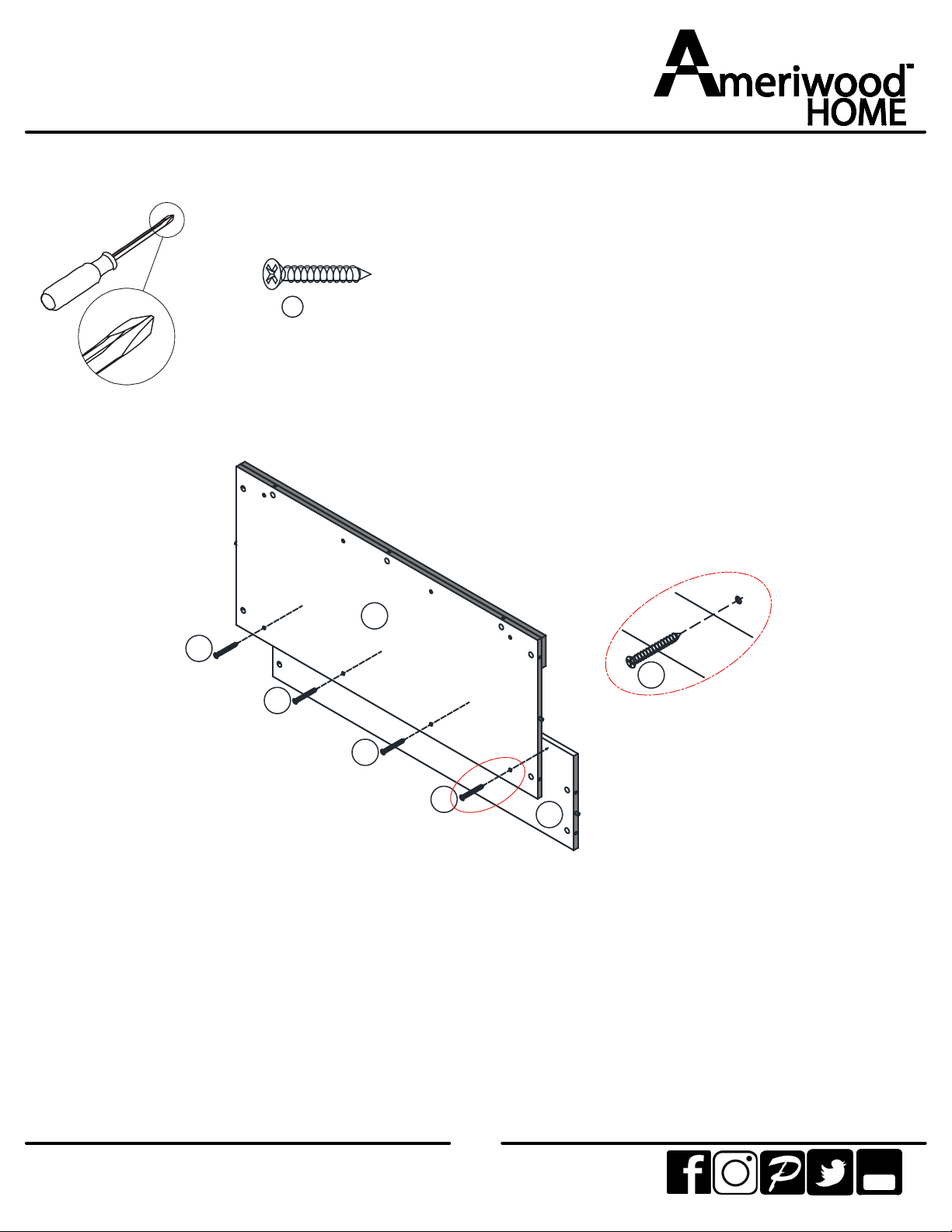

Step 4

Tube

You

5974303COM

Crescent Point Twin Headboard

9 x4

TPB0009

ameriwoodhome.com

* Raw edges are shaded

Step 5

Tube

You

5974303COM

Crescent Point Twin Headboard
