Ameriwood HOME 5991296COM Bedienungsanleitung

5991296COM

Carver Gentleman’s Chest

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help ﬁrst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Easy

Tough

AssemblyDiﬃcultyMeter

WARNING

Follow Ameriwood Home

–Unit c

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

B345991296COM00YX

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help

Call us!

Assembly Tips

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Helpful Hints

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

- Open your item in the area you plan to keep it for less heavy

lifting

- Identify, sort and count the parts before attempting assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (left) for

proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

ameriwoodhome.com

Before You Start



Read through each step carefully and follow the proper order



Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer



This Cam Lock Fastening System will be used throughout the assembly process.

ameriwoodhome.com

please be aware to slow down and stop when screw is

Failure to do so may result in stripping the screw.

Cam Lock Fastening System

Board Identification

Not actual size

T5991296010YX

TOP PANEL

T5991296020YX

LEFT SIDE PANEL

T5991296030YX

RIGHT SIDE PANEL

T5991296040YX

BOTTOM PANEL

T5991296050YX

PARTITION

T5991296060YX

LEFT DRAWER SIDE

T5991296070YX

RIGHT DRAWER SIDE

T5991296080YX

DRAWER FRONT

T5991296090YX

DRAWER BACK

ameriwoodhome.com

Board Identification

Not actual size

T5991296100YX

T5991296110YX

SIDE RAIL

T5991296120YX

LEG

DRAWER BOTTOM

T5991296130YX

FRONT & BACK RAIL

ameriwoodhome.com

T5991296180YX

FRONT SUPPORT

T5991296170YX

CENTER LEG

T5991296160YX

SHELF

T5991296150YX

BACK PANEL

T5991296140YX

DOOR

Hardware Bag Reference Number:

25991296COM0YX

Part List

Actual Size

x36

TYX0001

Cam Bolt

x36

x22

TYX0002

Cam Lock

15-12

TYX0004

DOWEL 8 X 25

x21

TYX0006

NAIL

x80

TYX0008

CBS 3.5 x 16

x31

TYX0009

CBS 4 x 38

x12

TYX0010

PH M4 X 18

x16

TYX0018

SHELF HOLDER

TYX0020

L-BRACKET

ameriwoodhome.com

Hardware Bag Reference Number:

25991296COM0YX

PartList

Not Actual Size

x5 SET

TYX0016

TYX0012

HANDLE

DRAWER SLIDE 12“

x1 set

x2 SET

TYX0021

TYX0019

ANTI TIPPING KIT

SLIDING ROLLER

ameriwoodhome.com

Step 1

x1 SET

TYX0021

TYX0001

* raw edges are shaded

ameriwoodhome.com

Insert Cam Bolt and Fully tighten it.

Fix anti-tipping kit, do no fully tighten in this step

Step 2

TYX0001

* raw edges are shaded

ameriwoodhome.com

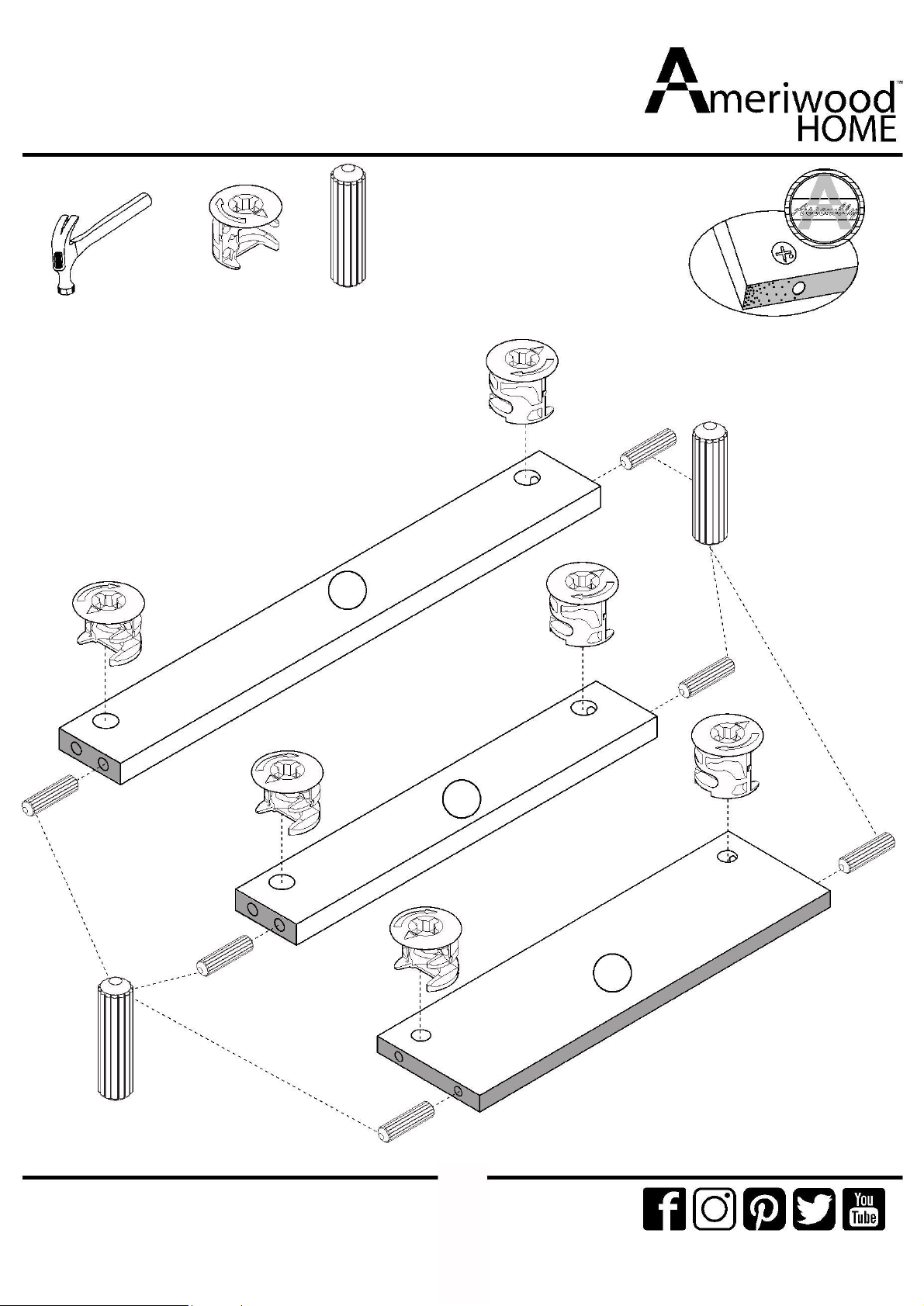

Step 3

Quick

Assembly

Tip

x10

TYX0002

x10

TYX0004

Proper orientation of CAM LOCK

Please ensure direction of Cam Lock

* raw edges are shaded

ameriwoodhome.com
