Ameriwood HOME 9257196COM Bedienungsanleitung

B349257196COM01

Do Not Return This Product!

Contact our customer service team for help ﬁrst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can !p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

CARVER LIFT TOP DESK

9257196COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diﬃculty Meter

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy li!ing

- Iden"fy, sort and count the parts before a#emp"ng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le!) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Before You Start

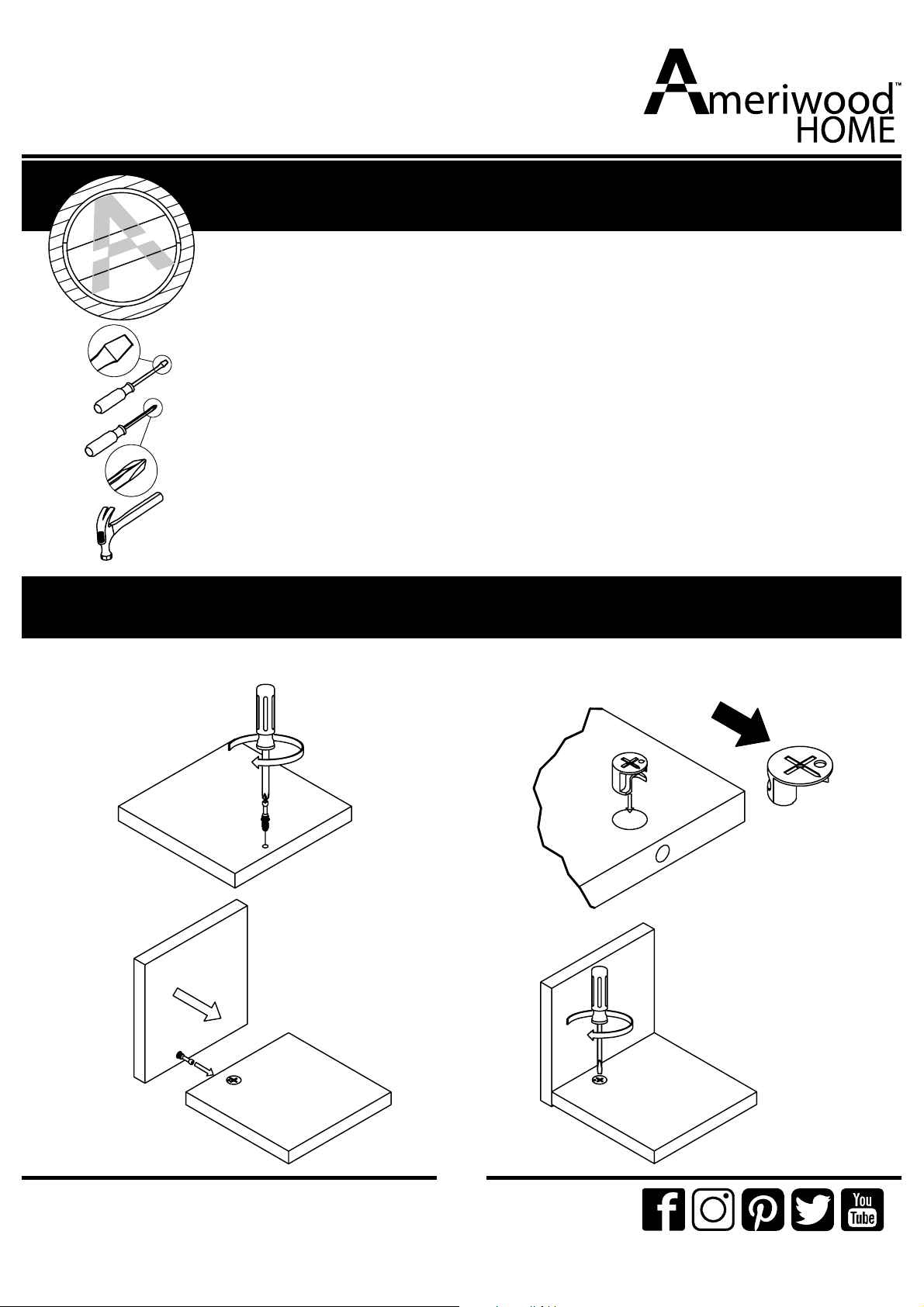

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cau!on: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is !ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T9257196010UD

LIFT TOP PANEL

T9257196020UD

RIGHT TOP PANEL

T9257196030UD

LEFT SIDE PANEL

T9257196040UD

MIDDLE PARTITION

T9257196050UD

SIDE SUPPORT PANEL

2 3

T9257196060UD

RIGHT SIDE PANEL

T9257196070UD

FRONT PANEL

T9257196100UD

UPPER SHELF

T9257196080UD

RIGHT FRONT APRON

T9257196110UD

LEFT FRAME

T9257196090UD

UPPER BACK PANEL

T9257196120UD

LEFT FRONT APRON

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T9257196130UD

LEFT BACK PANEL

T9257196140UD

BACK PANEL SUPPORT

T9257196150UD

MIDDLE FRAME

T9257196160UD

RIGHT FRAME

T9257196170UD

MIDDLE RAIL

14 15

T9257196180UD

RIGHT BACK PANEL

T9257196190UD

LOWER SHELF

T9257196220UD

FOOT

T9257196200UD

LOWER SUPPORT PANEL

T9257196230UD

FOOT

T9257196210UD

LOWER SUPPORT PANEL

T9257196240UD

FOOT

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T9257196250UD

LEFT SUPPORT PANEL

T9257196260UD

RIGHT SUPPORT PANEL

T9257196270UD

SUPPORT WOOD BLOCK

T9257196280UD

UPPER DRAWER FRONT

T9257196290UD

UPPER DRAWER LEFT

26 27

T9257196300UD

UPPER DRAWER RIGHT

T9257196310UD

UPPER DRAWER BACK

T9257196340UD

MIDDLE DRAWER LEFT

T9257196320UD

DRAWER BOTTOM

T9257196350UD

MIDDLE DRAWER RIGHT

T9257196330UD

MIDDLE DRAWER FRONT

T9257196360UD

MIDDLE DRAWER BACK

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T9257196370UD

LOWER DRAWER FRONT

T9257196380UD

LOWER DRAWER LEFT

T9257196390UD

LOWER DRAWER RIGHT

T9257196400UD

LOWER DRAWER BACK

T9257196410UD

LOWER DRAWER BOTTOM

38 39

T9257196420UD

LIFT MECHANISM

T9257196430UD

LIFT MECHANISM

T9257196440UD

SUPPORT TUBE

T9257196450UD

SUPPORT TUBE

Part List

Actual Size

ameriwoodhome.com

x54

TUD0001

Cam Bolt

x54

TUD0002

Cam Lock

15-12

x36

TUD0030

DOWEL 6 X 30

Hardware Bag Reference Number:

29257196COM0UD

TUD0022

CBS 4 X 30

x39

TUD0009

CBS 4 x 38

x50

TUD0008

CBS 3.5 x 16

TUD0011

PH M4 X 12

TUD0007

CBS 3.5 x 12

Part List

Not Actual Size

ameriwoodhome.com

Hardware Bag Reference Number:

29257196COM0UD

x1 SET

TUD0049

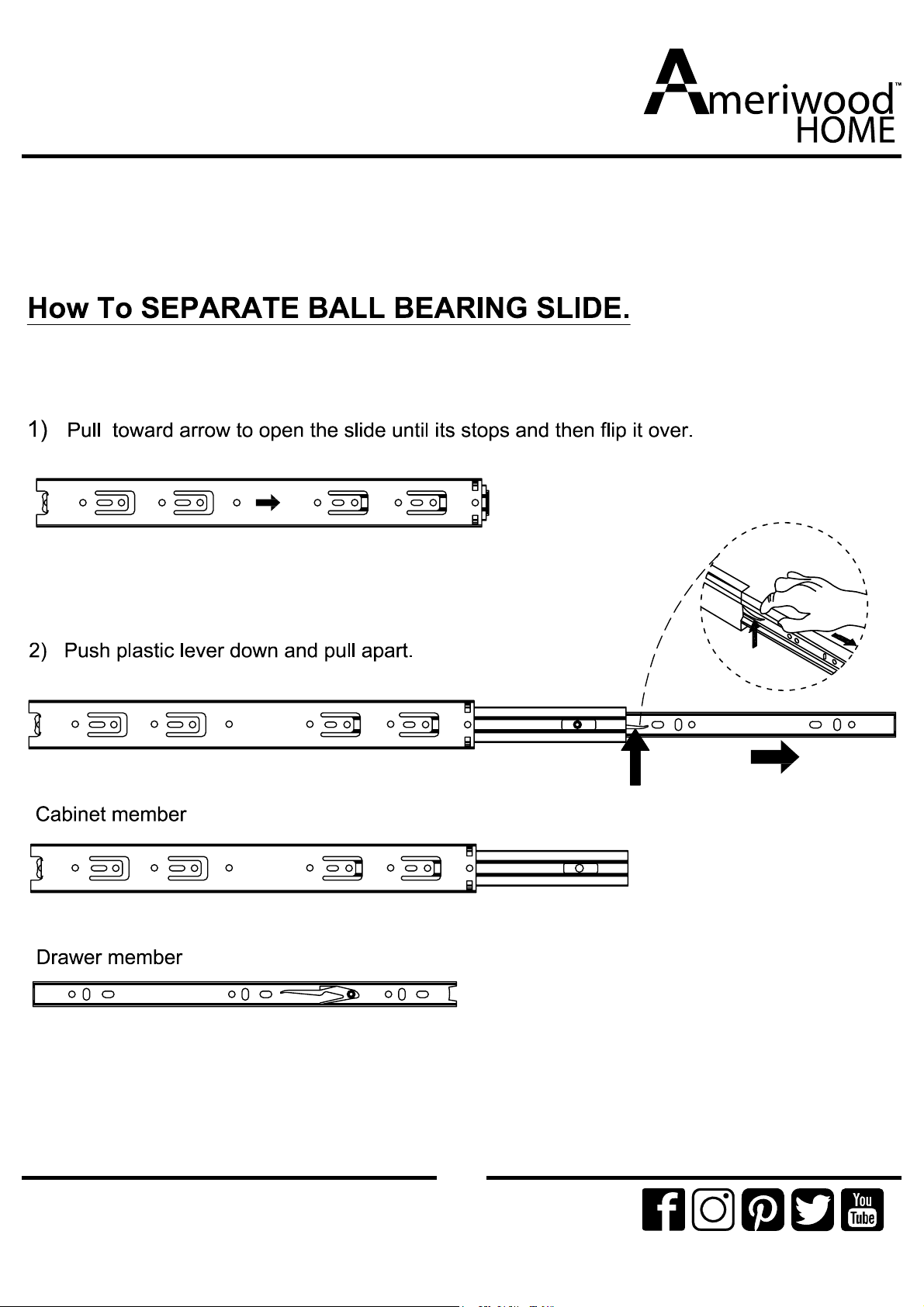

FULL EXT. SLIDE

350 MM

TUD0050

METAL FILE HOLDER

Ø5 X 356

x12

TUD0047

JCBC SCREW

6 X 40

TUD0048

BARREL NUT

1/4” X 12

TUD0026

ALLEN KEY

TUD0012

HANDLE

x2 SETS

TUD0017

DRAWER SLIDE

350 MM

TUD0052

JCBC SCREW

6 X 30

TUD0053

NUT 6 X 10

TUD0054

WRENCH

10 MM

TUD0041

SPRING WASHER

ameriwoodhome.com

* raw edges are shaded

Step 1
