Ameriwood HOME 9833337COM Bedienungsanleitung

9833337COM

SINGLE PEDESTAL DESK

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B349833337COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2-1/2 HOUR

ameriwoodhome.com

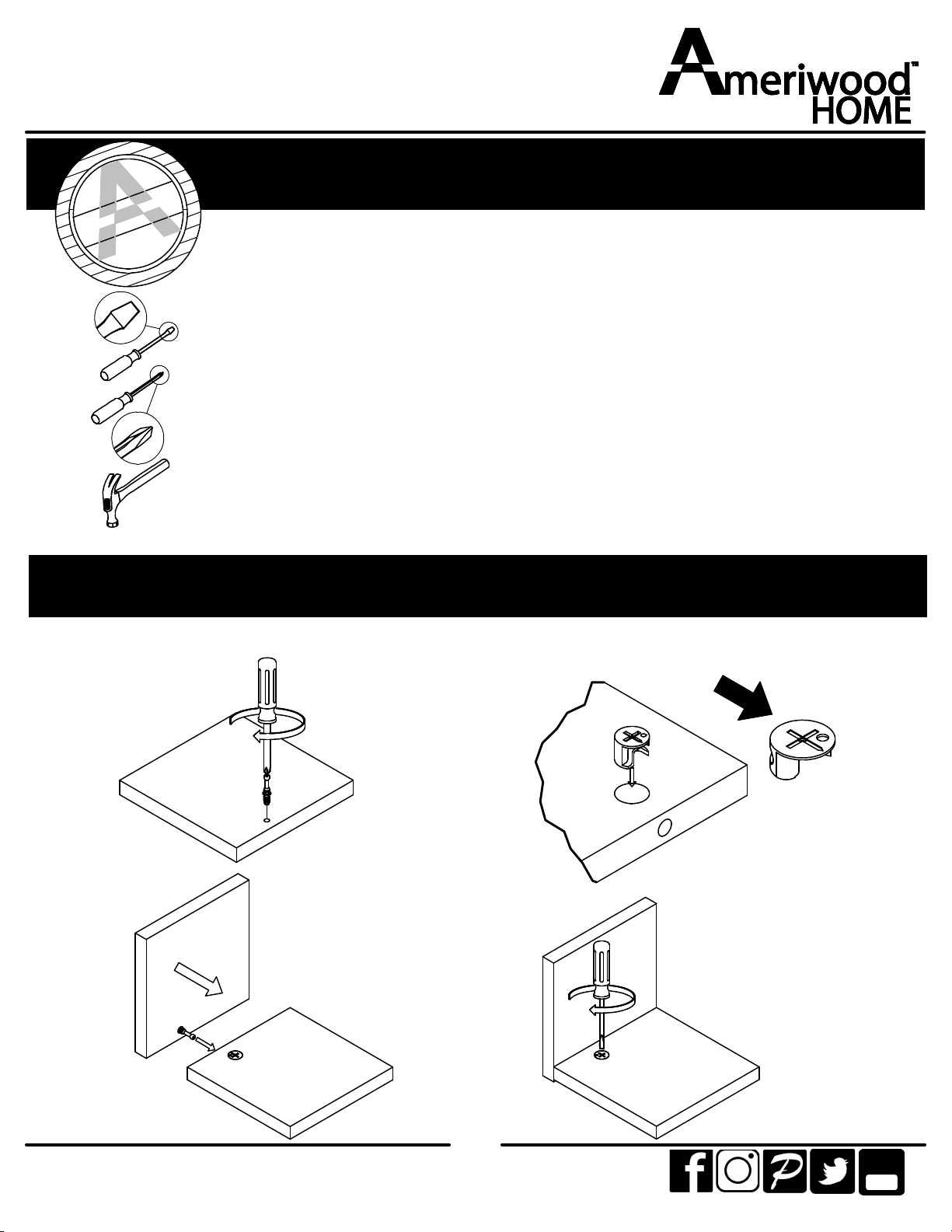

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

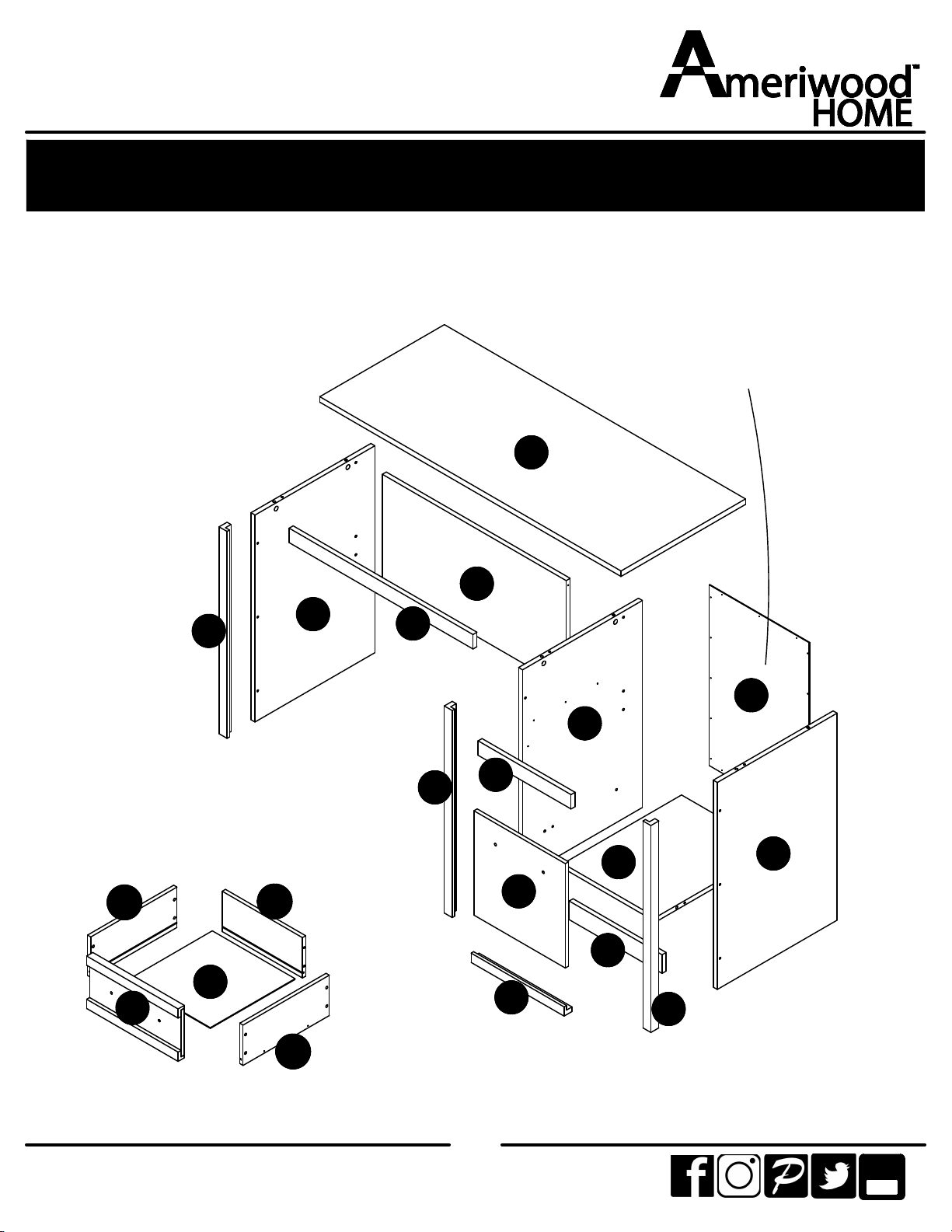

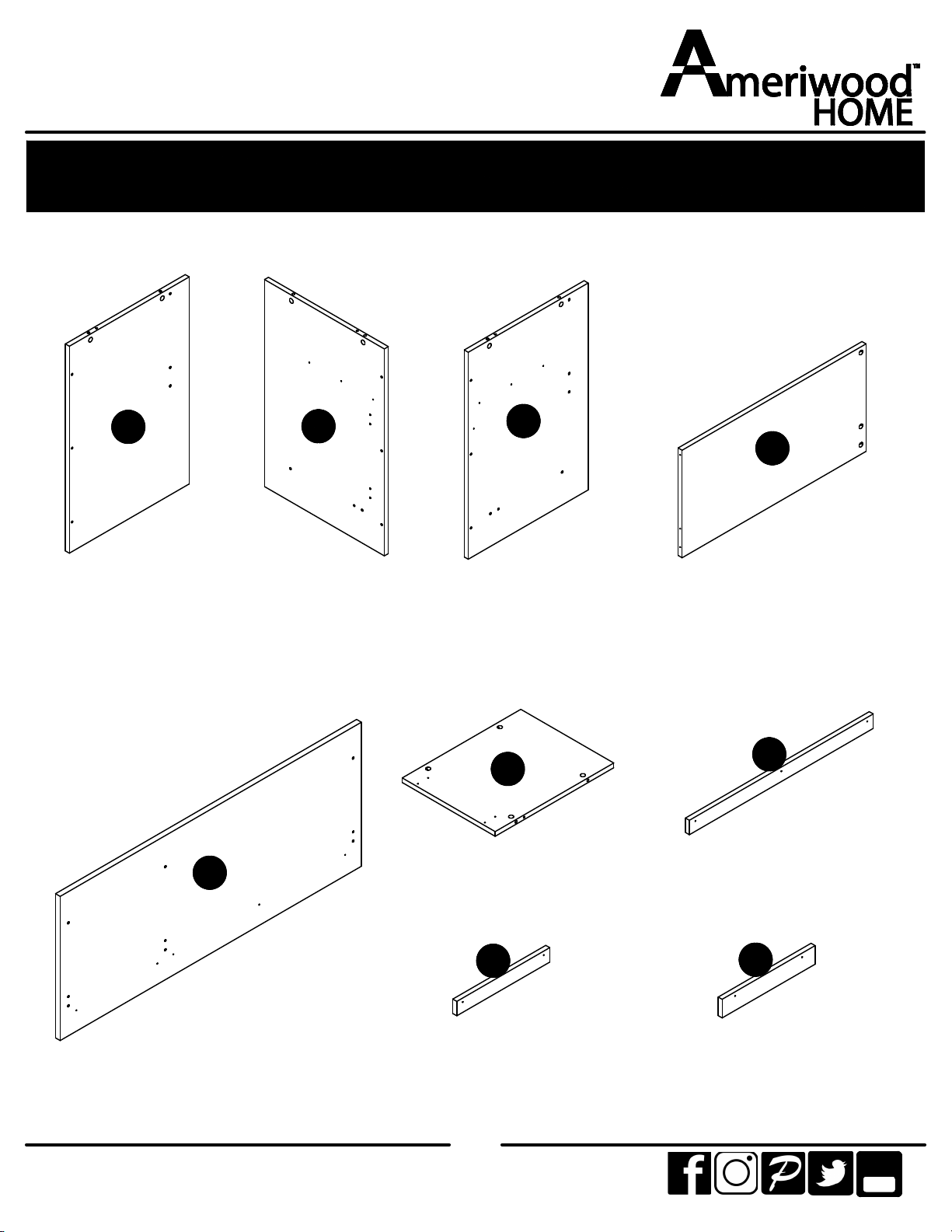

Board Identification

Not actual size

Tube

You

Left Panel

39833337010

Right Panel

39833337020

Partition

39833337030

Modesty Panel

39833337040

Top

39833337050

Bottom

39833337060

Large Upper Rail

39833337070

Lower Rail

39833337090

Upper Rail

39833337080

ABCD

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Vertical Rail

39833337100

Horizontal Molding

39833337110

Door

39833337120

Door Front

Assembly

39833337130

JJJ

Drawer Bottom

39833331160

Back Panel

K983333700

Drawer Side

39991140346200C

DWR

SIDE

DWR

SIDE

Drawer Back

39991140032240B

DWR

BACK

This piece is not made

from wood but is required

for the assembly of your unit.

ameriwoodhome.com

Board Identification

DWR

SIDE

DWR

BACK

DWR

SIDE

This piece is not made

from wood but is required

for the assembly of your unit.

Tube

You

ameriwoodhome.com

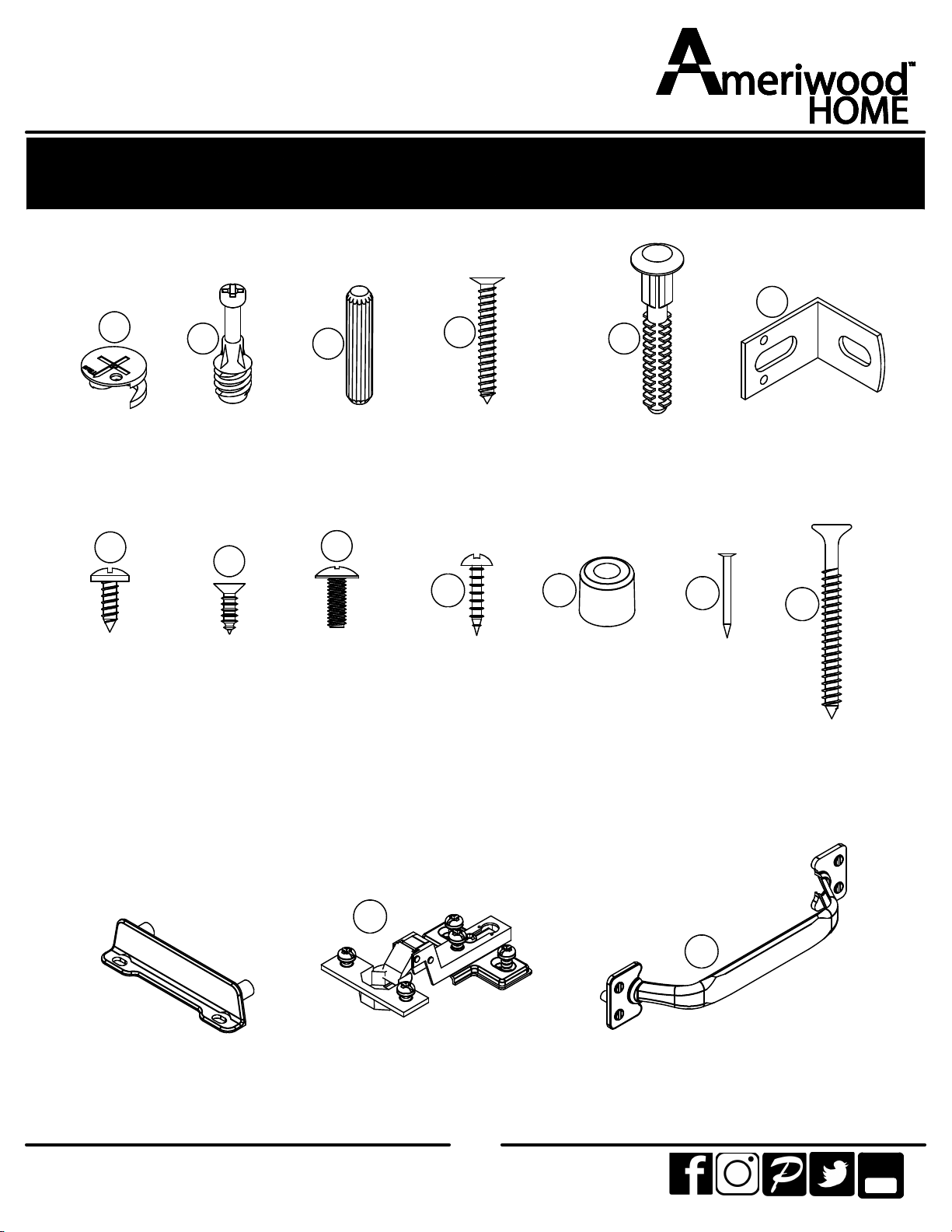

Part List

Actual Size

Tube

You

Not Actual Size

(x13)

#A22570

cam lock

(x13)

#A22510

cam bolt

(x5)

#A21660

wood dowel

(x11)

#A12955

1-1/8" flat head

(x4)

#A21970

drive fastener

(x7)

#A53600

angle bracket

(x16)

#A21110

nail

(x1)

#A89020

rubber bumper

(x1)

#A11170

5/8" pan

head screw

(x4)

#A17000

8-32 x 3/8"

screw

(x10)

#A11080

7/16" flat

head screw

(x22)

#A12120

7/16" screw

(x2)

#A54510

drawer bracket

(x2)

#A65640

hinge

(x2)

#A50515

handle

12345

789

10 11 12 13

(x3)

#A13410

#8 x 1-3/4"

flat head screw

ameriwoodhome.com

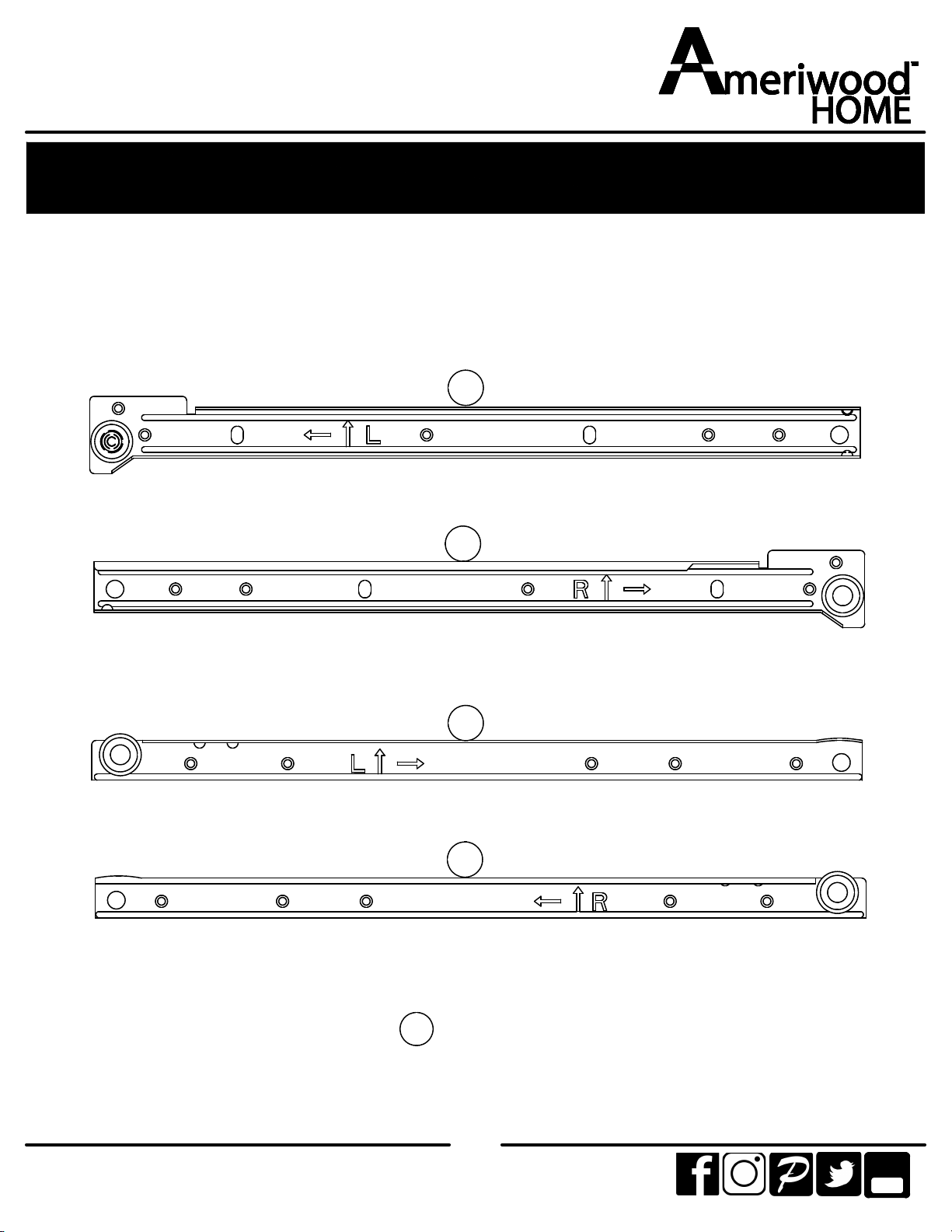

Part List

Not Actual Size

(x1)

#A56770

slide

Right Drawer Runner

Left Drawer Runner

Right Cabinet Member

Left

Cabinet Member

Tube

You

17a

17b

17c

17d

ameriwoodhome.com

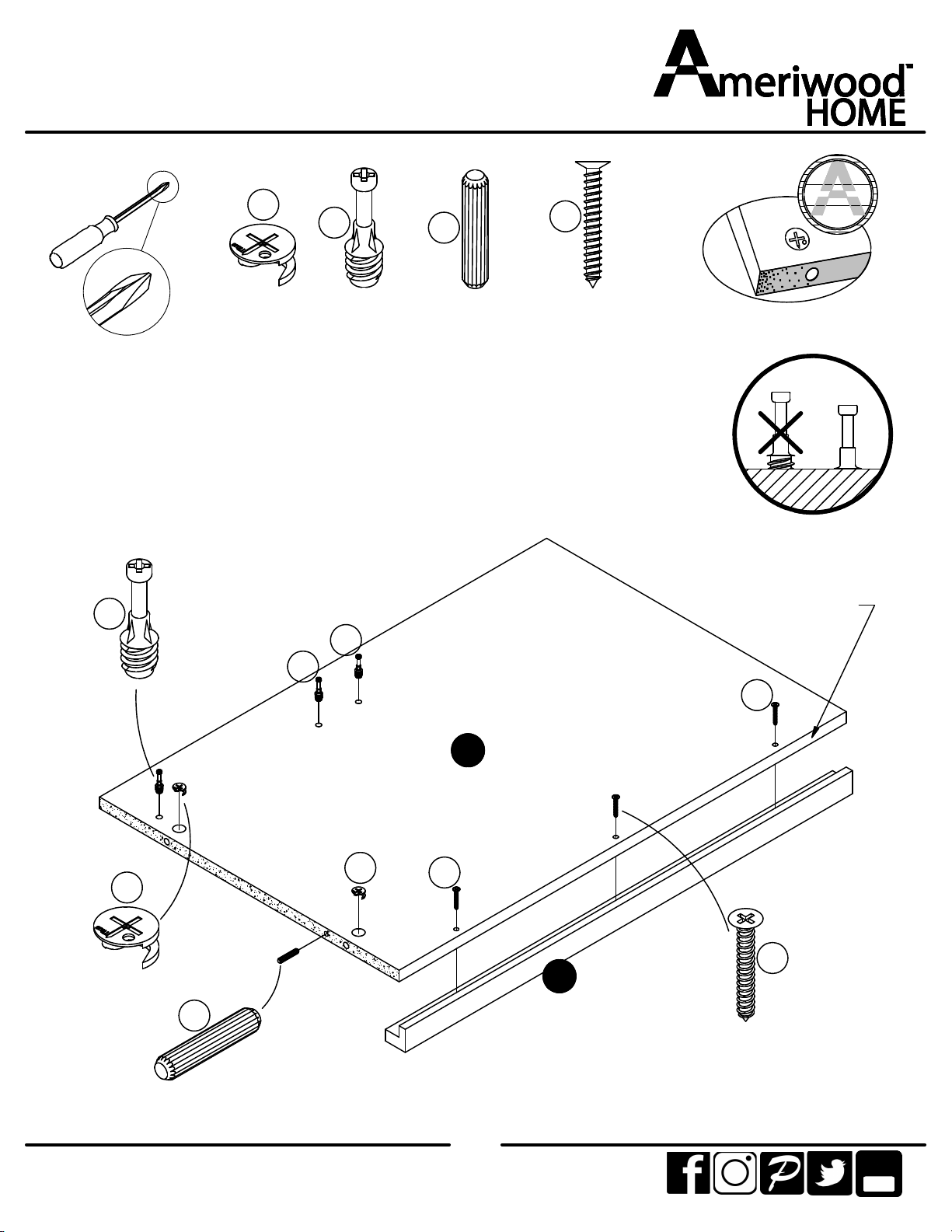

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

(x2)

#A22570

* raw edges are shaded

234

(x3)

#A22510

(x1)

#A21660

(x3)

#A12955

finished edge

ameriwoodhome.com

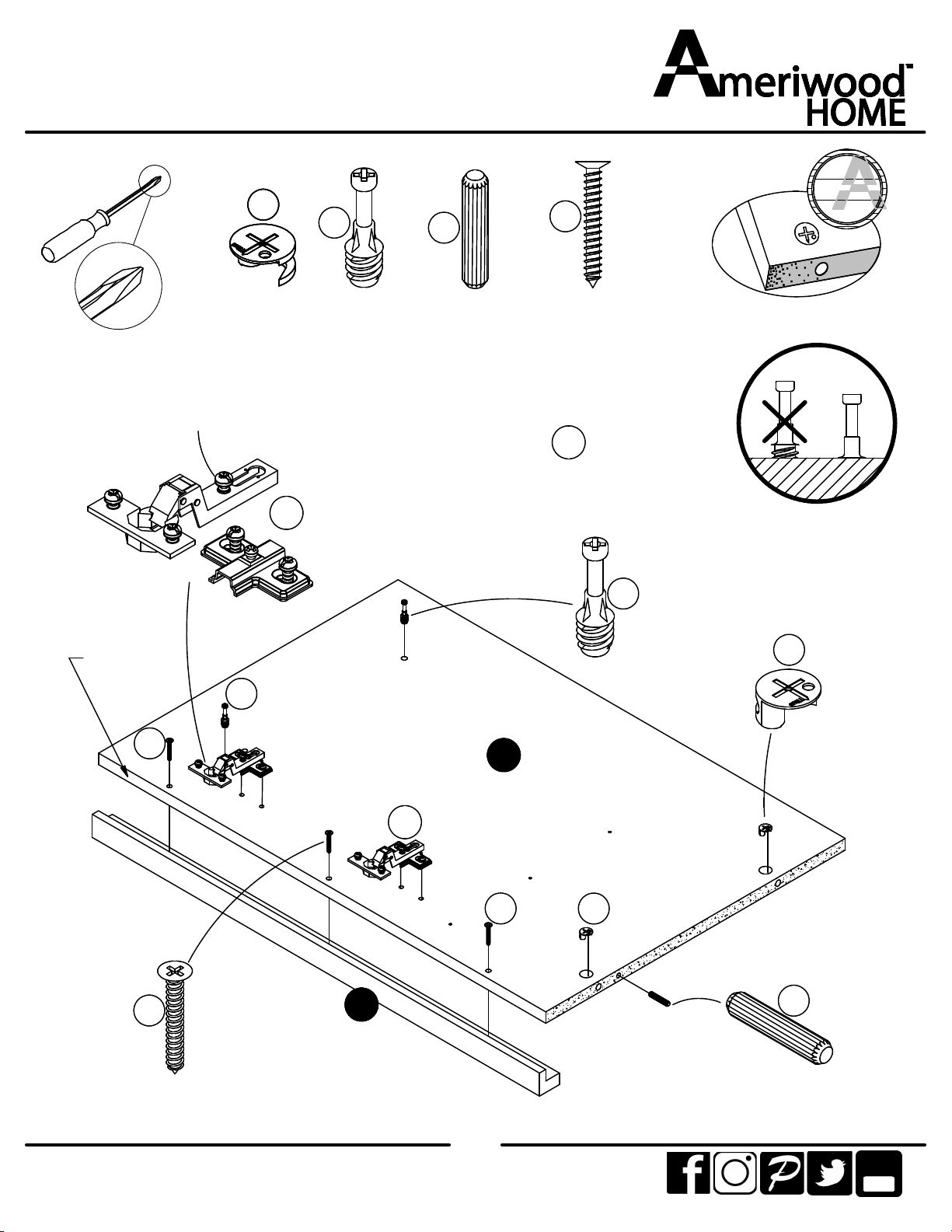

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Tube

You

* raw edges are shaded

After attaching hinge, separate

by loosening this screw.

(x3)

#A12955

(x1)

#A21660

(x2)

#A22510

(x2)

#A22570

(x2)

#A65640

finished

edge

111
