Franklin Accent Table W/2 Drawers

B345062796COM0

DateofPurchase___/___/___

LotNumber:

‐Unitcantipovercausingsevereinjuryordeath.

‐Anchorunittostudinwall(ifinstructedto).

‐DoNotallowchildrentoclimbonunit.

‐Putheavyitemsonlowershelvesordrawers.

WARNING

FollowAmeriwoodHome

Tube

You

AssemblyDifficultyMeter

Easy Tough

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.com

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.

‐Identify,sortandcountthepartsbeforeattemptingassembly.

‐Compressiondowelsarelightlytappedinwithahammer.

‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.

‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.

‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.

‐Backpanelmustbeusedtomakesureyourunitissturdy.

‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.

‐Neverpush,pull,ordragyourfurniture.

Tube

You

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

ESTIMATEDASSEMBLYTIME:1HOUR

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Tube

You

Readthrougheachstepcarefullyandfollowtheproperorder

Separateandcountallyourpartsandhardware

Giveyourselfenoughroomfortheassemblyprocess

Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



4

ameriwoodhome.com

BoardIdentification

Notactualsize

Tube

You

A B D

Top Panel

T5062796010 Left SidePanel

T5062796020Shelf

T5062796040

Right SidePanel

T5062796030

E F H

BackFrame

T5062796050Front Frame

T5062796060DrawerLeft SidePanel

T5062796080

DrawerFacePanel

T5062796070

IJK

DrawerRight SidePanel

T5062796090DrawerBottomPanel

T5062796100DrawerBackPanel

T5062796110

X 1 X 1 X 1 X 1

X 1 X 1 X 2 X 2

X 2

5

ameriwoodhome.com

BoardIdentification

Notactualsize

Tube

You

6

ameriwoodhome.com

PartList

ActualSize

Tube

You

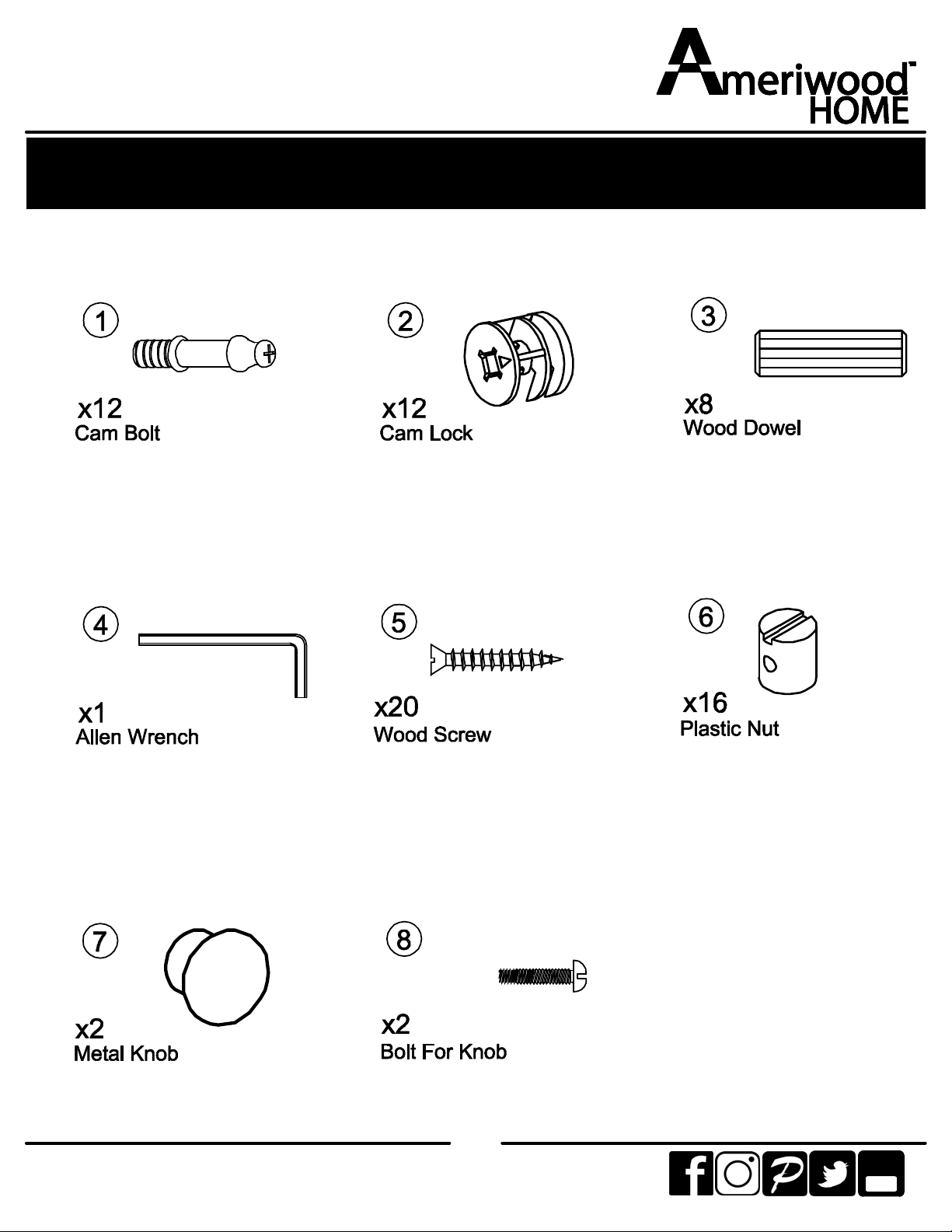

TNN0001 TNN0002 TNN0003

TNN0004 TNN0006

TNN0007 TNN0008

7

ameriwoodhome.com

STEP1

Tube

You

*rawedgesareshaded

Insertfourcamlocksintoeachshelfasshown.

2x4

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TLD0001 TLD0003

TLD0002

8

ameriwoodhome.com

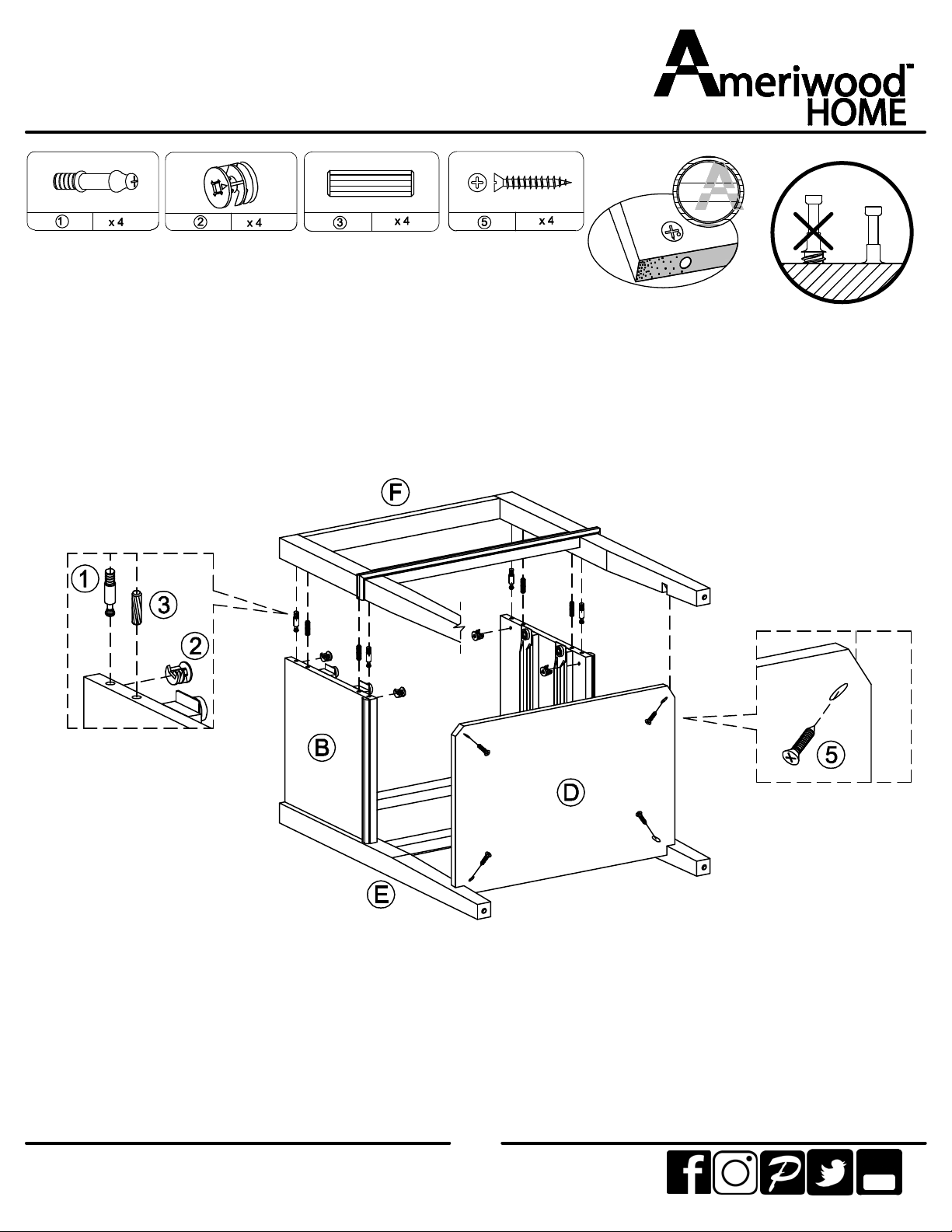

STEP2

Tube

You

*rawedgesareshaded

9

ameriwoodhome.com

STEP3

Tube

You

*rawedgesareshaded

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TLD0002

TLD0001 TLD0005

TLD0003

10

ameriwoodhome.com

STEP4

Tube

You

*rawedgesareshaded

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TLD0001 TLD0002
