TEC 2800 （Version：AMOSTEC2800TCOP20150318）

Thermal Console

Operation Manual

www.amos-scientific.com

AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140

Foreword

Thank you for purchasing our TEC2800

Thermal console. Presented in this 《Operation

Manual》are the functions and operation method

support for the Embedding Center and the matters

needing attention concerning safety. Please

carefully read this manual before use so that you

can understand its performance better and make

full use of the functions. If you have any questions,

of you at any time.

Please keep this 《Operation Manual 》

appropriately for later consultation.

Contents

1、Safety Matters.................................................................................................................................1

1.1、SAFETYATTENTIONS ......................................................................................................................1

1.2、CONDITIONS OF INSTALLATION......................................................................................................1

1.3、DELIVERY INSPECTION...................................................................................................................1

2、Characteristics & Application...................................................................................................2

3、Main Structure................................................................................................................................2

4、Technical Parameters ...................................................................................................................2

5、Operation Explanation..............................................................................................................3

5.1 EXPLAINATION OF FUNCTIONAL KEYS ............................................................................................3

5.2 INSTRUCTIONS............................................................................................................................... 3-4

6、Trouble shooting.............................................................................................................................5

7、Cleaning ＆Maintenance..........................................................................................................5

8、Schematic Diagram Of Integrated Circuit............................................................................6

9、Distribution Diagram Of Component..................................................................................... 7

TEC2800 Thermal Console

AMOSTEC2800TCOP20150318

---1---

1. Safety Matters

●Please read these explicit rules. Act in violation of them can affect normal operation of the equipment,

cause damage to the equipment or result in danger.

Use 220VAC±10% at 50HZ or 110VAC±10% at 60HZ

The input power supply must have good earthing

The equipment should be installed far away from flammable and explosive objects

Don’t open the equipment without authorization to prevent high voltage shock

Only professional maintenance worker are allowed to repair this product

Use fuses with correct capacity

Ensure that the power supply socket and circuit are able to withstand at least two times

The equipment should be installed far away from any interference source

◼Electrical Protection Ratings: I class, B type

◼Baleful liquid Leak-in proof degree: Normal (enclosed equipment without liquid leak-in

proof)

◼Working system: Continuous running

● Installation environment

(1) More than 20cm of space around the equipment for heat dissipation.

(2) Free of water-drop ,steam, dust(including oily dust and flying dust)

(3) Free of corrosive, flammable and explosive gas and liquid

(4) Firm and without vibration

(5) Free of electromagnetic interference

(6) Ambient temperature and relative humidity at 5℃—+40℃ and less than 90%,respectively

● Delivery inspection

Although the product has already been inspected on quality before leaving the factory, the following

inspection is necessary at delivery because many be damaged and accessories get missing caused by

careless handling during transportation.

(1) Open the packing boxes and check the contents to make sure that there is the product, operation manual,

certificate, packing list and accessories.

(2) Check the nameplate to make sure that the product is the one you ordered.

（3）Make sure that the product and accessories do not get damaged or missing during transportation.

AEC380 Thermal Console

AMOSAEC380TCOP20130318

---2---

2.Characteristics & Application

TEC2800 Thermal console is support for Embedding Center.

3．Main Structure

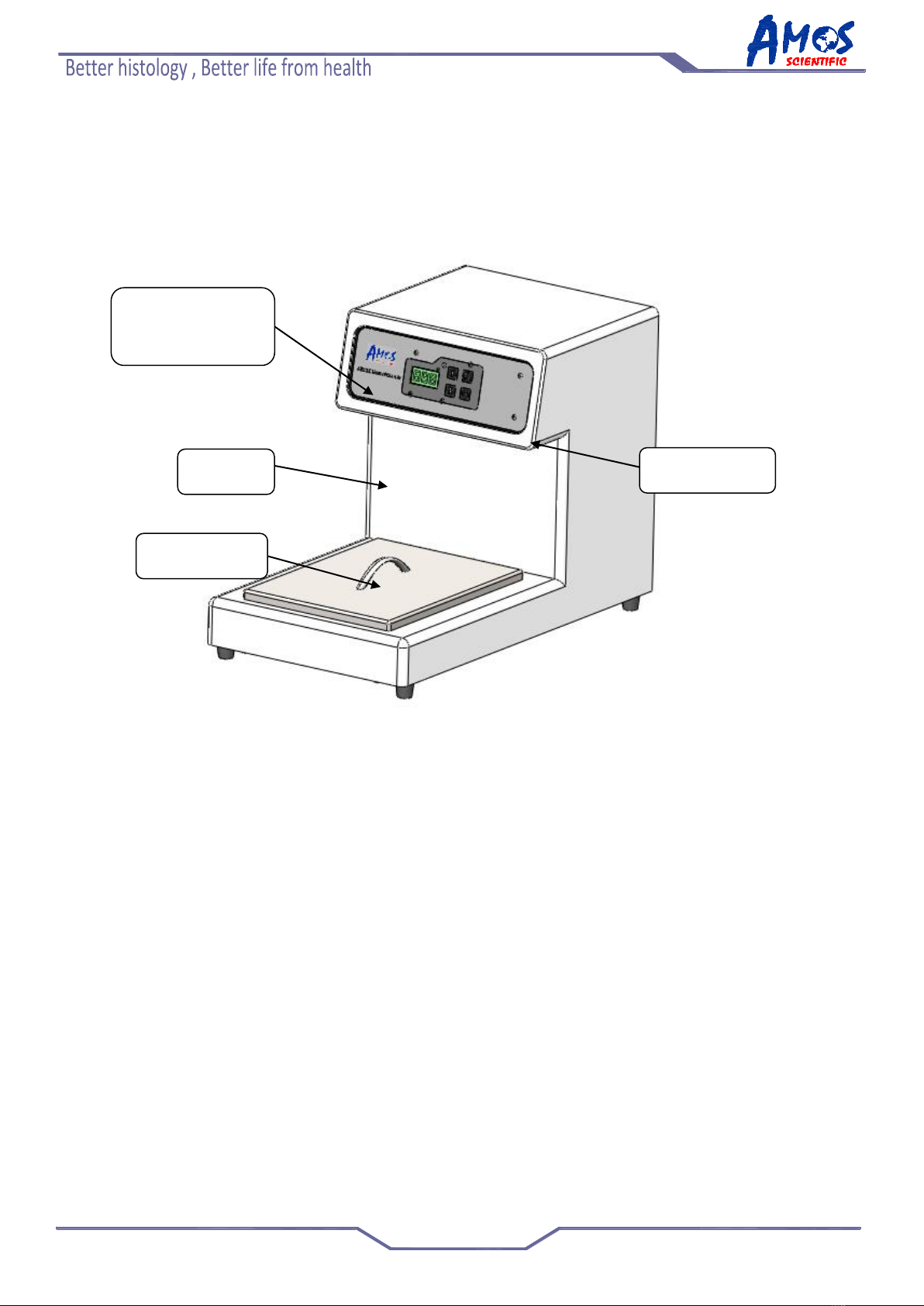

Fig 1

4. Technical Parameters

⊙Capacity ：2.5Lt

⊙Working temperature: from ambient to 75℃ increments 1℃

⊙Rated Power：335W

⊙Supply voltage: AC 220V±10% 50Hz or AC 110V±10% 60Hz

⊙Fuse: 220V/3A or 110V/5A

⊙Dimensions

Width: 300mm

Depth: 540mm

Height: 390mm

Weight: about 7.5Kg

Display panel &

Membrane

Frame

Thermal tank

Power switch

AEC380 Thermal Console

AMOSAEC380TCOP20130318

---3---

5. Operation Explanation

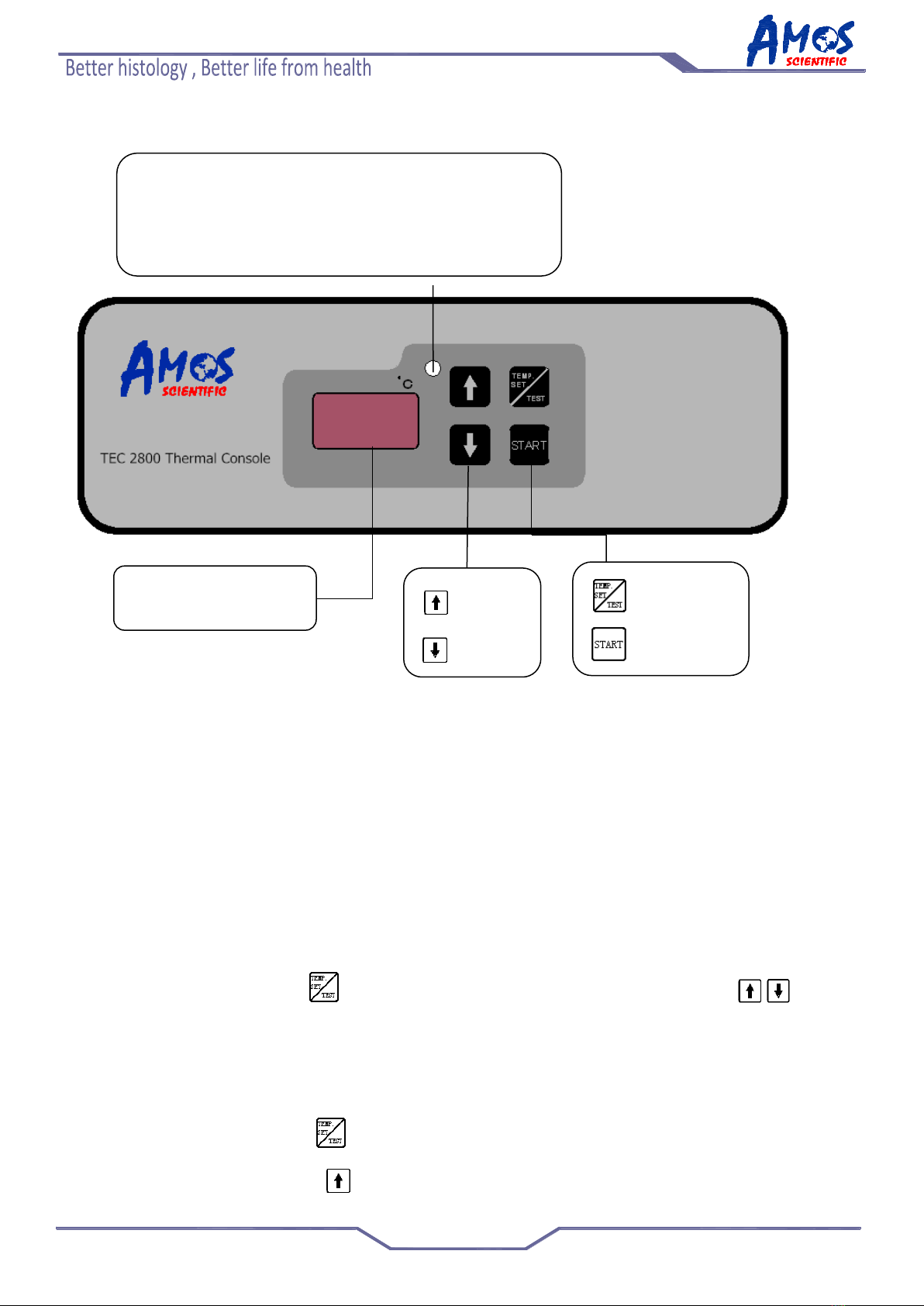

Fig 2

5.2●Operation

●Temperature Set

Connect to power supply and turn on the power switch(see Fig 1).

▲Attention：The Voltage must be same as the remarked on the nameplate, or it will

broken the machine.

Press ，green indicate lamp is light，and then press to set the

temperature as your desired.

●For example 1：current acutal temperature is ambient 25℃，the required

temperature is 70℃。

a. Press and the indicate lamp is on green light

b．Press continuous until the LED display to 70

LED：display the actual

temp.or set temp.

Increase

Decrease

Temp.Set

Start/Standby

Indicate Lamp：

Red----The machine is on the heating

Green----The machine is on the temperature setting status.

No light----The machine is on standby.

AEC380 Thermal Console

AMOSAEC380TCOP20130318

---4---

c. Press again to exit the set status.

d．Press to active the heating while the indicate light is on Red.

After finished the setting, the LED screen will display the temperature degree

increasing from 25℃to 70℃. After reach to 70℃, the indicate lamp will no light, the

machine stop heating and the temperature degree decrease, but the machine will re-start to

heating when the actual temperature is lower than 70℃.（Please note: If press to stop the

heating before the temperate reached to 70℃, the temperature degree will decrease and it also

displayed on the LED screen.)

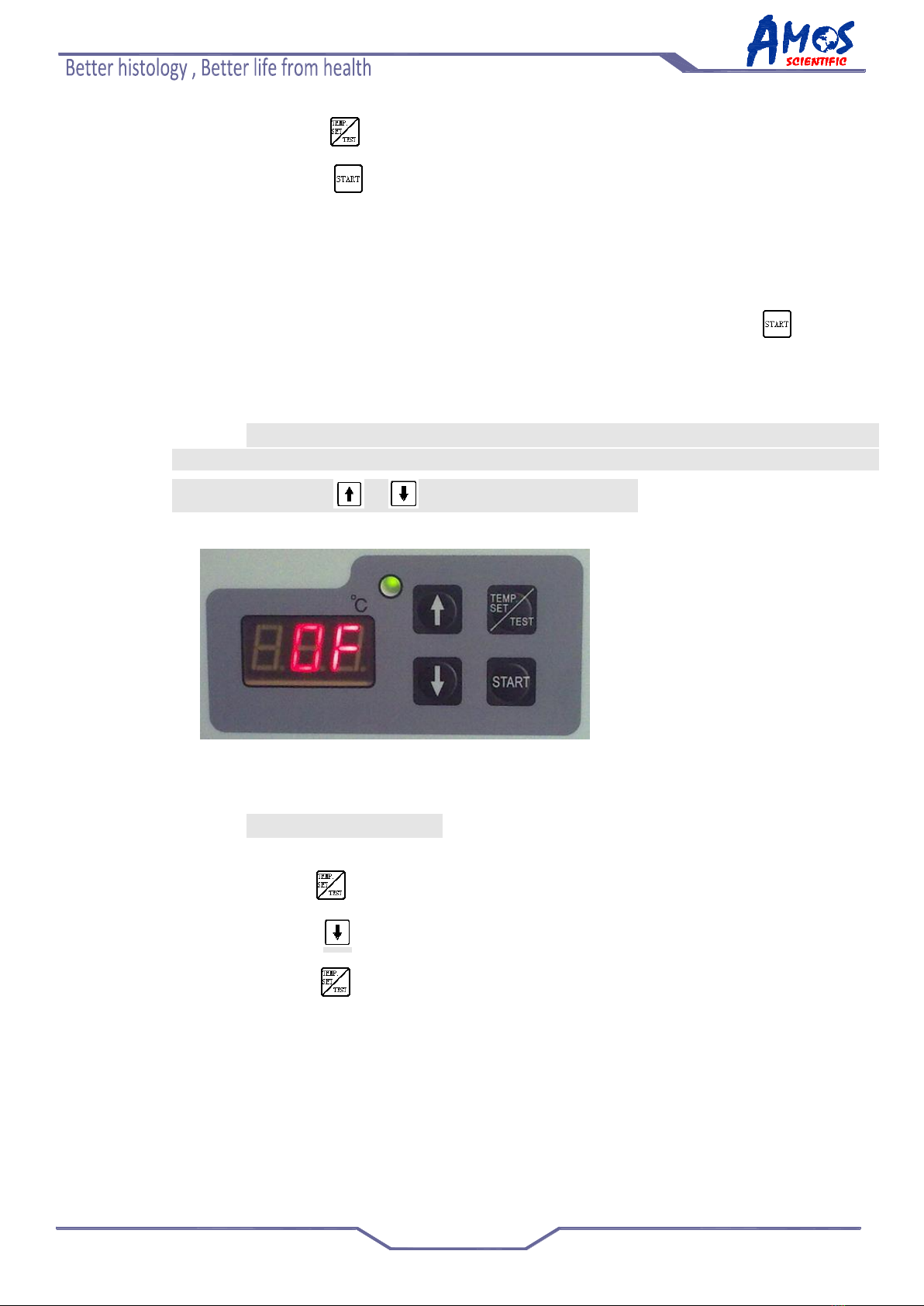

▲Attention：The temperature set range is ambient 0～75℃. If the setting

temperature is over the range, the buzzer could alarm and LED display"OF" to remind the

wrong action.( Press or to cancel the alarm as Fig 3)

Fig 3

●For example 2：If current acutal temperature is ambient 70℃，the required

temperature is 50℃。

a. Press and the indicate lamp is on green light

b．Press continuous until the LED display to 50

c. Press again to exit the set status, and the indicate lamp is no light

After finished the setting, the LED screen will display the temperature degree

increasing from 70℃to decrease while the heating is off. When the temperature reach to

50℃, the indicate lamp will no light. The machine will re-start to heating when the actual

temperature is lower than 50℃while the Red light is on, and when the temperature reach

to 50℃, the heating stop again and Red light is off.

AEC380 Thermal Console

AMOSAEC380TCOP20130318

---5---

6、Trouble shooting

7、Cleaning＆Maintenance

●Please reading the specification carefully when run the machine，According to the requirements

of the operation.

●Keep clean of the instrument and After hours please clear surface dirt and mesa ice water.

●Forbid to using sharp hard object to harm the worktable.

●Insert the fuse(1) into the fuse socket (2) as it is showed in the Fig 10

and insert the whole fuse socket into the socket (3).

●Before replacing the fuse must turn off the power switch and disconnect the power.

Specification of fuse: 3A（220V）,5A(110V)

Type

Problem

Possible causes

Judge method

Corrective action

No display on

the panel

LED screen no

display

Power cord plug

poor

Plug in again

Fuse broken

Take out the fuse to check its internal

resistance by multimeter, if the value is

infinite, the fuse is broken

Replace a new one

switch power

supply no output

Replace the power switch

Replace the power

switch

Don't heating

No heating

The temperature

setting is wrong

Ambient temperature is bigger than set

temperature, the machine is no heating

Reset the

temperature

Single buzzer sound

when start

sensor is broken

Check the sensor by multimeter,

Replace the sensor

If there are any trouble can not be resolved , please contact with the manufacturer .

AEC380 Thermal Console

AMOSAEC380TCOP20130318

---6---

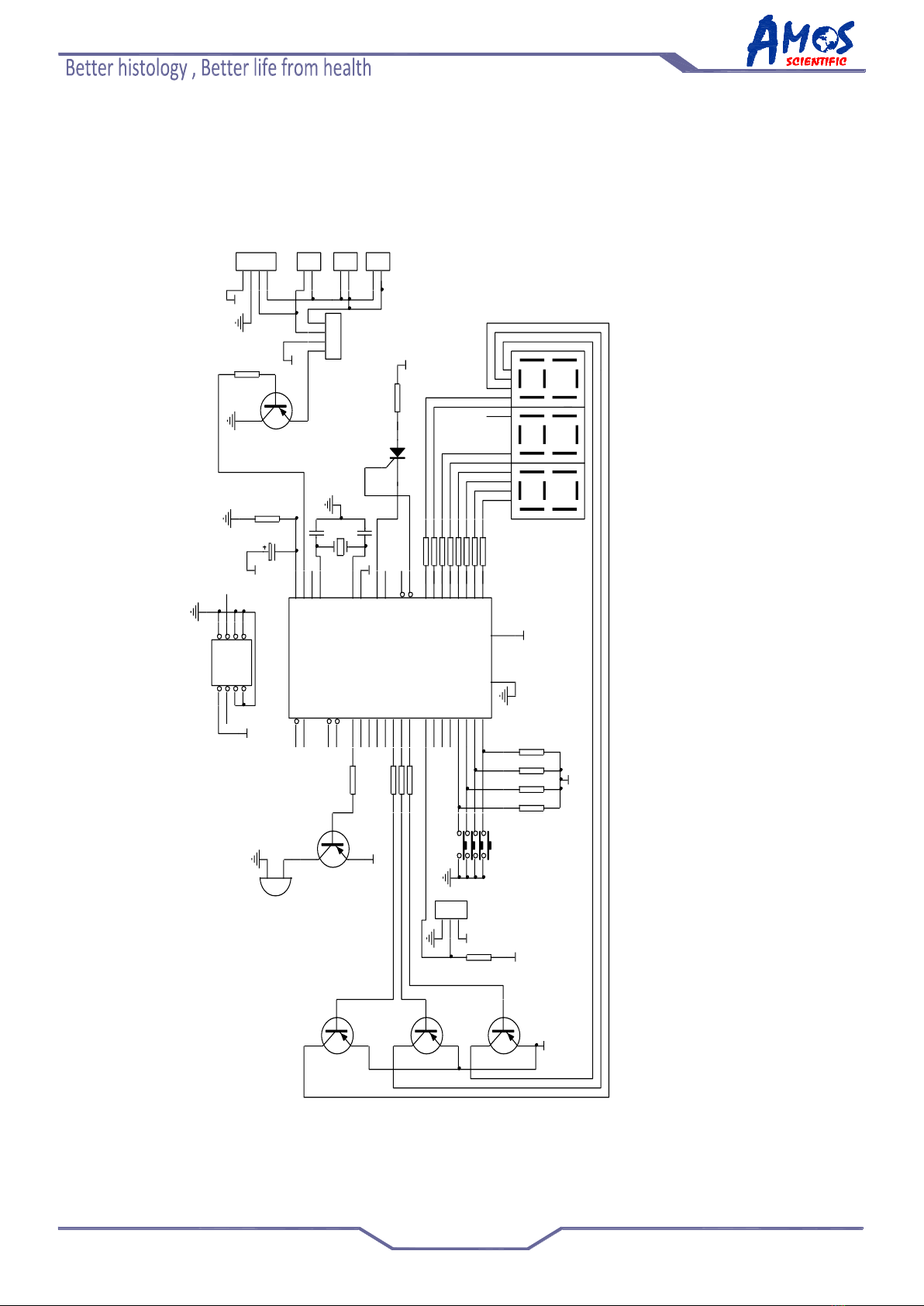

8、Schematic Diagram of Integrated circuit

EA/VP

RESET

RD 17

WR 16

INT0

12 INT1

14 T1

P10

P11

P12

P13

P14

P15

P16

P17

P00 39

P01 38

P02 37

P03 36

P04 35

P05 34

P06 33

P07 32

P20 21

P21 22

P22 23

P23 24

P24 25

P25 26

P26 27

P27 28

PSEN 29

ALE/P 30

TXD

11 RXD

VCC 40

GND 20

+5V

89S52

+5V

SSR1

+5V

+5VC1

S3S4

R19 R20R18R17

+5V

DS18B20

+5V

R16

R13

R14

IC1(DC)

+5V

R10

R11

R12

+5V R15

INPUT

220V

1 2

3 4

5 6

7 8

24c02

+5V

P2.4 P2.5

S-CPU

FAN LED

8 912 3 5 6 10 1 42 711

LED3

AEC380 Thermal Console

AMOSAEC380TCOP20130318

---7---

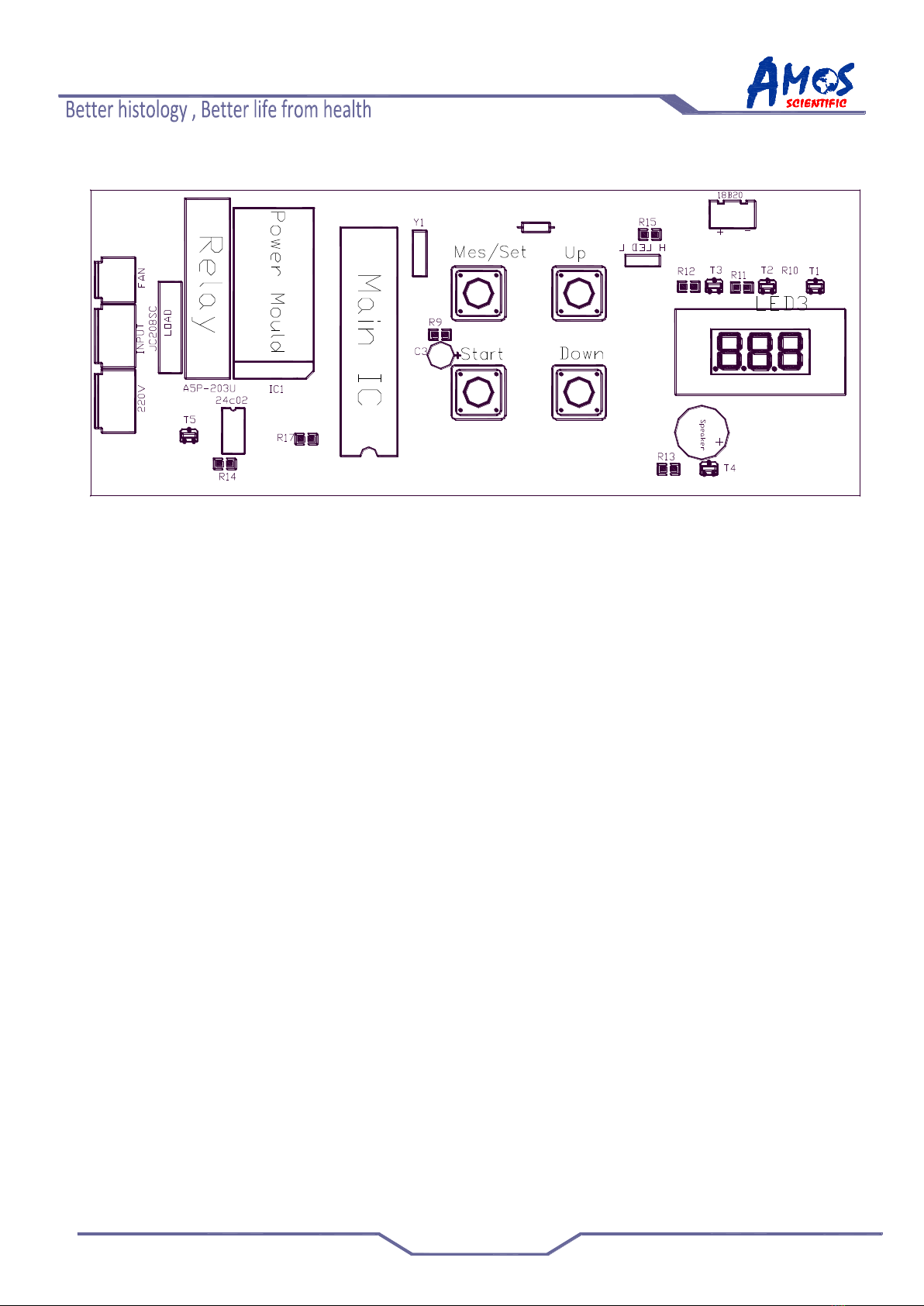

9、Distribution Diagram Of Component
