APS IBoard IB-R001 Bedienungsanleitung

Customer Support: [email protected]

Rev. 20211001

iBoard

iBoard® by APS PART#: IB-R001

READ INSTRUCTIONS CAREFULLY BEFORE START ING

INSTALLATION. REMOVE CONTENTS FROM BOX AND

VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS

RECOMMENDED.

*ROCKER PANEL MOUNT

*DRILLING IS REQUIRED

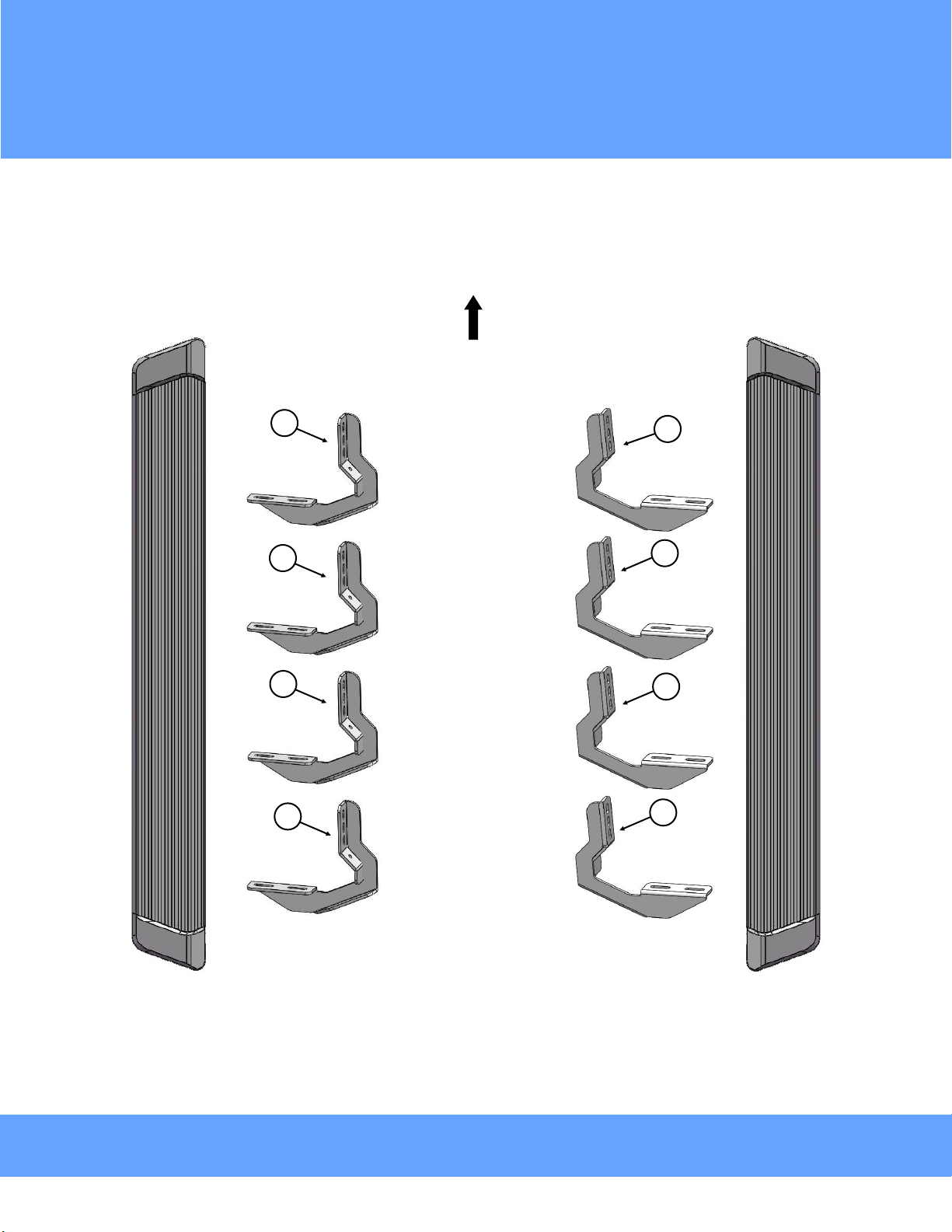

Item QTY Description Item QTY Description

1# 8Mounting Brackets 5# 8ST6.3-25mm Hex Self Tapping Screws

2# 12 M8X1.25-20mm Hex Flange Bolts 6# 16 M6X1-20mm Square Head Bolts

3# 20 M8 Flat Washers 7# 16 M6 Large Flat Washers

4# 8M8 Nylon Lock Nuts 8# 16 M6 Nylon Lock Nuts

4 # 8 #

7 #

5 # 6 #

Fastener Size Tightening Torque (ft-lbs) Required

6mm 6-7 √

8mm 16-18 √

10mm 31-32 X

12mm 56-58 X

14mm 92-94 X

3 #

2 #

Customer Support: [email protected]

Rev. 20211001

iBoard

PassengerDriver Front

Customer Support: [email protected]

Rev. 20211001

iBoard

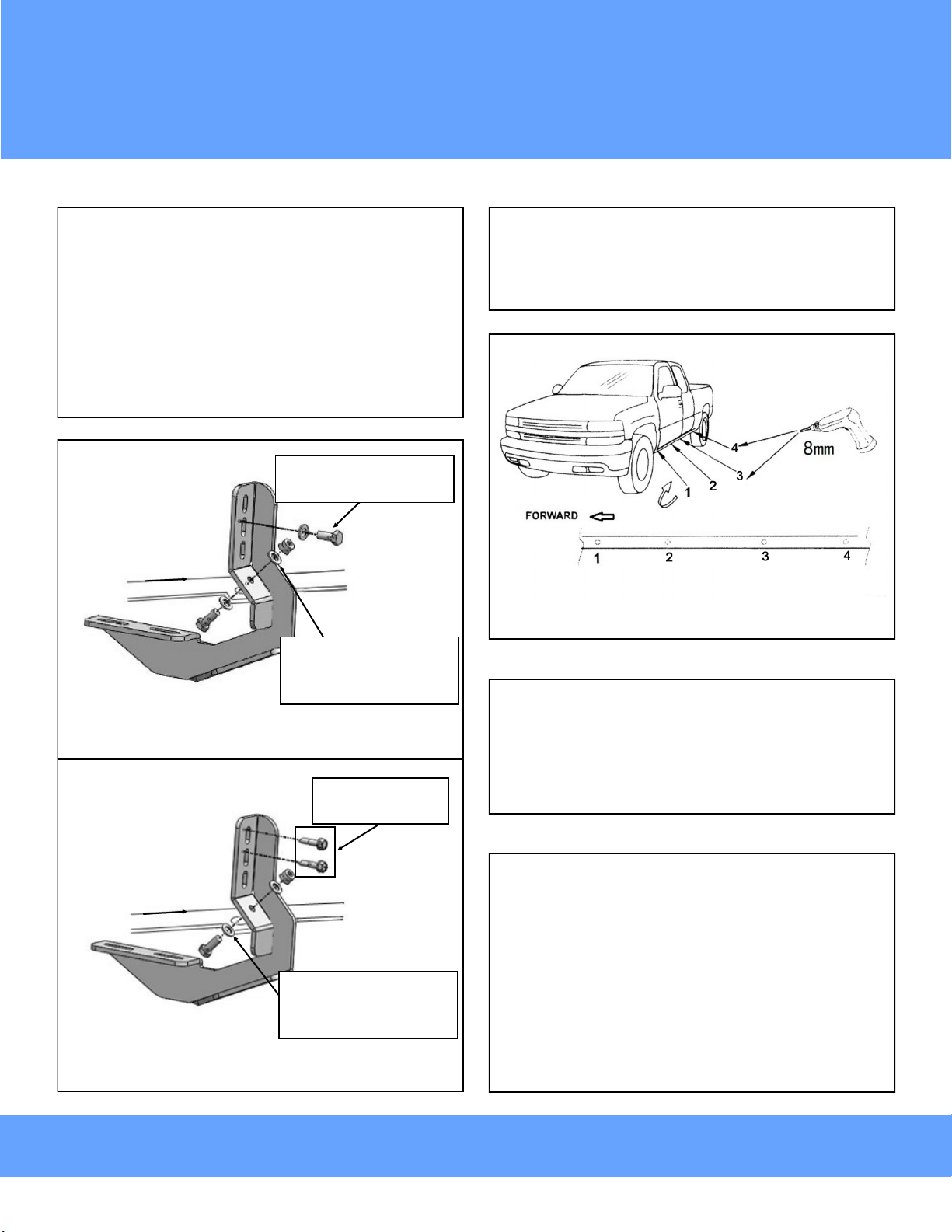

STEP 1

Starting on the Driver side of the vehicle. Select (1) Mounting

Bracket, attach to the 1st and 2nd rocker panel with (1)

M8X1.25-20mm Hex Bolt and (1) M8 Large Flat Washer, (Fig

1); attach to the 3rd and 4th rocker panel with (2) ST6.3-25mm

Hex Self Tapping Screws, (Fig 2). Don’t fully tighten at this

time.

Note: (8) Mounting Brackets Are Universal.

STEP 2

Use the Mounting Bracket as template, mark and drill (4) 8mm

holes in pinch weld. If necessary, remove the brackets from the

rocker panel for drilling (Fig 3).

(Fig 1) Driver Side 1st and 2nd Mounting Bracket Installation

Front

(1) M8X1.25-20mm Hex Bolt

(2) M8 Large Flat Washers

(1) M8 Nylon Lock Nut

(1) M8X1.25-20mm Hex Bolt

(1) M8 Large Flat Washer

(Fig 2) Driver Side 3rd and 4th Mounting Bracket Installation

(2) ST6.3-25mm Hex

Self Tapping Screws

Front

(1) M8X1.25-20mm Hex Bolt

(2) M8 Large Flat Washers

(1) M8 Nylon Lock Nut

(Fig 3) Driver Side Pinch Weld Mounting Holes Drilling

Front

STEP 3

Attach the Mounting Bracket onto the drilled holes on pinch

weld with (1) M8X1.25-20mm Hex Bolt, (2) M8 Large Flat

Washers and (1) M8 Nylon Lock Nut, (Figs 1 & 2). Don’t fully

tighten at this time.

STEP 4

Select a Running Board. Slip (4) M6x1-20mm Square Head

Bolts into each bottom channel (Fig 4). Carefully position the

Running Board onto the (4) Mounting Brackets.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged. Attach the

Running Board to each Mounting Bracket with (2) M6x1-20mm

Square Head Bolts, (2) M6 Large Flat Washers and (2) M6

Nylon Lock Nuts (Fig 5). Do not fully tighten at this time.

Customer Support: [email protected]

Rev. 20211001

iBoard

(Fig 5) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6 Nylon Lock Nuts

(Fig 4) Slip M6X1-20mm Square Head Bolts Into

The Bottom Channels

M6X1-20mm Square Head Bolts

STEP 5

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.

STEP 6

Repeat Steps 1-5 for the other side Running Board installation.

The installation is completed.

Attention

Do periodic inspections to the installation to make sure

that all hardware is secure and tight.

In order to protect your bars/boards, please use only

mild soap/non-abrasive products for cleaning.
