Aries 2055126 Bedienungsanleitung

PAGE 1 • 2055126-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table below when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Level of Difﬁculty

Easy

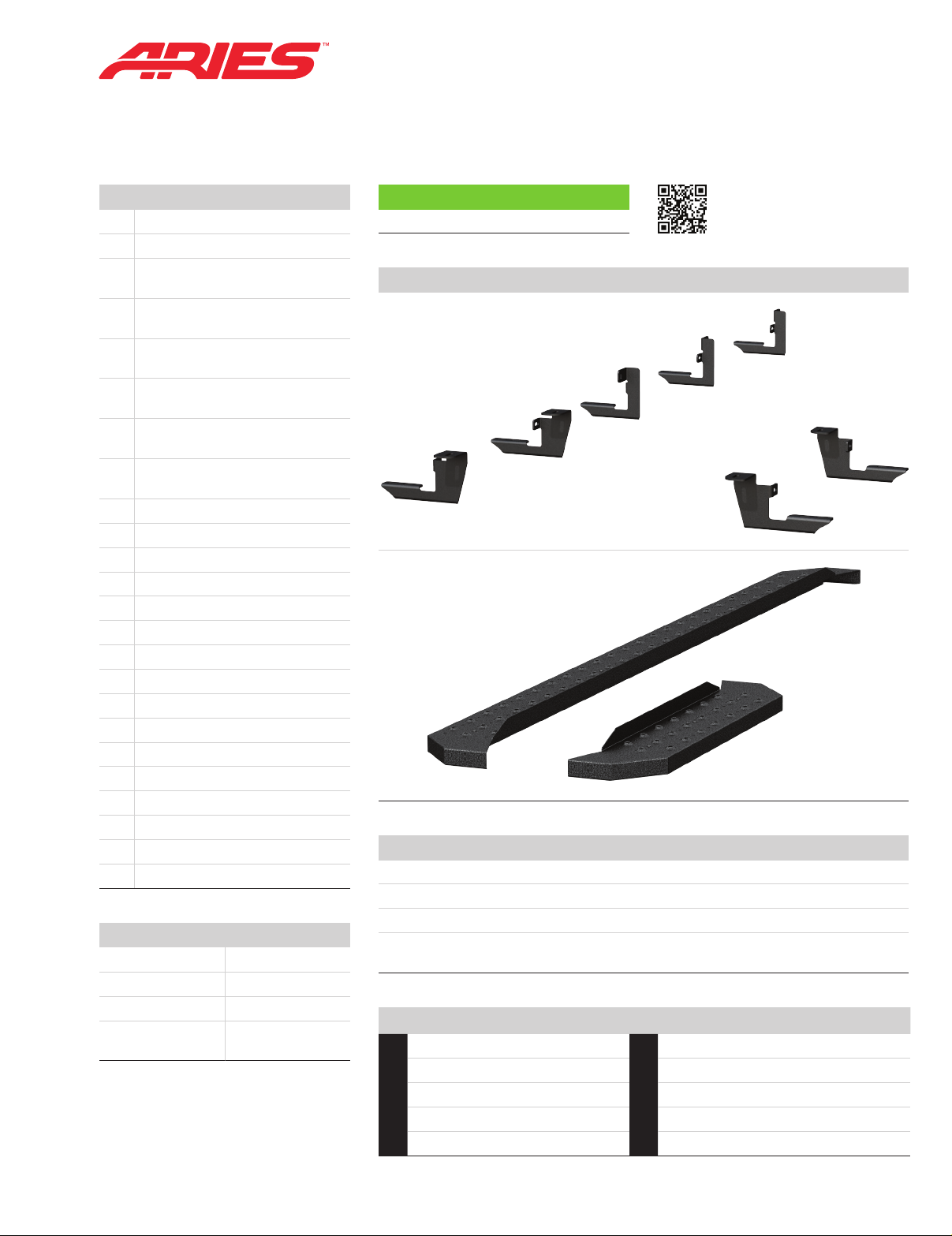

Parts List

1Driver / left running board

1Passenger / right running board

1Driver / left

mounting bracket, front

1Driver / left

mounting bracket, rear

1Passenger / right side

mounting bracket, front 1

1Passenger / right side

mounting bracket, front 2

1Passenger / right side

mounting bracket, middle

2Passenger / right side

mounting bracket, rear

1Thread set tool, M8

3Threaded insert, M8

24 Hex bolts, M8 - 1.25 x 25mm

24 Flat washer, M8

24 Lock washer, M8

10 Clip nuts, M8

2Plastic bolt retainer, M10

2Bolt plate, M10 - 1.50 x 35mm

2Flat washer, M10

2Lock washer, M10

2Hex nut, M10

2Plastic bolt retainer, M12

2Bolt plate, M12 - 1.75 x 40mm

2Flat washer, M12

2Lock washer, M12

2Hex nut, M12

Tools Required

Torque wrench Socket, 13mm

Extension Socket, 16mm

5/16" drill bit Socket, 18mm

7/16" drill bit Flathead

screwdriver

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL 2055126

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs. 5/16" bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs. 3/8" bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs. 7/16" bolt 20 ft.-lbs.

-- -- 1/2" bolt 28 ft.-lbs.

RidgeStep™

Driver side

Passenger side

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055126-INS-RA • PAGE 2

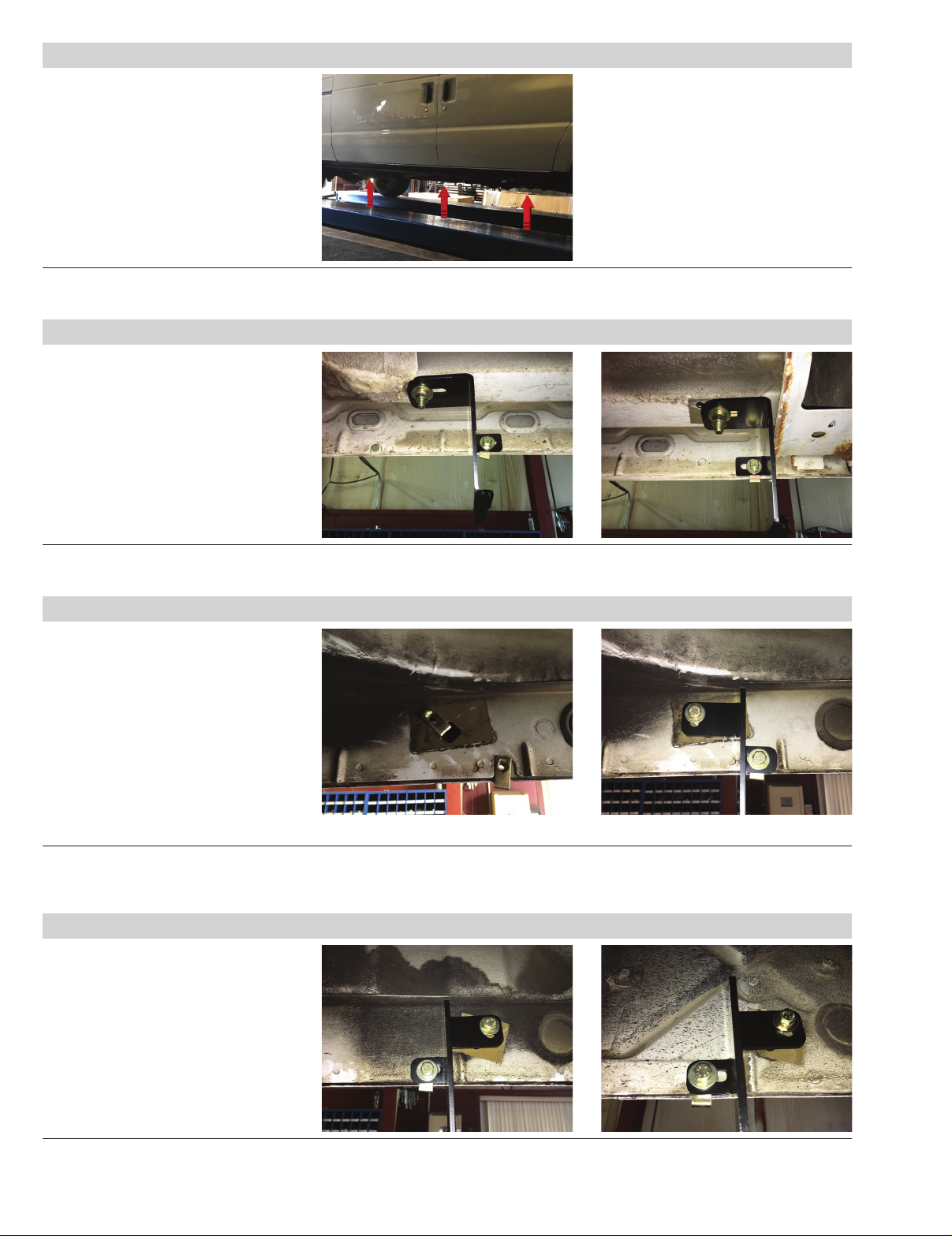

Step 1

Starting on the driver-side, locate

the two mounting points on the

underside of the vehicle.

Step 2

Locate the driver-side front mounting

bracket, remove the hole plug and

insert an M10 bolt plate. Slide a plastic

bolt retainer over the threads of the

bolt plate to hold the bolt plate in place.

Slide an M8 clip nut over

the lower mounting point.

Note: The lower mounting holes may

need to be enlarged to 5/16" to allow

for an M8 hex bolt to ﬁt.

Step 3

Place the front driver-side mounting

bracket over the mounting points.

Secure the top mounting point using

an M10 ﬂat washer, M10 lock washer

and M10 hex nut.

Finish securing the the bracket using

an M8 hex bolt, M8 lock washer and

M8 ﬂat washer.

Snug the hardware,

but do not fully tighten.

PAGE 3 • 2055126-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

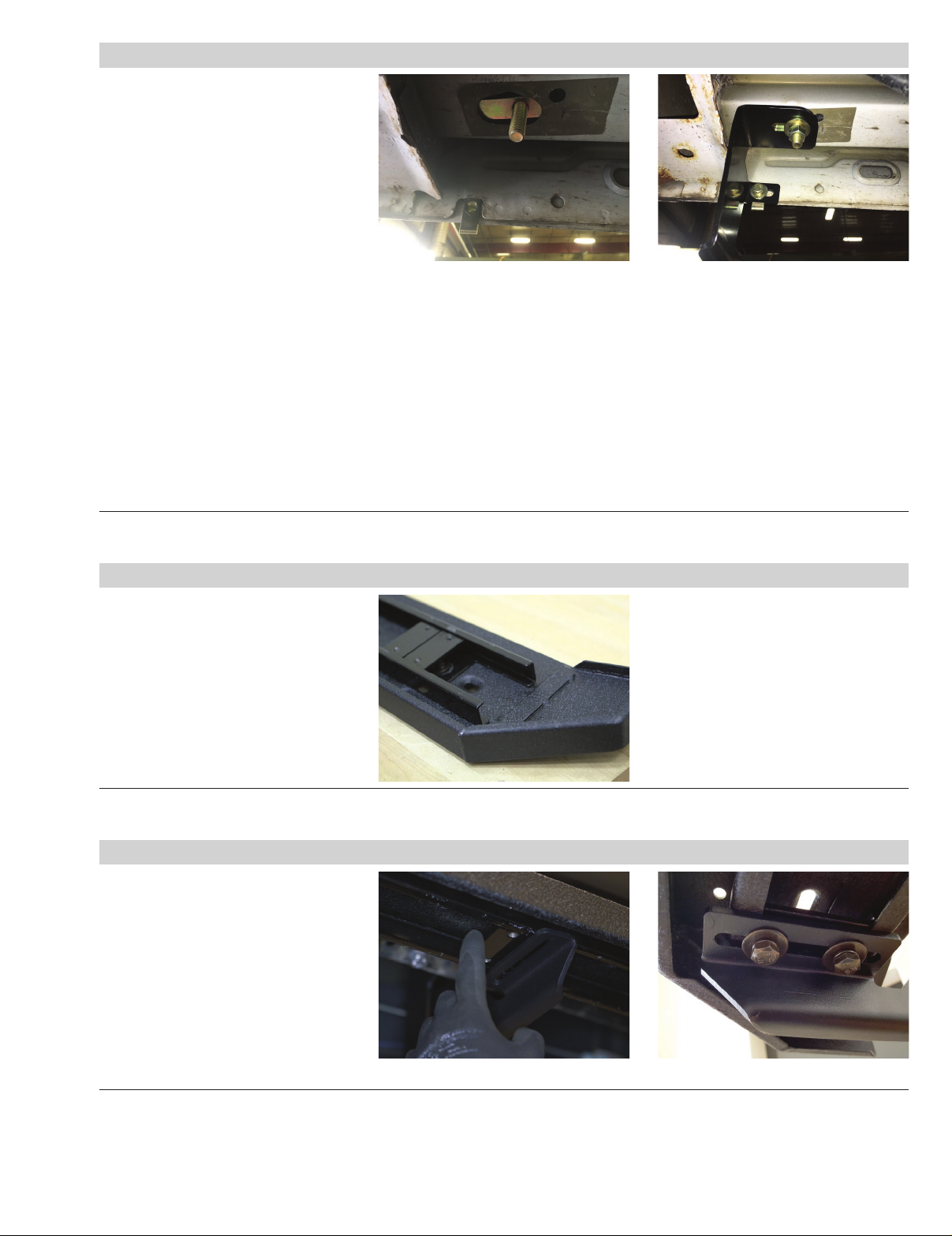

Step 4

Locate the driver-side rear mounting

point. Insert an M12 bolt plate into the

upper mounting point. Slide a plastic

bolt retainer over the threads of the

bolt plate to hold the bolt plate in place.

Slide an M8 clip nut over

the lower mounting hole.

Place the driver-side rear mounting

bracket over the mounting points

and secure the bracket to the upper

mounting point using an M12 ﬂat

washer, M12 lock washer and M12

hex bolt. Secure the lower mounting

point using an M8 hex bolt, M8 lock

washer and M8 ﬂat washer.

Snug the hardware,

but do not fully tighten.

Note: Some vehicles may require

the lower mounting hole to be drilled.

Mark the location of the lower slot

on the pinch weld and drill a 5/16" hole.

Install the bracket using the supplied M8

clip nut, hex bolt, lock washer

and ﬂat washer, as instructed.

Step 5

Locate the short driver-side running

board. Slide the two C-shaped track

mounting brackets into the rail slots.

Step 6

Carefully place the running board

onto the mounting brackets.

Align the C-shaped track mounting

brackets with the mounting brackets

on the vehicle.

Attach the C-shaped track mounting

brackets to the mounting brackets

using M8 hex bolts, lock washers

and ﬂat washers.

Snug the hardware,

but do not fully tighten.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055126-INS-RA • PAGE 4

Step 8

Repeat steps 2 through 4 to install

the two front mounting brackets.

Step 9

Locate the middle passenger-side

mounting point and remove the

tape covering the mounting holes.

Slide an M8 clip nut in through the

access hole and over the smaller

adjacent hole.

Slide a second M8 clip nut over the

lower mounting hole. Secure the

mounting bracket to the vehicle.

Snug the hardware,

but do not fully tighten.

Step 10a.

Repeat step 9 to install the

fourth and ﬁfth mounting brackets.

Note: On some vehicles, drilling

may be required to install the middle

and two rear mounting brackets.

Step 7

Starting on the passenger side,

locate the ﬁve mounting points.

PAGE 5 • 2055126-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 10c.

Install the M8 threaded inserts

in the 7/16" holes with the supplied

thread set tool.

Screw the left hand nut completely onto

the thread set tool and slide the metal

spacer onto the larger thread until it rests

against the left hand nut.

Place an M8 ﬂat washer on the small

thread followed by an M8 threaded

insert. Thread the M8 insert onto

the small end of the tool until it seats

the washer against the shoulder

between the M10 and M8 threads.

Step 10b.

If drilling is required, level the

running board using the front

mounting brackets as an anchor point.

Hold the rear brackets in position

against the side of the body panel

and mark the slot locations.

Drill 7/16" holes for the top mounting

location on the middle bracket and

two rear brackets.

Drill 5/16" holes for the lower

mounting locations through

the pinch weld of the vehicle.

1. Passenger / right, middle location

2. Passenger / right, 4th location

3. Passenger / right, 5th location

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055126-INS-RA • PAGE 6

Step 11

Locate the long passenger-side running

board. Slide ﬁve C-shaped track

mounting brackets into the rail slots.

Repeat steps 6 and 7 to secure the

running board to the mounting brackets.

Snug the hardware,

but do not fully tighten.

Step 12

At this time, adjust the running board

to the desired location.

With the running board in position, it is

recommended to tighten all brackets to

the vehicle ﬁrst, followed by the running

board connections.

For recommended torque speciﬁcations,

refer to the table on page one.

Step 10d.

Place the M8 insert into the 7/16"

drilled hole. Using an open-ended

wrench, hold the left hand nut on

the thread set tool.

With a socket, turn the head of the bolt

clockwise until the left hand nut and

metal spacer contact the M8 washer

and M8 insert. After tension is felt,

carefully compress the insert in the hole

while applying slight pressure to keep it

seated (approximately two full rotations).

WARNING: Over tightening the

insert may damage to the thread set

tool and / or vehicle rocker panel.

Only compress the M8 insert enough

to seat it in the hole without rotating.

Follow steps 8 through 10 to complete

the installation to the two remaining

rear passenger-side brackets.

An M8 clip nut will no longer

be required for the top mounting

location on the rear brackets.

PAGE 7 • 2055126-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 14

Congratulations on the installation

of your new ARIES RidgeStep™6 1/2"

running boards.

With the running boards installed,

periodic inspections should be

performed to ensure all mounting

hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
