Aries S223005-2 Bedienungsanleitung

PAGE 1 • S223005-2-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For stainless steel and aluminum, polish may be used to clear small scratches

and scuffs on the ﬁnish. Mild soap may be used also to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Level of Difﬁculty

Easy

Parts List

1Driver / left side bar

1Passenger / right side bar

2Mounting bracket,

driver / left

2Mounting bracket,

passenger / right

16 Hex bolt, M8 x 35mm

8Clip nut, M8

24 Flat washer, M8

16 Lock washer, M8

8Hex nut, M8

8Hex bolt, M10 x 25mm

8Flat washer, M10

8Lock washer, M10

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL S223005-2

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S223005-2-INS-RA • PAGE 2

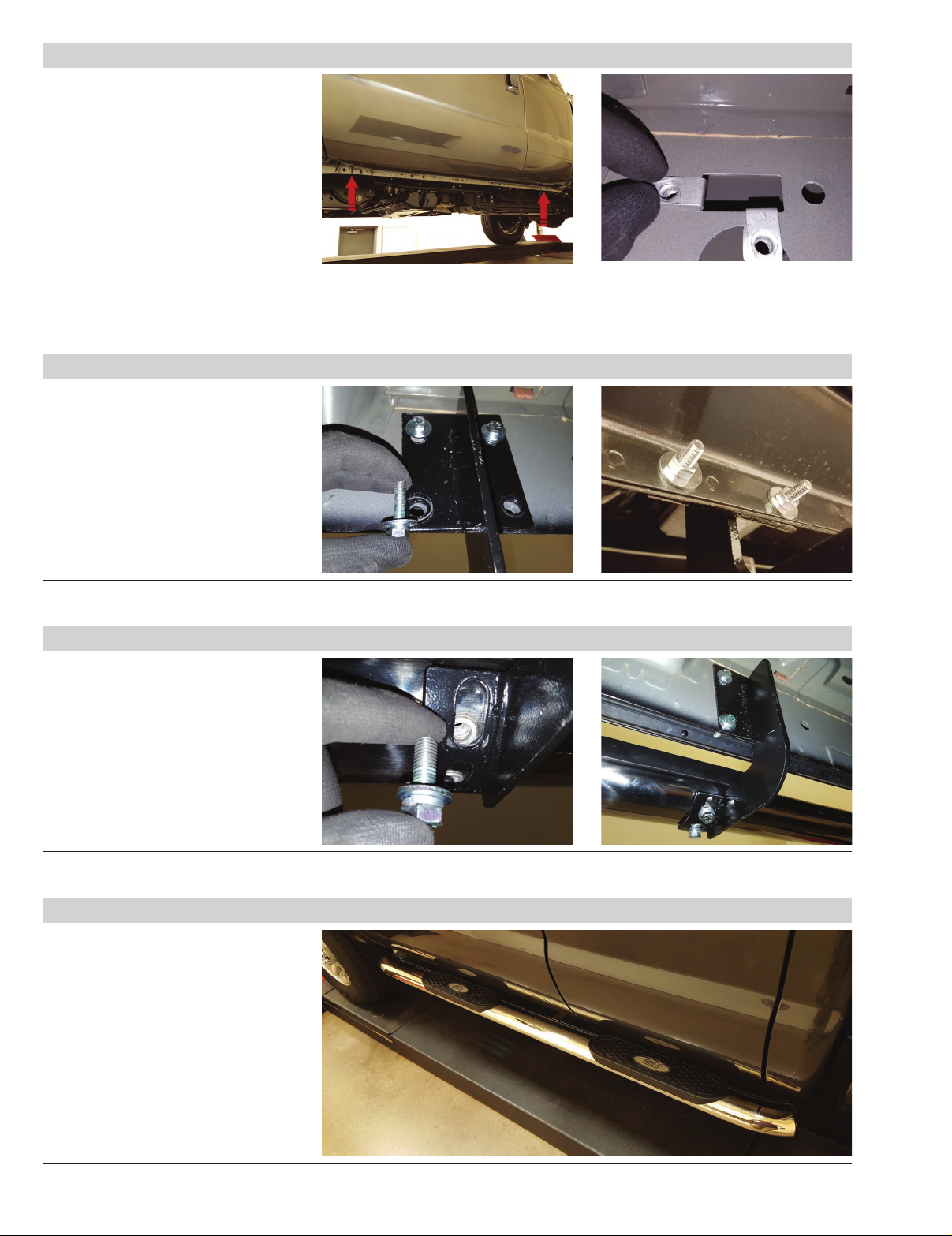

Step 1

Starting on the driver side,

locate the two mounting points

underneath the vehicle.

Place the front driver-side bracket onto

the vehicle. Be sure the cradle of the

bracket faces the rear of the vehicle.

Secure the top of the bracket by inserting

two clip nuts into the rectangular slots

and attaching with two M8 hex bolts,

lock washers and ﬂat washers.

Snug the hardware,

but do not fully tighten.

Step 2

Secure the lower mounting points with

two M8 bolts, ﬂat washers, lock washers

and hex nuts.

Repeat this process to secure

the rear mounting bracket.

Place the side bar onto the mounting

brackets and align the mounting points.

Step 3

Secure the side bar to the brackets using

an M10 hex bolt and ﬂat washer at each

mounting point. Snug the hardware, but

do not fully tighten.

Adjust and level the side bar.

With the side bar in position, it is

recommended to tighten all brackets

to the vehicle ﬁrst, followed by the

side bar connections.

Step 4

Repeat steps 1 through 3

on the passenger side of the vehicle.

Congratulations on the installation

of your ARIES 4" oval side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
