Aries B35-2004-3 Bedienungsanleitung

PAGE 1 • B35-2004-3-RC• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Level of Difﬁculty

Easy

Scan

for helpful

install tips

INSTALLATION MANUAL B35-2004-3

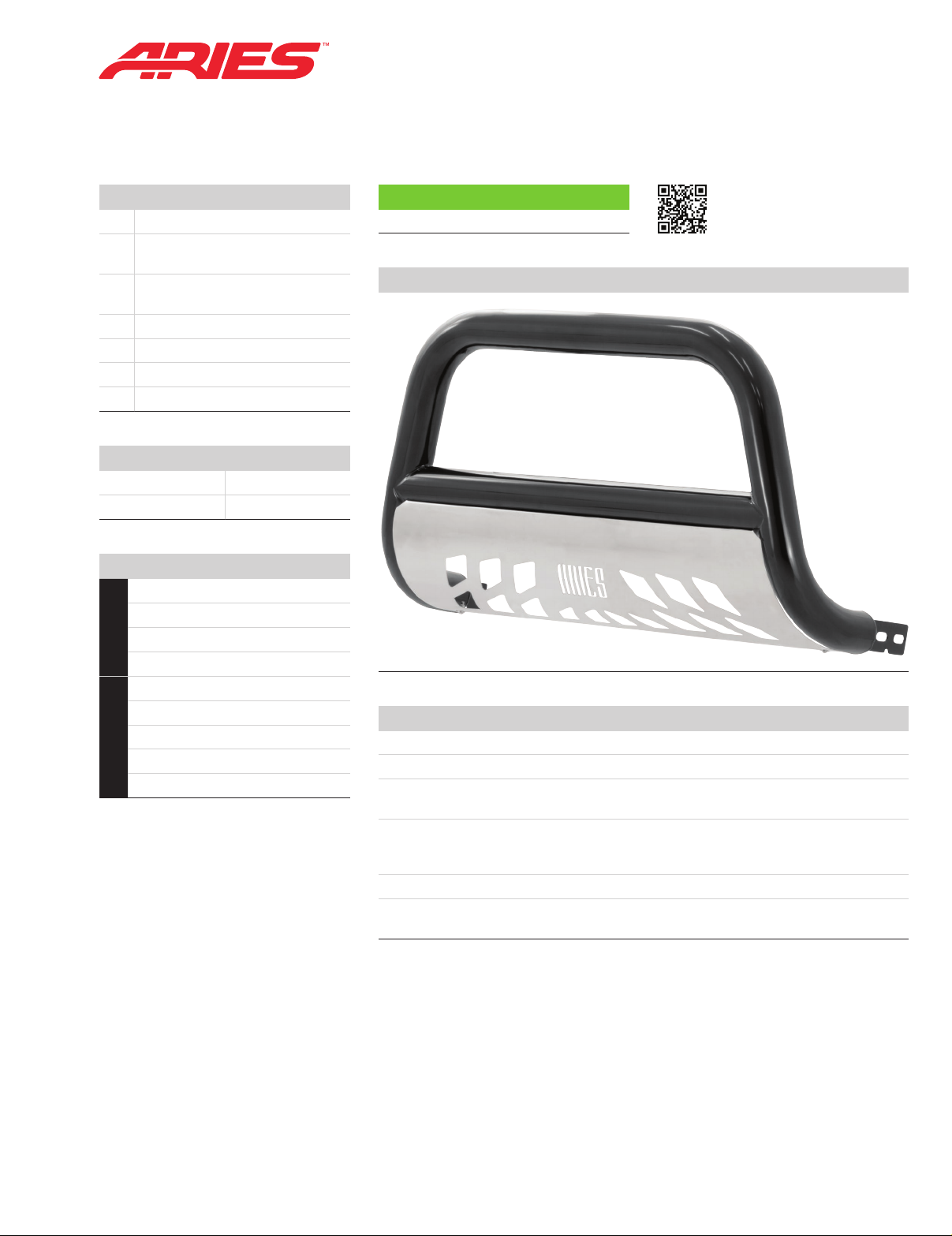

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

Before installing this bull bar, we recommend installing a license plate relocation

bracket, sold separately (ARIES part# 35-0000).

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For gloss black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Parts List

1Bull bar

1Mounting bracket,

driver side

1Mounting bracket,

passenger side

4Hex bolt, M12

8Flat washer, M12

4Lock washer, M12

4Hex nut, M12

Tools Required

Ratchet Socket, 18mm

Level Wrench, 19mm

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • B35-2004-3-RC• PAGE 2

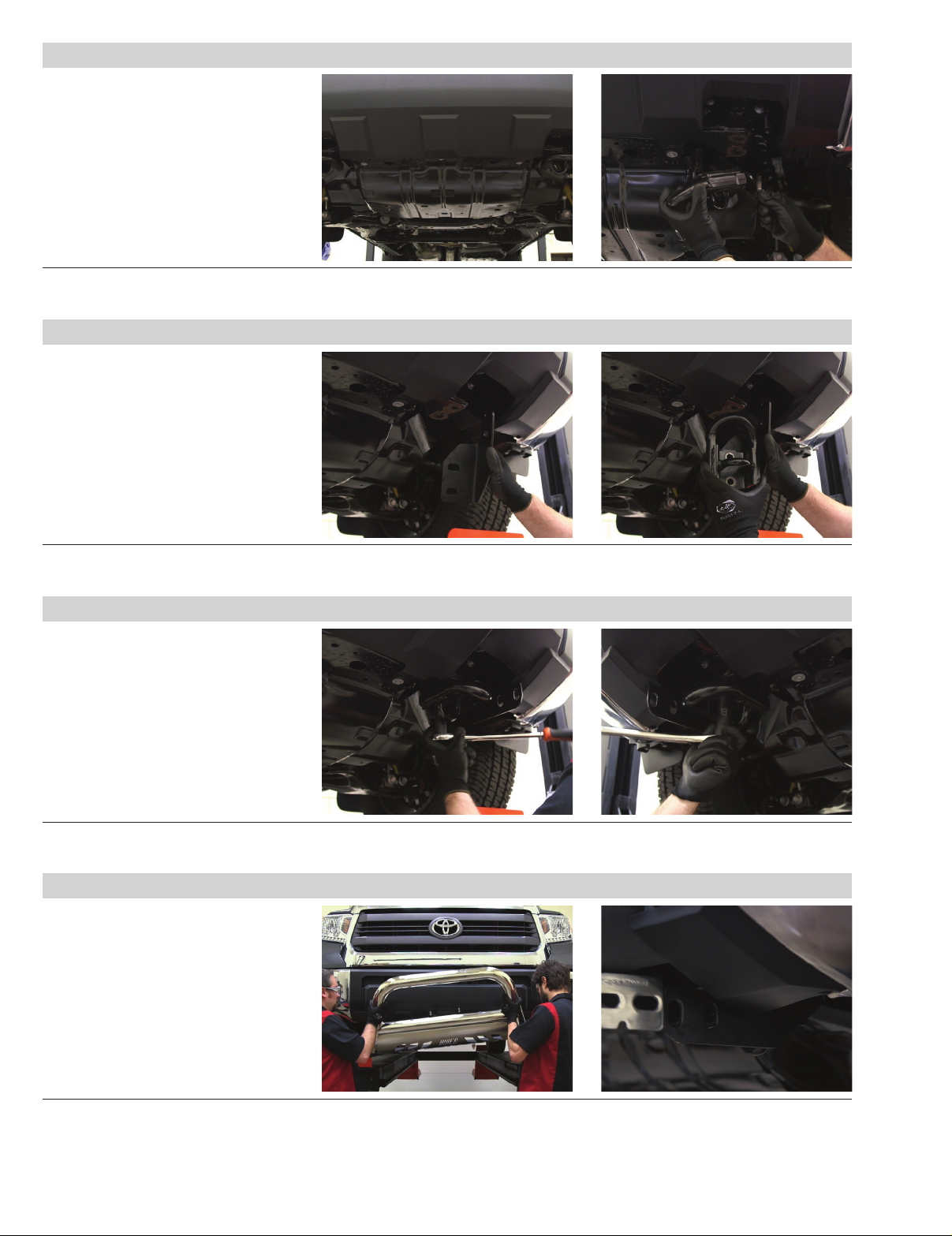

Step 1

Starting underneath the vehicle,

remove the factory tow hooks.

Set the hardware aside for later use.

Step 2

Select the driver-side bracket. Check

the ﬁt between the tow hook and the

bracket.

Lift the tow hook and bracket to the

underside of the frame channel and

reinstall using the factory hardware.

Step 3

Snug the hardware, but do not fully

tighten. Some factory tow hooks may

not clear the bracket and cannot be

reinstalled.

Repeat this step on the passenger side.

Step 4

With help, lift the bull bar into place and

align the mounting tabs of the bull bar on

the outside of the installed brackets.

PAGE 3 • B35-2004-3-RC• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

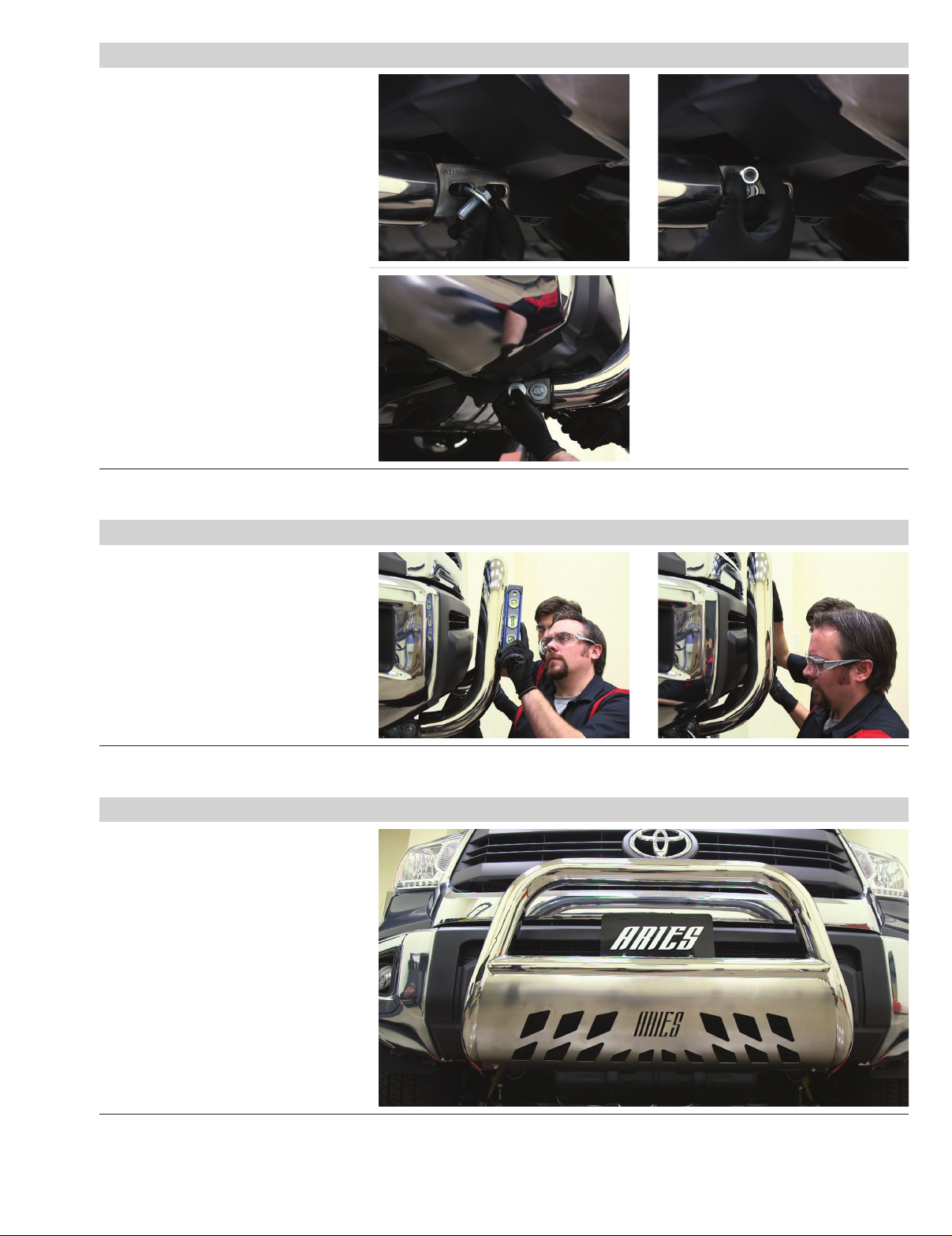

Step 5

Insert a M12 hex bolt with a ﬂat washer

from the outside and secure with another

ﬂat washer and a nylock nut.

Snug the hardware,

but do not fully tighten.

Repeat this on the passenger side

Step 6

At this time, level and adjust the

bull bar to the desired location.

With the bull bar in position, it is

recommended to tighten all brackets

to the vehicle ﬁrst, followed by the

bull bar connections.

Step 7

Congratulations on the installation

of your new ARIES 3" bull bar.

With the bull bar installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
