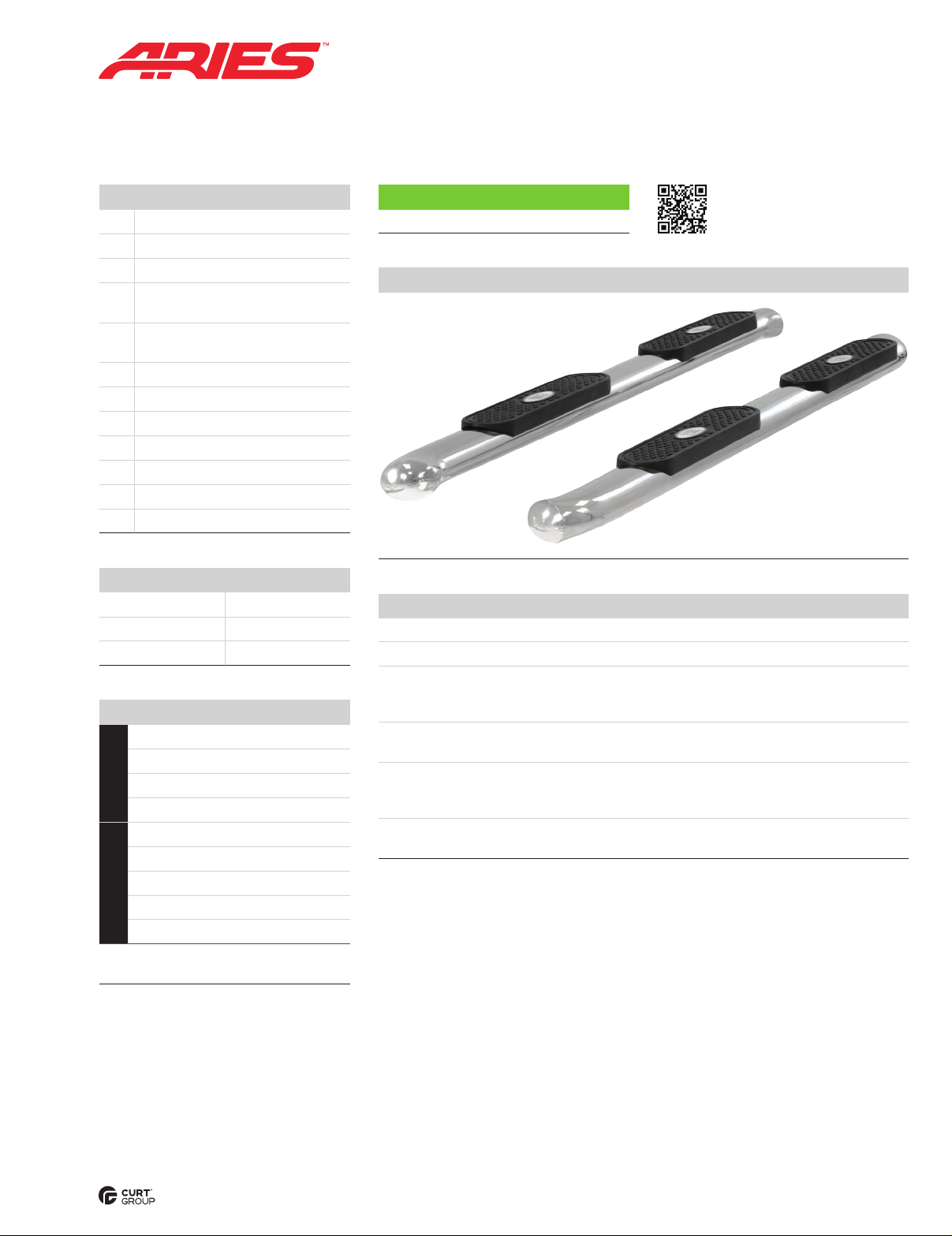

Aries S224046-2 Bedienungsanleitung

Product Image

Level of Difﬁculty

Easy

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL S224046-2

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the ﬁnish. Do not use any type of polish or wax

that may contain abrasives that could damage the ﬁnish.

For polished, gloss and other smooth ﬁnishes,

polish may be used to clear small scratches and scuffs on the ﬁnish.

Mild automotive detergent may be used to clean the product.

Do not use dish detergent, abrasive cleaners, abrasive pads,

wire brushes or other similar products that may damage the ﬁnish.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Parts List

1Driver / left side bar

1Passenger / right side bar

4Mounting bracket, universal

2Mounting bracket,

passenger / right, front, upper

2Mounting bracket,

passenger / right, front, lower

10 Clip nut, M8

10 Hex bolt, M8 x 25mm

10 Flat washer, M8

10 Lock washer, M8

14 Hex bolt, M10 x 30mm

14 Flat washer, M10

14 Lock washer, M10

Tools Required

Ratchet Socket, 16mm

Wrench, 16mm Socket, 13mm

Level

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

Use above torque setting

unless otherwise noted

PAGE 1 • S224046-2-INS-RD• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • S224046-2-INS-RD• PAGE 2

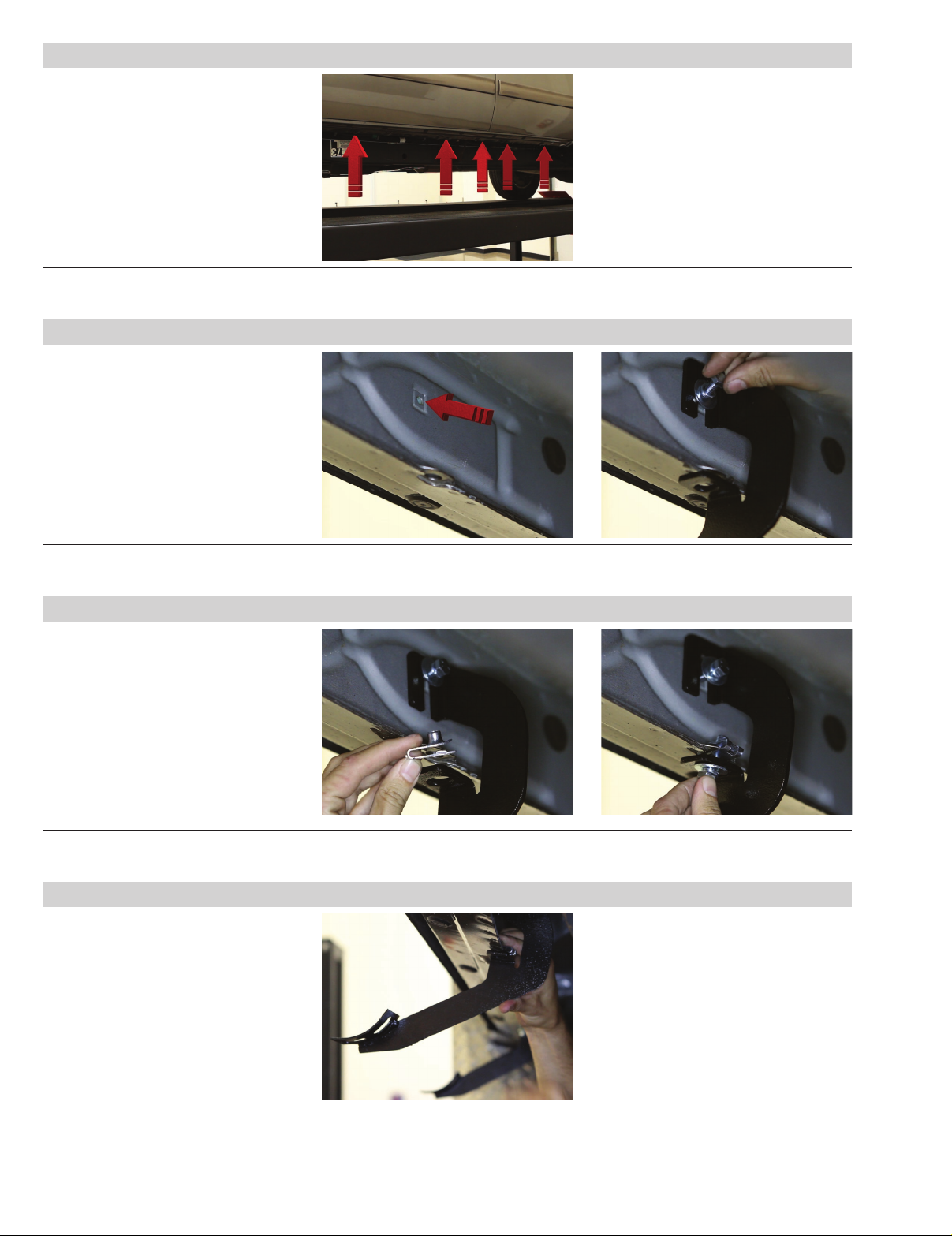

Step 1

Locate the ﬁve mounting tabs along

the bottom edge of the vehicle body.

This installation will use the ﬁrst,

third and ﬁfth mounting tabs.

Step 2

Starting at the front driver side mounting

location, locate the threaded hole on

the inside of the body panel.

Attach a universal mounting bracket to

the body panel using an M8 hex bolt with

a lock and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 3

Rotate the bottom of the bracket

to the side to expose the hole in

the mounting tab.

Slide an M8 clip-nut over the

mounting tab and rotate the bracket

back into position.

Secure the bracket with a second M8

hex bolt, lock washer and ﬂat washer.

Snug the hardware,

but do not fully tighten.

Step 4

Repeat steps 2 and 3 to install the

second bracket over the third

mounting tab location from step 1.

PAGE 3 • S224046-2-INS-RD• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 5

Locate the ﬁfth mounting tab from step 1

and remove the rubber plug from the

access hole.

Insert a clip nut through the access hole

and align it over the adjacent small hole.

Secure the top of the bracket with

an M8 hex bolt, lock washer and

ﬂat washer.

Repeat step 3 to secure

the bottom of the bracket.

Step 6

Place the side bar onto the mounting

brackets and align the mounting points.

Note: If the holes on the side bar to

not match up with the brackets, ensure

all brackets have been installed in the

correct locations and the correct

side bar is being used.

Step 7

Secure the side bar to the brackets

using a M10 hex bolt, lock washer and

ﬂat washer at each mounting location.

Snug the hardware,

but do not fully tighten.

Step 8

Adjust and level the side bar.

With the side bar in position, it is

recommended to tighten all brackets

to the vehicle ﬁrst, followed by the

side bar connections.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • S224046-2-INS-RD• PAGE 4

Step 11

Repeat steps 6 through 8 on

the passenger side of the vehicle.

Congratulations on the installation

of your new ARIES 4" oval side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.

Step 10

Repeat steps 5 on the passenger side

to install the rear bracket.

Step 9

Locate the front mounting point on the

passenger side of the vehicle to install

the front two passenger mounting

brackets.

Note: If there is a Def tank you will not

be able to insert the M8 hardware on

front upper bracket.

Place the upper mounting bracket

against the rocker panel. Align the weld

nut on the upper mounting bracket with

the mounting hole in the rocker panel.

Secure the top mounting bracket to the

rocker panel using an M8 hex bolt, M8

lock washer and M8 ﬂat washer.

Align one of the passenger front

lower mounting brackets with the

upper mounting bracket. Secure the

two mounting brackets together using

an M10 hex bolt, M10 lock washer

and M10 ﬂat washer.

Torque all M10 hardware to 31.6 ft-lbs.

Repeat this process to install the

second passenger mounting bracket.

Snug the hardware,

but do not fully tighten.

Rear

Front

M8 hardware is not

used with DEF tank
