FAST TRACK

SVGA LCD MULTIMEDIA PROJECTOR

SETTING UP

1. Place the projector on a stable, hard

surface, at the desired distance from

the projection screen.

2. Insert the end of the VGA cable

marked ‘LCD’ into the computer

connector port on the LCD projector.

Connect the connector marked

‘Monitor’ onto your monitor cable, and

the connector marked ‘VGA’, into the

VGA port on the PC unit. If you do not

intend to use a monitor then just leave

the short cable section unconnected.

For MAC computers an adapter is

required in addition and the main user

guide should be referred to for

information.

3. Connect video sources if required,

using the supplied A/V cable.

4. Connect one end of the mouse cable

marked ‘LCD’ into the mouse port on

the LCD projector and the other end

marked ‘MA’ (Mouse Adapter) into the

appropriate mouse adapter,

determined by which mouse type you

are using.

5. Ensure the ventilation grills on the

LCD projector are not obstructed, then

apply mains power to the projector.

Remember to switch on the unit at the

Power ON/OFF switch!

6. Apply mains power to the various

items of source equipment.

Improper use of this LCD projector

may cause a risk of damage or personal

injury due for example to electric shock or

the strong light source. Detailed safety

instructions are given in the user guide and

these must be followed at all times.

USING THE REMOTE CONTROL

The key functions explained:

KEY FUNCTION

RESET Defaults to the standard

settings for active source

ON/OFF Turns the projected image

ON/OFF.

CONTR Alters the contrast of light

and dark colors.

BRIGHT Alters the brightness.

VOLUME Volume up/down

FREEZE Holds the image projected

on the screen

COMPUTER Computer source active.

VIDEO Video source active.

S-VIDEO S-video source active.

MASK Applies mask to the image.

SCALE Direct 1:1 mapping/scaling.

PAN Allows panning within

oversized images.

PROG Programmed menu

selection

POINTER Applies a trackball-controlled

pointer to the screen.

LIGHT Keys are illuminated.

MENU Activates the menu system.

TRACKBALL Simulates the actions of the

desktop mouse.

LEFT KEY Emulates left mouse key.

RIGHT KEY Emulates right mouse key.

BOTTOM

KEY Click-and-hold function

(drag).

ON/OFF

MUTE

FREEZE

S-VIDEO

PROG

RESET

CONTR BRIGHT VOLUME

COMPUTER VIDEO

MASK SCALE PAN

LIGHTPOINTER

TRACKERBALL

PLATE

RIGHT KEY

TRACKERBALL

BOTTOM KEY

LEFT KEY

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

TABLE OF CONTENTS

1 SYMBOL DESCRIPTIONS....................................................................5

2 SAFETY INSTRUCTIONS.....................................................................5

3 INTRODUCTION...................................................................................9

3.1 YOUR LCD PROJECTOR.....................................................9

4 MAIN FEATURES ...............................................................................10

5 SUPPLIED MATERIAL........................................................................11

5.1 WHEN YOU OPEN THE LCD PROJECTOR PACKAGE......11

5.2 OPTIONAL MATERIAL.......................................................11

5.3 GLOSSARY........................................................................12

6 SETTING UP THE LCD PROJECTOR.................................................13

6.1 SAFETY PRECAUTIONS....................................................13

6.2 ARRANGEMENTS IN THE PROJECTION ROOM...............14

6.3 SELECTING ADAPTERS AND CABLES .............................15

6.3.1 FOR YOUR COMPUTER SOURCE....................15

6.3.2 FOR VIDEO SOURCES......................................15

6.3.3 FOR YOUR MOUSE...........................................15

6.4 MAKING THE CABLE CONNECTIONS...............................17

6.5 IMAGE ADJUSTMENTS......................................................21

7 USING THE LCD PROJECTOR ..........................................................25

7.1 TRACKBALL REMOTE CONTROL .....................................25

7.2 TOP PANEL KEYBOARD....................................................28

7.3 THE MENU SYSTEM..........................................................29

7.3.1 THE SET-UP MENU SELECTIONS ....................29

7.3.2 THE PICTURE SELECTIONS.............................30

7.3.3 THE SOUND SELECTIONS................................30

7.3.4 THE OPTIONS SELECTIONS ............................31

7.3.5 THE HELP SELECTIONS...................................31

8 SPECIAL FEATURES OF YOUR LCD PROJECTOR...........................32

8.1 COOLING SYSTEM............................................................32

8.2 SET-UP MEMORY..............................................................32

8.3 OSD SYSTEM ....................................................................32

8.4 RESET ...............................................................................33

9 CEILING MOUNTING..........................................................................34

9.1 SELECTING A MOUNT.......................................................34

9.2 MOUNTING IN THE CEILING.............................................34

9.3 WIRING..............................................................................35

10 TROUBLE-SHOOTING .....................................................................36

11 MAINTENANCE ................................................................................38

11.1 GENERAL.........................................................................38

11.2 LAMP REPLACEMENT.....................................................38

11.3 LAMP REPLACEMENT MESSAGES.................................39

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

11.4 FUSE REPLACEMENT.....................................................41

11.5 CARE OF THE REMOTE CONTROL ................................42

12 TECHNICAL DATA............................................................................43

12.1 GENERAL ENVIRONMENTAL LIMITS..............................43

12.2 LCD PROJECTOR UNIT...................................................44

12.3 POWER SUPPLY.............................................................44

12.4 REMOTE CONTROL ........................................................45

12.5 COMPATIBILITY...............................................................45

12.6 CONNECTORS ON THE SUPPLIED CABLES..................46

13 CONNECTORS.................................................................................47

13.1 COMPUTER .....................................................................47

13.2 MOUSE ............................................................................48

13.3 S-VIDEO...........................................................................48

13.4 VIDEO..............................................................................48

13.5 AUDIO..............................................................................48

14 ENVIRONMENTAL STATEMENT......................................................49

15 FCC STATEMENT.............................................................................50

This publication is printed on recycled paper

The information contained in this User Guide is preliminary, and the

products described herein are subjected to change without prior notice.

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

1 SYMBOL DESCRIPTIONS

DANGEROUS VOLTAGE

This symbol is intended to alert the user to the presence of

uninsulated “dangerous voltages” within the product

housing that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

WARNING

This symbol is used on the product to alert the user of

important operating and maintenance (servicing)

instructions, and also used in the product literature to

indicate important safety-related information.

HOT

This symbol is used on the product to make the user aware

of hot surfaces, i.e. fan ventilation grill.

NOTE

This symbol is used in this publication to highlight

information for the user.

2 SAFETY INSTRUCTIONS

Read instructions - All the safety and operating

instructions should be read before the projector is

operated.

Retain instructions - The safety and operating

instructions should be retained for future reference

Heed warnings - All warnings on the projector and in

the User Guide should be adhered to. If ignored, use

of this projector may cause death, injury or material

damage.

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

The normal operating life for the lamp is 750 hours.

High-pressure lamp may explode if improperly used.

Refer all servicing to authorized personnel only.

1. Water and Moisture - The projector is designed for indoor use only

and should not be used near water and moisture.

2. Carts and Stands - Place the projector on a stable, hard surface in a

manner that does not obstruct ventilation ports and openings in the

cabinet. Unstable carts, stands, tables, etc. may cause the projector to

fall, which may cause serious injury to people and/or the projector.

3. Ventilation - Slots and openings in the cabinet are provided for

ventilation. To ensure reliable operation of the projector and protection

from overheating, do not block or cover slots and openings in any way.

Do not place the projector on any soft surface or close to a heating

source, radiator, etc. Never install the projector in an enclosed unit.

4. Heat - The projector should be situated away from heat sources such

as direct sunlight, radiators, stoves or other strong heat sources.

5. Power Sources - The projector must only be connected to proper

electrical voltage as marked on the projector body. The projector

should be connected to electrical outlet using a power cord compatible

with the local electrical voltage. If you are not sure about the type of

electrical service at your location, consult your projector dealer or local

power company.

6. Power Cord Protection - Power cords should be routed so that they

are not likely to be walked on, pinched or unduly bent by items placed

upon or against them. Pay particular attention to cords and cables at

the point where they exit from the projector.

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

7. Cleaning - The projector should be cleaned only as recommended,

see the Maintenance section. Disconnect the power cord from the

power outlet before cleaning. Do not use liquid cleaners or aerosol

cleaners.

8. Non-use Periods - The power cord of the projector should be

unplugged from the outlet when left unused for a long period of time.

9. Damage Requiring Service - The projector should be serviced only by

authorized service personnel when;

•the power supply cord or the plug has been damaged,

•objects have fallen, or liquid spilled, into the projector,

•the projector has been exposed to water or condense,

•the projector does not appear to operate normally (fan not

working, noise, smell, smoke, heat etc.)

•the projector has been dropped or damaged.

10. Object or Liquid Entry - Care should be taken so that objects do not

fall into the projector casing. Be careful not to spill liquids into the

inside of the projector. Do not insert metal or flammable objects into

the projector.

11. Servicing - The user should not attempt to perform unusual or

technical service to the projector. Do not open the unit. Refer all

servicing to authorized service personnel.

12. Grounding or Polarization - Precautions should be taken so that

grounding or polarization of a projector is maintained. Do not use a

three prong to a two prong adapter.

To prevent electric shock, do not use the polarized ac plug

with an extension cord, receptacle or other outlet unless

the blades can be fully inserted to prevent blade exposure.

14.Lamp Replacement - Do not attempt to replace lamp. Contact an

authorized service centre for lamp replacement.

15.Abnormality - If you detect an abnormal smell or smoke, immediately

turn off the power switch. Disconnect the power plug from the power

switch to prevent fire or electric shock.

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

16.Lifting/moving - When the projector is to be moved, let the unit cool

down completely, cover the lens, disconnect the power plug from the

power outlet and disconnect all external cords and cables to prevent

damage that may cause a fire, electric shock, etc. Be careful when

lifting and carrying the unit as it is heavy.

17.Lamp Beam - Do not look directly into the projector or lens when

operating the projector. The lamp emits rays which may cause eye

injury and/or sunburns.

18.Electrical Shock - To reduce risk of electrical shock do not open the

unit. Refer all servicing to authorized personnel only.

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

3 INTRODUCTION

The first time user will be introduced to the SVGA LCD multimedia

projector and its capabilities through easy-to-read text and illustrations.

Then a step-by-step illustrated connection procedure leads you through to

problem-free operation.

For the more experienced user, the later sections of this manual provide a

handy reference guide to help you get the most out of your LCD projector.

3.1 YOUR LCD PROJECTOR

Congratulations on purchasing this state-of-the-art, high resolution LCD

projector. This projector can be connected to most computer and video

sources, for the best projection results and maximum compatibility.

The SVGA LCD multimedia projector displays bright vivid images in 16.7

million colors simultaneously, at SVGA resolution, making it the ideal

choice for presenting computer generated text and graphics, as well as live

video with full sound capability.

Applications include multiple-menus and typical Windows environments

including Internet applications and CD-ROM based multimedia

presentations in any situations where a small or large audience shares

information.

Please spend some time reading this manual to get familiar with the

product, so that you can get the most out of your new LCD projector.

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

4 MAIN FEATURES

The unit employs the following important features that in total provide you

with a highly functional and powerful projector:

•High brightness 575 Watt illumination system

•True SVGA 800 x 600 resolution

•640 x 480 to 1152 x 870 image compatibility

•16.7 million colors

•High quality 2 x 5W stereo sound

•Trackball remote control

•On screen display (OSD)

•User’s source settings memorized

•Low noise cooling system

•False light blocking

•4m (13 ft) VGA cable with V-split

•Ceiling mountable

•Prepared for rear projection

•2 video inputs (Composite/S-video)/

1 data input

USER GUIDE SVGA LCD MULTIMEDIA PROJECTOR

5 SUPPLIED MATERIAL

5.1 WHEN YOU OPEN THE LCD PROJECTOR PACKAGE

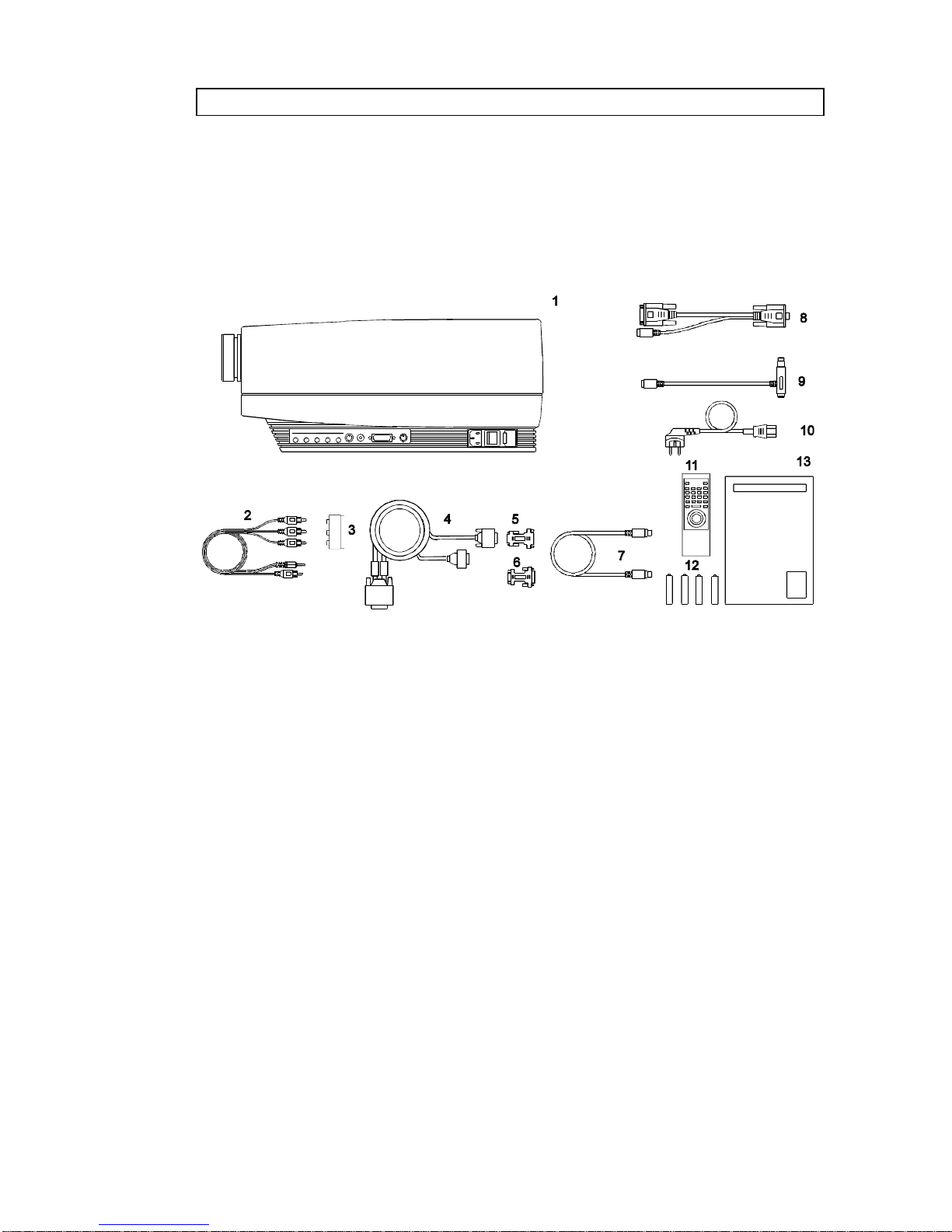

A complete set includes the following components :

1. LCD Projector 7. Mouse Cable

2. A/V cable 8. Mouse Adapter PC (Y-Split)

3. SCART Adapter 9. MAC Mouse Adapter

4. VGA Cable with V-split 10. Power Cord

5. MAC computer adapter 11. Remote Control

6. MAC monitor adapter 12. Batteries

13. User Guide

5.2 OPTIONAL MATERIAL

Optional cables, adapters and accessories are available. Consult your

dealer for further information.

Inhaltsverzeichnis

Andere Ask Proxima Projektor Handbücher

Ask Proxima

Ask Proxima ASK PROXIMA C95 Bedienungsanleitung

Ask Proxima

Ask Proxima Impact WSX Bedienungsanleitung

Ask Proxima

Ask Proxima C440 Bedienungsanleitung

Ask Proxima

Ask Proxima C445+ Bedienungsanleitung

Ask Proxima

Ask Proxima DLP Projector Bedienungsanleitung

Ask Proxima

Ask Proxima C110 Bedienungsanleitung

Ask Proxima

Ask Proxima C105 (DP6155) Bedienungsanleitung

Ask Proxima

Ask Proxima Impression 8300 Bedienungsanleitung

Ask Proxima

Ask Proxima C440/C450 Bedienungsanleitung

Ask Proxima

Ask Proxima M6 Bedienungsanleitung

Ask Proxima

Ask Proxima DP5900 Bedienungsanleitung

Ask Proxima

Ask Proxima Campus 700 Bedienungsanleitung

Ask Proxima

Ask Proxima E3000 series Bedienungsanleitung

Ask Proxima

Ask Proxima A4 Compact Bedienungsanleitung

Ask Proxima

Ask Proxima DP6105 Bedienungsanleitung

Ask Proxima

Ask Proxima DP6860 Bedienungsanleitung

Ask Proxima

Ask Proxima C185 Bedienungsanleitung

Ask Proxima

Ask Proxima M5 Bedienungsanleitung

Ask Proxima

Ask Proxima C175 Bedienungsanleitung

Ask Proxima

Ask Proxima C160 Bedienungsanleitung

Ask Proxima

Ask Proxima Ultralight S520 Bedienungsanleitung

Ask Proxima

Ask Proxima C160 Bedienungsanleitung

Ask Proxima

Ask Proxima PL-300 Bedienungsanleitung

Ask Proxima

Ask Proxima DP5800 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
