Asoni CAM679F Bedienungsanleitung

1080P Full-HD

H.264 CMOS Network Camera

CAM679F / CAM679F-W / CAM679F-PoE

User’s Manual

Date: 7/20/2012

Firmware Version: VB1.0.26

Content

Content .......................................................................................................................................1

1. Preface.................................................................................................................................3

2. Product Specifications.......................................................................................................3

3. Product Installation ............................................................................................................6

A. Hardware Installation......................................................................................................6

Cable Connections................................................................................................................6

I/O Connections....................................................................................................................7

B. Monitor Setting................................................................................................................9

C. IP Assignment................................................................................................................10

4. Live Video..........................................................................................................................12

5. Configuration ....................................................................................................................17

A. System ...........................................................................................................................17

System Information.............................................................................................................17

User Management..............................................................................................................21

System Upgrade.................................................................................................................23

System Logs.......................................................................................................................24

B. Video/Audio Setting ......................................................................................................25

Video Format ......................................................................................................................25

Image Setting......................................................................................................................30

Audio Setting ......................................................................................................................32

C. Network Setting.............................................................................................................34

Network Setting ..................................................................................................................34

Wireless Setting..................................................................................................................38

Mail / FTP / Samba Setting.................................................................................................41

PPPoE / DDNS Setting.......................................................................................................45

D. Network (Advance) Setting...........................................................................................48

HTTPS Setting....................................................................................................................48

SNMP Setting .....................................................................................................................50

IP Filter Setting ...................................................................................................................52

QoS/ DSCP Setting.............................................................................................................54

IEEE 802.1x Setting............................................................................................................55

E. Event Handling..............................................................................................................56

Event Setting ......................................................................................................................56

I/O Setting...........................................................................................................................61

Schedule.............................................................................................................................63

6. Network Configuration.....................................................................................................65

A. Intranet Only..................................................................................................................65

Connects to PC Directly......................................................................................................65

Connects to an Exist LAN...................................................................................................66

B. Internet Only..................................................................................................................67

Connects toADSL with Fixed Public IPAddress.................................................................67

Connects toADSL with Floating Public IPAddress (PPPoE)..............................................68

C. Intranet + Internet..........................................................................................................70

Connects to Internet with Fixed Public IPAddress..............................................................70

Connects to Internet with Floating Public IPAddress..........................................................72

7. Factory Default..................................................................................................................73

1. Preface

This camera is a 1080P Full-HD 2 Mega-Pixel CMOS network camera which builds in web

server. User views real-time video via IE browser. It supports H.264, MJPEG and MPEG4

video compression which provides smooth and high quality video.

The PoE model built-in support for Power over Ethernet allows the camera to receive both

data and power over a single Ethernet cable.

This camera is an easy-to-use IP camera which is designed for security application.

2. Product Specifications

2 Mega-Pixel CMOS Sensor

H.264 / MJPEG / MPEG4 compression formats and triple streaming

Supports resolution up to 1920x1080, 1080P@25FPS real time

Self-Contained HTTP Web Server providing Internet capability for remote access

Digital Wide Dynamic Range

Shutter Speed adjustment

Sense Up adjustment

Wireless network connection (Wireless model)

Built-in PoE splitter, support for Power over Ethernet (PoE model)

2-way audio

Online firmware upgrade

Recorded files compatible with Microsoft Windows Media Player

Hardware

CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB

Image Sensor 1/2.7” CMOS, 2 Mega-Pixel

Lens 1/2.5”, Fixed 6 mm, F1.4, 3 Mega-Pixel Lens

Illumination 1 lux

Lens Changeable Yes, CS Mount

Shutter Time 1/5 ~ 1/10000 sec

Audio In Built-in microphone

Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)

Digital I/O 1 Digital in / 1 Digital out

Power Supply Normal & Wireless model: DC 12V, 1A

PoE model (built-in PoE Splitter):

Use PoE: PoE Injector (IEEE 802.3af)

Or, use Power Adaptor: DC 12V, 1A

Power Consumption Max. 6 Watt

Dimensions W55 x H50 x D143 mm

Network

Ethernet 10/ 100 Base-T

Wireless (Wireless model) 802.11b/g/n, supports WPA-PSK, WPA2-PSK, WEP 64/ 128 bit

Network Protocol HTTP, HTTPS, TCP/IP, RTP/RTSP, UDP, 3GPP, SMTP, FTP, Samba, PPPoE,

DHCP, DDNS, NTP, UPnP, SNMP, QoS/DSCP, IP Filter, IEEE 802.1x

System

Video Resolution 1920x1080, 1280x720, 640x480, 320x240, 176x144

Compression Format H.264 / MJPEG / MPEG4

Frame Rate When resolution is equal to or over 1280x720, total FPS of stream1 and

stream2 is up to 25FPS

When resolution is equal to or under 640x480, up to 30FPS for each stream

Triple Streaming Yes (2 for live view, 1 for 3GPP)

3GPP Yes, Live view with 3G mobile phone

Video Bitrate Adjustment CBR, VBR

Video Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Gain control, Shutter time,

Sense Up, Digital WDR, Gamma, Exposure, Digital Noise Reduction, Video

orientation

Image Snapshot Yes

Privacy Mask Yes, 3 different areas

Motion Detection Yes, 3 different areas

Event Trigger Motion Detection, Digital In

Triggered Action Send Email, Send to FTP, Save to Samba HDD, Digital Out

Pre/ Post Alarm Yes, configurable

Security Password protection, IP address filtering, HTTPS encrypted data

transmission, IEEE 802.1x port-based authentication, QoS/DSCP

Firmware Upgrade HTTP mode, can be upgraded remotely

Connection Up to 10 clients simultaneously

Audio Yes, 2-way

Web browsing requirement

OS Windows 2000, XP, Vista, Windows 7

Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera

V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above

Suggested Hardware Intel Core 2 Duo 2.53GHz, RAM: 1GB

Graphic card: 128MB onboard RAM

* Specifications are subject to change without notice

3. Product Installation

A. Hardware Installation

Cable Connections

Network Connector:

The RJ-45 connector allows connect the Ethernet cable.

Power Jack:

To connect the DC 12V power adapter.

Audio Output: The 3.5mm phone jack

allows connect to an amplified speaker,

you can hear the voice of the remote site from the speaker.



Digital I/O:

The terminal block provides the Digital In and Relay Out. The

pin assignments are:

(A) Digital Output

(B) Digital Input



Antenna Connector: Available for Wireless model. To connect the included wireless

antenna.

1. Connect the cable of Digital I/O and Audio Output if you want to use these

functionalities.











2. Connect the wireless antenna for the Wireless camera.

3. Connect Ethernet cable for network connection.

4. Connect power adapter to turn on the camera.

5. If the camera is PoE model, the power adapter is not necessary. The camera will get

the power from the PoE injector or PoE switch.

PoE (Power over Ethernet) is a technology that integrates power into a standard LAN

infrastructure. It enables power to be provided to the network device, such as an IP

phone or a network camera, using the same cable as that used for network connection.

It eliminates the need for power outlets at the camera locations. Please follow the

below figure for the connection.

6. Set up the network configurations according to the network environment. For further

explanation, please refer to Network Configuration chapter.

7. After finish the configuration for the very first time, if you want to use wireless network,

plug out the Ethernet cable.

I/O Connections

I/O terminal connector – used in application, for e.g., motion detection, event triggering,

alarm notifications. It provides the interface to:

1 set of Digital Input (Digital In + GND) – The digital inputs for connecting devices

that can toggle between an open and closed circuit, such as PIRs, door/window

contacts, glass break detectors, etc. When a signal is received the status changes

and the input becomes active.

1 set of Digital Output (Digital Out + GND) – The output to Relay Box or Relay

Board, and switch on the alarm device such as LEDs, Sirens, etc.

PoE Switch or PoE Injector

Ethernet Cable

Data only

Ethernet Cable

Mixed data and power

PoE Network Camera

To Network

Digital Input (Alarm Input)

GND (Ground): Initial status is LOW.

Alarm: Max. 50mA, 12VDC.

Digital Output (Alarm Output)

Door/Window

Contacts

Relay Board

Relay Box

Digital IN

Digital OUT

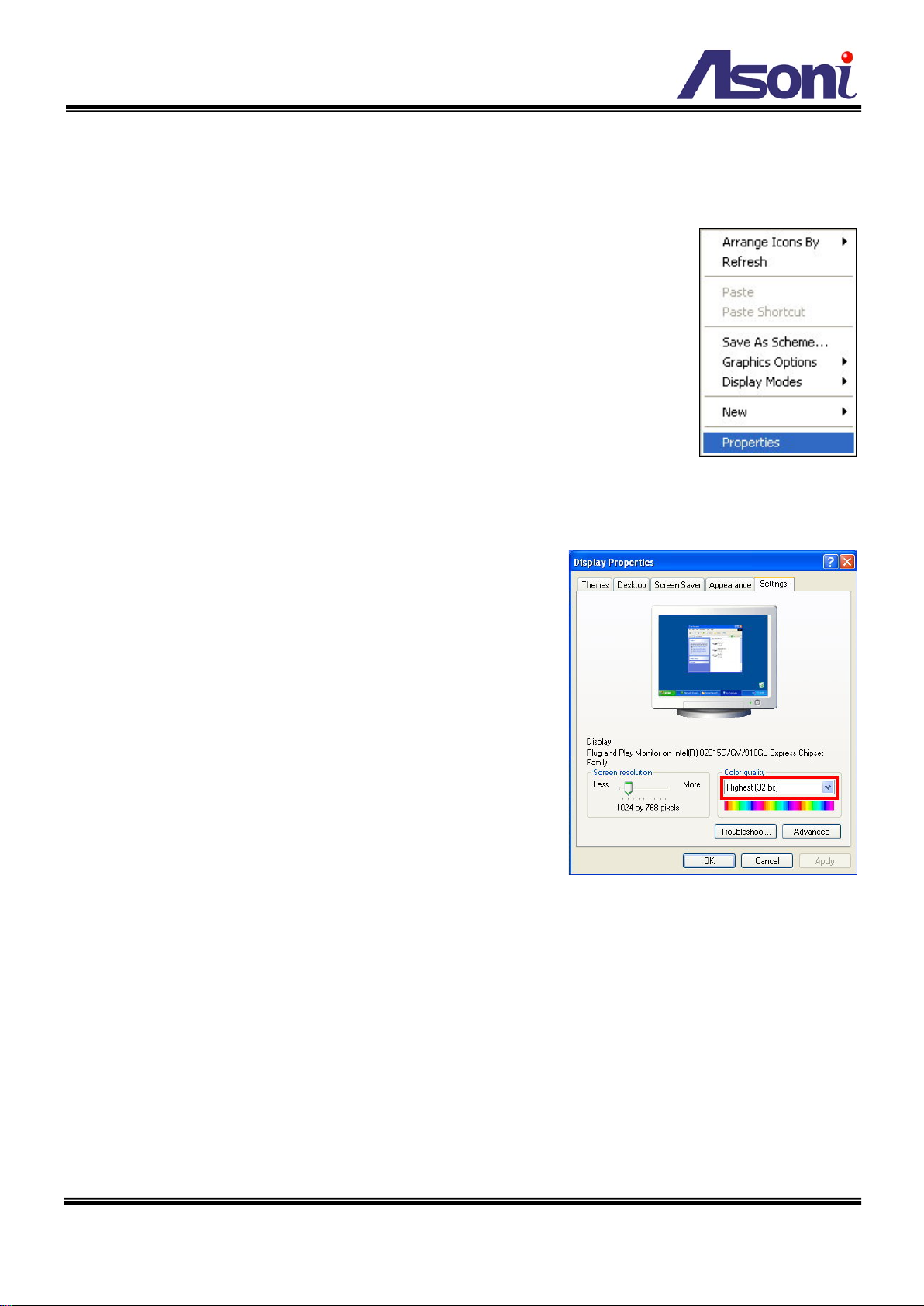

B. Monitor Setting

1. Right-Click on the desktop. Select “Properties”

2. Change color quality to “Highest (32bit)”.
