Atdec AD-AC-PH Bedienungsanleitung

AD-AC-PH Page 1 of 3

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! Exercise caution when closing tray to avoid damage to cables or components.

! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these

instructions and the consequences of incorrect installation.

! Check load capacity of surface prior to installation. Failure to provide adequate structural strength for this product can result

in serious personal injury or damage to equipment. It is professional installer’s responsibility to ensure suitable structural

capacity of desk (including appropriate safety factor) to support total weight of all equipment being mounted.

! This product only to be used on underside of horizontal surface.

! This product is not suitable for outdoors use.

! Do not use this product for mobile applications.

Installation Guide

AD-AC-PH

Hinged Media Storage Panel

COMPONENT CHECKLIST

Bracket

(x1)

Tray

(x1)

M4 x 12mm

Securing screw

(Optional) (x2)

Hook & loop

16mm x 500mm

(5/8” x 20”)

#10 x 16mm (5/8”)

Wood screw*

(x6)

M5 Flat

Washer

(x12)

REQUIRED TOOLS

WEIGHT RANGE

0 - 8kg

(0 - 17.5lbs)

• Phillips head screwdriver

• Power drill

• 3.5mm (1/8”) drill bit

* Professional installer to ensure appropriate fastener

length & type to suit surface where bracket is installed.

AD-AC-PH Page 2 of 3

>40mm

(1.6”)

SIDE VIEW

>40mm

(1.6”)

>18mm

(0.7”)

>54

Hinge

Hook

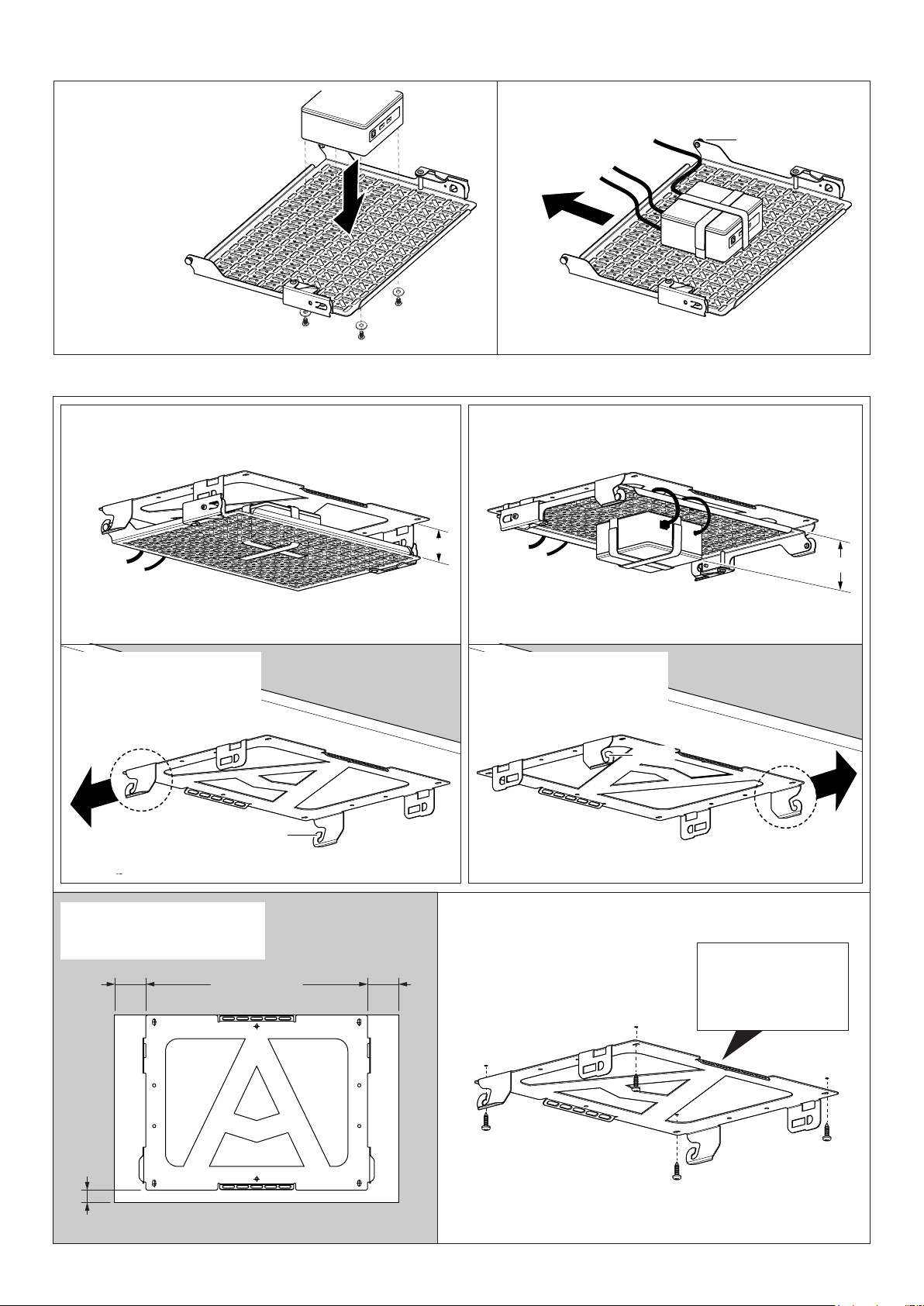

1.1 Mount components on side

of Tray Bshown.

Components can be attached

with hook & loop, cable ties,

or the fasteners provided with

your components..

OPTION A - Enclosed components

Components up to 54mm (2 1/8”)

high can be enclosed.

1.2 Cable exit and entry

always at hinge end.

2. Choose product conguration then attach bracket

1. Attach components to tray

Hook

2.1B Position hooks towards

front to make components

accessible when tray

hanging for maintenance.

Hinge

2.1A Position hooks towards

back to make components

accessible when tray

hanging for maintenance.

Exposed conguration bracket orientation

Enclosed conguration bracket orientation

Minimum clearance

2.2 Ensure sufcient clearance

to walls/desk structure for

tray attachment and latching.

2.3 Check surface thick enough

and material appropriate for

supplied #10 x 16mm (5/8”)

Wood Screws C.

2.4 Use Bracket A as a drilling

template and mark mounting

hole centres.

2.5 Carefully drill 3.5mm (1/8”)

pilot holes. Fasten Bracket

with Wood Screws C.

Tip: Components can be

mounted on both sides of

tray in enclosed position.

Tip: Use Washers E

when using component

fasteners if needed

Tip: Front and back

tabs with slot detail

are a place to attach

cables independant

of hinging tray

OPTION B - Exposed components

Components greater than 54mm (2 1/8”)

high must be exposed.

AD-AC-PH Page 3 of 3

Hook

Securing

screw F

Cable tie

or lock

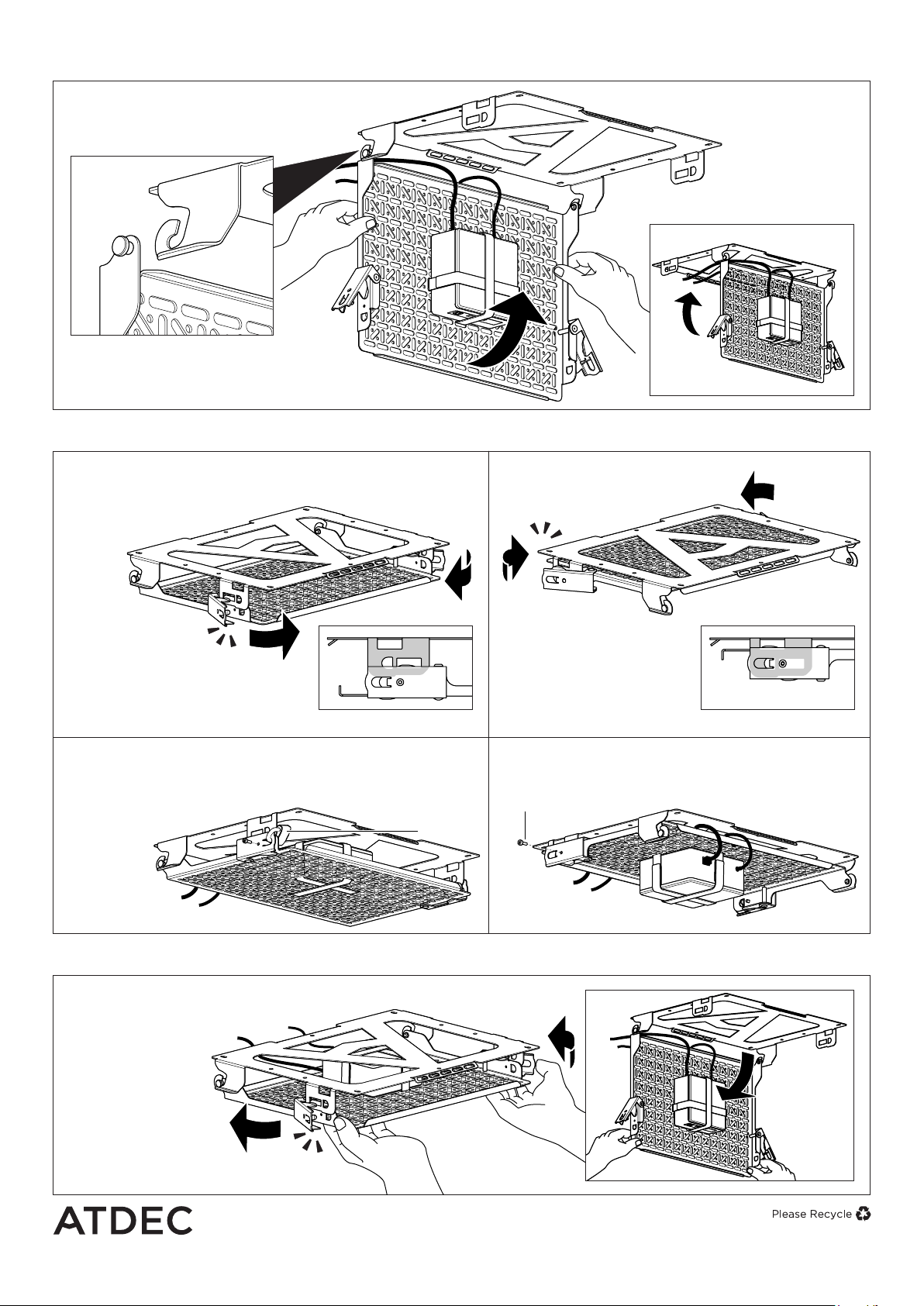

3.1 Lift Tray Bwith two hands and

engage simultaneously with hook

detail on both sides of Bracket A.

3.2 With latches in open

position rotate Tray Buntil

parallel with mounting surface.

NOTE: Cables must

always exit at the

hinging side of tray

4.1 Line up latches with holes

in bracket and rotating inwards

until they engage with a click.

5.1 Check for and remove any securing

screws, cable ties or locks.

5.2 Use two hands to

support tray while

opening both

latches. Smoothly

rotate tray into

hanging position.

Components

accessible without

need to remove tray.

4.2 (OPTIONAL) For extra security

attach M4 screws F, cable ties or

locks to both latches.

Do not overtighten

screws.

4. Secure tray

5. Component maintenance

Enclosed latch position

3. Attach tray

Securing

screw F

Cable tie

or lock

Securing

screw F

Cable tie

or lock

Exposed latch position

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Securing

screw F

Cable tie

or lock

Enclosed

Click

Hook

Click

Hook

Exposed
