Installation Guide
AWMS-BT40
Post Mounted Heavy Duty
Monitor Mount
AWMS-BT40-H
AWMS-BT40X-H
AWMS-BT40-C AWMS-BT40-G
AWMS-BT40X-G
AWMS-BT40-H
AWMS-BT40X-H
AWMS-BT40-C AWMS-BT40-G
AWMS-BT40X-G
COMPONENT CHECKLIST
B
Bridge
(x1)
C
Leg
(x2)
A
Post
(x1)
B
Bracket
(x1)
E
4mm
Hex Key
(x1)
F
5mm
Hex Key
(x1)
N
13mm
Spanner
(x1)
C
VESA Plate
(x1)
A
M8 Stud
(x1)
H
M4x10mm
Screw
(x4)
D
Post Cap
(x1)
I
M4x20mm
Screw
(x4)
J
10mm
Spacer
(x4)
G
M8x60mm
Screw
(x2)
G
M8 Stud
(x1)
H
M8x30mm
Screw
(x1)
C
Clamp Bar
(x1)
B
Clamp Plate
(x1)
REQUIRED TOOLS
CAPACITY
Flat Monitor
4.5 - 25kg
(10 - 55lb)
Curved Monitor
4.5 - 18kg
(10 - 40lb)
Display Size
24” - 55”
300mm (12”) max
overall display depth
• Phillips Head Screwdriver
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Eachbracketsupportsamaximumweightasperabovecapacityspecication.
! Avoid applying downward load to corners of display.
! Product must only be installed on a solid work surface capable of supporting the weight of all equipment being mounted.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that
can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec
if you would like further information.
! WARNING! Death or serious injury may occur if a child climbs on or tips product.
AWMS-BT40 Page 2 of 4

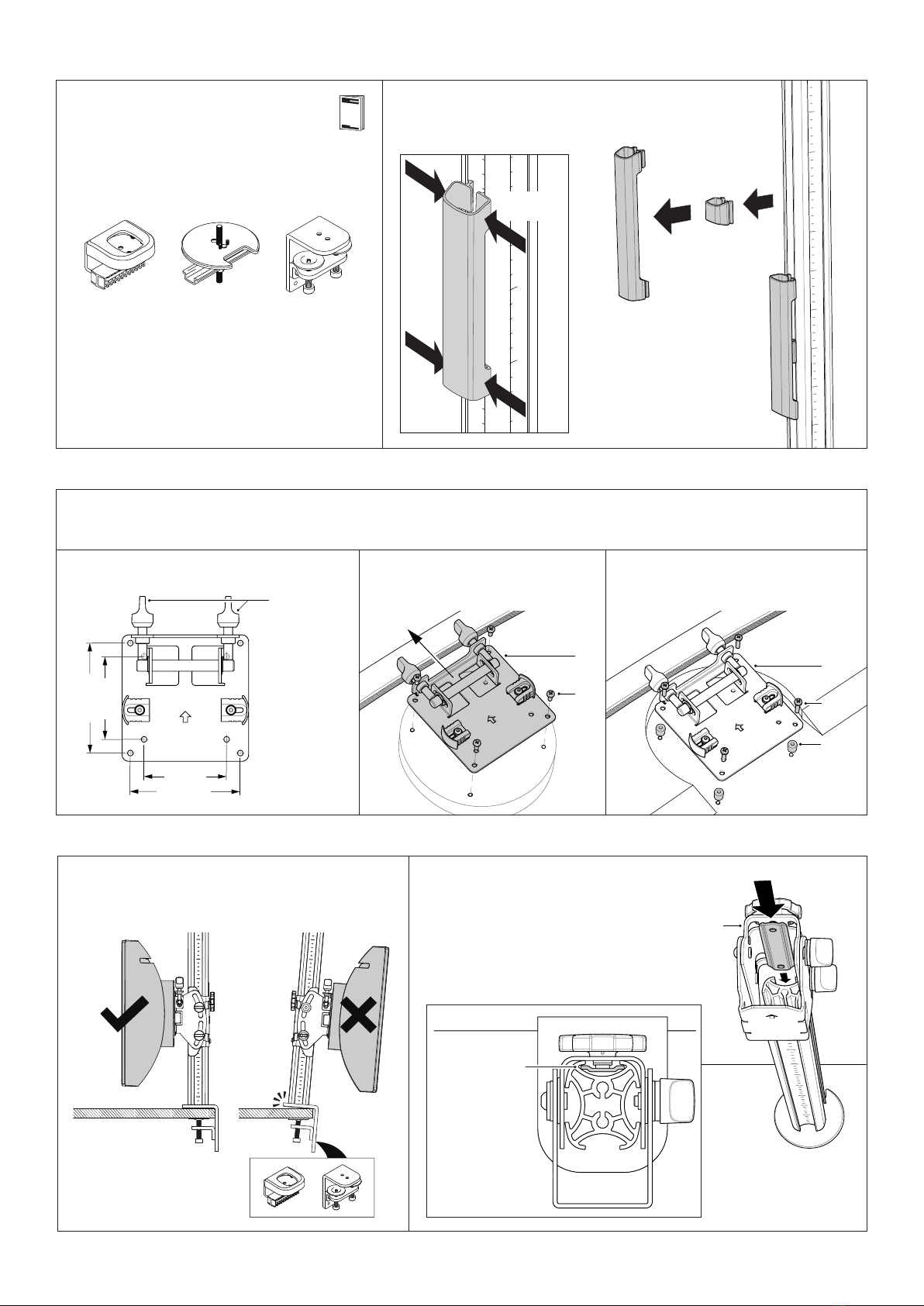

2. Attach VESA plate to display
2.1 VESA compatibility
3.1 Tilt bracket must only be attached with
display facing the front of the mounting
surfaceunlessxingisAC-GC.
NOTE: Some displays require the use of a VESA adapter before attaching the VESA plate. This VESA adapter may ship in the
box with the display. Consult your display’s installation guide for further information.
1. Attach post to xing (xing sold separately)
1.1 Follow the installation guide
providedwiththexingto
attachthepostandxittothe
worksurface.
1.2 Remove cable clips and covers
from post by sliding up and out or
by squeezing sides.
AWM-FC
C Clamp
AC-GC
Grommet
Clamp
AWM-FH
Heavy Duty
F Clamp
3. Slide bracket onto post
3.2 Line up the inner guide on rear of
bracket with rear channel on post.
Slide inner guide into channel, then
lower the bracket.
VIEW FROM ABOVE
AWM-FC
C Clamp
AC-GC
Grommet
Clamp
AWM-FH
Heavy Duty
F Clamp
75mm
100mm
75mm
100mm
NOTE:
For 75mm
VESA
unscrew
5mm to
access
top holes
C
I
J
C
H
TOP
WORK
SURFACE
BACK of desk
FRONT
INNER GUIDE
in rear post
channel
Option B - For recessed VESA use
10mm spacers and M4x20mm screws.
Option A - Attach VESA plate
with M4x10mm screws.
SQUEEZE
to release
C
B
AWMS-BT40 Page 3 of 4

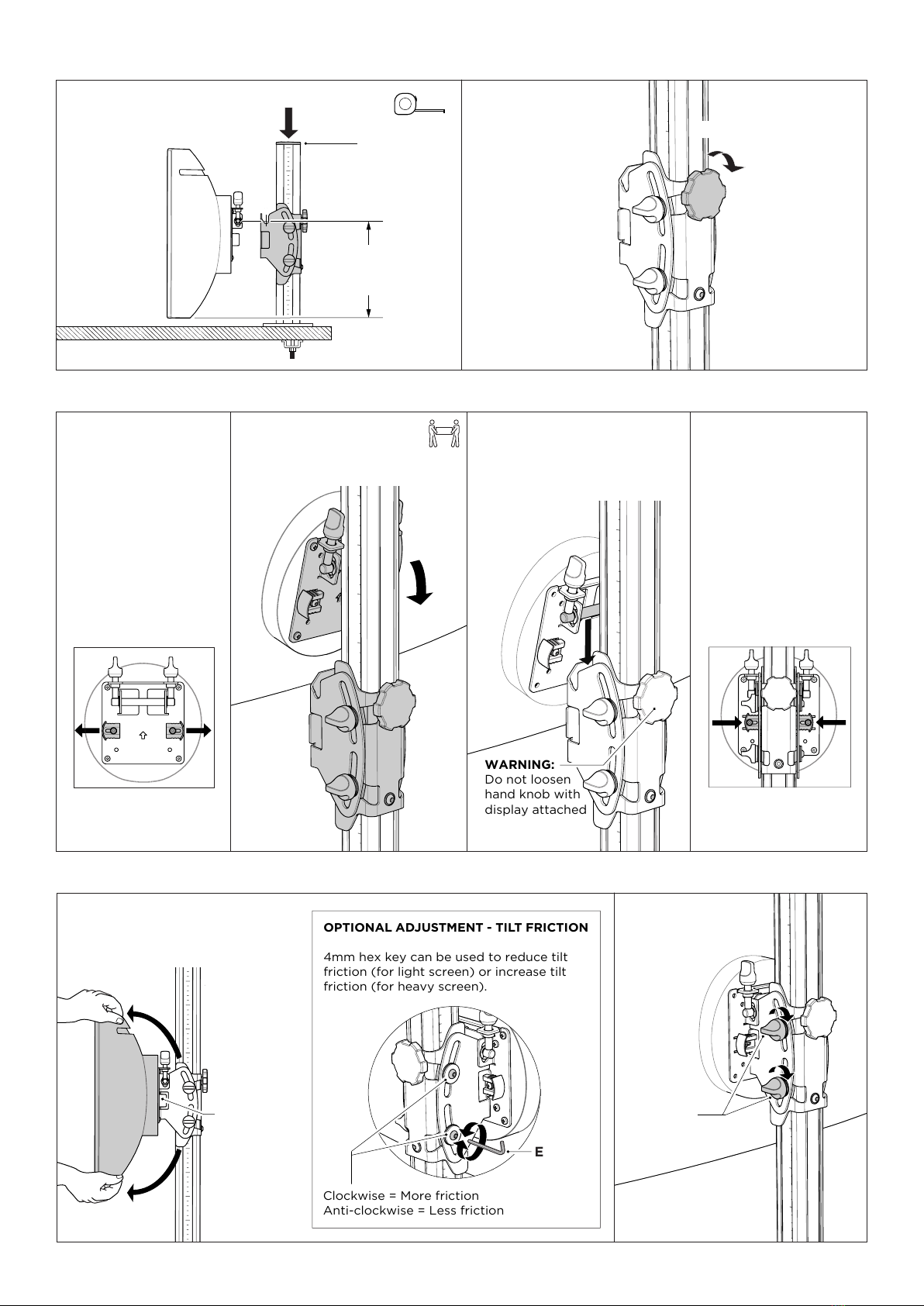

5. Attach display
4. Set height
4.1 Ensure height is
sufcientfordisplayto
clear desk once in place.
4.2 Firmly tighten hand
knob at chosen height.
Fit post cap.
WARNING:
Never loosen
knob while display
is on bracket
TIGHTEN
MEASURE
≥Display
height
between
brackets
D
MEASURE to
ensure clearance
to desk
D
MEASURE
≥Display
height
between
brackets
D
MEASURE to
ensure clearance
to desk
D
OPEN CLOSED
5.1 Set VESA plate
clips to open position.
WARNING:
Use two people to
install display
5.3 Centre VESA plate close
to post and slowly lower until
bar on VESA plate sits in
saddle in bracket.
5.4 Set VESA plate
clips to closed
position.
5.2 Lift display until
VESA plate is above the
bracket.
OPEN
CLOSED
WARNING:
Do not loosen
hand knob with
display attached
NOTE:
Display hangs from
the bracket like a
painting. After clips
are closed, if corners
of the screen are
pushed downwards,
rocking movement is
expected.
6. Set tilt
6.1 Adjust display tilt angle by
gripping edges of screen and rolling
up or down to desired position.
WARNING:
Ensure clips
closed before
tilting
Clockwise = More friction
Anti-clockwise = Less friction
OPTIONAL ADJUSTMENT - TILT FRICTION
4mm hex key can be used to reduce tilt
friction (for light screen) or increase tilt
friction (for heavy screen).
E
TILT
KNOBS
6.2 Tighten tilt
knobs to set.
AWMS-BT40 Page 4 of 4
PUSH
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reservestherighttoalterspecicationswithoutnotice.©20230120
7. Fine adjustment
8. Cable management
CABLE COVERS
8.5 Load cables
into cable cover.
CABLE CLIPS
8.2 Load cables into
cable clip.
8.6 Clip the
cable cover
onto post
channel.
7.1 To correct horizontal angle
of display +/- 3 °:
Turnasinglenetune
adjustment knob to adjust angle
of screen.
CLOCKWISE = HIGHER
ANTI-CLOCKWISE = LOWER
7.2 Tonetuneheightwithout
removing screen +/-6mm (1/4”):
Turnbothnetuneadjustment
knobs - alternating sides a few
rotations at a time.
8.1 Cable clips and covers
can be clipped onto any
post channel. The rear
channel is recommended.
8.3 Insert one side of the
cable clip into a channel
on the post, then push in
the other side.
8.4 (OPTIONAL)
Cable covers can
be clipped on
over the cable
clips.
HINT: Cable covers
have greater cable
capacity.
+/- 6mm (0.25”)
Micro adjustment - Fine tune height
+/- 3°
Micro adjustment - Levelling
FINE HEIGHT ADJUST
FINE ADJUSTMENT
KNOBS
NOTE:
Ensure clips are in
CLOSED position
Cables can
exit from
the side of
the cable
cover
PUSH
PUSH
Load cables into
cable cover
Unstacked Stacked
