Atdec AWM-LC Bedienungsanleitung

AWM-LC Page 1 of 2

COMPONENT CHECKLIST

Installation Guide

AWM-LC

Post Clamp

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with AWM Series Arms, Posts and Wall Channels.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

• All tools provided

Post Clamp

(x1)

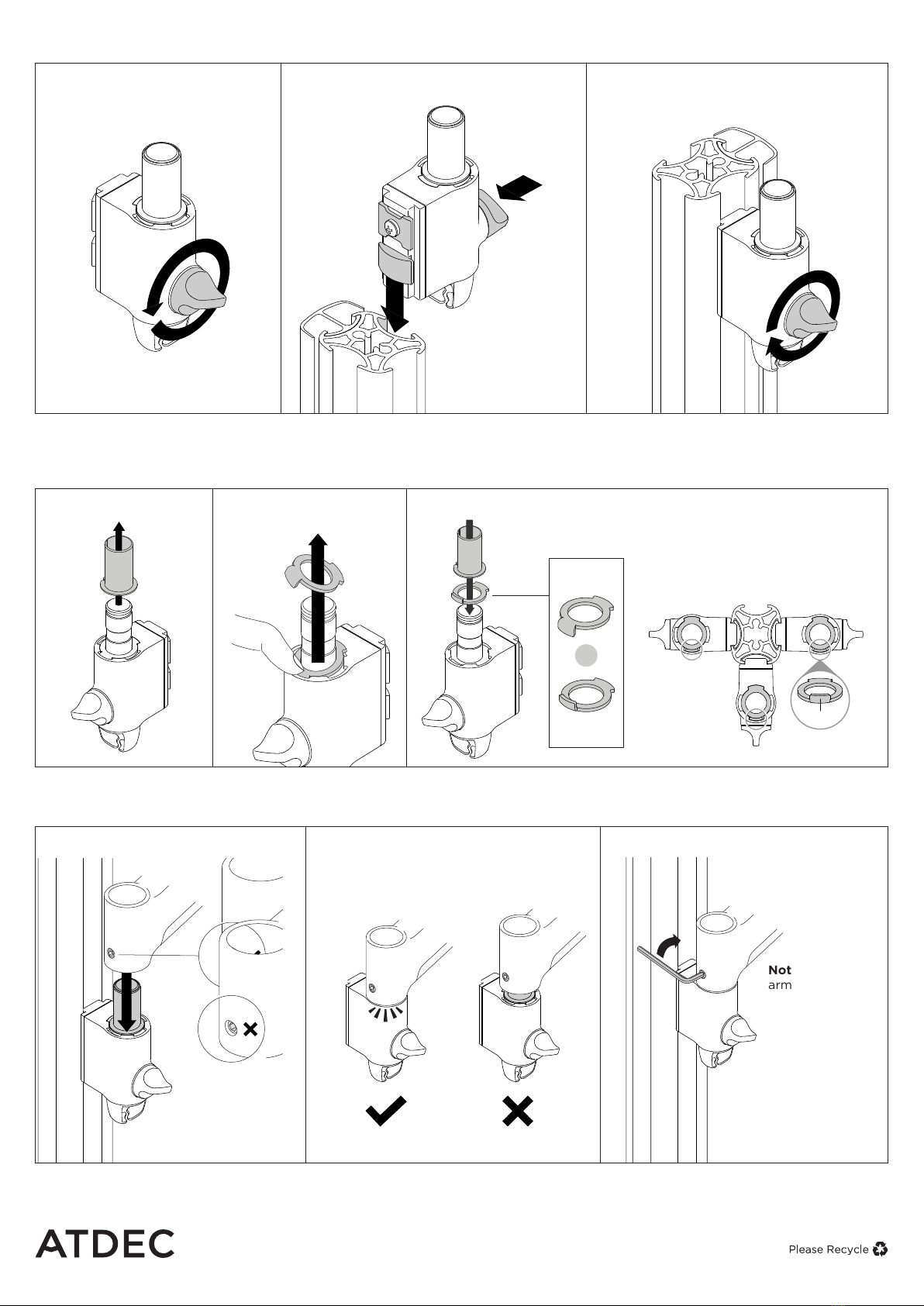

AWM-LC Page 2 of 2

1. Fix Clamp to Post or Wall Channel

3. Fit AWM Series arm to Post Clamp

1.1 Ensure knob is undone.

2.1 Remove plastic sleeve.

3.1 Push arm onto clamp.

1.2 Slide Post Clamp into channel.

2.2 Remove rotation ring

3.2 Ensure arm is fully pushed onto clamp.

Push knob to

aid insertion

1.3 Hold clamp in desired position on post

and turn knob to lock in place.

2.3 Place rotation ring in the desired position.

3.3 Tighten joint screw.

Note: Check the

arm rotation is

smooth after

tightening.

Note: Arm sold

separately

Note: Place the rotation ring

depending on what post channel

the arm will be attached to. The tag

should always face towards the user.

1. Ensure Knob is undone

1. Remove plastic sleeve

Tip: push knob

to aid insertion

2. Slide post clamp into channel

2. Remove rotation ring

1. Press

2. Lift

3. Hold clamp in desired position on post and turn

knob to lock in place

3. Place the rotation ring

in the desired postion

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

180°

360°

Default

Position

Flipped

Position

Tag

1. Push arm onto clamp

2. Ensure arm is fully pushed onto clamp

3. Tighten set screw

Tip: Check the

arm rotation is

smooth after

tightening.

2. Set arm rotation to 180° (optional)

Note: default arm rotation is set to rotate 360�
