Atdec AWM-A13-B Bedienungsanleitung

AWM-A13 Page 1 of 4

Installation Guide

AWM-A13

130 Arm

COMPONENT CHECKLIST

REQUIRED TOOLS

WEIGHT RANGE

Monitor Arm

(x1)

Post Clamp

(x1)

VESA Head

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

Security

screw

(x1)

4mm

allen key

(x4)

• Phillips Head Screwdriver

Flat Monitors

0 - 12kg

(0 - 26.5lbs)

Curved Monitors

0 - 8kg

(0 - 17.6lbs)

Monitor weight should be within the

weight range of all modular elements

that make up the complete monitor

mounting solution.

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with Atdec AWM Series products.

! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the

capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further

information.

AWM-A13 Page 2 of 4

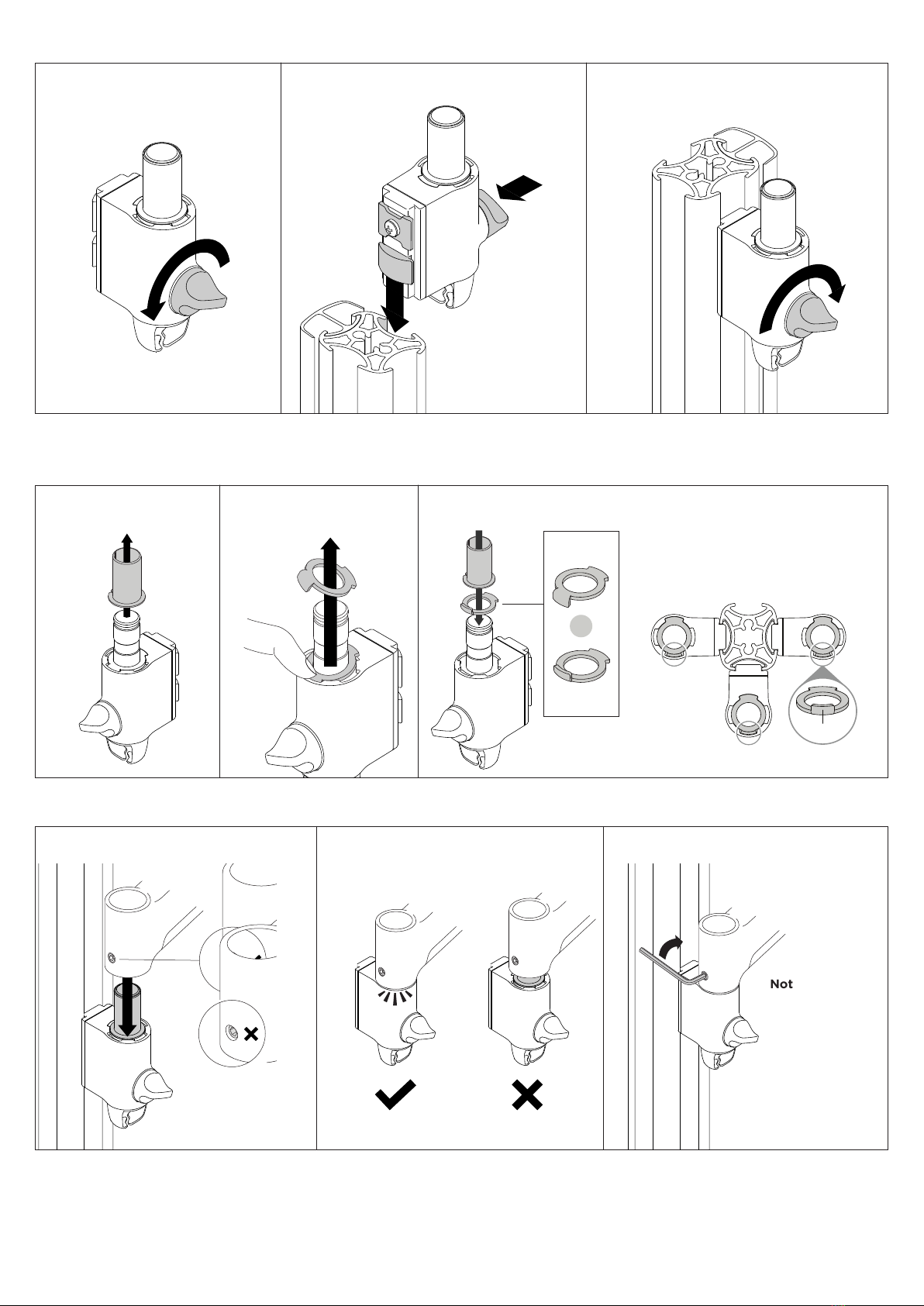

3. Place the rotation ring

in the desired postion

3. Fit arm onto post clamp

2. Set arm rotation to 180° (optional)

2.1 Remove plastic sleeve

from post clamp.

2.2 Remove rotation ring. 2.3 Place rotation ring in

desired position.

Note: rotation ring placement

depends on the position of the clamp

on the post. The tag on the ring

should always face toward the user.

1. Remove plastic sleeve

2. Remove rotation ring

1. Press

2. Lift

Note rotation is set to 360� by default.

180°

360°

Default

Position

Flipped

Position

Tag

Note: Check the

arm rotation is

smooth after

tightening.

3.1 Push arm onto shaft. 3.2 Ensure arm is fully pushed onto shaft. 3.3 Tighten joint screw.

1. Push arm onto clamp

2. Ensure arm is fully pushed onto clamp

3. Tighten set screw

Tip: Check the

arm rotation is

smooth after

tightening.

1. Fix clamp to Post or Wall Channel

1.1 Ensure knob is undone. 1.2 Slide post clamp into channel.

Push knob to

aid insertion

1.3 Hold clamp in desired position on

channel and turn knob to lock in place.

1. Ensure Knob is undone

Tip: push knob

to aid insertion

2. Slide post clamp into channel

3. Hold clamp in desired position on post and turn

knob to lock in place

AWM-A13 Page 3 of 4

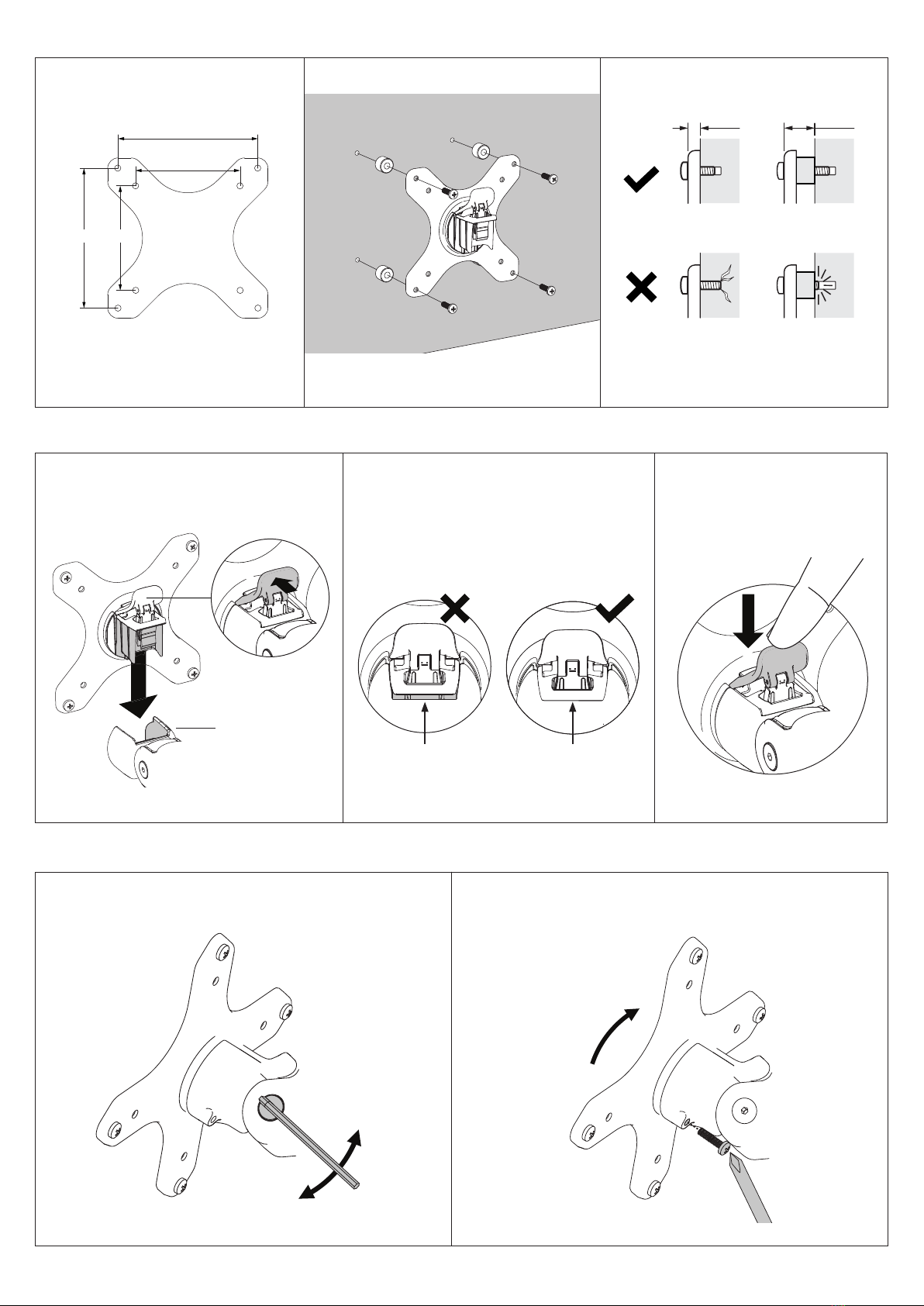

4. Attach VESA head to monitor

100mm

75mm

100mm 75mm

Flush

Too long Too short

Spacer

5mm 12mm

4.2 Screw the VESA head onto monitor

Note spacers may be required for curved,

recessed or uneven monitor surfaces.

4.3 Ensure the correct screw length is used

to attach the monitor.

4.1 VESA mounting compatibility

100mm

75mm

100mm 75mm

Flush

Too long Too short

Spacer

5mm 12mm

Tighten

Loosen

Tighten

Loosen

5. Mount monitor

Monitor arm

5.1 Insert VESA head into the monitor arm 5.3 Push the lever down to secure

it to the arm assembly

5.2 Ensure that the VESA head sits flush within

the monitor arm. There should be no gap

Gap No gap

6. Adjust tilt tension & Install security screw

6.1 Use the allen key to adjust the tilt tension until the monitor

holds in a vertical position at the end of the arm.

Note: Support

monitor while

adjusting

6.2 OPTIONAL security screw

To install the optional security screw tilt the head upwards

Note: For other sizes, use a suitable

adaptor plate (sold separately).

AWM-A13 Page 4 of 4

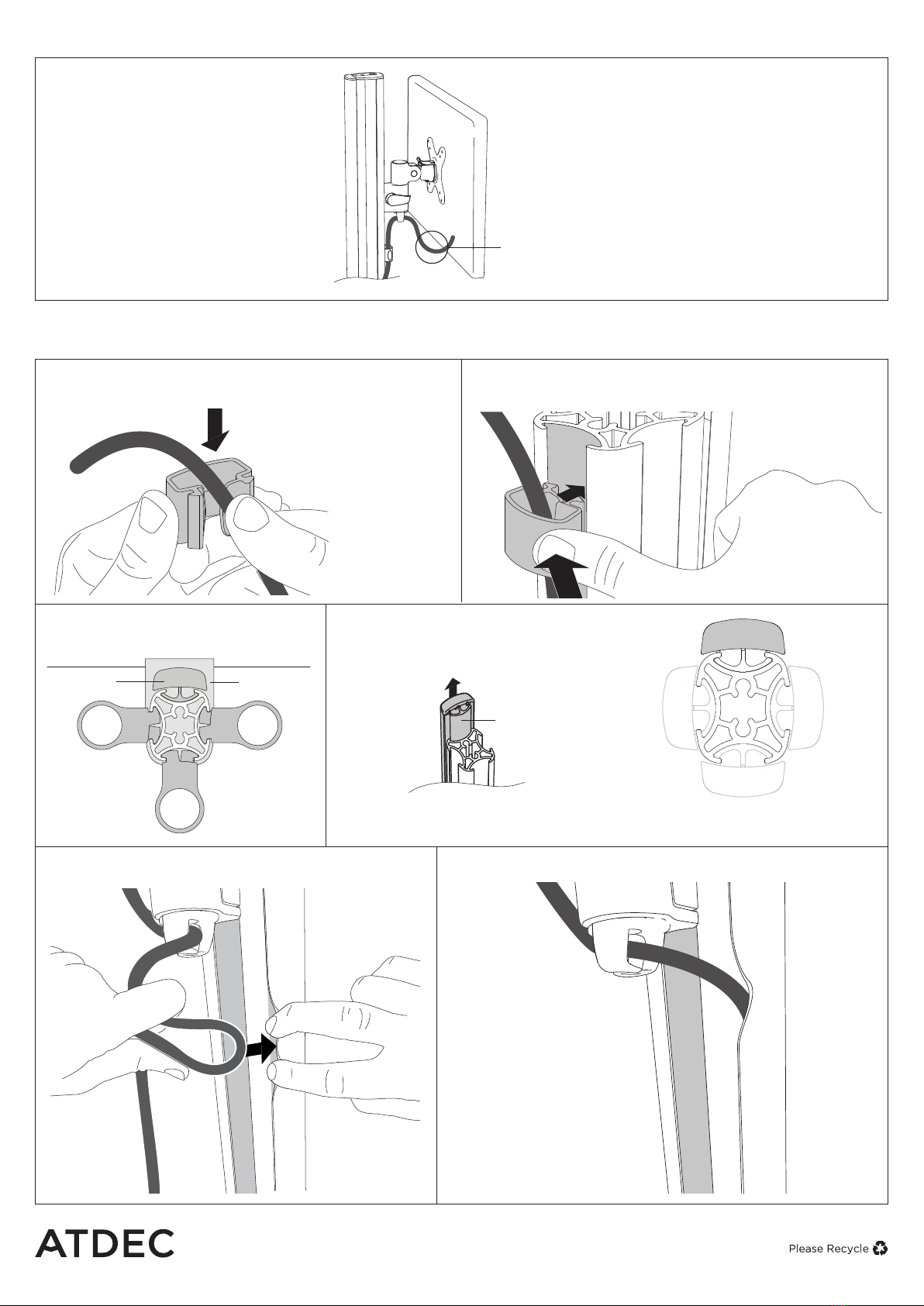

6. Monitor arm cable management

Note: The cable cover shown

does not come with all posts

7.4 To reposition the cable cover, pull it

straight up and out of the post and insert

it into any of the available channels

Cable cover

Cable

Cover

Desk

Clamp

7.1 Push the cable down into the cable clip

Note: Cable clips do not

come with all posts

7.6 Feed remaining cable into cover7.5 Loop cable and insert into cable cover

7.2 Push cable clip into post channel

7. Post cable management

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Alternative cable

cover positions

7.3 Recommended post cable cover

position for double or triple arm set-ups

6.1 Plug cables into the

monitor and route the cables

down the arm using the cable

hooks and clips.

Important:

Ensure enough cable slack is given

to allow for movement of the monitor
