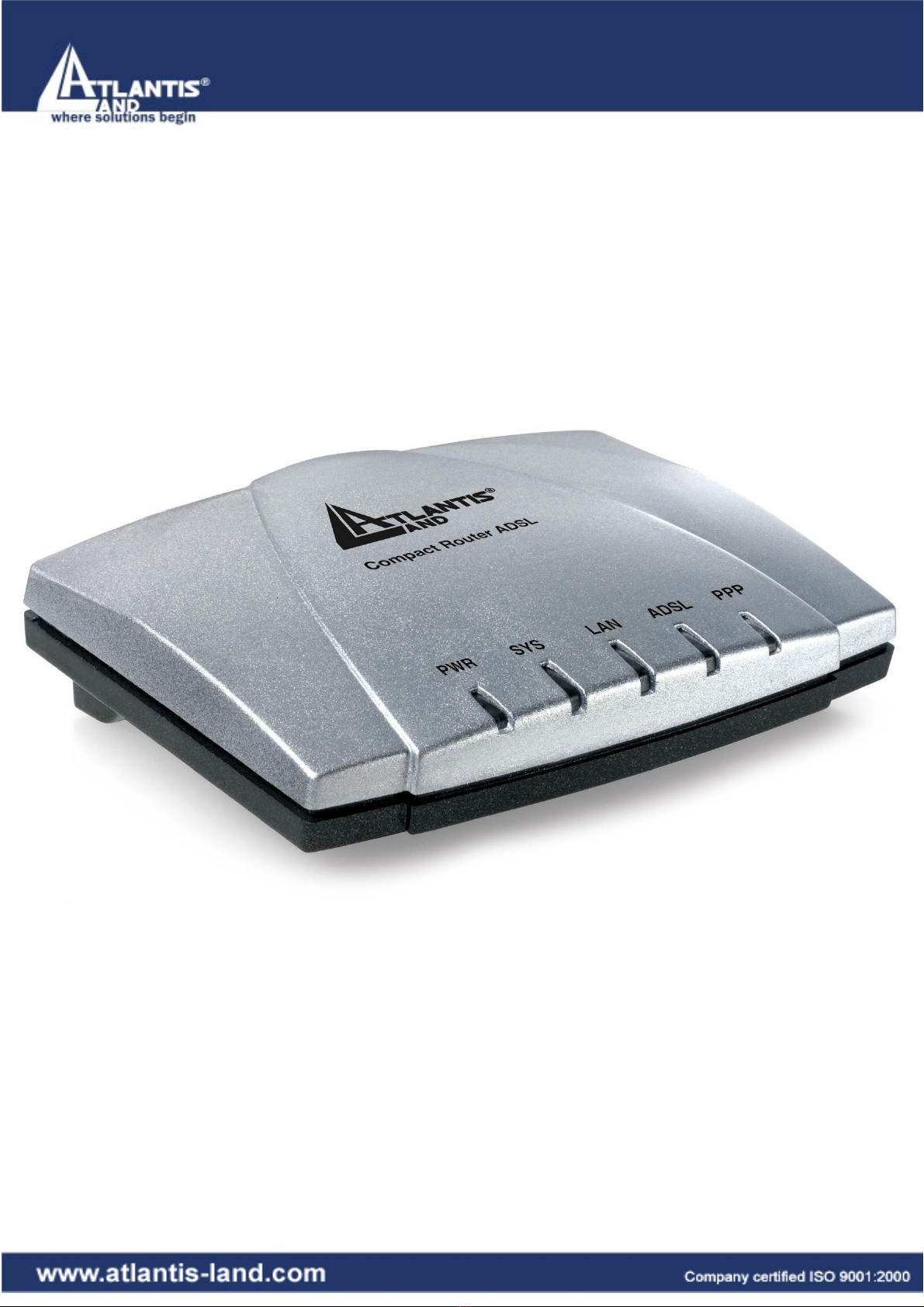

Atlantis Land Compact Router ADSL A02-RA110 Bedienungsanleitung

COMPACT ROUTER

ADSL

A02-RA110

USER’S MANUAL

A02-RA110 _ME01

COMPACT ROUTER ADSL

INDEX

CHAPTER 1: GETTING TO KNOW THE ADSL ROUTER 1

1.1 Introducing the Compact Router ADSL 1

1.2 Package Contents 1

1.3 Features of the Compact Router ADSL 2

1.4 Applications for the ADSL Router 4

1.4.1 Internet Access 4

CHAPTER 2: USING COMPACT ROUTER ADSL 6

2.1 Cautions for using the Compact Router ADSL 6

2.2 The Front Panel LEDs 6

2.3 The Rear Ports 7

2.4 Cabling 8

CHAPTER 3: INTRODUCING THE WEB CONFIGURATOR 9

3.1 Web Configurator Overview 9

3.2 Configuring PC in Windows 10

3.2.1 For Windows 95/98/ME 10

3.2.2 For Windows NT4.0 10

3.2.3 For Windows 2000 10

3.2.4 For Windows XP 11

3.3 Factory Default Settings 14

3.3.1 Username and Password 14

3.3.2 LAN and WAN Port Addresses 14

3.4 Information from the ISP 14

3.5 Accessing the ADSL Router Web Configurator 15

3.6 Navigating the Compact Router ADSL Web Configurator 16

3.7 Configuring Password 17

3.8 Resetting the ADSL Router 18

3.8.1 Using The Reset Button 18

CHAPTER 4: WIZARD SETUP 19

4.1 Wizard Setup Introduction 19

COMPACT ROUTER ADSL

4.2 Encapsulation 19

4.2.1 ENET ENCAP 19

4.2.2 PPP over Ethernet 19

4.2.3 PPPoA 19

4.2.4 RFC 1483 20

4.3 Multiplexing 20

4.3.1 VC-based Multiplexing 20

4.3.2 LLC-based Multiplexing 20

4.4 VPI and VCI 20

4.5 Wizard Setup Configuration: First Screen 20

4.6 IP Address and Subnet Mask 22

4.7 IP Address Assignment 22

4.7.1 IP Assignment with PPPoA or PPPoE Encapsulation 23

4.7.2 IP Assignment with RFC 1483 Encapsulation 23

4.7.3 IP Assignment with ENET ENCAP Encapsulation 23

4.7.4 Private IP Addresses 23

4.8 Nailed-Up Connection (PPP) 23

4.9 NAT 24

4.10 Wizard Setup Configuration: Second Screen 24

4.10.1 PPPoE 24

4.10.2 RFC 1483 25

4.10.3 ENET ENCAP 27

4.10.4 PPPoA 28

4.11 DHCP Setup 30

4.11.1 IP Pool Setup 30

4.12 Wizard Setup Configuration: Third Screen 30

4.13 Wizard Setup Configuration: Connection Tests 33

4.14 Test Your Internet Connection 33

CHAPTER 5: LAN SETUP 34

5.1 LAN Overview 34

5.1.1 LANs, WANs and the ADSL Router 34

5.2 DNS Server Address 35

5.3 DNS Server Address Assignment 35

5.4 LAN TCP/IP 36

5.4.1 Factory LAN Defaults 36

5.4.2 IP Address and Subnet Mask 36

5.4.3 RIP Setup 36

5.4.4 Multicast 37

5.5 Configuring LAN 38

COMPACT ROUTER ADSL

CHAPTER 6: WAN SETUP 40

6.1 WAN Overview 40

6.2 PPPoE Encapsulation 40

6.3 PPTP Encapsulation 40

6.4 Traffic Shaping 41

6.5 Configuring WAN Setup 42

CHAPTER 7: NETWORK ADDRESS TRANSLATION (NAT) 46

7.1 NAT Overview 46

7.1.1 NAT Definitions 46

7.1.2 What NAT Does 47

7.1.3 How NAT Works 47

7.1.4 NAT Application 48

7.1.5 NAT Mapping Types 49

7.2 SUA (Single User Account) Versus NAT 49

7.3 SUA Server 50

7.3.1 Port Forwarding: Services and Port Numbers 50

7.3.2 Configuring Servers Behind SUA (Example) 51

7.4 Selecting the NAT Mode 52

7.5 Configuring SUA Server 53

7.6 Configuring Address Mapping 54

7.7 Editing an Address Mapping Rule 56

CHAPTER 8: SECURITY 58

CHAPTER 9: DYNAMIC DNS SETUP 59

9.1 Dynamic DNS 59

9.1.1 DYNDNS Wildcard 59

9.2 Configuring Dynamic DNS 59

CHAPTER 10: TIME AND DATE SETUP 61

10.1 Configuring Time Zone 61

CHAPTER 11: REMOTE MANAGEMENT CONFIGURATION 64

11.1 Remote Management Overview 64

11.1.1 Remote Management Limitations 64

11.1.2 Remote Management and NAT 64

COMPACT ROUTER ADSL

11.1.3 System Timeout 65

11.2 Telnet 65

11.3 FTP 65

11.4 Web 65

11.5 Configuring Remote Management 65

CHAPTER 12: MAINTENANCE 67

12.1 Maintenance Overview 67

12.2 System Status Screen 67

12.2.1 System Statistics 69

12.3 DHCP Table Screen 70

12.4 Diagnostic Screens 71

12.4.1 Diagnostic General Screen 71

12.4.2 Diagnostic DSL Line Screen 72

12.5 Firmware Screen 74

APPENDIX A: TROUBLESHOOTING 76

A.1 Using LEDs to Diagnose Problems 76

A.1.1 Power LED 76

A.1.2 LAN LED 76

A.1.3 DSL LED 76

A.2 Telnet 77

A.3 Web Configurator 77

A.4 Login Username and Password 78

A.5 LAN Interface 79

A.6 WAN Interface 79

A.7 Internet Access 80

A.8 Remote Management 80

A.9 Remote Node Connection 81

APPENDIX B: TECHNICAL FEATURES 82

APPENDIX C:SUPPORT 83

A02-RA110_ME01 (V1.0 July 2004)

COMPACT ROUTER ADSL

The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other

names mentioned mat be trademarks or registered trademarks of their respective

owners. Subject to change without notice. No liability for technical errors and/or

omissions.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause

radio interference, in which case the user may be required to take adequate

measures.

FCC Warning

This equipment has been tested and found to comply with the regulations for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with this user’s guide, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct the

interference at his own expense.

COMPACT ROUTER ADSL

A02-RA110 Pag. 1

CHAPTER 1: Getting to Know the ADSL Router

This chapter describes the key features and applications of ADSL Router.

1.1 Introducing the Compact Router ADSL

Broadband Sharing and IP sharing

The Compact Router ADSL supports 1 port 10/100 Mbps auto-negotiating Fast

Ethernet for connection to your PC or LAN and downstream (with built-in ADSL

modem) rate up to 8Mbps. Power by NAT technology, dozens of network users

can surf on the Internet and share the ADSL connection simultaneously by using

one ISP account and one single IP address.

Easy Configuration and Management

Support web based GUI and Telnet for configuration and management.

The web browser-based Graphical User Interface provides easy management

and is totally independent of the operating system platform you use.

Also supports remote management (Web and telnet) capability for remote user to

configure and manage this product. It incorporates besides a client Dynamic

DNS.

1.2 Package Contents

• Compact Router ADSL

• One CD-ROM containing the online manual

• One Quick Start Guide

• One RJ-11 ADSL/telephone cable

• One CAT-5 LAN cable

• One AC-DC power adapter (9VDC, 1A)

If any of the above items are missing, please contact your reseller.

COMPACT ROUTER ADSL

A02-RA110 Pag. 2

1.3 Features of the Compact Router ADSL

The following sections describe the features of the ADSL Router.

High Speed Internet Access: The ADSL Router can support downstream

transmission rates of up to 8Mbps and upstream transmission rates of 832 Kbps.

PPPoE Support (RFC2516): PPPoE (Point-to-Point Protocol over Ethernet)

emulates a dial-up connection. It allows your ISP to use their existing network

configuration with newer broadband technologies such as ADSL. The PPPoE

driver on the ADSL Router is transparent to the computers on the LAN, which see

only Ethernet and are not aware of PPPoE thus saving you from having to

manage PPPoE clients on individual computers.

Network Address Translation (NAT): Network Address Translation (NAT) allows

the translation of an Internet protocol address used within one network (for

example a private IP address used in a local network) to a different IP address

known within another network (for example a public IP address used on the

Internet).

10/100M Auto-negotiation Ethernet/Fast Ethernet Interface: This auto-

negotiation feature allows the ADSL Router to detect the speed of incoming

transmissions and adjust appropriately without manual intervention. It allows data

transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode

depending on your Ethernet network.

Dynamic DNS Support: With Dynamic DNS support, you can have a static

hostname alias for a dynamic IP address, allowing the host to be more easily

accessible from various locations on the Internet. You must register for this

service with a Dynamic DNS client.

Multiple PVC (Permanent Virtual Circuits) Support

The ADSL Router supports up to 8 PVC’s.

ADSL Standards: Full-Rate (ANSI T1.413, Issue 2; G.dmt (G.992.1) with line rate

support of up to 8 Mbps downstream and 832 Kbps upstream. G.lite (G.992.2)

with line rate support of up to 1.5Mbps downstream and 512Kbps upstream.

Supports Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.994.1

and G.996.1 (for ISDN only); G.991.1;G.lite (G992.2)).Supports OAM F4/F5 loop-

back, AIS and RDI OAM cells.ATM Forum UNI 3.1/4.0 PVC.Supports up to 8

PVCs (UBR, CBR, VBR).Multiple Protocols over AAL5 (RFC 1483).PPP over

AAL5 (RFC 2364).PPP over Ethernet (RFC 2516).
