Atlona AT-DVI4-100SR Bedienungsanleitung

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515

User Manual

AtlonA

DVI with RS232 with

Bi-Directional IR Extenders

over CAT5/6/7 up to 330ft

AT-DVI4-100SR

Transmitter Receiver

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 3

INTRODUCTION

PACKAGE CONTENTS:

FEATURES:

The Atlona AT-DVI4-100SR is a DVI with RS232 and Bi-Directional IR Extender Kit over Cat5/6/7. The

Atlona DVI Extenders are capable of extending extremely high resolutions up to 2K (2048x1080p) or

most known 1920x1200 and 1080p up to 330ft without signal degradation.

The DVI4-100SR is capable of transmitting Ethernet channel from one location to another, perfect for

digital signage applications.

• 1 x AT-DVI4-100S (transmitter module)

• 1 x AT-DVI4-100R (receiving module)

• 2 x 5v Power supplies (Universal 110/240V)

• 1 x Set of Wall Mounting Ears

• 2 x IR Emitter sensor

• 2 x IR Receiver sensor

• 1 x Instructions manual

• Transmits DVI (Digital Only), RS232 and Bi-Directional IR up to 330ft (100m)

• Supports Full Uncompressed HD Video

• Supports high resolution video HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p (24/30/50/60Hz),

2k (2048x1080p)

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768,

1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200 and 2048x1080p

• Fully EDID Compliant

• Fully HDCP Compliant

• Supports all VESA formats which is perfect when used with specialized projectors or commercial

LCD panels.

• Enables 10.2Gbps of HDMI (including HDCP) over 330ft Cat5/6/7 cable.

• Supports Refresh Rates: 24Hz, 30Hz, 50, 60Hz

• Supports Bi-directional IR transmission, perfect for Control4, RTI, HAI users as this ability allows

sending IR to the remote locations from the control systems and from the remote locations to the

control systems.

• Supports RS232 pass-though, perfect for integrating a 3rd party control system.

• Supports transmission distances up to 330ft @ at full resolution

• Wall Mountable, mounting ears are included.

• Locking Power Supplies

• Easy to install, simple to operate and the most effective solution for long signal extension.

• Ideal for video broadcasting, remote monitoring, presentations and educational facilities.

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 4

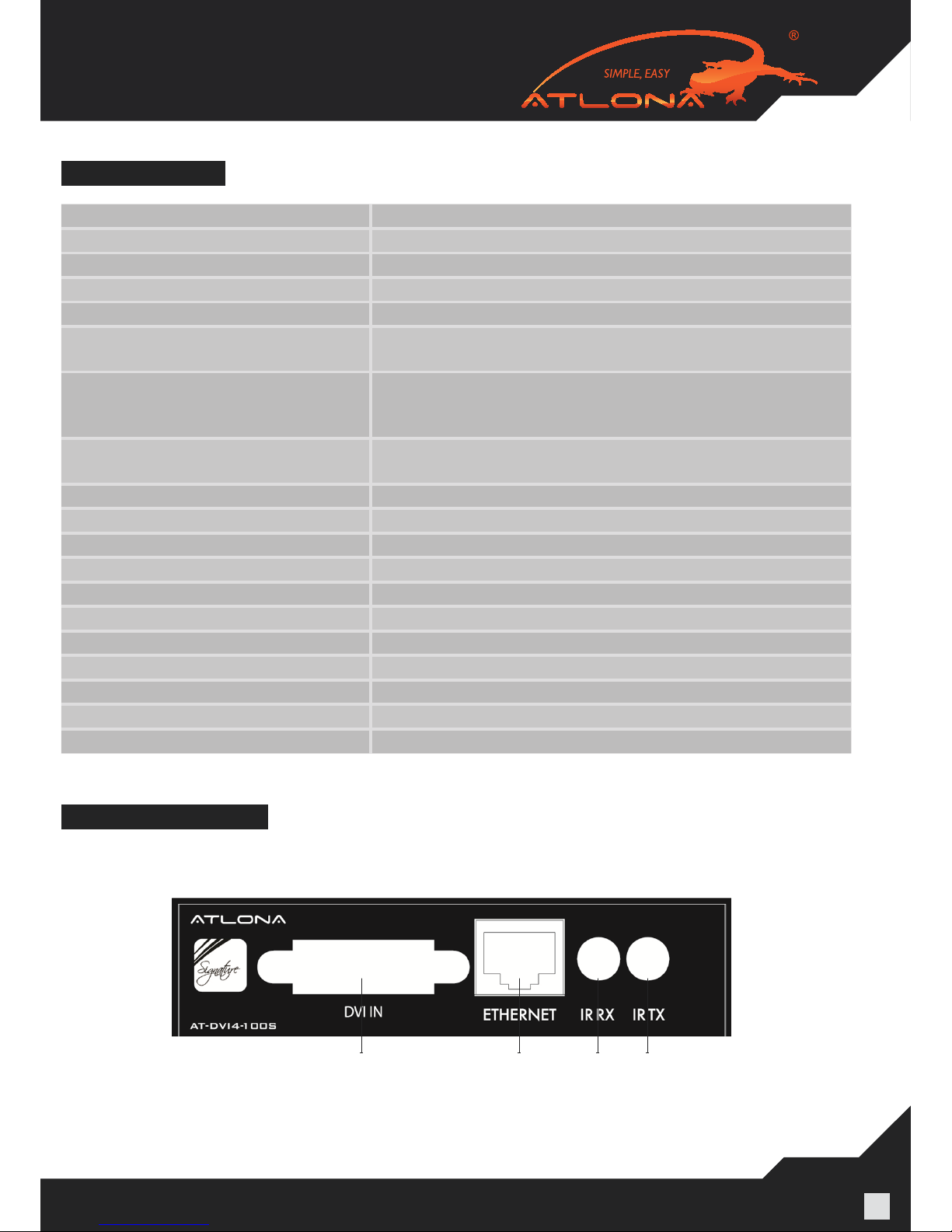

PANEL DESCRIPTION

SPECIFICATIONS:

Transmitter Inputs DVI (24+1), IR (1/8-inch), RS232 (DB9), Ethernet (RJ45)

Transmitter Outputs Link to Receiver (RJ45), Ethernet (RJ45)

Receiver Inputs Link to Transmitter (RJ45), Ethernet (RJ45)

Receiver Outputs DVI (24+1), IR (1/8-inch), RS232 (DB9), Ethernet (RJ45)

HDCP/EDID Compliant Yes

Supports high resolution video HD 480i, 576i, 480p, 576p, 720p, 1080i, 1080p (24/30/50/60Hz),

2k (2048x1080p)

Supports high resolution video VESA 640x480, 800x600, 1024x768, 1280x800, 1280x768,

1280x1024, 1680x1050, 1600x1200, 1920x1080,

1920x1200 and 2048x1080p

Distance at the highest resolution and

full color depth

330ft

Deep Color 48bit up to 330ft (100m)

Power Consumption (max.) 2.5W (transmitter) and 5.5W (receiver)

Video Bandwidth up to 10Gbps

Input TMDS signal 1.2 volts (peak-to-peak)

Input DDS signal 5 volts (peak-to-peak)

DVI Connector 24+1 pin female (Digital Signal Only)

Power Supply 5V/4A (110/240 universal) – Locking Type

Dimensions (inch) 5.98×4.13×1.22 (Lx W x H)

Weight (lb) 2.1 (transmitter + receiver)

Operating Temperature Range -5 to +35°C (-41 to +95 °F)

Operating Humidity Range 5 to 90 % RH (no condensation)

5.1. Transmitting Module

5.1.1. Front Panel

1 2 3 4

1. DVI Input

2. Ethernet Connector

3. IR RX

4. IR TX

www.atlona.com | toll free: 1-877-536-3976

For International: 1-408-962-0515 5

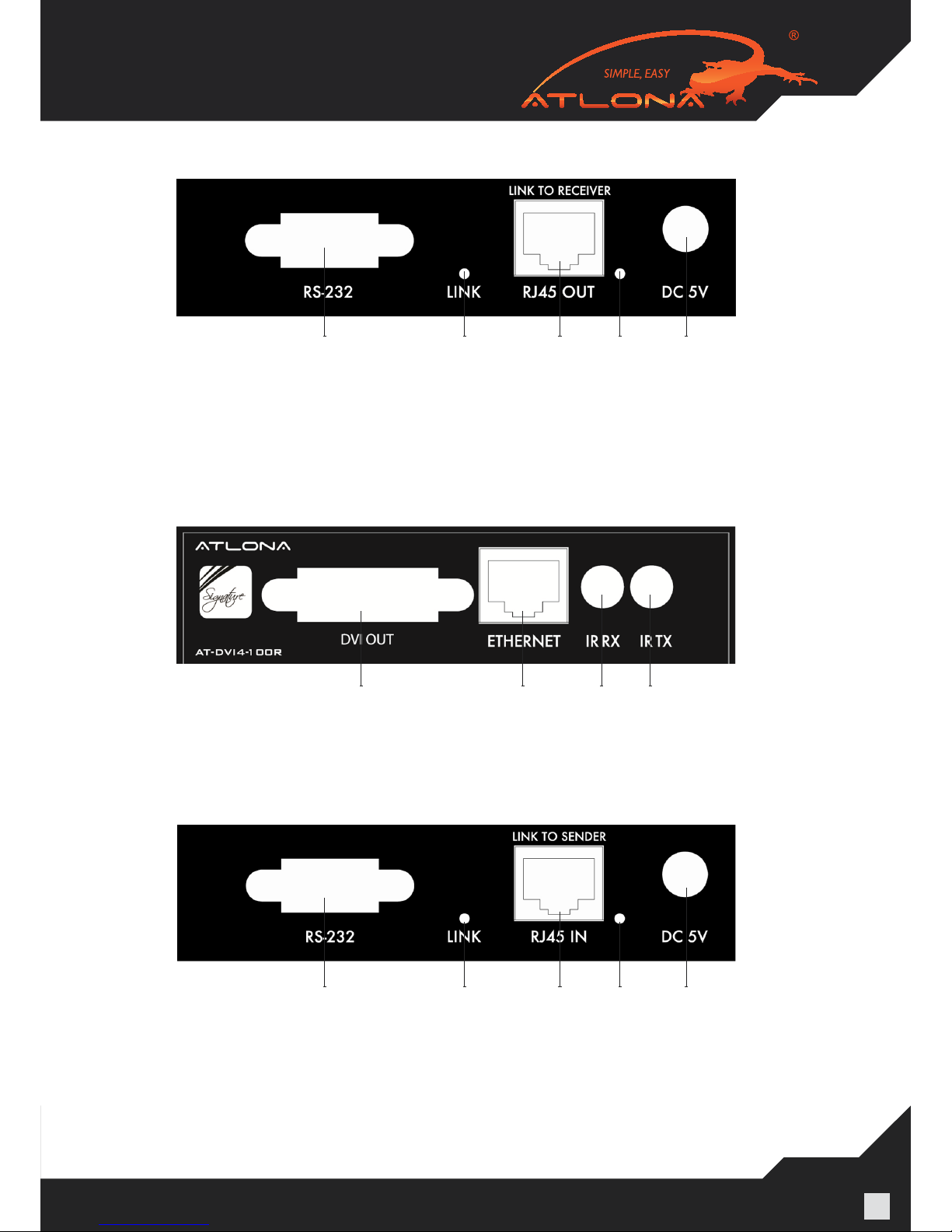

5.1.2. Rear Panel

1 2 3 54

1. RS-232 Port

2. LINK

3. RJ-45 Output

4. Power on Light

5. Power input, 5V DC

1. DVI Output

2. Ethernet Connector

3. IR RX

4. IR TX

5.2. Receiving Module

5.2.1. Front Panel

1 2 3 4

5.1.2. Rear Panel

1 2 3 54

1. RS-232 Port

2. LINK

3. RJ-45 Input

4. Power on Light

5. Power input, 5V DC
