Atlona AT-HD-V24M Bedienungsanleitung
AtlonA
2x4 HDMI Matrix Switcher
AT-HD-V24M
User Manual
TABLE OF CONTENTS
1. Package Contents .................................................. 1
2. Introduction .................................................. 1
3. Features .................................................. 1
4. Specications .................................................. 2
5. Panel Descriptions .................................................. 2
5.1 Front Panel .................................................. 2
5.2 Rear Panel .................................................. 3
6. Remote Control .................................................. 3
7. IR Extender .................................................. 4
7.1 IR Extender Connection .................................................. 4
7.2 The IR Extender Components Setup .................................................. 4
8. RS-232 Serial Interface .................................................. 5
8.1 RS-232 Serial Interface Connect a PC
or Control System .................................................. 5
8.2 RS-232 .................................................. 5
8.3 Commands .................................................. 5
9. RS-232 Serial Commands .................................................. 6
9.1 Standby Mode .................................................. 6
9.2 Power Off Mode .................................................. 6
9.3 Front Panel Lock .................................................. 6
9.4 Unit Reset .................................................. 6
10. Tipical Application .................................................. 7
11. Safety Information .................................................. 8
12. Warranty .................................................. 9
13. Atlona Product Registration .................................................. 10
PACKAGE CONTENTS:
1
• 2x4 HDMI Matrix Switcher (AT-HD-V24M)
• Instruction Manual
• IR Remote Control
• Universal AC/DC power adapter: 12VDC
• 19 inch Ear mount pair
• IR Extender receiver
• RS232 package (RS232 DVD Drive & RS232 Cable)
Atlona Technologies’ AT-HD-V24M is a 2x4 HDMI Matrix Switcher with audio designed to work as
a switcher for multiple Audio/Video sources and displays. This Atlona unit is capable of switching
HDMI signals between two sources and four displays. Because it is a matrix switch, any or all of
the 2 inputs can simultaneously be switched to any or all of the outputs. This devise will support
high denition video in multiple resolutions of up to 1080p or 1920x1200. This unit has quick and
easy installation. With manual, RS232, as well as IR Remote control options, Atlona’s AT-HD-
V24M Matrix Switcher is HDCP Compliant making it is perfect for all HDMI devices, PC monitors,
Plasma TV displays and HDTVs.
• Switches HDMI Video signal with Audio between 2 sources and 4 displays.
• Matrix Switch: each input can be directed to any or all outputs at the same time
• Quick and easy installation
• HDMI digital video/audio format, DVI format and HDCP compliant
• Supports link speeds of up to 6.75 Gbps
• Supports wide range of PC resolutions from VGA to WUXGA 1920x1200 and HDTV/DTV
resolutions 480i/480p, 576i/576p, 720p, 1080i, 1080p
• Compatible with all HDMI devices, PC monitors, Plasma TV display and HDTV
• Supports Digital Video TMDS formats in Deep Color 12bits
• Support IR Remote and IR Extender with distance 300M Maximum.
• Various User Interface control:
• IR remote control
• Manual controlled by Front Panel button
• RS232 Control
• Automatically scanning input status by LED on front panel
INTRODUCTION
FEATURES:
PANEL DESCRIPTIONS
2
• 2x4 HDMI Matrix Switcher: 2 HDMI Inputs To 4 HDMI Outputs,
• Input Signals: Video (TMDS) 0.5~1.0Vpp, DDC 5Vpp
• Signal Supports : HDMI Standard, DVI and HDCP Compliant
• Video Supported: HDMI and DVI formats up to 1080p or 1920x1200
• Audio Supported: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
• Supports digital video standards such as:
RGB/YCBCR: 24/30/36-bits
YCBCR: 8/10/12/16/20/24-bits
Double data rate interface for RGB/YCBCR: 12/15/18-bits
• Controls: IR, IR EXT, RS232, and Select buttons on the front panel
• Data Rates: 250Mbps to 2.25Gbps.
• IR Extender Distance: 1000ft maximum.
• IR frequency: 38KHz.
• Safety Approvals: CE, FCC, RoHS.
• Power Supply: 12V DC
• Use Universal Switch Type 50/60Hz,100/230V

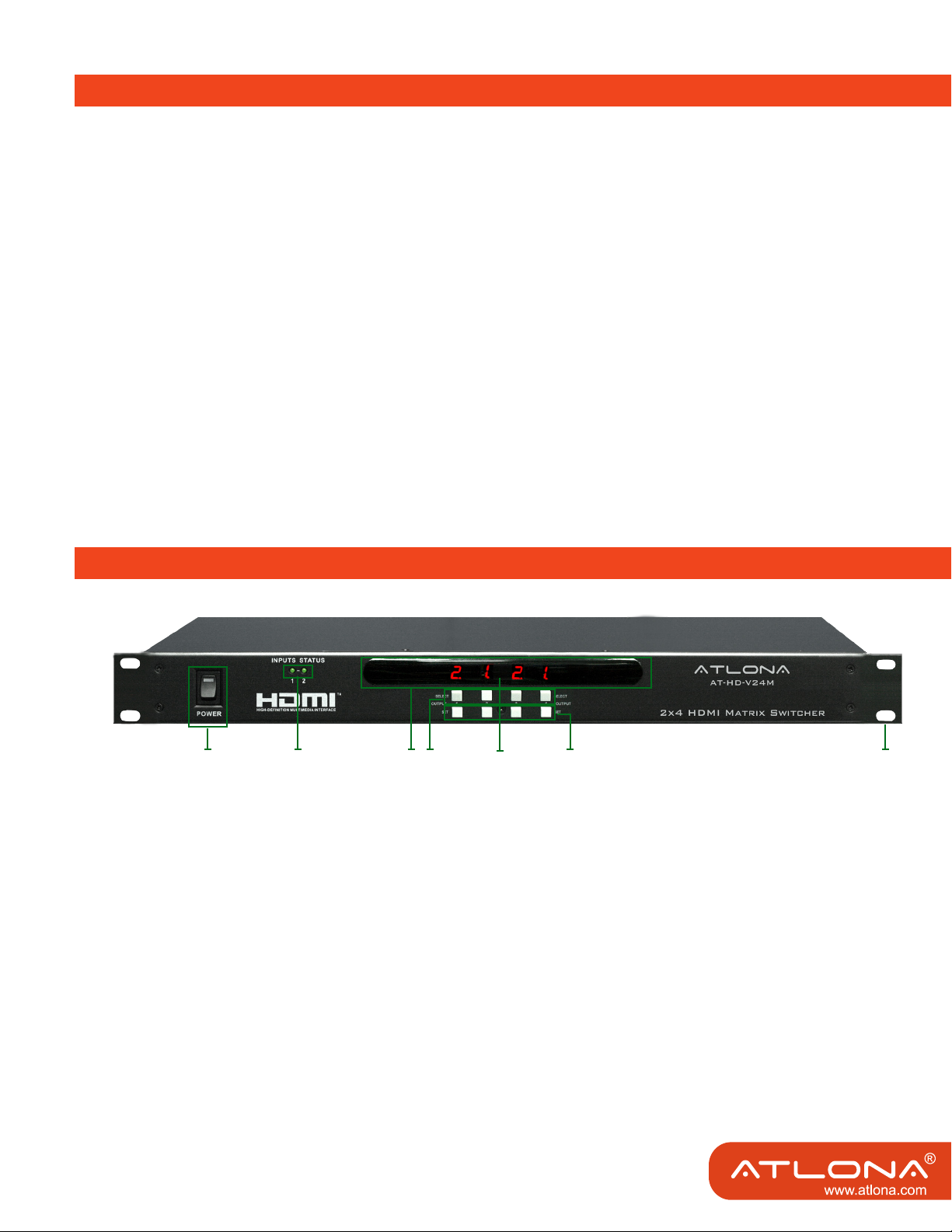

1. Front Panel
1. POWER SWITCH. The power switch turns the unit on and off. The LED will illuminate red to indicate
that the switcher is ON
2. INPUT SOURCES STATUS DISPLAY. Input sources 1 to 2 LEDs illuminate blue to indicate desired
video source is present on that input.
3. OUTPUT SOURCES STATUS DISPLAY. Output Status shows by LED display.
4. SOURCES SELECT BUTTONS. Separate outputs 1 ~ 2 source select buttons are provided. Select
sources are 1-HDMI, 2-HDMI.
5. IR SENSOR. The IR sensor receives IR commands from the supplied remote control.
6. SOURCE SETUP BUTTONS. Setup the inputs 1 ~ 2
7. 19 INCH EAR MOUNT PAIR. 19 inch case Ear Mount pair
SPECIFICATIONS
1 2 3 54 6 7
2 3

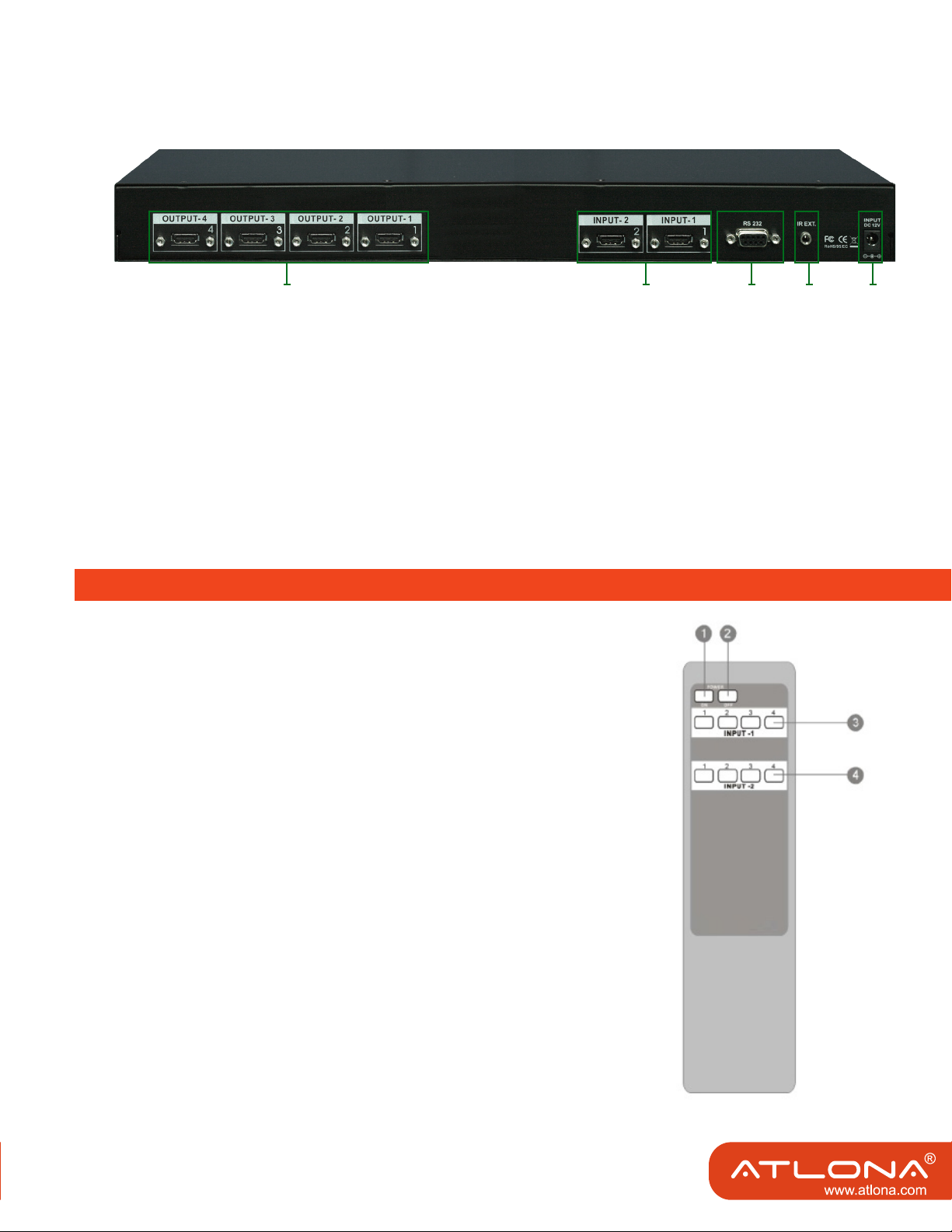

2. Rear Panel
1. DC POWER INLET. Power Input: 12VDC
2. IR EXTENDER CONTROL. Support one of IR Extender’ extend distance maximum 300 Me-
ters.
3. RS 232 CONNECTION. DB-9pin Female connector for serial RS-232 control.
4. VIDEO INPUTS: HDMI Inputs 1, 2. HDMI Female connector. (Unit can be used with HDCP
compliant DVI digital video signals with appropriate)
5. VIDEO OUTPUTS: HDMI Outputs 1~4. HDMI Female connector. (Unit can be used with
HDCP compliant DVI digital video signals with appropriate)
REMOTE CONTROL
Ensure the mains voltage supply matches the label on the sup-
plied plug-Pack (+/- 10%)
Ensure that the power switch is OFF
Connect all audio video sources and destination equipment
Power up all HD Source and Displays
For each desired output select the appropriate input by using the
front panel select buttons, IR remote control, or the RS232 serial
communications port.
When powering up the AT-HD-V24M will return to its last used set-
ting before Powered down.
1,2. SWITCH POWER ON or OFF
3. INPUT 1 SOURCES SELECTION
(Select sources with selection button)
4. INPUT 2 SOURCES SELECTION
(Select sources with selection button)
5 4 3 2 1

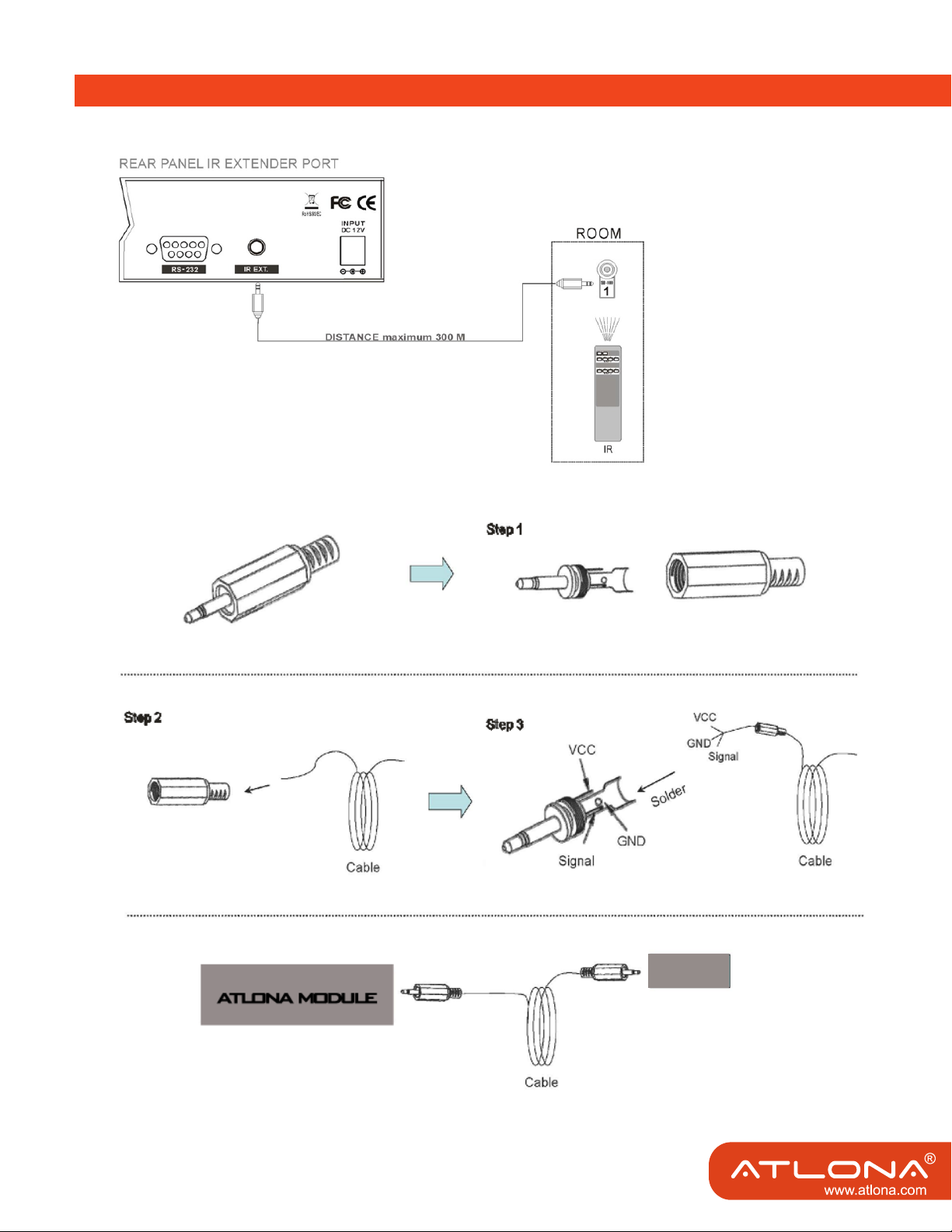

IR EXTENDER
1. IR Extender Connection
2. The IR Extender Components Setup
4
5

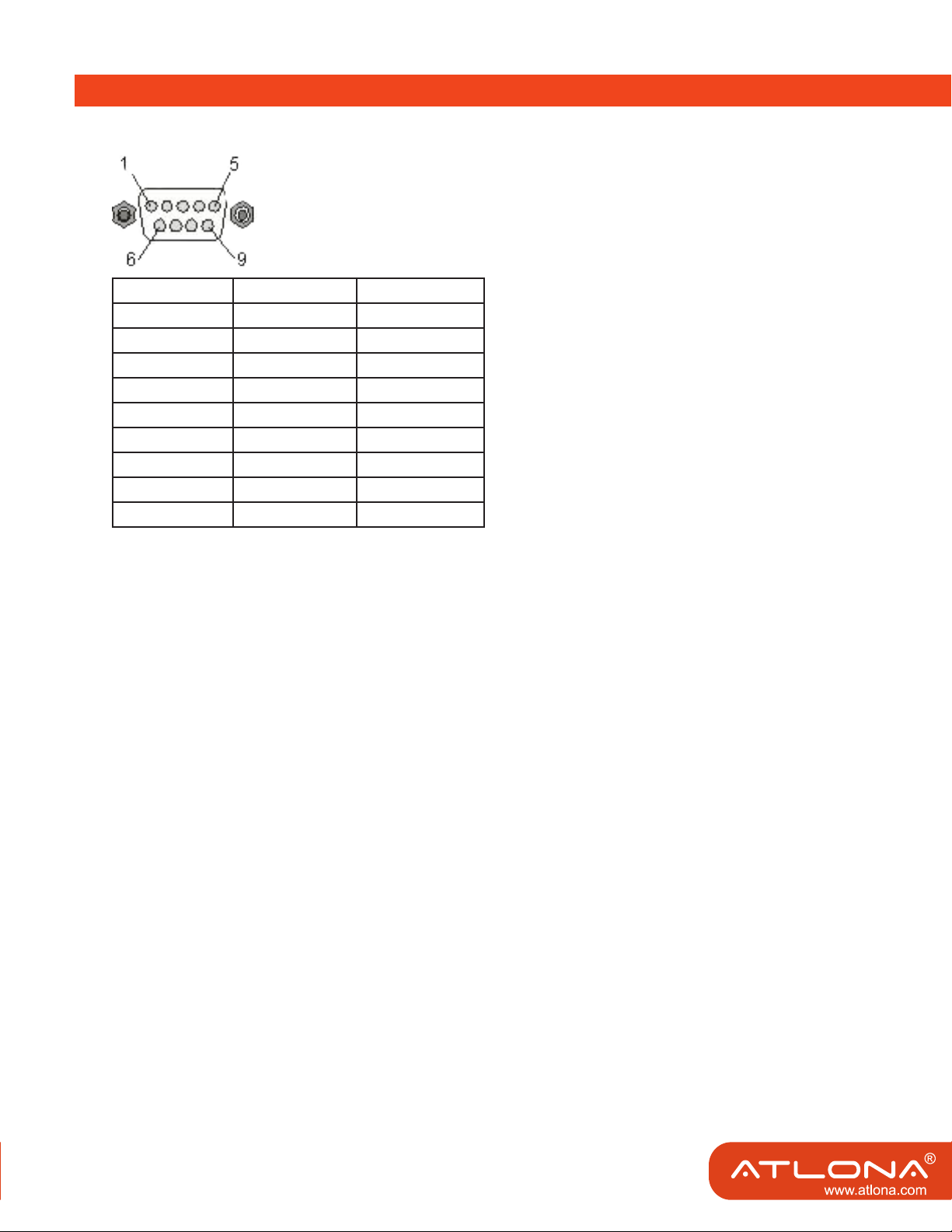

RS-232 SERIAL INTERFACE
RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM
Pin RS-232 Denition
1 - Not used
2TX Transmitter
3RX Receiver
4 - Not used
5GND Ground
6 - Not used
7 - Not used
8 - Not used
9 - Not used
RS-232
Atlona Technologies’ switcher can be controlled via the RS-232 serial control port to allow for
interfacing to a PC, The serial communication parameters are 9600 baud, 8 bit, No Parity and 1
stop bit - this is often referred to as 9600 8N1.
When the unit recognizes a complete command it will perform the requested action - there is no
delimiter character required. The unit does not send out a message when a value is changed
from the front panel or by IR control. If the unit needs to be controlled via the front panel in addi-
tion to the RS232 control, you should regularly poll the unit status to ensure the control system
accurately reects the current settings or similar third party control system.
COMMANDS
To Switch Inputs to Outputs
SBI0XO0Y- Where X is Output Number (1-4) and Y is Input Number (1-2)
Unit will respond with
SBUD0XOY- Where X is Output Number (1-4) and Y is Input Number (1-2)
Example : Send Input 2 to Output 3
SBI02O03-Send
SBUD02O3-Rcvd
4
6
STANDBY MODE
Note: Turning the unit System Power Off over RS232 will distinguish the LED display leaving only the
Power Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by
RS232 it will continue to accept and act upon switching commands. For example, if the unit is in the off
mode (via RS232) and you send a command to switch an input to an output, that route will complete
and the video and audio will now appear on that channel only. The front panel LED for that particular
output will also show the input selected (for that single output channel only). The remaining LED’s will
remain off and video and audio outputs muted. The unit will still return status and change messages in
response to commands sent while in Power Off state. A hard reset command (SBALLRST) will return
the unit to normal operation and also unlock the front panel.
POWER OFF MODE
SBSYSMOF- Put system into Standby (Soft Power Off)
SBSYSMON- Bring unit out of Standby (Soft Power On)
Unit will respond with
SBALOFAK- Unit is in Standby
SBALONAK- Unit is no longer in Standby
Example : Put Unit in Standby (Soft Power)
SBSYSMOF-Send
SBALOFAK-Rcvd
FRONT PANEL LOCK
Note : Hard resetting the unit will unlock the Front Panel controls.
SBSYSMLK- When front panel is locked, changes can only be made by RS-232
SBSYSMUK- Front Panel Unlock
Unit will respond with
SBSYSLOK- Front Panel has been Locked
SBSYSULK- Front Panel has been Unlocked
Example : Lock Front Panel Buttons
SBSYSMLK-Send
SBSYSLOK-Rcvd
UNIT RESET
SBALLRST - Reset every output to Input 1
Unit will respond with
SBRSTACK- Unit has reset each Output to Input 1
Example : Reset all outputs to Input 1
SBALLRST-Send
SBRSTACK-Rcvd
RS-232 SERIAL COMMANDS
6 7

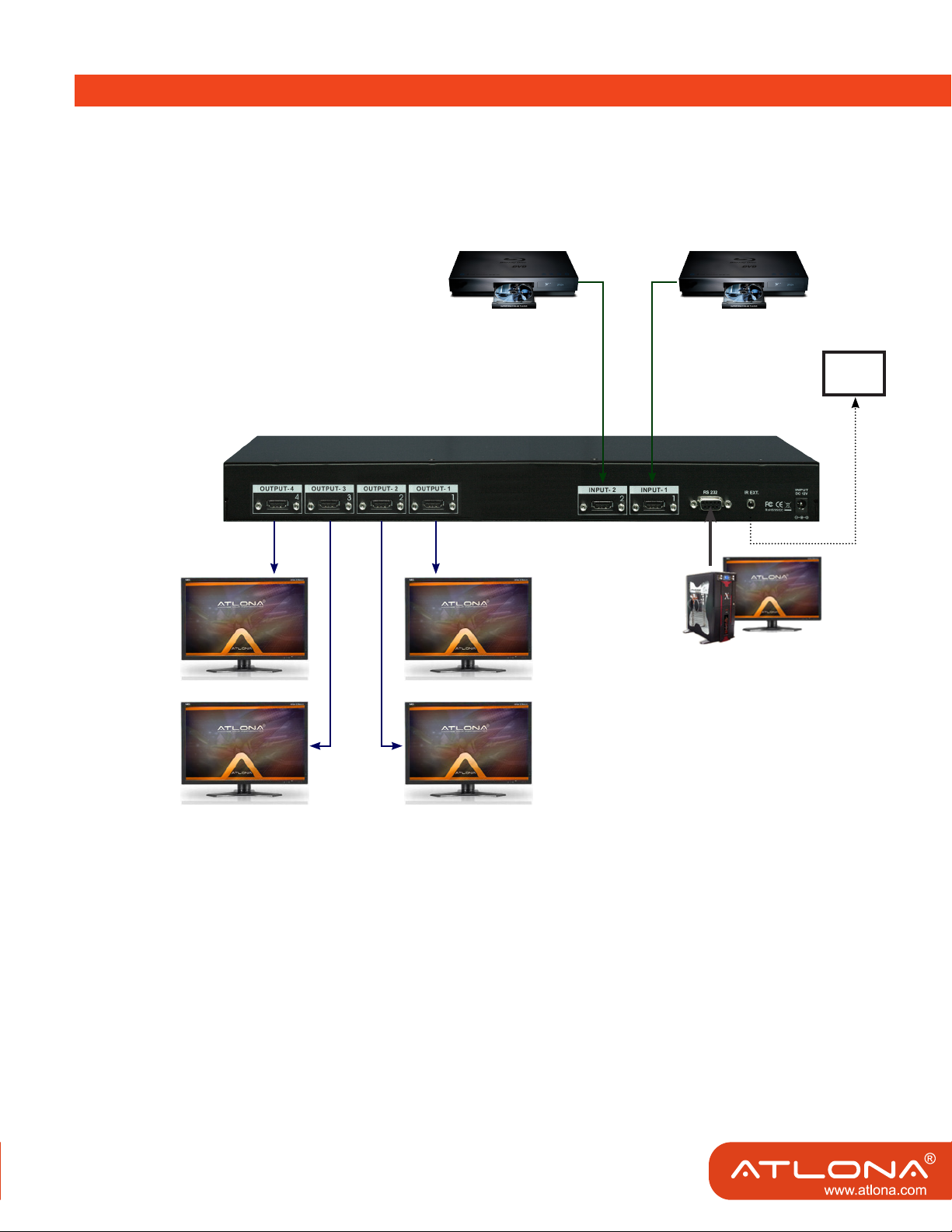

TIPICAL APPLICATION
PC RS232 Control
AT-HD-V24M
HDMI Player 1
HDMI Player 2
IR ext.
HDMI Display 4 HDMI Display 1
HDMI Display 3 HDMI Display 2
8
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-HD-V24M. Opening the product will void
the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.
Andere Handbücher für AT-HD-V24M
1
Inhaltsverzeichnis
Andere Atlona Matrix-Umschalter Handbücher
Atlona
Atlona AT-AV0808N Bedienungsanleitung
Atlona
Atlona AT-VGA88M-SR Bedienungsanleitung
Atlona
Atlona AT-SAV-84M Bedienungsanleitung
Atlona
Atlona AT-HD-V42M Bedienungsanleitung
Atlona
Atlona AT-HD-V22M Bedienungsanleitung
Atlona
Atlona AT-UHD-H2H-44M Bedienungsanleitung
Atlona
Atlona AT-PROHD1616M-SR Bedienungsanleitung
Atlona
Atlona AT-HD-V22M Bedienungsanleitung
Atlona
Atlona AT-UHD-PRO3-88M Bedienungsanleitung
Atlona
Atlona AT-H2H-44M Bedienungsanleitung
Atlona
Atlona AT-UHD-H2H-88M Bedienungsanleitung
Atlona
Atlona AT-PROHD85M-SR Bedienungsanleitung
Atlona
Atlona AT-HDDVI1616-AM Bedienungsanleitung
Atlona
Atlona AT-SAV-84M Bedienungsanleitung
Atlona
Atlona AT-HD-V44M Bedienungsanleitung
Atlona
Atlona Opus Series Bedienungsanleitung
Atlona
Atlona AT-PROHD88M-SR Bedienungsanleitung
Atlona
Atlona AT-SDI82M Bedienungsanleitung
Atlona
Atlona AT-HDR-H2H-44MA Bedienungsanleitung
Atlona
Atlona AT-VGA88M-SR Bedienungsanleitung
