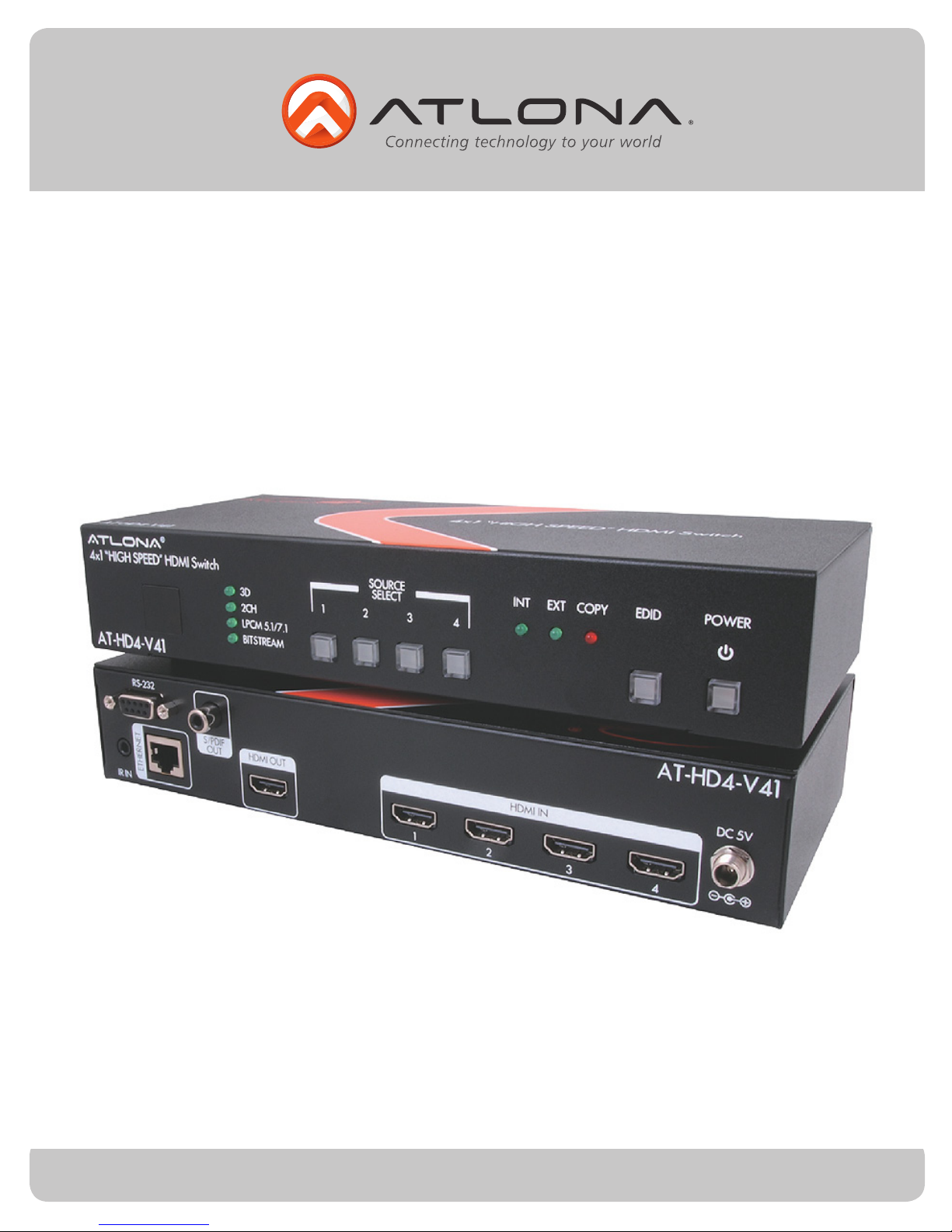

Atlona HDMI 4 by 1 Switcher
AT-HD4-V41
User Manual
Toll free: 1-877-536-3976
Local: 1-408-962-0515 2atlona.com
Table of Contents
1. Introduction -------------------------------------------------------------------- 3
2. Package Contents -------------------------------------------------------------------- 3
3. Features -------------------------------------------------------------------- 3
4. Specifications -------------------------------------------------------------------- 4
5. Controls and Functions
a. Front -------------------------------------------------------------------- 4
b. Back -------------------------------------------------------------------- 5
6. Infrared Remote Control -------------------------------------------------------------------- 5
7. Installations and Connection instructions
a. Wiring Diagram -------------------------------------------------------------------- 6
b. Step by Step guide -------------------------------------------------------------------- 7
7. RS-232
a. Hyperterminal -------------------------------------------------------------------- 8
a. Connection -------------------------------------------------------------------- 8
b. Command -------------------------------------------------------------------- 8
8. EDID -------------------------------------------------------------------- 9
9. Safety Information -------------------------------------------------------------------- 10
10. Warranty -------------------------------------------------------------------- 11
11. Registration -------------------------------------------------------------------- 12
Toll free: 1-877-536-3976
Local: 1-408-962-0515 3atlona.com
• Four HDMI inputs and one HDMI output
• Allows for a Bi-directional HDMI Ethernet Channel pass through
• HDMI Audio Return Channel capable
• Supports HDCP
• Supports Deep colors up to 36-bit colors at 1080p 60Hz
• Supports Dolby TrueHD and DTS-HD Master Audio pass through ability when using an
HDMI cable
• Digital audio de-embedding through the S/PDIF output

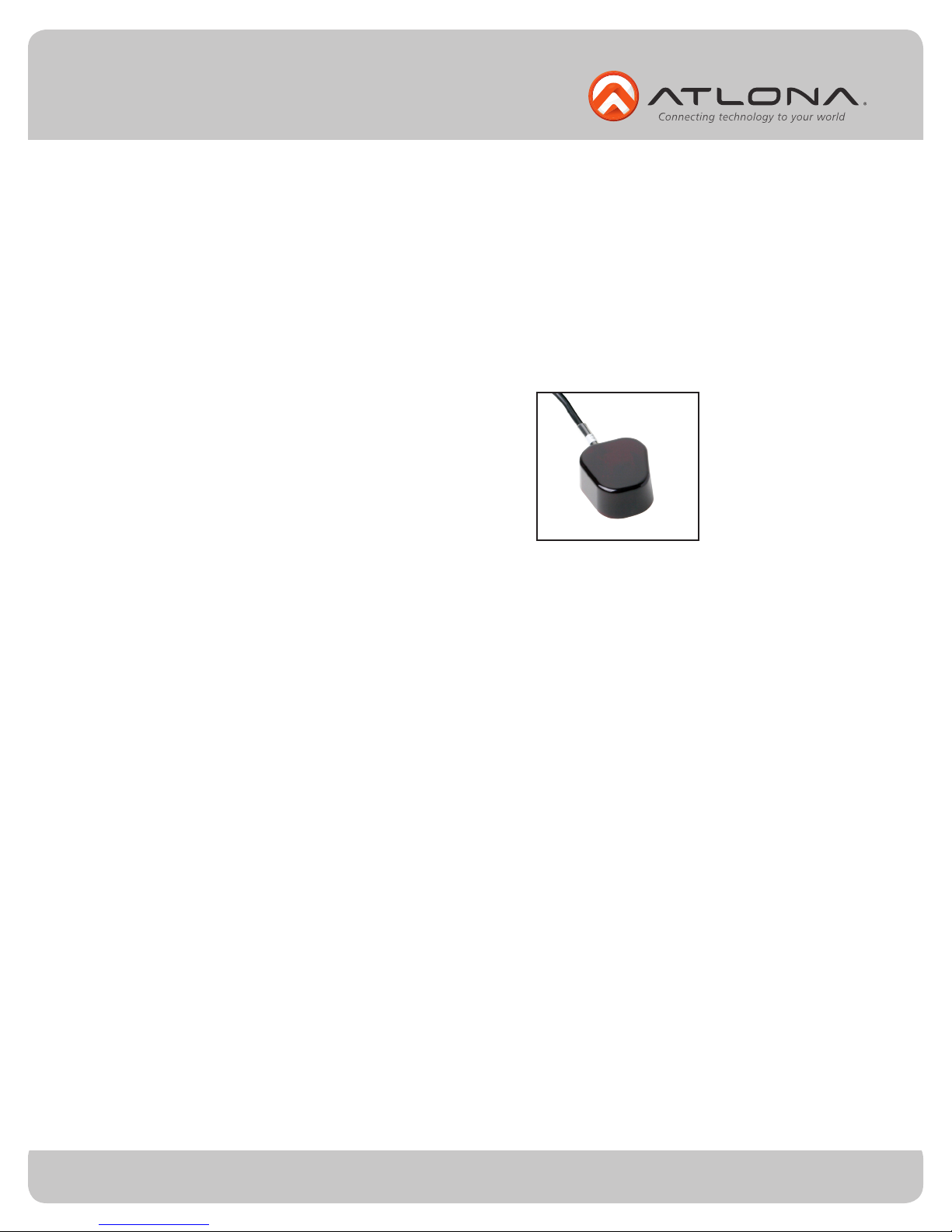

IR Receiver Module
Introduction
Features
Package Content
The Atlona HDMI 4 by 1 Switcher is a great product for homes with multimedia systems and
not enough source input options. The Atlona switcher supports an Audio Return Channel
and an HDMI 100Mbps Ethernet port for HDMI Ethernet Channel (HEC) feature, reducing the
amount of wires necessary for compatible systems. The AT-HD4-V41 gives you a high digital
performance connection, between four sources and your video display, without signal loss.
• HDMI 4 by 1 switcher
• 5v DC power supply adaptor
• IR receiver module
• Remote control
• User Manual
Toll free: 1-877-536-3976
Local: 1-408-962-0515 4atlona.com
1. Infrared Sensor for the remote control
2. Green LED indicators which will light up when receiving a signal status
3. Blue LED input source buttons which will light up when selecting a source
4. Green LED Extended Display Identification Data (EDID) control which will light up when
the option is chosen. When pressed longer than 3 seconds a red LED will light up to
indicate that the EDID was copied.
5. Red LED will light up when the power is on.
1234 5
Examples: 3 4 5
Bandwidth Frequency 2.25Gbps (single link)
Input ports 4 HDMI (female type)
Output ports 1 HDMI (female type)
1 Ethernet port
1 S/PDIF port
1 IR 3.5m port
Resolution outputs Video: 480i, 576i, 1080i
480p, 576p, 720p, 1080p
1080p24Hz
Vesa: 640x480, 768x576, 800x600, 1024x768
1280x960, 1400x1050, 1600x1200
Dimensions 9.5x4.35x2(in) or 240x110x50(mm) - WxDxH
Weight 1.8 lbs or .81kg
Temperature Operating: 32°F to 104°F or 0°C to 40°C
Storage: -4°F to 140°F or -20°C to 60°C
Power Consumption 4.1W
Specifications
Panel Descriptions
Front Panel
Toll free: 1-877-536-3976
Local: 1-408-962-0515 5atlona.com
1. RS-232 serial port for PC or 3rd party control.
2. Infrared control in port for included infrared receiver module.
3. Ethernet port for HDMI Ethernet Channel (HEC) capable devices.
4. Digital (S/PDIF) output for digital audio.
5. HDMI output to display.
6. HDMI input for source components such as: DVD, PS3, Xbox360, or computer.
7. Power supply input.
1 2 3 4 5 6 7
Remote Control
BA
A. On and Off Button
B. Source selection. Press the number that matches
the source you wish to use
Back Panel
Toll free: 1-877-536-3976
Local: 1-408-962-0515 6atlona.com
Camera
Computer A/V Receiver
Internet Router
Satelite Receiver
Blu-Ray Player PS3
XBox360
HDTV
ARC Optional
Connections and Installation
Toll free: 1-877-536-3976
Local: 1-408-962-0515 7atlona.com
1. Place your switcher within 60 feet (18.29 meters) of your video display.
Note: If using the supplied IR remote control, remember you need to be within 23 feet (7
meters) and within a 60° angle of the infrared receiver.
2. Connect the HDMI cables to your sources and the switcher’s inputs labeled HDMI IN.
Note: The Ethernet Channel will not pass to your devices if the HEC feature is not supported
or you are not using the correct HDMI cables.
3. (Optional) Plug the supplied Infrared module into the IR IN port and place the receiver end
somewhere that is within 23 feet (7 meters) of where you will be using remote.
Note: The supplied infrared module will allow you to control the Atlona AT-HD4-V41 when
placed in a cabinet.
4. Plug the power cord into the DC 5V labeled port and then plug the other end into the wall.
5. (Optional) Plug the Ethernet cable into the Ethernet port. If your devices and cables are
HDMI Ethernet Channel compatible you will be able to pass the internet signal through the
HDMI cable.
Note: Please verify that your devices are HDMI Ethernet Channel compatible, most ports will
be labeled HEC for easy identification.
6. (Optional) Plug the Digital (S/PDIF) cable into the S/PDIF port. If you have an audio system
this will allow for 2 channel and multi-channel support.
Note: If the Digital Audio is plugged in it will take first priority over the HDMI audio
connection. Neither Dolby TrueHD or DTS-HD Master Audio will work with this option.
a. (Optional) ARC Mode – The Audio Return Channel can be accessed through the
switcher, by reselecting the source you currently have selected (all source lights will
go off). The switcher will then pass through the audio from your video display to
your A/V Receiver as an ARC signal (this will only work with ARC capable displays).
Your video display will pass through audio from either its internal tuner or from any
device plugged into it.
7. Connect one end of the HDMI cable into the video display and the other end into the port
labeled HDMI OUT on the switcher.
8. Press the power button (on either the remote or the switcher) to turn on the
AT-HD4-V41.
9. (Optional) If using the RS-232 connection plug the cable into the switcher, then your
computer or third party control.
Note: You can purchase the RS-232 cable at: http://www.atlona.com/
a. PC control will need a hyperterminal program. If you do not have one then you will
need to download or purchase one and follow their instructions for the program’s
installation.
Step by Step Guide
Toll free: 1-877-536-3976
Local: 1-408-962-0515 8atlona.com
RS-232
To set up the RS-232 hyperterminal the first thing needed is to find the RS-232 communications port
under the computer’s device manager. Once there right click the port and select properties. Under the
properties menu select the port settings tab and update the menu to the switcher default:
Bits Per Second: 9600, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None.
Connection
RS-232 is connected through a 9-pin female D connector. The pins will have functions
associated with them, some will be unassigned.
No. Pin Function
1 ---- Not used
2 Tx Transmit
3 Rx Receive
4 ---- Not used
5 Gnd Ground
6 ---- Not used
7 ---- Not used
8 ---- Not used
9 ---- Not used
1
2
3
4
5
9 8 7 6
Hyperterminal
Toll free: 1-877-536-3976
Local: 1-408-962-0515 9atlona.com
Command
The command codes are very sensitive, do not change capitalization, spacing, or lettering.
Command Feedback Description
PWON PWON Power on
PWOFF PWOFF Power off
x1AVx1 x1AVx1 Route input 1 to the output
x2AVx1 x2AVx1 Route input 2 to the output
x3AVx1 x3AVx1 Route input 3 to the output
x4AVx1 x4AVx1 Route input 4 to the output
Status x1AVx1 Displays which input is currently connected to the output
Mreset Mreset Returns the switcher to its default settings
VER V0.91a Displays current firmware version
Each command or feedback is terminated with a carriage return.
Note: If the command fails or is incorrect the feedback should be “Command FAILED”
EDID (Extended Display Identification Data)
EDID is the exchange of capabilities between a source and display. This handshake ensures the audio
and video signals sent are supported by both source and display.
The AT-HD4-V41 has 3 EDID modes. Internal picks the highest common audio/visual signal between
the devices and the available EDIDs within the switcher. External selects the highest common
resolution between the current input and the display. Learned saves the EDID from the current display
and locks it to the output.
Internal EDID
The Internally loaded EDID settings are the most common A/V signals that come standard in most TV
displays and computer monitors. The AT-HD4-V41 will pick the highest common resolution between
the devices.
External EDID
External EDID is the highest common audio/video signal between the current source device and
display. It is useful for devices with uncommon resolutions that are not stored internally.
Learned EDID
Learned EDID allows for a display’s EDID to be saved to the switcher. The saved EDID will not reset
when power cycled or the display is replaced.
NOTE: Hold the EDID button for 5 seconds to save a new EDID to memory.
Toll free: 1-877-536-3976
Local: 1-408-962-0515 10 atlona.com
Safety Information
Safeguards
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment, not
expressly approved by the manufacturer, could void the user’s authority to operate this equipment.
Operate this product using only the included external power supply. Use of other power supplies
could impair performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug
the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on or
against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish
tanks, and swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.
Such products could enter the unit and cause damage, fire, or electric shock. Some substances may
also mar the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting
to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage
to your AT-HD4-V41. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona
reseller or contact Atlona directly.
To reduce the risk of electric shock, do not
expose this product to rain or moisture
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug. Doing so will
void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in the case it requires
disconnection.
Andere Handbücher für AT-HD4-V41
2
Inhaltsverzeichnis
Andere Atlona Schalten Handbücher
Atlona
Atlona AT-HDKVM-V21 Bedienungsanleitung
Atlona
Atlona AT-MDP21 Bedienungsanleitung
Atlona
Atlona AT-HDVS-210H-TX-WP Bedienungsanleitung
Atlona
Atlona AT-HD4-V42 Bedienungsanleitung
Atlona
Atlona AT-HD-V12x2 Bedienungsanleitung
Atlona
Atlona AT-DVI-31 Bedienungsanleitung
Atlona
Atlona AT-HD-V216 Bedienungsanleitung
Atlona
Atlona AT-UHD-SW-52ED Bedienungsanleitung
Atlona
Atlona AT-HDR-H2H-44M Bedienungsanleitung
Atlona
Atlona AT-HD-SC-500 Bedienungsanleitung
Atlona
Atlona AT-RGB0802 TO AT-RGB6464 Bedienungsanleitung
Atlona
Atlona OmniStream AT-OMNI-111 Kurzanleitung
Atlona
Atlona AT-VGA0801 TO AT-VGA9601 Bedienungsanleitung
Atlona
Atlona AT-UHD-SW-510W Bedienungsanleitung
Atlona
Atlona AT-HDVS-150-KIT Bedienungsanleitung
Atlona
Atlona AT-PC81A Bedienungsanleitung
Atlona
Atlona AT-HDR-H2H-88MA Bedienungsanleitung
Atlona
Atlona AT-HDVS-200-TX-WP Bedienungsanleitung
Atlona
Atlona AT-UHD-CLSO-601 Bedienungsanleitung
Atlona
Atlona AT-PC81A Bedienungsanleitung
