APPLICATION NOTE

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start

Guide

8-bit Atmel Microcontrollers

Features

•BitCloud®ZigBee®Light Link package overview

•Instructions for getting started with the package

•Description of the Light Link demo application

•Color light and color scene controller interactions

•Source code overview

Introduction

This document describes the contents of the BitCloud ZigBee Light Link software

development kit (SDK), a software package for developing ZigBee Light Link profile

applications.

Chapter 1gives an overview of the software package and supported hardware

configuration. A getting started guide including hardware configuration, installation

and programming instructions is given in Chapter 2. Chapter 3describes how to

launch, and use the demo application.

This document is intended to be the starting point of exploring the SDK. More details

on programming for ZigBee Light Link profile are contained in [6].

42004B

−

AVR

−

08/2012

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

Table of Contents

1.Overview ..............................................................................................3

1.1SDK’s contents.................................................................................................. 3

1.2Supported platforms and tools .......................................................................... 3

2.Installation and getting started .............................................................4

2.1Tool chain installation........................................................................................ 4

2.2Hardware configuration ..................................................................................... 4

2.2.1Assembling devices ............................................................................ 4

2.2.2Fuse bits settings................................................................................ 5

2.3Programming..................................................................................................... 6

2.3.1Programming with IAR Embedded Workbench................................... 6

2.3.1.1Precompiled images ......................................................... 6

2.3.1.2Application workspace ...................................................... 6

2.3.2Programming with Atmel AVR Studio ................................................. 6

3.Demo application .................................................................................7

3.1Launching the demo.......................................................................................... 7

3.2Color light’s functions ........................................................................................ 7

3.2.1Touch link with a controller device ...................................................... 8

3.2.2Reset to the factory new state ............................................................ 8

3.3Color scene controller’s functions ..................................................................... 9

3.3.1Main commands ................................................................................. 9

3.3.2Reset to factory new state .................................................................. 9

3.3.3Touch link/forming a network .............................................................. 9

3.3.3.1Several color scene controllers in a network................... 10

3.3.4Controlling a light device – all commands......................................... 10

3.4Supported clusters .......................................................................................... 12

3.5Source code organization ............................................................................... 12

3.5.1IAR projects ...................................................................................... 12

4.Reference ..........................................................................................13

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

1. Overview

1.1 SDK’s contents

The SDK includes the BitCloud implementation of ZigBee Pro protocol and ZigBee Cluster Library, the Light Link demo

application and a set of pre-built firmware images and development tools.

The BitCloud stack included in this package contains the ZigBee Cluster Library implementation, and is very similar to

the BitCloud Profile Suite stack. However, a few enhancements are made to adjust to the behavior needed for ZigBee

Light Link profile.

Table 1-1 describes the file structure of the software package supplied with the SDK.

Table 1-1. BitCloud ZigBee Light Link SDK’s structure.

Name Location

/BitCloud/Components Header files and source code for some components (HAL,

BSP, and drivers)

/BitCloud/Components/ZCL/ZLL Header files with definitions of clusters used by Light Link

applications, and ZLL’s specific API definitions

/BitCloud/lib BitCloud compiled libraries

/Applications/ZLLDemo Demo application’s sources and projects

/Evaluation Tools/ZLLDemo Demo application’s pre-compiled images

/Documentation Documentation for this package

In addition to this document, the documentation includes the API Reference, which contains specification of functions

and times available for the user, and the developer guides.

1.2 Supported platforms and tools

Supported platforms and development tools are described in Table 1-2.

Table 1-2. System requirements for BitCloud ZigBee Light Link SDK.

Parameter Value Note

MCU/RF Atmel®ATmega128RFA1 SoC

Atmel ATmega256RFR2 SoC

Evaluation Board RCB128RFA1 for a color lightc;

RCB128RFA1 hosted on a Key

Remote Control board for a color

scene controller

Boards are available with

Atmel RF4CE-EK Evaluation Kit

JTAG emulator Atmel AVR®JTAGICE mkII or

Atmel JTAGICE 3

Required to upload firmware onto the

boards and debug through JTAG

IDE IAR Embedded Workbench®for AVR

6.11 (with IAR™ C/C++ Compiler for

AVR v6.11.1.50453)

Required to develop applications using

API and to upload firmware images

through JTAG

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

2. Installation and getting started

2.1 Tool chain installation

•Install IAR Embedded Workbench for AVR [7], if not already installed on your PC

•Add a Windows®environment variable named IAR_AVR_HOME, and set its value to the IAR Embedded

Workbench installation directory (for a default installation, it is C:\Program Files\IAR

Systems\Embedded Workbench 6.11). To do this:

•Go to Control Panel > System > Advanced > Environment Variables

•Click New below the System variables list, and enter Variable Name and Variable Value

This step is required if you plan to build embedded images using IAR Embedded Workbench from the command

line.

More details on tool chains used with BitCloud may be found in [3] or [4].

2.2 Hardware configuration

2.2.1 Assembling devices

Both color scene controller and color light use RCB128RFA1 (RCB) as a base board. For a color scene controller an

RCB board shall be attached to a Key Remote Control board. A color light may either use an RCB board with a Key

Remote Control board (in this case its LCD screen is used to project the color light’s state) or use an RCB board alone

(in this case its LEDs are used to indicate the color light’s state).

To assemble a device:

1. Attach an antenna to the SMA connector on the RCB board.

2. Insert two AAA batteries into the RCB board.

3. For a color scene controller and for a color light to project its state to the LCD screen, attach an RCB board on

top of a Key Remote Control board.

4. Power on the device by shifting the red button at the right side of the RCB board (see Figure 2-1).

Figure 2-1. Assembled RCB hosted on a Key Remote Control board.

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

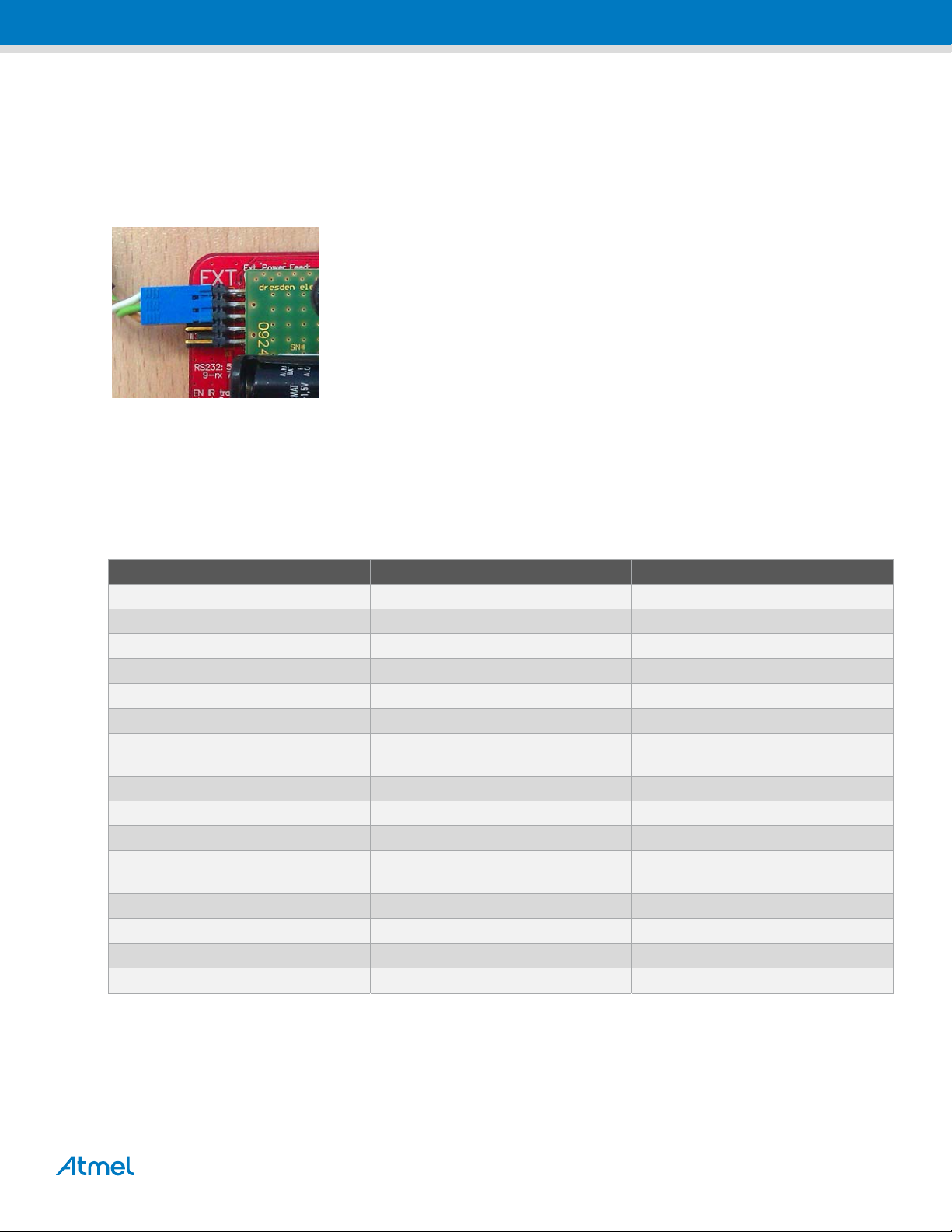

5. To use UART output, attach the serial cable, connected to a PC, to the port marked EXT on a Key Remote

Control board as shown on Figure 2-2.

Terminal program configuration should be BAUD RATE: 38400; PARITY: None; DATA BITS: 8; STOP BITS: 1;

FLOW CONTROL: Off.

Figure 2-2. Serial cable attached to a Key Remote Control board.

For more details on using RCB and Key Remote Control boards refer to [5].

2.2.2 Fuse bits settings

The recommended fuse bits settings are shown in Table 2-1.

Table 2-1. Fuse bits for Atmel ATmega128RFA1.

Option Required value (for 8MHz) Required value (for 16MHz)

BODLEVEL 1V8 1V8

OCDEN Enabled Enabled

JTAGEN Enabled Enabled

SPIEN Enabled Enabled

WDTON Disabled Disabled

EESAVE Disabled Disabled

BOOTSZ Boot Flash size=2048 words

start address=$F800

Boot Flash size=2048 words

start address=$F800

BOOTRST Disabled Disabled

CKDIV8 Enabled Enabled

CKOUT Disabled Disabled

SUT_CKSEL Int. RC osc.;

Startup time: 6 CK + 65ms

Transceiver Oscillator;

Starup time 16K CK + 65ms

Resulting bytes

Ext 0xFE 0xFE

High 0x1B 0x1B

Low 0x62 0x77

To quickly test the demo application you may use pre-built application images located in the Evaluation Tools

directory.

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

2.3 Programming

2.3.1 Programming with IAR Embedded Workbench

2.3.1.1 Precompiled images

When using IAR Embedded Workbench to program precompiled images provided with the SDK, the user first needs to

create a project containing the precompiled image.

1. Start IAR Embedded Workbench for AVR.

2. Select File > New > Workspace.

3. Select Project > Create New Project…

4. In the Create New Project dialog, select Externally build executable in Project templates:

5. Select a name for the project, and click Save.

6. Follow the instructions in readme.txt.

7. Once the project is set up, select Project > Options.

8. In the General options category, set Processor Configuration to –cpu=xm256a3, ATmega128RFA1.

9. Click OK.

10. Select JTAGICE mkII >Fuse Handler (JTAGICE 3 > Fuse Handler).

11. Click Read Fuses, and make sure that the device fuses are set as specified in Section 2.2.2.

12. If fuses are set incorrectly, select the correct fuse settings, and click Program fuses.

13. Select Project > Download and debug.

14. Once the debugging session has started, click Stop debugging.

The image is now installed on the board.

2.3.1.2 Application workspace

1. Double-click on a workspace (for example, ZLLDemo.eww), and select JTAGICE mkII > Fuse Handler

(JTAGICE 3>Fuse Handler).

2. Click Read Fuses, and make sure that the device fuses are set as specified in Section 2.2.2.

3. If fuses are set incorrectly, select the correct fuse settings, and click Program fuses.

4. Select the desired application configuration from the drop-down box in the Workspace pane.

5. Select Project > Download and debug.

6. Once the debugging session has started, click Stop debugging.

The image is now installed on the board.

Note: Using a JTAG to program the microcontroller will erase the embedded bootloader, if present. As a result, loading of

application images with Serial Bootloader will become inoperable until the embedded bootloader is loaded to Atmel

ATmega128RFA1 again.

2.3.2 Programming with Atmel AVR Studio

1. In AVR Studio®, open the Tools > Program AVR > Connect… dialog.

2. Choose Atmel AVR JTAGICE mkII (JTAGICE 3) for Platform: and USB for Port:, and click Connect…

3. Select the right device in the Device and Signature Bytes field on the Main tab of the programming dialogue.

4. Click on the Fuses tab and make sure that the device fuses are set as specified in Section 2.2.2.

5. If fuses are set incorrectly, select the correct fuse settings, and click Program.

6. Click on the Program tab.

7. In the Flash section of the dialog, select the precompiled .hex file to be programmed.

8. Click Program.

The image is now installed on the board.

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

3. Demo application

The reference application involves color light devices and color scene controller devices, which are both defined in the

ZigBee Light Link Profile specification [1]. Both types of devices are emulated by Key Remote Control boards.

The application demonstrates controlling color lights by color scene controllers. All main features of the ZigBee Light

Link profile are implemented:

•A ZigBee Light Link network has no coordinator

•Touchlink commissioning – network parameters are transferred to a new light from a scene controller, while

the scene controller is kept close to the light

•Lights are ZigBee routers to propagate messages across the network

•Multiple scene controllers may be used to control same or different sets of lights

•Application data and network parameters are saved to non-volatile memory to restore the state after reset,

power off, etc.

•Light control functionality, including On/Off, Level (brightness), Color (Hue, Saturation), Groups, and Scenes

To use the demo application, at least one device should be programmed with a color light application’s firmware image,

and one device should be programmed with a color scene controller application’s firmware image.

3.1 Launching the demo

To launch the demo one color scene controller and one color light are needed. More devices (lights or controllers) may

be added as required.

•Assemble devices as described in Section 2.2.1

•Program devices with pre-built images of the demo application via JTAG (as described in Section 2.3). The

pre-built images are located in the \Evaluation Tools\ZLLDemo directory. Image files are used in the

following way:

•ZLLDemo_<SoC>_Light_LCD.hex – for a color light based on RCB mounted on a Key Remote

Control board

•ZLLDemo_<SoC>_Light_LED.hex – for a color light based on a sole RCB board

•ZLLDemo_<SoC>_Remote.hex – for a color scene controller

<SoC> is either ATmega128RFA1 or ATmega256RFR2

•Power on the devices

•Perform a touchlink procedure between the color light and the color scene controller by holding the PWR

button on the controller’s Key Remote, to form a network

•Use color scene controller’s buttons to control the color light (see Section 3.3)

Optionally:

•RCBs placed onto Key Remote Control boards may be connected to a PC via UART to observe information

about sent and received commands in a terminal program on the PC. UART set up is described in Step 5 in

Section 2.2.1.In the application’s source code UART is configured in

\Applications\ZLLDemo\common\src\debug.c

•More color light devices and color scene controller devices may be added through touchlink with the controller

device that is already in the network

3.2 Color light’s functions

A color light device indicates its light status via LEDs on the RCB board or via the LCD screen on the Key Remote

Control board if RCB is attached to the Key Remote Control board.

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

RCB board’s LEDs are turned on when light is on and turned off when light is off. When the color light’s color level

changes LEDs brightness also changes. When a color light receives an identify command from a controller LEDs start

blinking.

Figure 3-1 below describes functions of a color light’s LCD screen:

Figure 3-1. Color light’s screen on a Key Remote Control board.

Once a factory new color light is powered on, it starts standard ZigBee scanning and displays Scanning 1st...

(indicating that the device is doing ZigBee scan over primary ZLL channels), then Scanning 2nd... (indicating

ZigBee scan over secondary ZLL channels) as the current status. When Listening... is output to the screen the

color light is ready for touch link.

3.2.1 Touch link with a controller device

For touch link a color scene controller is brought closely (10-20cm range) to a color light and the PWR button is pressed

on the color scene controller for more than three seconds. The color scene remote sends an identify command to the

color light, which blinks several times with its LEDs or the LCD screen. The touch link procedure may be aborted at this

moment, if the PWR button is released. To complete the procedure the user should wait for three seconds.

If touch link is a success, the color light’s screen shows NFN Running... status (where NFN stands for Non Factory

New).

After that the color light can be controlled by commands sent from the color scene controller.

3.2.2 Reset to the factory new state

There are two ways to reset a color light device to the factory new state: sending a command from a color scene

controller and using the PWR button if the color light is assembled with a Key Remote Control board.

To trigger reset of a color light to factory new:

•Select the target color light using the SEL button on the color scene controller

•Hold R1, R2 and PWR buttons, altogether, on the color scene controller for three seconds

A color light assembled with a Key Remote Control board may be reset to the factory new state in the following way:

•Switch off the device by shifting back the red button at the right side of the RCB board

•While holding the PWR button on the color light device, switch it on by shifting the RCB’s red button. Wait for

three seconds and then release the PWR button

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

3.3 Color scene controller’s functions

3.3.1 Main commands

Table 3-1 lists buttons for the main color scene controller’s commands. See the scheme of the Key Remote board with

all available commands in Figure 3-2.

Table 3-1. Biuttons for executing most frequent commands.

Button(s) Effect

PWR Press and hold for three seconds to perform touch link

PWR + R Press and hold for three seconds to perform classical ZigBee scanning

PWR + R Press and hold for three seconds to reset device to factory new state

PWR + R+ + R- Reset a color light to the factory new state. The target color light should be selected using the

SEL button; otherwise all color lights present in the network will be reset to the factory new state

L+/L- Color light’s on/off

Up/Down Increase/decrease light level

Left/Right Increase/decrease saturation

Colored buttons

Set the corresponding color using the following values:

Red: hue = 60000 or x = 40000, y = 20000

Green: hue = 30000 or x = 10000, y = 40000

Yellow: hue = 15000 or x = 30000, y = 30000

Blue: hue = 45000 or x = 10000, y = 10000

SEL

Select the next bound device and requests it to identify itself. This allows sending unicast

commands to a single device. Groupcast mode will be entered automatically after five seconds

of inactivity.

1/2/3 Store Scene if pressed for more than three seconds and Recall scene if pressed for less that

three seconds

7/8/9 Set minimum/middle/maximum light level

Triggers network update: the color scene controller applies a standard ZigBee mechanism to

select a new operating channel for the network and broadcasts a command to update the

channel on all other devices

The SEL button may be used to select a color light. When this button is pressed and released, the next color light

becomes active, which means that all commands initiated by the user are sent to this color light in a unicast manner,

until no additional commands are sent for a five second period.

3.3.2 Reset to factory new state

To reset a scene controller device to the factory new state, press the PWR button while holding the R- button and wait

for three seconds. The LED located at the bottom of the RCB board will blink once to indicate that the device has been

reset to the factory new state.

3.3.3 Touch link/forming a network

For touch link a color scene controller is brought close to a new color light, which is not in the network yet. By pressing

the PWR button on a color scene controller, the user initiates a commissioning procedure, where the goal is to transfer

network parameters to the color light. At this moment the devices are not yet in the network, but the communication is

possible, because it happens on the MAC level without a need for routing.

The color light receives network parameters and starts the network as a router (the adjustments in the BitCloud stack

allow this). Once the network is started, the color scene controller joins this network as an end device.

Atmel AVR2060: BitCloud ZigBee Light Link Quick Start Guide [APPLICATION NOTE]

42004B−AVR−08/2012

After the first color light is commissioned, the color scene controller may be brought to the second color light, where

after, receiving the network parameters, it will not start the network once again, but will join the existing network as

another router. The subsequent color lights are commissioned in the same way.

3.3.3.1 Several color scene controllers in a network

A Light Link network may contain more than one color scene controller. Additional controller devices are added using

touch link, which happens between two color scene controllers:

•Bring a factory new color scene controller to a color scene controller that is already in the network, and press

the PWR button on both devices for more than three seconds

•Perform touch link between the new color scene controller and each of the color lights

•Use any of the controller devices to manipulate color lights

Note: If touch link between controller devices is not performed, pairing a new controller device with a color light that is

already in the network, will cause the color light to leaving this network, and form a new one.

3.3.4 Controlling a light device – all commands

Figure 3-2 on the next page depicts the key remote board’s keyboard and all commands that can be sent with the

buttons from the color scene controller.

Each button may be used to send up to four commands. What command is sent by pressing a button, depends on

whether buttons R+ and R- are also pressed or not as shown in Table 3-2.

Table 3-2. Alternating a command by holding R+ and R- buttons.

Number of command R+ and R- buttons state

First command Both are not pressed

Second command R+ is pressed, R- is not pressed

Third command R+ is not pressed, R- is pressed

Fourth command Both are pressed

For example, to send a Toggle command press the L+ button while holding both the R+ and R- buttons pressed.

For buttons 1, 2, and 3: if a button is pressed for more than three seconds (when both R+ and R- are not pressed) a

Store Scene command is sent; if a button is pressed for less than three seconds a Recall Scene command is sent.

Inhaltsverzeichnis

Andere Atmel Mikrocontroller Handbücher

Atmel

Atmel AVR042 Montage- und Bedienungsanleitung

Atmel

Atmel AVR1605 Bedienungsanleitung

Atmel

Atmel ATmega324PB Bedienungsanleitung

Atmel

Atmel Atmel-ICE Bedienungsanleitung

Atmel

Atmel AT90S2313 Bedienungsanleitung

Atmel

Atmel AT91FR40162S Bedienungsanleitung

Atmel

Atmel ATmega328PB Xplained Mini Montage- und Bedienungsanleitung

Atmel

Atmel AVR042 Montage- und Bedienungsanleitung

Atmel

Atmel AVR AT90CAN64 Bedienungsanleitung

Atmel

Atmel AT43DK355 Bedienungsanleitung

Atmel

Atmel ATtiny1634-EK1 Bedienungsanleitung

Atmel

Atmel SAM L22G Bedienungsanleitung

Atmel

Atmel AT90S4433-8AC Bedienungsanleitung

Atmel

Atmel QTouch Montage- und Bedienungsanleitung

Atmel

Atmel AVR Bedienungsanleitung

Atmel

Atmel AVR128 Montage- und Bedienungsanleitung

Atmel

Atmel AVR ATmega103 Bedienungsanleitung

Atmel

Atmel AVR4901 Montage- und Bedienungsanleitung

Atmel

Atmel ATmega645 Montage- und Bedienungsanleitung

Atmel

Atmel STK200 Bedienungsanleitung

Atmel

Atmel AT43DK370 Bedienungsanleitung

Atmel

Atmel megaAVR Bedienungsanleitung

Atmel

Atmel AT91CAP9A-DK Bedienungsanleitung

Atmel

Atmel AT32UC3A3256S Bedienungsanleitung

Beliebte Mikrocontroller Handbücher anderer Marken

AMS

AMS AS7261 Demo Kit Bedienungsanleitung

Novatek

Novatek NT6861 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266 SDK Einrichtungshandbuch

Nuvoton

Nuvoton ISD61S00 ChipCorder Leitfaden

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Bedienungsanleitung

Texas Instruments

Texas Instruments Chipcon CC2420DK Bedienungsanleitung

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Bedienungsanleitung

NEC

NEC 78GK0S/K 1+ Series Montage- und Bedienungsanleitung

Mikroe

Mikroe SEMITECH N-PLC Click Montage- und Bedienungsanleitung

Intel

Intel Agilex Bedienungsanleitung

Cypress

Cypress CY4607 HX2VL Bedienungsanleitung

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F2837 D Series Bedienungsanleitung

CYPRES

CYPRES CY14NVSRAMKIT-001 Bedienungsanleitung

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266EX Betriebsanleitung

Abov

Abov AC33M8128L Bedienungsanleitung

Laird

Laird BL654PA Bedienungsanleitung
