A-B15 Assembled Manual

(Kevlar polyester wire lace)

V.1

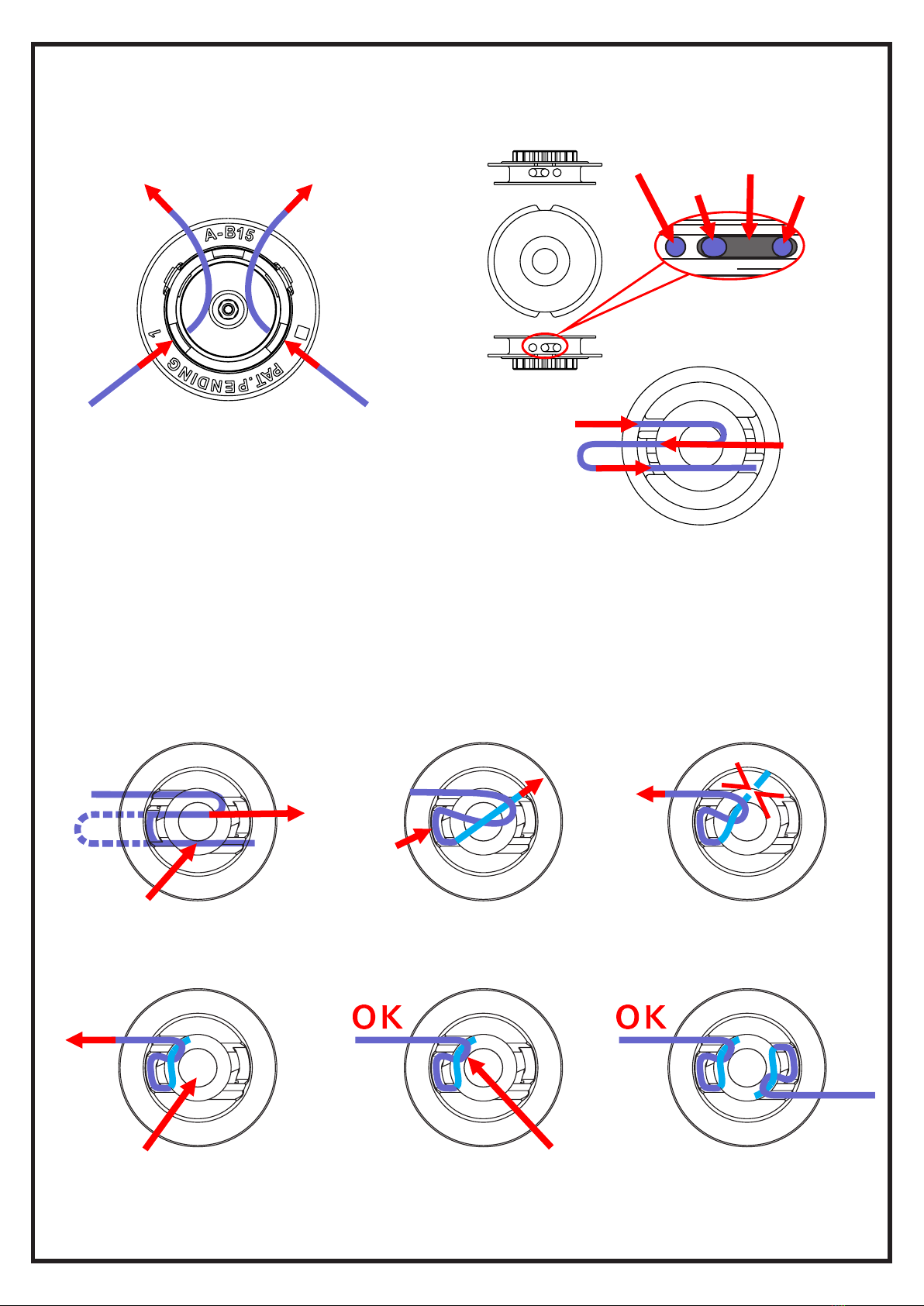

2. Thread the wire lace into the

in the order of hole 1→ hole 2→ hole 3

reel holes

1. Thread the wire lace into the

of the base

holes

Hole 3

Groove

Hole 2

Hole 1

Hole 3

Hole 2

Hole 1

3. Tighten the wire lace to be fixed it

~1.Press the end of lace and tighten the wire lace which between hole 3 and hole 2.

~2.Take the end of wire lace across the middle part of wire lace, then conceal from the first wire lace

(See figure B).Pull wire lace outward from hole 1, and keep1mm distance away from the hole 1,

and cut the rest of wire lace. (See figure C)

~3.Pull tightly outward from hole 1 and make sure the wire lace is out of the central of circle

(See figure D),please check it is in accurate location.(See figure E)

~4.Repeat the above steps to fasten the other side of wire lace.(See figure F)

(See figure A)

Make sure the wire lace is

out of the central of circle.

Press the wire lace at

this point by your finger.

The central of circle

groove

(figure A) (figure B) (figure C)

(figure E) (figure F)(figure D)

~1.Under the knob has a hexagonal

hole which has to aim at the

hexagonal cylinder of base,and

inset the knob into the base.

Hexagonal

copper

cylinder

7. Fix the knob

~1.Setting the torque wrench on 2.5 kg,

and fasten the screw.Please must make

sure the screw is fastened in vertically.

~1.Tighten the wire lace in clockwise.

~2.Release the wire lace in anticlockwise.

~3.Pull out the wire lace inside the base.

~Repeat the above steps three times,as you

tighten and release the wire lace which runs

smoothly,thenit is assembled well.

8. Testing

4. Put the reel into

the base 6. Inset the knob

5. Inset the ratch

~1.Put the ratch's breach to

aim at the bulge of the

base.

~1.Pull the lace toward

and put the reel into the base.

outside

breach of ratch

bulge of base
