INSTRUCTION MANUAL

Back Bar Coolers

Original instruction

Please read the user’ s manual before you use this product.

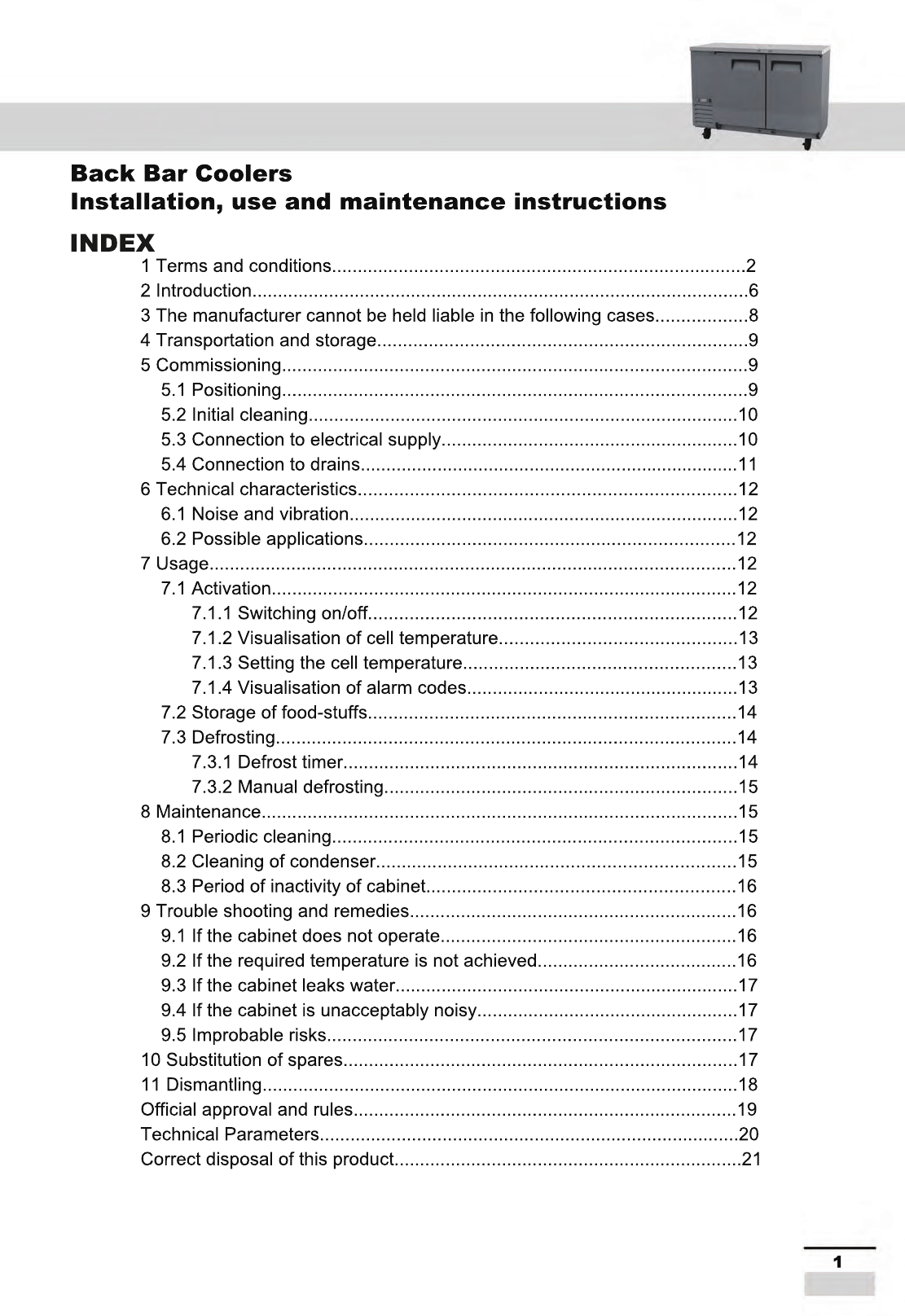

Back Bar Coolers

Installation, use and maintenance instructions

INDEX

1 Terms and conditions.........................................................................

........

2 Introduction............................................................................

.....................

3 The manufacturer cannot be held liable in the following cases

..................

4 Transportation and storage

........................................................................

5 Commissioning...............................................................

............................

5.1 Positioning................................................................

...........................

5.2 Initial cleaning....................................................................................10

5.3 Connection to electrical supply..........................................................10

5.4 Connection to drains.........................................................

.................

6 Technical characteristics

.........................................................................12

6.1 Noise and vibration............................................................................12

6.2 Possible applications

...............................................

.........................

7 Usage............................................................................

...........................

7.1 Activation...........................................................................................12

7.1.1 Switching on/off

.......................................................................

7.1.2 Visualisation of cell temperature

..............................................

7.1.3 Setting the cell temperature

..............................

......................

7.1.4 Visualisation of alarm codes.....................................................13

7.2 Storage of food-stuffs...........................................

.............................

7.3 Defrosting.............................................................

.............................

7.3.1 Defrost timer................................................

.............................

7.3.2 Manual defrosting........................................

............................

.15

8 Maintenance................................................................

...........................

..15

8.1 Periodic cleaning.....................................................

........................

..15

8.2 Cleaning of condenser.................................

....................................

.15

8.3 Period of inactivity of cabinet..................

..........................................

9 Trouble shooting and remedies................................................................16

9.1 If the cabinet does not operate..........................................................16

9.2 If the required temperature is not achieved.......................................16

9.3 If the cabinet leaks water...................................................................17

9.4 If the cabinet is unacceptably noisy...................................................17

9.5 Improbable risks.......................................

.........................................

10 Substitution of spares................................................

.............................

11 Dismantling.............................................................................................18

Official approval and rules...........................................................................19

Technical Parameters..................................................................................20

Correct disposal of this product....................................................................21

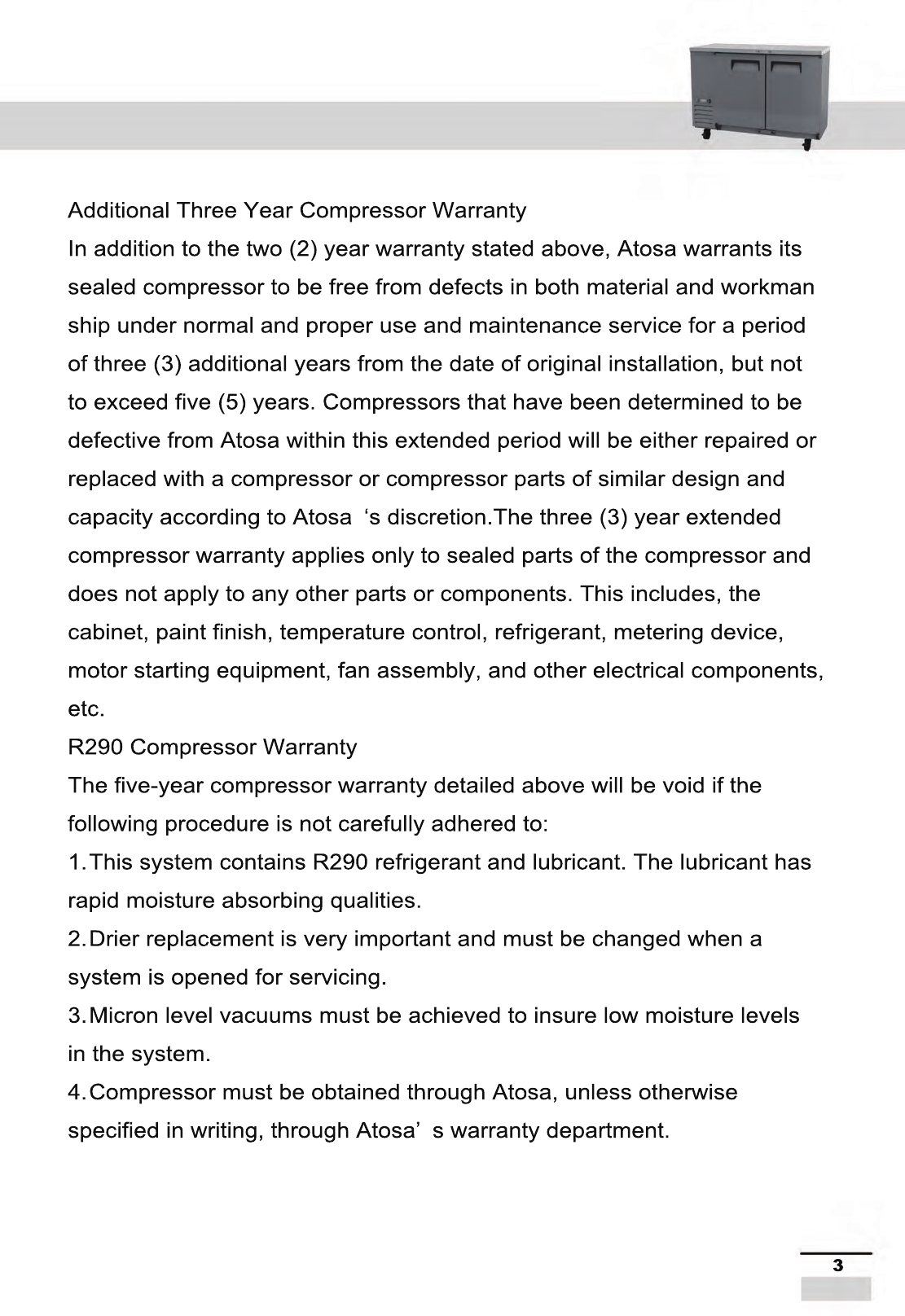

Additional Three Year Compressor Warranty

In addition to the two (2) year warranty stated above, Atosa warrants its

sealed compressor to be free from defects in both material and workman

ship under normal and proper use and maintenance service for a period

of three (3) additional years from the date of original installation, but not

to exceed five (5) years. Compressors that have been determined to be

defective from Atosa within this extended period will be either repaired or

replaced with a compressor or compressor parts of similar design and

capacity according to Atosa ‘s discretion.The three (3) year extended

compressor warranty applies only to sealed parts of the compressor and

does not apply to any other parts or components. This includes, the

cabinet, paint finish, temperature control, refrigerant, metering device,

motor starting equipment, fan assembly, and other electrical components,

etc.

R290 Compressor Warranty

The five-year compressor warranty detailed above will be void if the

following procedure is not carefully adhered to:

1.This system contains R290 refrigerant and lubricant. The lubricant has

rapid moisture absorbing qualities.

2.Drier replacement is very important and must be changed when a

system is opened for servicing.

3.Micron level vacuums must be achieved to insure low moisture levels

in the system.

4.Compressor must be obtained through Atosa, unless otherwise

specified in writing, through Atosa’ s warranty department.

2 INTRODUCTION

Please read instructions before using this appliance.

IMPORTANT SAFETY INSTRUCTION

▲ To reduce the risk of fire, electric shock, or injury to persons when

using your product, basic safety precautions should be followed,

including the following.

▲ This appliance must be properly installed and located in accordance

with the Installation Instruction before it is used.

▲ Before the appliance is plugged in, ensure that the rated voltage

corresponds to the voltage of the electrical system in your home. The

power plug should have its own independent socket. Using adapters

may cause overheating or burning.

▲ This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and

understand the hazards involved.

▲ Children shall not play with the appliance.

▲ Cleaning and user maintenance shall not be made by children without

supervision.

▲ If the supply cord is damaged, it must be replaced by the manufacturer

or its service agent or a similarly qualified person in order to avoid a

hazard.

▲ Connect to properly grounded outlets only. Avoid the use of extension

cords. Do not run cord under carpeting, runners or the like. Arrange

cord away from traffic area and where it will not create a tripping hazard.

▲ Always unplug appliance when not in use and before cleaning,

adjusting or maintaining this machine. To disconnect appliance, turn

switch off and remove plug from power source.

▲ Do not disconnect by pulling on the cord. Always disconnect by grasping

and pulling on the plug top.

▲ Do not pull out the cord or touch the power plug with wet hands. Clean

water or dust from the power plug and insert it with the ends of the pins

securely connected.

▲ Do not use outdoors.

▲ Do not splash water on the appliance. It may cause a malfunction or

electric shock.

▲ Do not disassemble, repair or alter the appliance. It may cause fire or

abnormal operations, which may lead to injury.

▲ After your fridge-freezer is in operation, do not touch the cold surfaces in

the freezer compartment, particularly when hands are damp or wet. Skin

may adhere to these extremely cold surfaces.

▲ Never place glass products in the freezer because they may be broken

when their inner contents are frozen.

▲ The refrigerant and insulation blowing gas used in the appliance require

special disposal procedures. When disposal, please consult with service

agent or a similarly qualified person.

▲ Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

▲ WARNING: Keep clear of obstruction all ventilation openings in the

appliance enclosure or in the structure for building-in.

▲ WARNING: Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the

manufacturer.

▲ WARNING: Do not damage the refrigerant circuit.

▲ WARNING: Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type recommended

by the manufacturer.

3 The manufacturer cannot be held liable in the following

cases:

■improper installation (not in accordance with the guidelines indicated

herein)

■ misuse of the refrigerator

■ power supply defects

■ improper or inadequate maintenance

■ unauthorised modification or tampering

■ use of non-original spare parts

■ partial or total failure to comply with the instructions

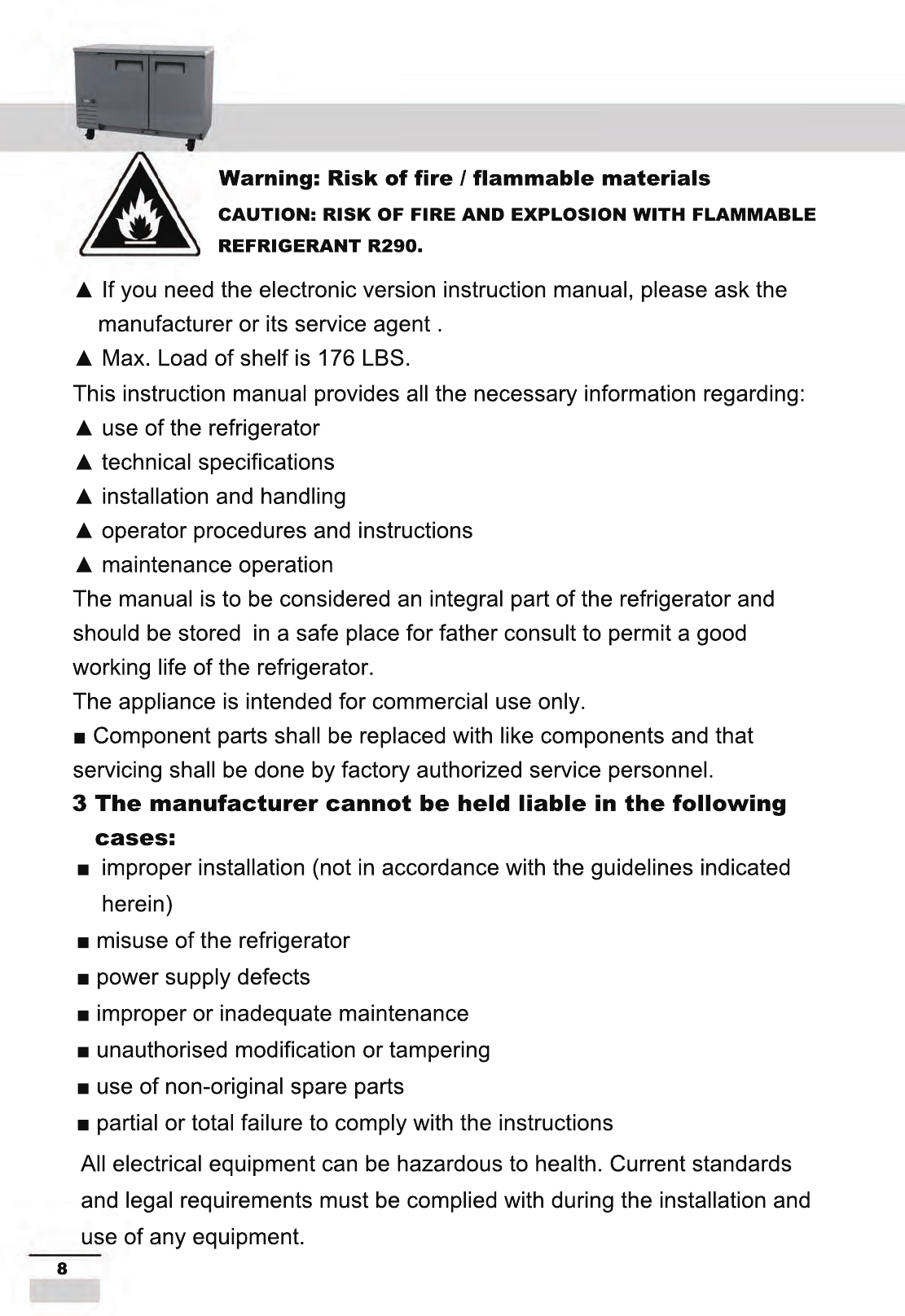

Warning: Risk of fire / flammable materials

CAUTION: RISK OF FIRE AND EXPLOSION WITH FLAMMABLE

REFRIGERANT R290.

All electrical equipment can be hazardous to health. Current standards

and legal requirements must be complied with during the installation and

use of any equipment.

This instruction manual provides all the necessary information regarding:

▲ use of the refrigerator

▲ technical specifications

▲ installation and handling

▲ operator procedures and instructions

▲ maintenance operation

The manual is to be considered an integral part of the refrigerator and

should be stored in a safe place for father consult to permit a good

working life of the refrigerator.

The appliance is intended for commercial use only.

■ Component parts shall be replaced with like components and that

servicing shall be done by factory authorized service personnel.

▲ If you need the electronic version instruction manual, please ask the

manufacturer or its service agent .

▲ Max. Load of shelf is 176 LBS.
