PORTABLE 5" LCD MONITOR AND DVD PLAYER

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsown-

ers. Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

A. Introduction

Thank you for choosing the D1500A portable DVD player. The main

features include a 5" Screen (4:3 aspect ratio) Liquid Crystal Display

(LCD) monitor and a DVD player.The unit applies the latest state of

the art electronics and is designed for use in hotels, offices, vehicles

or your home. The unit is constructed to provide years of reliable,

trouble-free service, and is compact so that you can take it with you

anywhereandis designedforquickand easy installation.Pleaseread

the entire instruction manual supplied with this product prior to using.

The documentation will assist you in installing the system properly to

obtain the best equipment performance. Please save this manual for

later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod,bracketortabletopreventitfromfalling. Keep the unit away

from strong magnets, heat sources, direct sunlight, and excessive

dust. If the unit is brought directly from a cold to a warm location,

moisture may condense inside the unit. When you move it from a

cold to a warm location, wait for about one hour before operating

the unit, or remove the disc and leave the unit turned on until the

moisture evaporates.

2. Installation

Ensure that the D1500A portable DVD player is installed in accor-

dancewiththe instructionsandillustrationsprovided inthismanual.

3. Caution

Do not push objects of any kind into the unit through openings;

do not spill or spray liquid of any kind on or in the system (this

may result in a fire or electric shock). Do not place anything

heavy on the unit. To ensure proper ventilation and proper

operation, never cover or block the slots and openings with a cloth

or other material. Keep the unit away from an open flame such as

fire, candle etc. It is hazardous to replace the battery incorrectly.

Replace the battery only with the same or equivalent type, in order

to protect the environmnent, please dispose of the battery prop-

erly. Do not use the unit in temperatures higher than 95 degrees

Fahrenheit or 35 degrees Celsius.

4. Disassemble

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system needs repair.

5. Cleaning Unit

Whencleaning, makesurethe systemisunplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of disk. Handle the

disc by its edge. Clean the disc by wiping the disc from the center

out with a cleaning cloth. Remove the disc from the unit and store

it in its case after playing. Some playback operations of discs may

be intentionally fixed by software producers. Since this unit plays

discs according to the disc contents the software producers de-

signed, some playback features may not be available.Also refer to

the instructions supplied with the discs.

C. Contents

1. 1 x 5’’ LCD Monitor & DVD Player Combination

2. 1 xAC to DCAdapter

3. 1 x Remote Control with battery (CR2025)

4. 1 x Rechargeable Battery

5. 1 x DC Power Adapter

6. 1 x Instruction Manual

7.1xAudio/VideoInput Cable

8. 1 xAudio/Video Output Cable

D. Powering and installation

1. Powering the system indoors

(Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the

right side of the main unit, then plug the other end into a 120VAC

power outlet.

2. Powering the system in a car

(refer to Figure 1)

Plug one end of the DC power adapter into the DC 9V jack on the

unit, then plug the other end into the vehicle power outlet.

Figure 1

E. Controls, Indicators, and Connectors

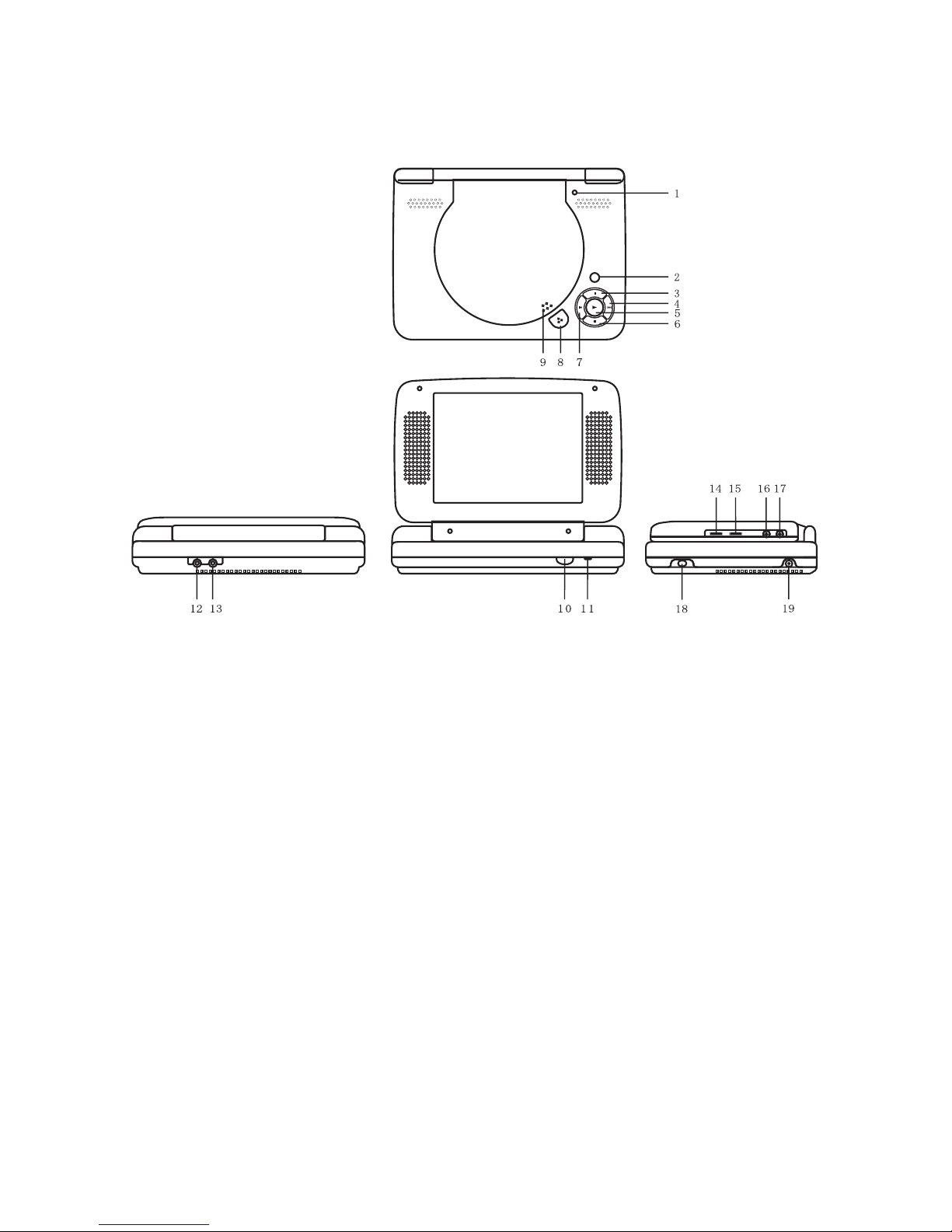

1. Unit View

(Refer to Figure 2)

Figure 2

1) LCD Panel Shut Off Switch

2) Display Button

3) Pause Button

4) Next Button

5) Play Button

6) Stop Button

7) Previous Button

8) Open Button

9) Press Area

10) Remote Control Sensor

11) Power LED

12)AV Output Jack

13)AV Input Jack

14) Brightness +/- Control

15) Volume +/- Control

16) Headphone Jack 1

17) Headphone Jack 2

18) Power On/Off Switch

19) DC 9V Input Jack

2. Remote Control View

(Refer to Figure 3)

1) Setup Button

2) Up Button

3) Previous Button

4) Enter Button

5) Reverse Scan/Left Button

6) Down Button

7) Numeric Button

8) Display Button

9) Zoom Button

10) Subtitle Button

11) Next Button

12) A-B Repeat Button

13) Forward Scan/Right Keypad

14) 1/All Repeat Button

15) Stop Button

16) Menu Button

17) Audio Button

18) Pause Button

19) Play Button

Figure 3

F. Loading and Playing a Disc

a.After connecting power to the unit, power on DVD player by sliding

the power switch to the on position. The power indicator will light.

b. Open the disc tray by pressing the OPEN button and place a disc

into the tray with the label side facing up.

c. Close the tray by pressing the “PRESS” area.The unit will load the

disc and start playing.

d.Rotate theBRIGHTNESSandVOLUMEtoadjust theLCD’s bright-

ness and the DVD player’s volume.

e. To stop playing a disc, press STOP.

G. Setup

Press ‘SETUP’ to display the Main screen of the Setup Menu on the

screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will

resume it’s last playback mode.

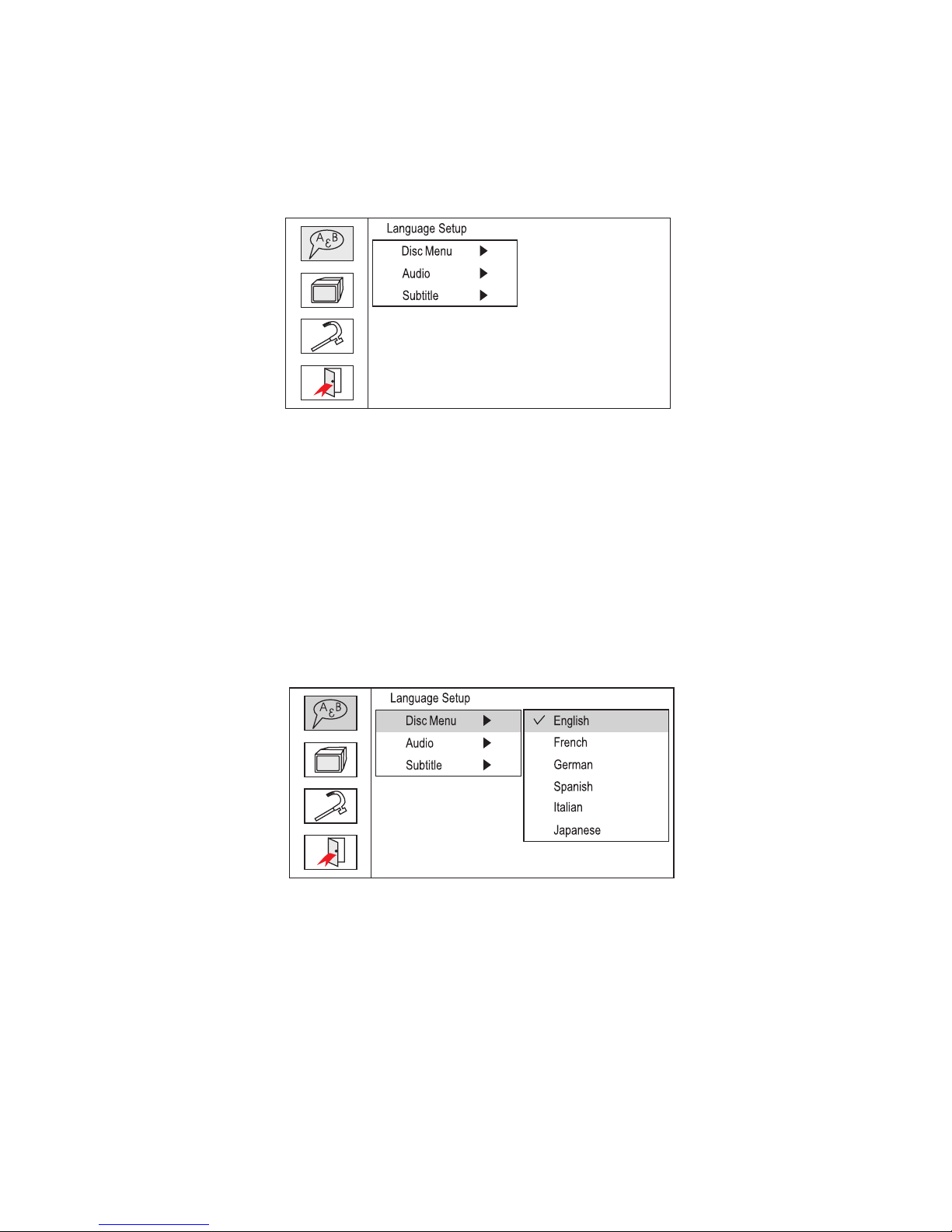

Main Setup Menu Screen

1) Press “SETUP”, the ‘Language Setup Page’ will be displayed on

the screen.

a). Press ENTER and select ‘Disc Menu’ using the UP/DOWN

button, and then press RIGHT to enter the submenu. Select the

desired Menu Language using UP/DOWN, and press ENTER to

confirm the setting. Press LEFT to return.

Disc Menu Language Screen Display

b).Select‘Audio’using the UP/DOWNbutton,and then press theRIGHT

button to enter the submenu. Choose the Audio Language you de-

sire using the UP/DOWN button and then press ENTER to confirm

the setting. Press the LEFT button to return.

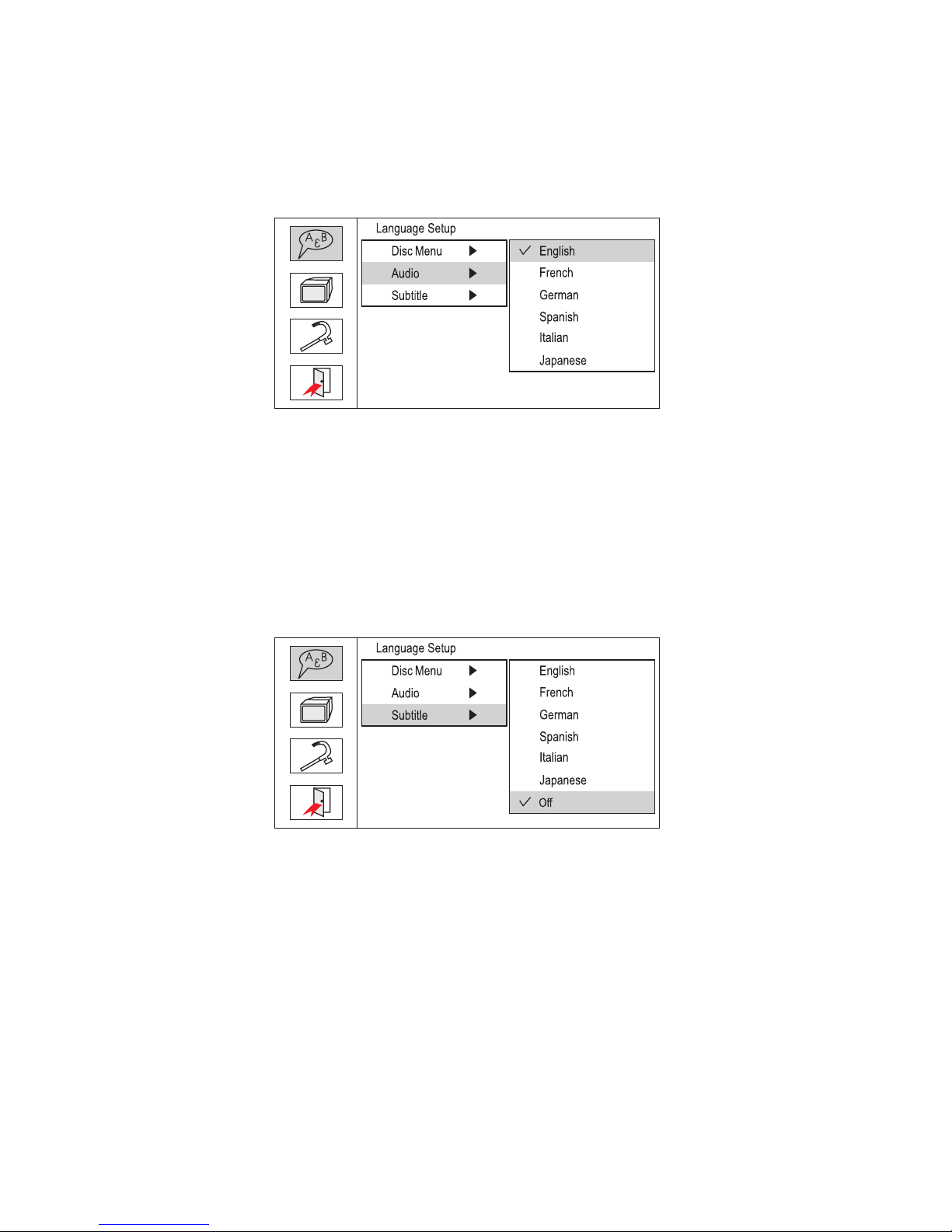

Audio Language Screen Display

c).Select ‘Subtitle’ using the UP/DOWN buttton, and then press the

RIGHT button to enter the submenu. Choose the Subtitle Language

you desire using the UP/DOWN button and then press ENTER to

confirm the setting. Press the LEFT button to return.

Subtitle Language Screen Display

4). Presstheleftbuttontoreturntothemainmenu. Select‘ScreenSetup’using

the UP/DOWNbutton,thenpressENTER toenterthescreensetuppage.

a.Select ‘TVDisplay’usingthe UP/DOWN button, then press RIGHT

to enter the submenu. Select the desired display ratio using the

UP/DOWN button, then press ENTER to confirm the setting. Press

LEFT to return.

TV Display Screen Display

* 4:3 PS (Normal/PS): When the player is connected to a normal TV,

and a wide picture is shown on the full screen.

* 4:3 LB (Normal/LB): When the player is connected to a normal TV,

and a wide picture is shown on the screen with a black strip at both

the top and bottom of the screen.

* 16:9 (Wide): When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

b. Select ‘TV Type’the using UP/DOWN button, then press RIGHT to

enterthesubmenu.SelectthedesiredTVTypeusingtheUP/DOWN

button, then press ENTER to confirm the setting. Press LEFT to

return.

TV Type Screen Display
