Audiovox D1712 Bedienungsanleitung

D1712D1712

D1712

PORTABLE 7" LCD MONITOR AND DVD PLAYER

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsown-

ers. Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

Contents

A.Introduction........................................................................... 4

B. Cautions and Warnings ....................................................... 4

C.Contents..............................................................................6

D.Poweringandinstallation.....................................................6

E. Controls, Indicators, and Connectors .................................. 7

F. Loading and Playing a Disc ................................................. 8

G.SETUP.................................................................................9

H.BasicOperation.................................................................17

I. MENU.................................................................................. 18

J.DISPLAY.............................................................................18

K. PLAYINGAUDIO CDS .......................................................24

L.PLAYING MP3 DISCS ........................................................ 26

M.PlayingJPGfile .................................................................. 28

N. Connecting to a TV or another monitor ............................ 30

O.Specifications....................................................................30

P. Rechargeable Battery Installation and Use ........................ 31

Q.Troubleshooting................................................................33

A. Introduction

Thank you for choosing the D1712. The main features include a 7"

WideScreen (16:9AspectRatio)Liquid CrystalDisplay (LCD)monitor

and a DVD player. The unit applies the latest state of the art elec-

tronics and is designed for use in hotels, offices, vehicles or your

home.Theunit is constructedtoprovide yearsofreliable,trouble-free

service, and is compact so that you can take it with you anywhere

andisdesignedfor quick and easy installation. Please readtheentire

instructionmanualsuppliedwith this product prior tousing.Thedocu-

mentation will assist you in installing the system properly to obtain

the best equipment performance. Please save this manual for later

use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod,bracketortabletopreventitfromfalling.Keep the unit away

fromstrongmagnets,heat sources, direct sunlight,excessivedust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the D1712 is installed in accordance with the instruc-

tions and illustrations provided in this manual.

3. Caution

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

coverorblocktheslotsandopeningswithaclothorothermaterial.

Keeptheunit away from an open flame such as,.fire, candle etc,. It

is hazardous to replace the battery incorrectly. Replace the battery

only with the same or equivalent type. In order to protect the

enviromnentpleasedispose of the battery properly.Donotusethe

unit in temperatures higher than 104 degrees Fahrenheit or 40 de-

grees Celcius.

4.Disassemble

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system needs repair.

5. Cleaning Unit

Whencleaning, makesurethe systemisunplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of disc. Handle the

disc by its edge. Clean the disc by wiping the disc from the center

out with a cleaning cloth. Remove the disc from the unit and store

it in its case after playing. Some playback operations of discs may

be intentionally fixed by software producers. Since this unit plays

discs according to the disc contents the software producers de-

signed, some playback features may not be available.Also refer to

the instructions supplied with the discs.

C. Contents

1. 1 x 7’’ LCD Monitor & DVD Player Combo

2. 1 x Remote Control with battery (CR2025)

3. 1 x Video Cable

4. 1 x AC to DCAdapter

5. 1 X DC Power Adapter

6. 1 x Instruction Manual

7. 1 X Rechargeable Battery

Figure 1

D. Powering and installation

1. Powering the system indoors (Refer to Figure 2)

Plug one end of the AC to DC adapter into the DC 9V jack on the

left side of the main unit, then plug the other end into the 120V AC

power outlet.

2. Powering the system in a car (refer to Figure 2)

Plug one end of the DC Power adapter into the DC 9V jack on the

unit, then plug the other end into the vehicle power outlet.

Figure 2

E. Controls, Indicators, and Connectors

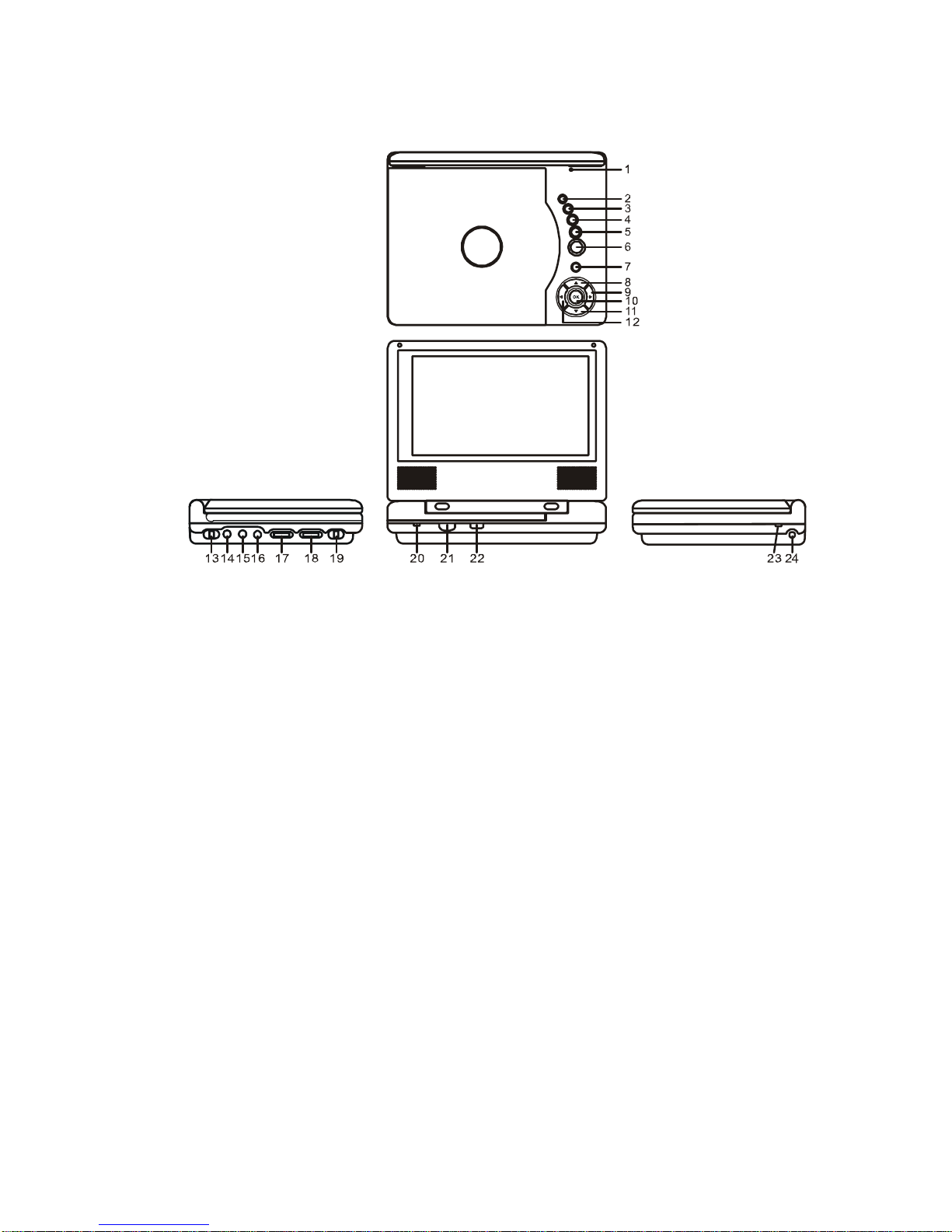

1. Unit View (Refer to Figure 3)

Figure 3

1) LCD Panel Shut Off Switch

2) Wide Button

3) Stop Button

4) Previous Button

5) Next Button

6) Play Button

7)Menu

8) Up Button

9) Right Button

10) OK Button

11) Down Button

12) Left Button

13)AV SW Button

14)Audio output Jack

15) Video output Jack

16) Headphone Jack

17) Volume Control

18) Brightness Control

19) Power On/Off Switch

20) Power LED

21) Remote Control Sensor

22) Open Button

23) Charge LED

24) DC 9V Input Jack

2. Remote Control View (Refer to Figure 4)

1) Display Button

2) Angle Button

3) Subtitle Button

4) Audio Button

5) Zoom Button

6) UP/DOWN/LEFT/RIGHT/

ENTER Buttons

7) Return Button

8) A-B Button

9) Forward Button

10) Reverse Button

11) Slow Button

12) Stop Button

13) Numeric Keypad

14) Setup Button

15) Menu Button

16) Repeat Button

17) SKIP-

18) SKIP+

19) Play Button Figure 4

20) Pause Button

F. Loading and Playing a Disc

a. Afterconnecting power to the unit, power onthe“DVDplayer”with

the power switch. The power indicator will light.

b. Open the disc cover by pressing OPEN , and place a disc into the

tray with the label side facing up.

c. Close the cover by pressing the area marked “PRESS”. The unit

will load the disc and start playing.

d. Rotate the BRIGHTNESS and VOLUME controls to adjust the

LCD’s brightness and the DVD player’s volume.

e. To stop playing a disc, press STOP.

f. To turn off the DVD player, slide the POWER ON/OFF to OFF.

The DVD player’s POWER indicator will turn off.

G. Setup

Press ‘SETUP’ to display the Main screen of the Setup Menu on the

screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will

resume it’s last playback mode.

Main Setup Menu Screen

1) Press “SETUP”, the ‘General Setup Page’ will display on screen.

a).Select ‘TV Display’ using the UP/DOWN button, and then press

RIGHTtoenterthe submenu. Select the TVdisplaymodeonthe

screen using UP/DOWN, and press ENTER to confirm the set-

ting. Press LEFT to return.

* Normal/PS: When the player is connected to a normal TV, and

a wide picture is shown on the full screen.

* Normal/LB: When the player is connected to a normal TV, and

a wide picture is shown on the screen with a black strip at both

the top and bottom of the screen.

* Wide: When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

TV Display Screen Display

b).Select ‘TV Type’ using the UP/DOWN button, and then press the

RIGHTbuttontoenterthesubmenu. Choose TVType using the UP/

DOWN button and then press ENTER to confirm the setting. Press

the LEFT button to return.

TV Type Screen Display

c).Select ‘Angle Mark’ using the UP/DOWN buttton, and then press the

RIGHT button to enter the submenu. Choose Angle Mark on or off

using the UP/DOWN button and then press ENTER to confirm the

setting. Press the LEFT button to return.

Angle Mark Screen Display

* On: The screen will show the angle mark icon. (*If an angle option is

available).

* Off: The screen will not display theAngle Mark

NOTE: Not all discs contain above features. The above features are

disc dependent.
