Audiovox CommanderMT 128-7902A Bedienungsanleitung

installation guide

XMRVRFM002

CommanderMT System

Table of Contentsable of Contents

able of Contentsable of Contents

able of Contents

Table of Contents ...............................................................................................2

Congratulations ..................................................................................................3

FCC Information ..................................................................................................4

Cautions and Warnings ................................................................................... 5

CommanderMT Receiver Kit Components ..............................................6

Installation/Wiring Precautions ....................................................................7

Setting Up and Installing Your Kit ............................................................... 8

Cabling Interconnections ......................................................................8

Interconnect Diagram .............................................................................9

Antenna Installation ............................................................................. 10

CommanderMT Display Controller Installation ....................... 13

Using the DIN Opening Trim Bezel ............................................ 13

Preferred Location ....................................................................... 13

Locating the Display Controller ............................................ 14

Installing the Mini-Tuner ........................................................... 15

Installing the Cradle and Interconnecting Cables ......... 15

Using the Snap-On Mounting Plate ......................................... 17

Connection Options ........................................................................ 18

FM Direct Wiring ........................................................................... 18

Low-Level Audio Output .......................................................... 19

Warranty ......................................................................................................... 20

Table of Contents

Thank you for purchasing the Audiovox CommanderMT XM®Satellite Radio

System. You are one step closer to experiencing the latest innovation in XM®

Satellite Radio. XM®Satellite Radio will revolutionize your vehicle or in-home

entertainment.

XM®features over 170 digital channels — The most commercial-free music,

over 30 channels of news, sports, talk and entertainment, over 20 dedicated

channels of XM®Instant Traffic & Weather, and the deepest play-list in the

industry with access to over 2 million titles!

XM®Satellite Radio service gives you the power to choose what you want to

hear - wherever and whenever you want it. XM®is America’s #1 Satellite Radio

provider with over 4 million customers.

Your Audiovox CommanderMT XM®Satellite Radio System consists of acces-

sory Vehicle Kit components required for your specific installation needs.

Required subscription for service sold separately.

Installation costs and other fees and taxes may apply, including a one-time

activation fee. All fees and programming subject to change. College sports

games subject to availability. Subscriptions subject to Customer Agreement

included with the XM Welcome Kit and available at www.xmradio.com. Only

available in the 48 contiguous United States.

rights reserved. All other trademarks are the property of their respective

owners.

CongratulationsCongratulations

Congratulations

FCC InformationFCC Information

FCC Information

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful in

terference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. How

ever, there is no guarantee that interference will not occur in a particular instal

lation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

The user is cautioned that changes or modifications not expressly approved by XM®

Satellite Radio, Inc. can void the user’s authority to operate this device.

Please note that the cables and antenna wire that has been supplied with your

car installation kit are supplied with permanently attached ferrite beads. It is the

responsibility of the user to use the cable and antenna wire with the ferrite

beads.

By adhering to these warnings and safety considerations, stated in the manual and

by XM®, accidents.

FCC Information

Cautions and WarningsCautions and Warnings

Cautions and Warnings

1. Do not install the CommanderMT Display Controller in a position

that hinders your view through the windshield, or obstructs viewing

of the dashboard indicators and displays.

2. Do not install the Display Controller where it may obstruct the

operation or deployment of safety devices, such as airbags, etc.

3. Do not allow operation of the unit to detract from safe driving prac-

tices; remember that you are responsible as the vehicle operator

to adhere to all safe driving and traffic regulations.

4. By adhering to these warnings and safety considerations, serious

accidents and/or personal injury can be avoided.

Cautions and Warnings

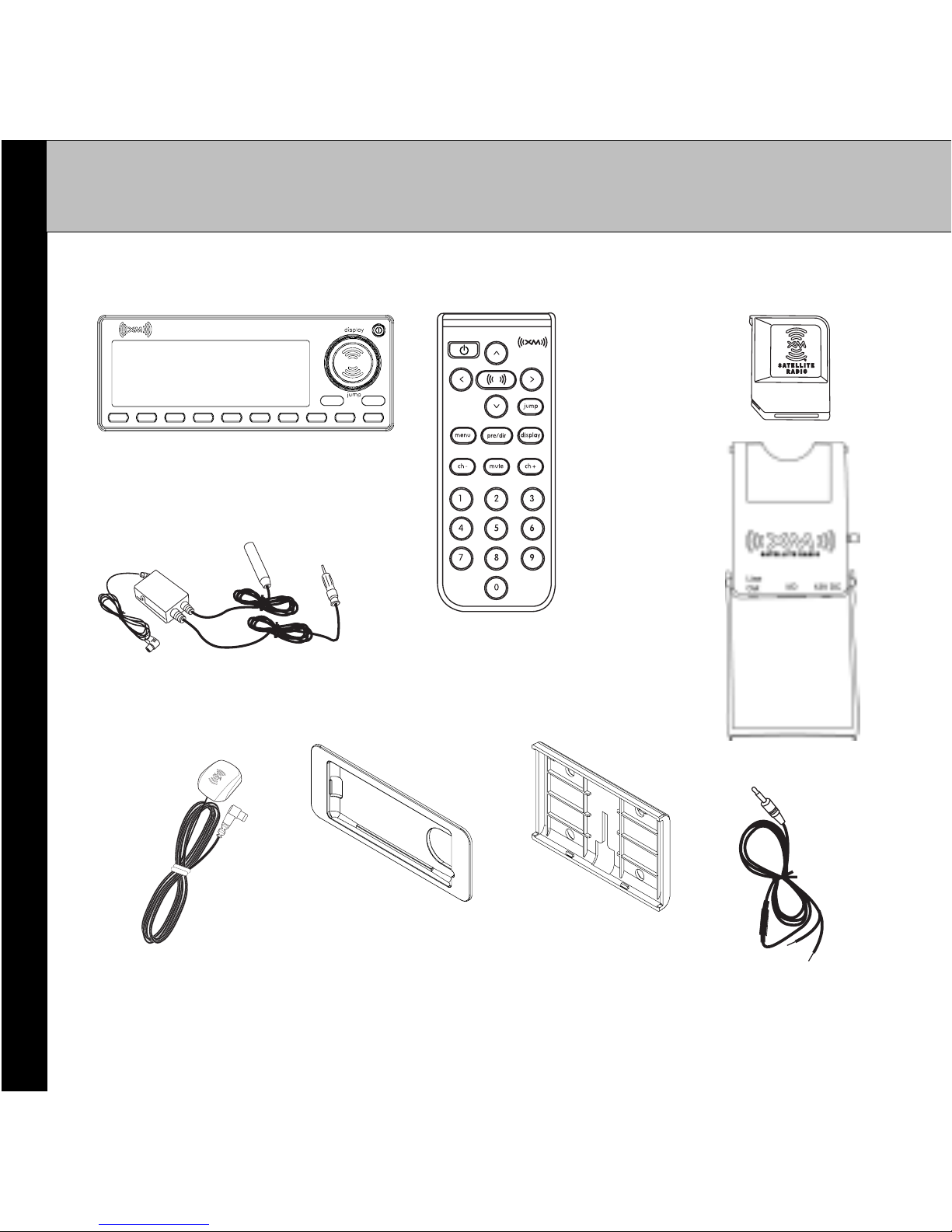

CommanderMT Receiver Components

CommanderCommander

Commander

MTReceiverKitComponentsMTReceiverKitComponents

MTReceiverKitComponents

12 Vdc

PowerCable

CommanderMT

Display Controller

Remote Control

Mini-Tuner

FM Direct Adapter

XM Car

Antenna

DINOpening

Trim Bezel Snap-On

Mounting

Plate

Interconnect

Cradle

p/d

987654321

Installation/Wiring PrecautionsInstallation/Wiring Precautions

Installation/Wiring Precautions

1. To prevent a short-circuit, be sure to turn off the ignition and remove

the negative (-) battery cable prior to installation. Connect power

wires last.

2. Do not install the CommanderMT Display Controller in loca-

tions exposed to direct sunlight, or in areas subject to extreme

temperatures, or damage could occur.

3. Incorrect installation may cause damage to the system. Mount

the system components using the suggested methods recom-

mended in this manual.

4. Be careful not to crimp or twist the vehicle wiring.

5. Use only the 12 Volt DC Power Cable supplied. Use of an alternative

power source could damage the CommanderMT System compo-

nents or vehicle wiring.

6. Locate the CommanderMT Display Controller in an area of the

vehicle where it will not obstruct the driver’s operation of the vehicle

and where it will not pose a risk to driver or passengers in the event

of an emergency stop.

Installation/Wiring Precautjions

Setting Up and Installing YSetting Up and Installing Y

Setting Up and Installing Your Kitour Kit

our Kitour Kit

our Kit

NOTE: The XM®signal can be received and processed virtually

anywhere as long as there are no obvious satellite signal

obstructions such as nearby buildings, high terrain, parking

garages or tunnels.

1. Cabling Interconnections

You can begin to enjoy XM®Satellite Radio as soon as the

CommanderMT System Vehicle Kit installation is complete. Set

up yourAudiovox CommanderMT System using the following

installation instructions, or enlist the help of a professional

installer:

WARNING:Professional installation is recommended. Failure to

properly follow all installation instructions may result

in personal injury or damage to your CommanderMT

System components, your vehicle, or your vehicle

Audio/Video (A/V) system.

Cabling Interconnections

Interconnect DiagramInterconnect Diagram

Interconnect Diagram

CommanderMT

Display Controller

DIN Opening

Trim Bezel

Interconnect

Cradle with XM

Mini-Tuner

Power Cable

with 2A

In-line Fuse

FMDirectAdapter

XMAntenna

ToFMAntenna

To FM Radio

Important!

It is very important to make your power connection to a source that

only supplies 12V when the vehicle key is in the accessory or ignition

ON position. A connection to a 12V source that is always on,

regardless of the key position, can lead to a battery drain if the

CommanderMT System is left on when you leave your vehicle.

Ignition Switch Accessory/On-Off Positions

3. Antenna Installation

Where to locate

•Best reception is achieved with the antenna mounted on a flat

portion of a metal vehicle roof with at least 12” x 12” of surface area

and a minimum of 6” from a window or sunroof.

•If the vehicle has roof racks or skid ribs, it may be necessary to

mount the antenna off-center.

•If the venicle roof does not provide sufficient metal surface area,

then the antenna can be mounted on the metal trunk lid. It is

recommended that it be mounted at least several inches from the

rear window to ensure adequate clearance.

ACCESSORY

POSITION NOACCESSORY

POSITION

Important/Antenna Installation
