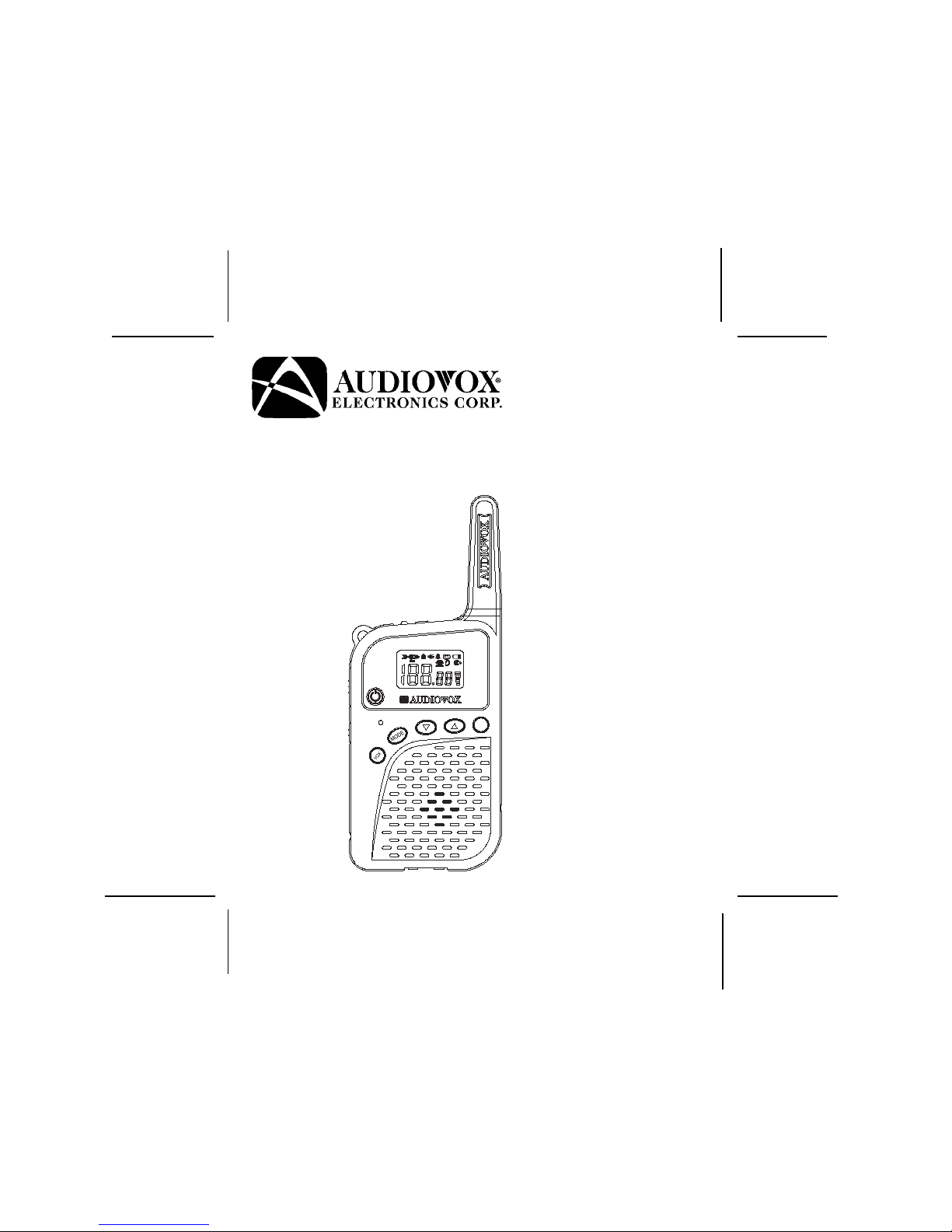

General Mobile Radio Service (GMRS)

Model : GMRS600SCH

Owner’s Manual

128-7348

2 of 28

THIS PAGE LEFT BLANK INTENTIONALLY

128-7348

3 of 28

CAUTION:

SAFETY INFORMATION

Your wireless hand-held portable transceiver contains a low power

transmitter. When the PTT button is pushed (or the VOX mode is en-

abled) it sends out radio frequency (RF) signals. The device is authorized

to operate at a duty factor not to exceed 50%. In August 1996, the Fed-

eral Communications Commissions (FCC) adopted RF exposure guide-

lines with safety levels for hand-held wireless devices.

Important: To maintain compliance with the FCC’s RF exposure guide-

lines hold the transmitter at least 1 inch (2.5 centimeters)

from your face and speak in a normal voice, with the antenna

pointed up and away. If you wear the handset on your body

while using the headset accessory, use only the Audiovox

supplied carry clip for this product and ensure that the an

tennaisatleast1inch(2.5centimeters)fromyourbody when

transmitting.Useonlythesupplied antenna. Do not use your

transceiver with a damaged antenna. Unauthorized anten-

nas, modifications, or attachments could damage the trans-

mitter and may violate FCC regulations.

Performance:

Your transceiver will only achieve its maximum operating range when

communicating with other transceivers across open and flat areas or

between elevated points. Normally occurring environmental factors such

as buildings, trees, terrain and weather, or interference from other radio

or electrical equipment, may have adverse effects on the transceiver’s

effective range. These are not indicative of a fault condition.

Avoid placing the GMRS600SCH radio transceiver for prolonged periods

of time in direct sunlight or temperatures below -4°F(-20°C) or above

140°F (60°C). 3

128-7348

4 of 28

WARNINGS:

Battery Care

Never attempt to charge other brands of batteries, as batteries may

burst causing personal injury and damage to the product. When recharg-

ing Lithium-ion(Li-ion) batteries with the AUDIOVOX charger, use only

supplied Audiovox-approved rechargeable batteries. Use of the Audiovox

charger(alsosupplied)withotherbrandsofbatteriesisnot recommended,

as battery charging times will vary with different brands. Refer to the

Manufacturer’s instructions for charging other brands of batteries.

Battery Disposal

In general, if handled improperly, batteries pose a risk of fire or burns. Do

not disassemble, crush, puncture, short external contacts, or dispose of

the batteries in fire or water. Dispose of the batteries in a environmentally

safe manner and recycle whenever possible.

CAUTION:Make sure wrist strap is securely fastened to wrist strap ring

to prevent unit loss or damage.

FCC WARNING

Replacementorsubstitutionoftransistors,diodesorotherpartsof a unique

nature, with parts other than those recommended by the manufacturer,

maycause a violation of the technical regulationsof Part 15 of FCC Rules.

GMRS LICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN

FCC GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER,

WHO IS NOT A REPRESENTATIVE OF A FOREIGN GOVERNMENT, IS

ELIGIBLETOAPPLY FORAGMRSSYSTEMLICENSE. YOUWILLNEED

TWO FORMS FROM THE FCC: FCC FORM 159, AND FCC FORM 605

(MAINFORMANDSCHEDULEF).YOU CAN FINDTHEFORMSONLINE

AT: HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL

1-800-418-3676. 4

128-7348

5 of 28

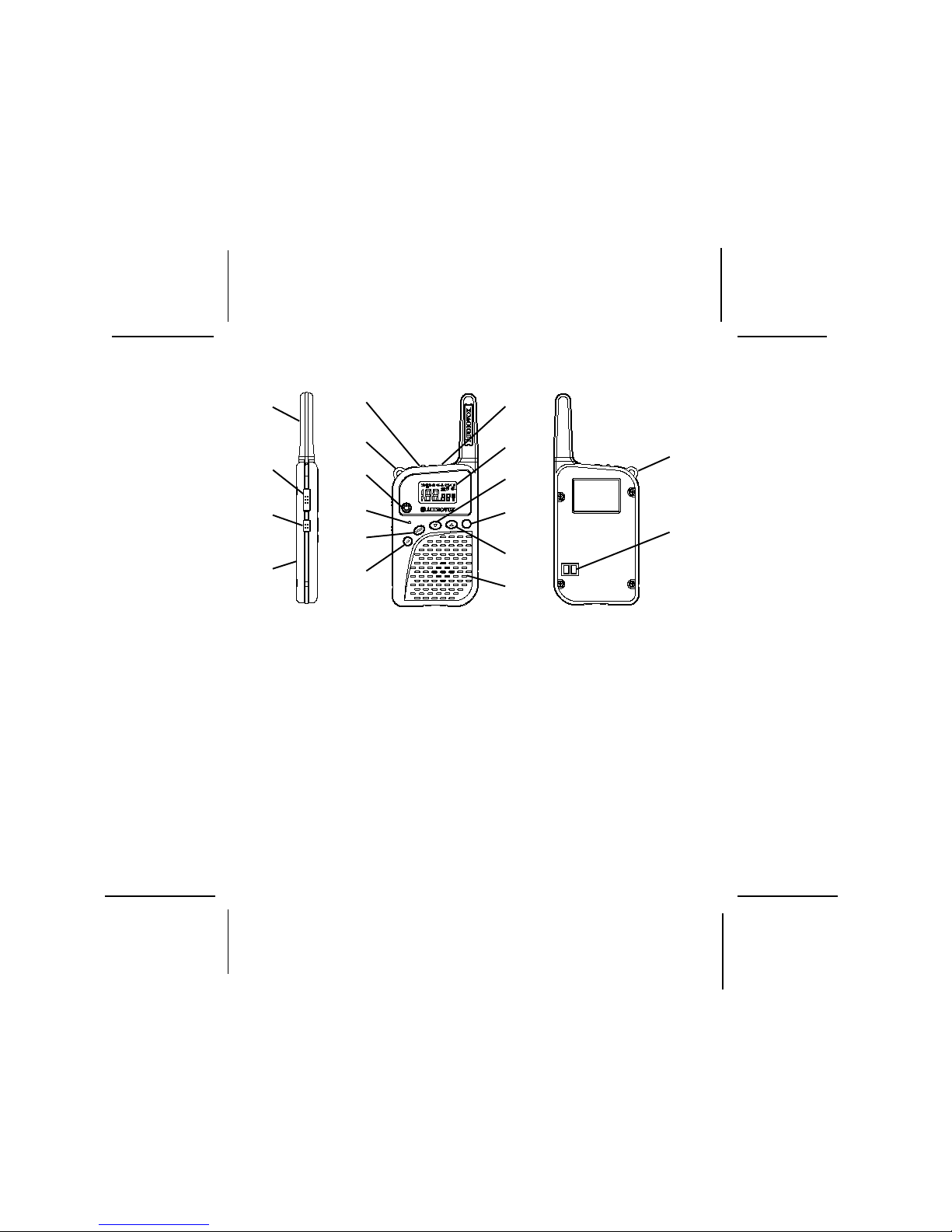

1. Battery(Internally Installed)

2. Flashlight Enable Button

3. Push-To-Talk (PTT) Button

4. Antenna

5. VOX/LOCK Button

6. MODE/FM Button

7. Built-inMicrophone

8. Power On-Off/SCAN

Button

9. Wrist strap ring

Model GMRS600SCH (FCC License Required)

10. White Flashlight LED

11. External Speaker/Micro-

phone/Charge Jack

12. Liquid Crystal Display

(LCD)

13. Down Channel/Volume

Button

14. Monitor/BacklightButton

15. Up Channel/Volume Button

16. Built-in Speaker

17. Battery Charging Contacts

LOHI FM

10 11

REF

128-7348

6 of 28

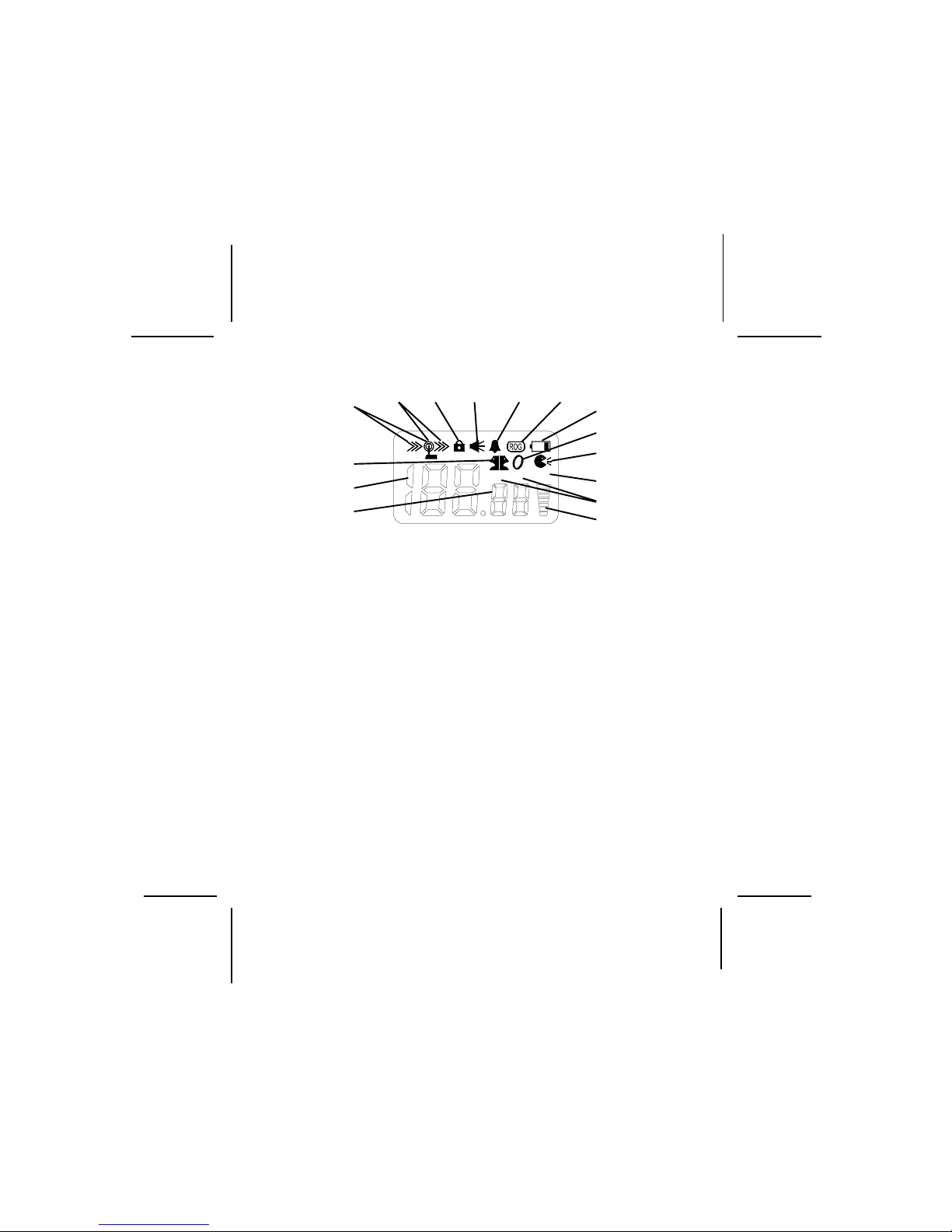

Model GMRS600SCH Display

1. Small Segment Display: Displays the CTCSS tone option for

each main channel from 01-38.

2. Large Segment Display: Indicates the channel number in use.

3. Dual Watch Mode Indicator: Indicator appears when dual watch

mode is active.

4. Signal Receive Indicator: Busy icon appears when a signal is

being received.

5. Signal Strength Indicator: Icon appears when a signal is being

transmitted.

6. Key Lock Indicator: Icon appears when the keypad is locked.

This function disables keys such as channel up/down, SCAN and

MODE.

7. Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

8. Beep Tone Indicator: Icon appears when beep button confirma-

tion tone is selected; icon disappears when tone is off.

9. Roger Beep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

10. Battery Level Indicator: Icon indicates when the battery is in

lower level.

LOHI FM

456 7 8 910

128-7348

7 of 28

11. Scan Indicator: This function allows the user to scan a channel

(and tone code, if present) every .5 second to search for a valid

signal.

12. Voice Activated Transmission (VOX) Indicator: This function

allows hands free conversation. The indicator appears when the

VOX mode is activated.

13. FM Mode Indicator: Icon will be on steady when the FM radio

feature is active.

14. HI/LO Indicators: Power level indicator appears when the transmit

power is set to desired output power on the GMRS channels.

15. Volume Level Indicator: Indicator appears the volume level

Equipment and Accessories Supplied

1. Radio (2) GMRS600SCH

2. Owner’s Manual 128-7348

3. Dual Desktop Charger GMRS6DST

. 4. AC Wall Adapter GMRS6AC

5. Rechargeable (Li-ion) Battery GMRS5BAT

6. Earbud with Remote PTT Button GMRSBHST8

7. Wrist Strap GMRS5WRST

Powering the transceiver:

Your GMRS600SCH radio transceiver operates on internally installed

Li-ion batteries. Only Audiovox approved rechargeable batteries should

be recharged in the radio transceiver using the charging accessories.

This will ensure optimum performance for the GMRS600SCH. Battery

charging time is typically 11 - 13 hours. Use of the Audiovox charging

equipment with other brands of rechargeable batteries is not recom-

mended as battery charging times will vary. Refer to the manufacturer’s

instructions for charging other brands of batteries.

128-7348

8 of 28

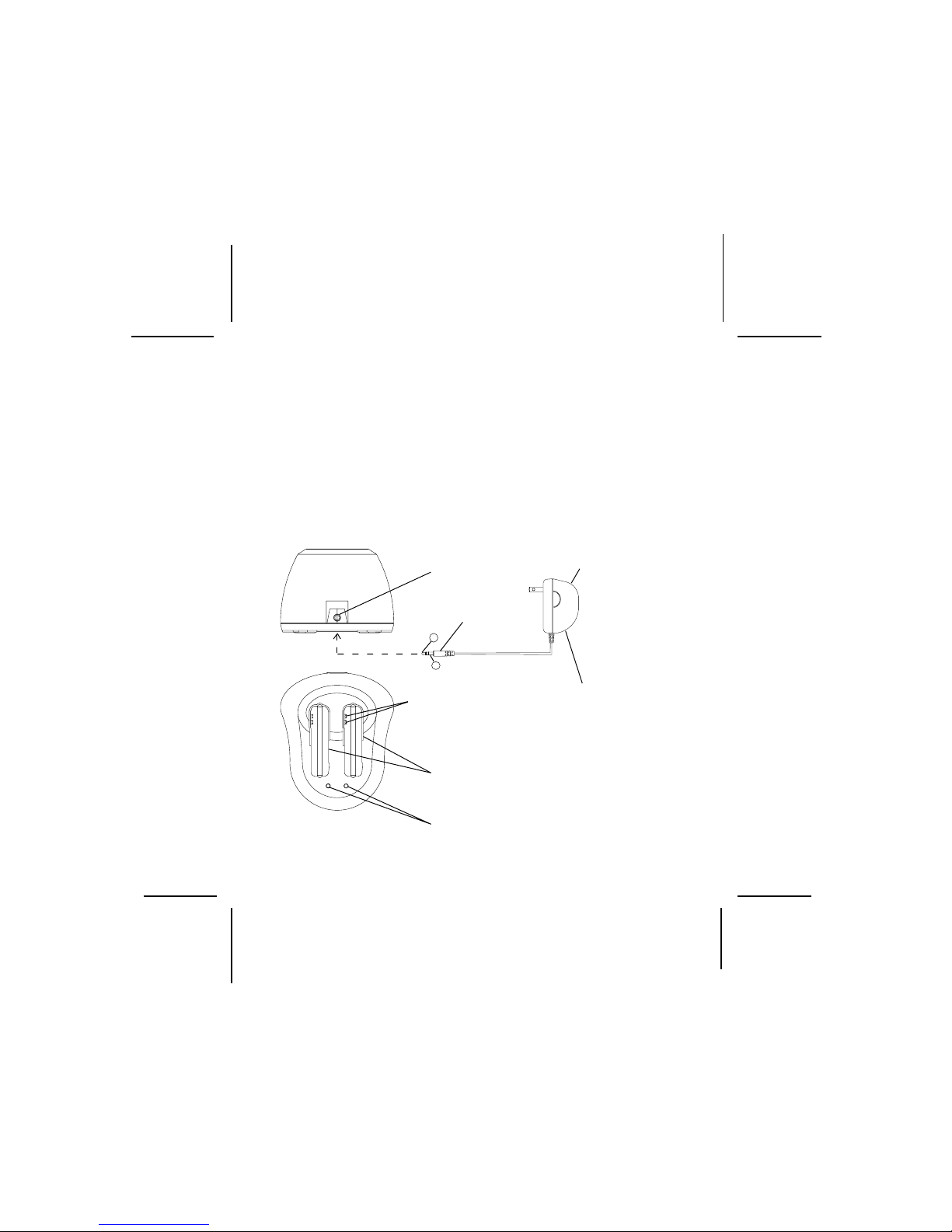

Battery Charging

Audiovox Rechargeable Li-ion Batteries - (Rechargeable Li-ion batteries

andChargingAdapterincluded).Useonly an Audiovox approvedrecharge-

able battery and charging equipment when charging the battery internal

to the unit.

WARNING: Do not attempt to charge the battery using another

manufacturer’s charging equipment.

NOTE: To extend battery life, avoid overcharging the battery.

DC 9V

INPUT: 120VAC

OUTPUT: 9.0 VDC

DESKTOP CHARGING STAND

PART NUMBER 136C3957

CHARGING STAND

PWR JACK

ADAPTER

POWER

PLUG

GMRS RADIO IN

CHARGING

COMPARTMENTS

(2)

CHARGING

COMPARTMENT

LEDs:

RED---CHARGING

AC WALL ADAPTER/

CHARGING TRANSFORMER

MODEL:136-3939

CHARGING

COMPARTMENT

CONTACTS (TYP)

NOTE:

Only

Audiovox

approved rechargeable

battery (P/N 156-2241)

can be recharged in the

radio transceiver.

RED LED: ON - CHARGING

OFF - CHARGING

COMPLETE

128-7348

9 of 28

NOTE: Toswitch between GMRS/

FRSandFMBandmodes,

press and hold the Mode

button for 3 seconds. Re-

fer to the appropriate sec-

tion of this manual for de-

tailed operating instruc-

tions for each mode.

To enter the VOX mode,

momentarily press the

VOX/LOCK button.

Controls:

LED Flashlight Enable Button (2)

When the unit is on, press this button

on the right side of the Transceiver to

light the white flashlight LED (10) on top of the unit.

Power On-Off/SCAN (8) Button

Press and hold the power on/off button ( s) for at least 2 seconds. You

will hear a confirming melody to indicate the unit is on. To turn the unit

off, press and hold the button for at least 2 seconds.

When the unit is on, press this button momentarily to enable or disable

the scan mode.

(GMRS Channels

Only)

GMRS600SCH Operational Modes

ROGER

BEEP

BUTTON

BEEP

CALL

SELECT

DUAL

WATCH

VOX LEVEL

SELECT

POWER

SELECT

GMRS/FRS BAND

CTCSS

SELECT

CHANNEL

SELECT

FM BAND

FM station

searching

128-7348

10 of 28

Adjusting the Volume (13, 15)

With the unit powered on, press the Up Channel/Volume button (F) to

increase volume and the Down Channel/Volume button (G) to decrease

volume. The display will indicate the current volume level between 0 to 7

bars on the right lower side of the LCD.

Monitor/Display Backlight Button (14)

This button is used to check activity on the current frequency before

transmitting. Check activity by pressing the Monitor (M) Button longer

than 2 seconds; the icon will appear on the display and you will hear

static if frequency is clear. Do not transmit if you hear conversation.

Hold down the Monitor Button again longer than 2 seconds and the

icon will disappear from the display.

The monitor function will temporarily bypass the squelch setting and play

all signals on a given channel. This feature is useful when communicating

with other parties at extreme range.

By pressing the monitor button momentarily, the LCD backlight is turned

on accompanied by a beep tone (if enabled); the LCD backlight will turn

offautomaticallyinabout5seconds,orwhenthemonitorbuttonispressed

momentarily once again.

Push To Talk (PTT) Button (3)

Pressing and holding this button will allow you to speak to any transceiver

that is set to the same channel and privacy code setting as yours. Hold

the transceiver approximately 1 to 2 inches from your face as you speak

into the built in microphone (7). After you have finished speaking, release

the PTT Button to allow reception of incoming signals. It is not possible to

transmit and receive at the same time. The Transmit Signal Level indica-

tor ( ) will display the relative strength of the transmitted signal. When

receiving an incoming signal, the ( ) icon will appear in the upper right

quadrant of the display. The PTT button can also be used as a two-way

Inhaltsverzeichnis

Andere Audiovox Radio Handbücher

Audiovox

Audiovox GMRS6000-2 Bedienungsanleitung

Audiovox

Audiovox GMRS1262CH Bedienungsanleitung

Audiovox

Audiovox MS160 Bedienungsanleitung

Audiovox

Audiovox GMRS122CH Bedienungsanleitung

Audiovox

Audiovox SIR-HK3 Bedienungsanleitung

Audiovox

Audiovox GMRS-1545 Bedienungsanleitung

Audiovox

Audiovox Satellite Radio Receiver Bedienungsanleitung

Audiovox

Audiovox ACD-30 Programmierhandbuch

Audiovox

Audiovox GMRS-1200CH Bedienungsanleitung

Audiovox

Audiovox GMRS7001-2 - 7 Mile GMRS Radio Bedienungsanleitung

Audiovox

Audiovox VR202 Bedienungsanleitung

Audiovox

Audiovox GMRS200 Bedienungsanleitung

Audiovox

Audiovox CD1180 Bedienungsanleitung

Audiovox

Audiovox SIR-PNP1 Montage- und Bedienungsanleitung

Audiovox

Audiovox XAPH1 Bedienungsanleitung

Audiovox

Audiovox XpressR XMCK-20KC Bedienungsanleitung

Audiovox

Audiovox GMRS672 Bedienungsanleitung

Audiovox

Audiovox XT·250 XTRA series Bedienungsanleitung

Audiovox

Audiovox Sirius SIR-PNP3 Bedienungsanleitung

Audiovox

Audiovox GMRS862 Bedienungsanleitung

Audiovox

Audiovox GMRS6000-2PK Bedienungsanleitung

Audiovox

Audiovox XpressR Bedienungsanleitung

Audiovox

Audiovox GMRS122-2CH - 5 Mile GMRS Radio Bedienungsanleitung

Audiovox

Audiovox GMRS762CH Bedienungsanleitung

Beliebte Radio Handbücher anderer Marken

EisSound

EisSound KBSound iSelect Bedienungsanleitung

Midland

Midland 1001LWX Bedienungsanleitung

Konig

Konig HAV-SR41 Bedienungsanleitung

Roberts

Roberts exprssion Bedienungsanleitung

VDigi

VDigi DD3.0 Bedienungsanleitung

Radio Shack

Radio Shack 21-1863 Bedienungsanleitung

Roberts

Roberts Stream 207 Bedienungsanleitung

Sony

Sony Walkman SRF-M97 Bedienungsanleitung

Stanley

Stanley FatMax FMC770 Bedienungsanleitung

auna

auna DAB-Radio 10026947 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR190 Bedienungsanleitung

HYT

HYT TC-320 Bedienungsanleitung

auna multimedia

auna multimedia Yellowstone 10026851 Bedienungsanleitung

B-Tech

B-Tech GMRS-V2 Bedienungsanleitung

Weierwei

Weierwei VEV-V8 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER DAB750 Bedienungsanleitung

Telefunken

Telefunken TF-1505 Bedienungsanleitung

Makita

Makita LXRM03 Bedienungsanleitung
