General Mobile Radio Service (GMRS)

1-800-290-6650

PTT/CALL

Model

GMRS200W

Owner’s Manual

Released: 4-25-03

128-6781

2 of 16

CAUTIONS

WHEN RECHARGING LITHIUM ION (Li-ion) BATTERY WITH

THE AUDIOVOX CHARGER, USE ONLY THE AUDIOVOX

SUPPLIED RECHARGEABLE BATTERY. USE OF THE

AUDIOVOX CHARGER WITH OTHER BRANDS OF BATTER-

IES IS NOT RECOMMENDED, AS BATTERY CHARGING

TIMES WILL VARY WITH DIFFERENT BRANDS. REFER TO

THE MANUFACTURER’S INSTRUCTIONS FOR CHARGING

OTHER BRANDS OF BATTERIES. AVOID PLACING THE

GMRS200W RADIO TRANSCEIVER FOR PROLONGED

PERIODS OF TIME IN DIRECT SUNLIGHT OR TEMPERA-

TURES BELOW -4º F (-20º C) OR ABOVE 140º F (60º C).

KEEP THE ANTENNA AT 1 INCH (2.5 cm) AWAY FROM

YOUR HEAD AND BODY. DO NOT USE YOUR GMRS200W

RADIO TRANSCEIVER WITH A DAMAGED ANTENNA.

GMRS LICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES

REQUIRES AN FCC GMRS LICENSE. AN INDIVIDUAL 18

YEARS OF AGE OF OLDER, WHO IS NOT A REPRESENTA-

TIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE TO

APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED

TWO FORMS FROM THE FCC; FCC FORM 159 AND FCC

FORM 605 MAIN FORM AND SCHEDULE F. YOU CAN FIND

THE FORMS ONLINE AT: HTTP://WWW.FCC.GOV/

FORMPAGE.HTML,OR CALL 1-800-418-3676.

128-6781

3 of 16

Model GMRS200W (FCC License Required)

1. Battery Cover

2. Wrist Band Set

3. Push-to-Talk (PTT)/CALL

and Function Confirm-

ation Button

4. Antenna

5. Built-In Microphone

6. Power (PWR) On/Off

and Function (F)

Button

7. Built-In Speaker

8. Liquid Crystal Display

(LCD)

9. SCAN (and VOX) Button

10. Up Channel/Volume Button

11. Down Channel/Volume

Button

12. External Speaker (SP)/

Microphone (MIC)/CHG

Jack

PTT/CALL

SCAN /F

578

11 12

128-6781

4 of 16

1. Clock Indicator (Hour): These two segments indicate the hour.

2. Volume Indicator: Indicates the volume level.

3. Voice Activated Transmission (VOX) Indicator: This function allows

hands free conversation. The icon appears when the VOX mode is acti-

vated.

4. Scan Indicator: This function allows the user to scan a channel every 0.5

second to search for a valid signal.

5. Roger Beep Tone On/Off Indicator: This icon appears when Roger

Beep tone is on, and disappears when tone is not in use.

6. Clock indicator (minute): These two segments indicate the minutes.

7. Transmit Indicator: The icon indicates when radio is in transmit

mode.

8. Receiving Indicator: The icon indicates when radio is in receiving

mode.

9. Large Segment Display: Indicates the channel number in use.

10. Battery Level Indicator: Icon indicates when the batterylevel is low.

Equipment and Accessories Supplied

1. Radio (1) GMRS200W

2. Owner’s Manual (1) 128-6781

3. Lithium-ion Battery GMRS2WBAT

4. Wrist Strap Set GMRS2WWS

5. Wall Charging Adapter GMRS2WCH

Model GMRS200W Display

128-6781

5 of 16

Powering the Transceiver

Your GMRS200W radio transceiver operates on a Lithium ion

(Li-ion) battery.

Installing the Batteries:

To install the battery, proceed as follows:

1. Press the release clip lever toward the cover and lift the

battery cover up and off at the same time.

2. Insert the Li-ion battery with the contacts facing down and

touching the unit contacts.

3. Insert the end tab of the battery cover in the bottom slot

and press the top of the cover into position until it clicks into

place.

Charging the Transceiver Battery

PTT/CALL

MIC/CHG/SPK

JACK

ADAPTER

PLUG

CHARGING

LED (RED)

WALL CHARGING ADAPTER

GMRS2WCH

WRIST

BAND POSITIVE

TERMINAL

RELEASE

CLIP LEVER

(TOP OF COVER)

BATTERY

COVER NEGATIVE

TERMINAL

NOTE: The battery will fully charge in approximately 10-12 hours.

128-6781

6 of 16

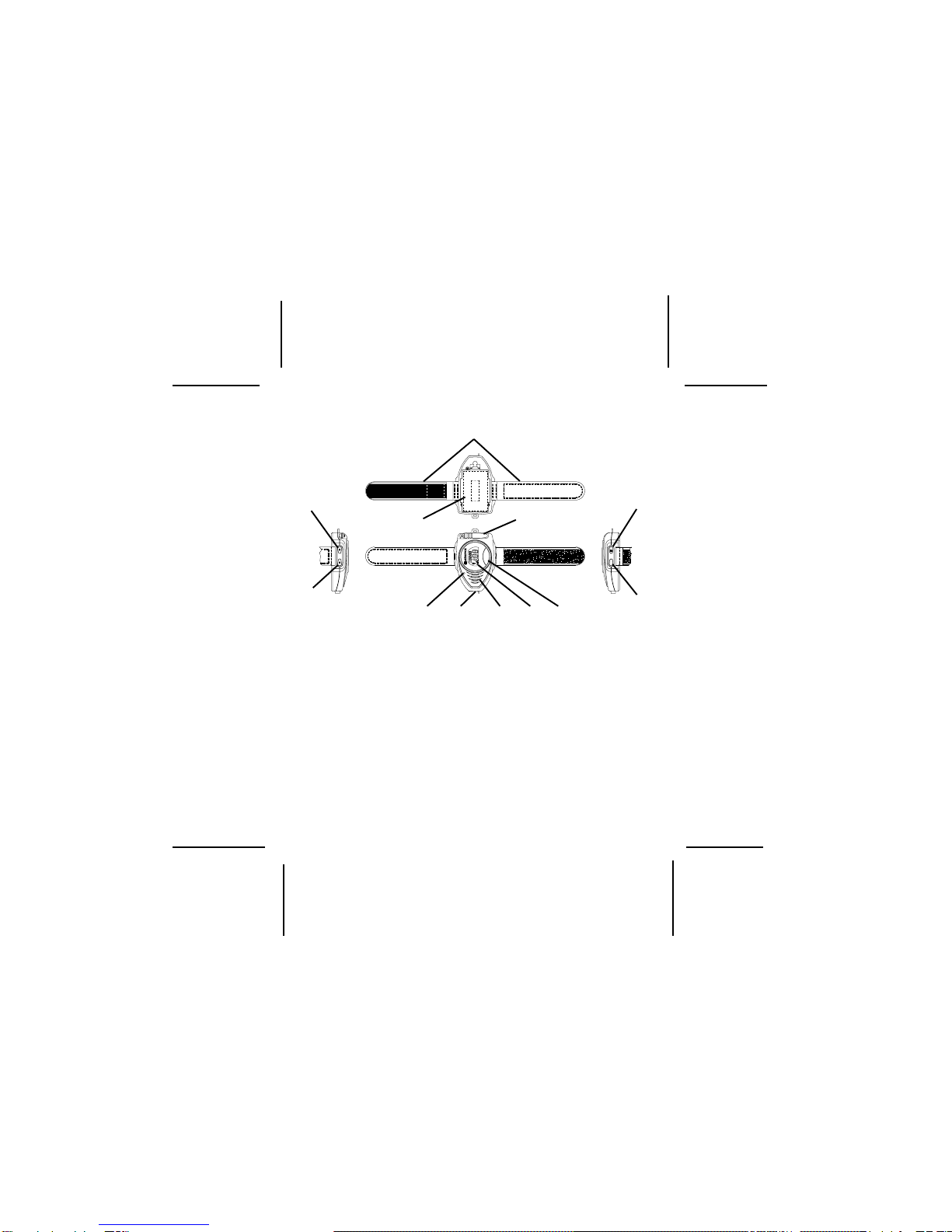

Installing and Removing Wrist/Arm Straps

Removing Wrist/Arm Straps

Remove the wrist/arm straps as follows:

1. Remove the battery as outlined on the preceding page.

2. Noting the arrow direction, push each strap from outside

to inside, disengaging the strap pin from the side slot.

3. Continue to pull the strap through the slot and remove it

from the radio. Save the strap pins for replacement use.

Installing Wrist/Arm Straps

Install the wrist/arm straps as follows:

1. With the battery removed, orient strap A with the velcro

side facing up away from the battery compartment, orient

strap B with the velcro side facing down from the

compartment.

2. Noting the arrow direction, insert the end of the strap

through the square slot, and pull until the strap pin

engages the stop below the strap slot.

STRAP A

STRAP B

STRAP A

STRAP B

128-6781

7 of 16

GMRS200W Operational Modes

NOTE: Refer to the appropriate section of this manual for

detailed operating instructions for each mode.

Controls

Power On/Off (6) Button

Press and hold the Power on/off button ( ) for at least 2 sec-

onds. You will hear a confirming melody to indicate the unit is on.

To turn the unit off, press and hold the button for at least 2 sec-

onds.

Adjusting the Volume

With the unit powered on, press the Up Channel/Volume button

(!) to increase volume and the Down Channel/Volume button

(") to decrease volume. The display will indicate the current vol-

ume level by the volume ( ) icon (6 steps).

FUNCTION

ON/OFF

(Hour) ( Minute)

FUNCTION CLOCK

SETTING

CLOCK

SETTING

Short press

Long press CHANNEL

SELECT

( 1-22 )

ROGER

BEEP

POWER

ON/OFF

128-6781

8 of 16

Push-To-Talk (PTT) Button (3)

Pressing and holding this button will allow you to speak to any

transceiver that is set to the same channel as yours.

Hold the transceiver approximately 1 to 2 inches from your face

as you speak into the built-in microphone (5).

After you have finished speaking, release the PTT Button to al-

low reception of incoming signals. It is not possible to transmit

andreceiveatthesame time.Wheneverthe PTTButtonis pressed

the

icon is displayed on the LCD.

Releasing the button allows the unit to revert to standby mode.

When receiving an incoming signal, the

icon will appear on

the display. The PTT Button can also be used as a two-way

call ringer. Pressing the button twice quickly will call another party

on the same channel. The Transmit icon (

) will appear on the

display for 3 seconds and then disappear.

Up Channel/Volume Button (10)

In the standby mode, pressing this button increments the listen-

ing volume. When in function edit mode, this button is used to

adjust the unit’s settings.

Down Channel/Volume Button (11)

In the standby mode, pressing this button decrements the listen-

ing volume. When in function edit mode, this button is used to

adjust the unit’s settings.

Power/Function ( /F) Button (6)

This button is used to turn on the transceiver; it also provides

access to various feature settings in the GMRS and FRS modes.

Scan Button (9)

Pressthis Button momentarily to enableor disable the scan mode.

128-6781

9 of 16

Operating Modes and Features

GRMS/FRS Operation

- From GMRS/FRS standby mode, press and hold the power

button for 2 seconds to turn on power.

- Press the Function (F) button so the Channel number flashes.

- Select the desired channel with the Up (10) and Down (11)

Buttons. When receiving a call, the RX icon on the LCD ap-

pears to indicate incoming received signal.

- Press and hold the PTT button (3) to transmit, then speak into

the microphone clearly and slowly.

- Communication can only be accomplished when the channel

frequency of at least two parties are the same.

- Release PTT Button (3) to receive.

Channel Selection

In order to communicate with other GMRS/FRS units, both

transmitting and receiving party must be on the same frequency.

The GMRS200W has 22 channels (frequencies) (1-22) indicated

by the large digits on the LCD display panel. Channels 1 through

7 are the shared GMRS/FRS channels. Channels 8-14 are FRS

only channels, while channels 15-22 are GMRS only channels.

Communication with Audiovox GMRS/FRS and compatible units

is possible on these 22 channels.

To change the channel:

- From GMRS/FRS standby mode, press the Function (F) but-

ton (6) until the channel number flashes.

- Press the Up Button (10) briefly to move to the next higher

main channel number.

- Press the Down Button (11) briefly to move to the next lower

main channel number. 9

128-6781

10 of 16

VOX Selection Mode

This option enables you to have hands-free conversation.

Your voice or nearby sound is detected and the radio transmits

without the need to press the PTT button.

To set radio for VOX operation:

- From GMRS/FRS standby mode, press and hold the SCAN

button until the

VOX

icon appears on the display.

- The VOX mode can be turned off by pressing the SCAN but-

ton for 3 seconds; the

VOX

icon disappears.

Channel Scan Operation

This feature allows you to monitor all channels automatically

for valid signals. While scanning, you can transmit and receive.

When a signal is received, the scan is interrupted and will return

to scan mode 5 seconds after reception is terminated.

NOTE: While the scan function is active, the MODE button will

be inoperative. In addition, the scan mode will shorten overall

battery life because the battery save function is overridden.

To enable the channel scan mode:

- FromGMRS/FRSstandby mode, momentarily press the SCAN Button; ( )

will appear on the LCD display.

- The radio will display each channel (1-22) in order as the scan mode oper-

ates to find an active main channel.

- When unit doesn’t find any signals and you want to transmit, press the PTT

button to return to home channel operation. The transceiver will automati-

cally resume scanning approximately 10 seconds after the communication

is completed.

- If there is no activity and you want to leave the scan mode, press the power

button momentarily and the unit will return to normal operation; ( ) icon

will disappear from the LCD display.

Andere Handbücher für GMRS200W

Inhaltsverzeichnis

Andere Audiovox Radio Handbücher

Audiovox

Audiovox ACD-30 Programmierhandbuch

Audiovox

Audiovox GMRS-1535 Bedienungsanleitung

Audiovox

Audiovox GMRS602PK Bedienungsanleitung

Audiovox

Audiovox Sirius SIR-PNP2 Bedienungsanleitung

Audiovox

Audiovox GMRS1882CH Bedienungsanleitung

Audiovox

Audiovox GMRS600SLK Bedienungsanleitung

Audiovox

Audiovox GMRS8000-2 Bedienungsanleitung

Audiovox

Audiovox MS160 Bedienungsanleitung

Audiovox

Audiovox GMRS122-2CH - 5 Mile GMRS Radio Bedienungsanleitung

Audiovox

Audiovox XpressR XMCK-20KC Bedienungsanleitung

Audiovox

Audiovox CD1180 Bedienungsanleitung

Audiovox

Audiovox XT·250 XTRA series Bedienungsanleitung

Audiovox

Audiovox TTR1 Bedienungsanleitung

Audiovox

Audiovox Sirius SIR-HK1 Bedienungsanleitung

Audiovox

Audiovox Sirius SIR-PNP3 Bedienungsanleitung

Audiovox

Audiovox GMRS1262CH Bedienungsanleitung

Audiovox

Audiovox SIRIUS SRSIR-001 Bedienungsanleitung

Audiovox

Audiovox GMRS-7000 Bedienungsanleitung

Audiovox

Audiovox GMRS120 Bedienungsanleitung

Audiovox

Audiovox GMRS-1545 Bedienungsanleitung

Audiovox

Audiovox SIR-CK3 Bedienungsanleitung

Audiovox

Audiovox GMRS2VMK Bedienungsanleitung

Audiovox

Audiovox Satellite Radio Receiver Bedienungsanleitung

Audiovox

Audiovox GMRS121-2 Bedienungsanleitung

Beliebte Radio Handbücher anderer Marken

EisSound

EisSound KBSound iSelect Bedienungsanleitung

Midland

Midland 1001LWX Bedienungsanleitung

Konig

Konig HAV-SR41 Bedienungsanleitung

Roberts

Roberts exprssion Bedienungsanleitung

VDigi

VDigi DD3.0 Bedienungsanleitung

Radio Shack

Radio Shack 21-1863 Bedienungsanleitung

Roberts

Roberts Stream 207 Bedienungsanleitung

Sony

Sony Walkman SRF-M97 Bedienungsanleitung

Stanley

Stanley FatMax FMC770 Bedienungsanleitung

auna

auna DAB-Radio 10026947 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR190 Bedienungsanleitung

HYT

HYT TC-320 Bedienungsanleitung

auna multimedia

auna multimedia Yellowstone 10026851 Bedienungsanleitung

B-Tech

B-Tech GMRS-V2 Bedienungsanleitung

Weierwei

Weierwei VEV-V8 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER DAB750 Bedienungsanleitung

Telefunken

Telefunken TF-1505 Bedienungsanleitung

Makita

Makita LXRM03 Bedienungsanleitung
