RF-302

OPERATION INSTRUCTIONS

Congratulations on your purchase of the RF-302 vehicle security

system.

AutoPage, Inc. is one of the companies with the longest history and

experience in vehicle security in the United States and a wholly owned

subsidiary of Iwata Electric Co., of Tokyo, Japan. Iwata has been an

industry leader for 40 years, establishing a reputation for ingenuity in

its engineering capability and innovative communication products.

AutoPage and Iwata maintain the long tradition of providing the best

value to their customers.

We sincerely hope the purchase of the RF-302 vehicle security system

provides peace of mind to you.

Please take the time to read over this operation manual to thoroughly

familiarize yourself with the many features and options of the RF-302.

!!NOTICE!!

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

FEDERAL COMMUNICATION COMMISSION RULES AND REGULATIONS

PROHIBIT THE ADJUSTMENT OF THE TRANSMITTER PORTION OF THIS SYSTEM

BY UNLICENSED PERSONNEL.

RF-302

RF-302 OPERATION INSTRUCTIONS

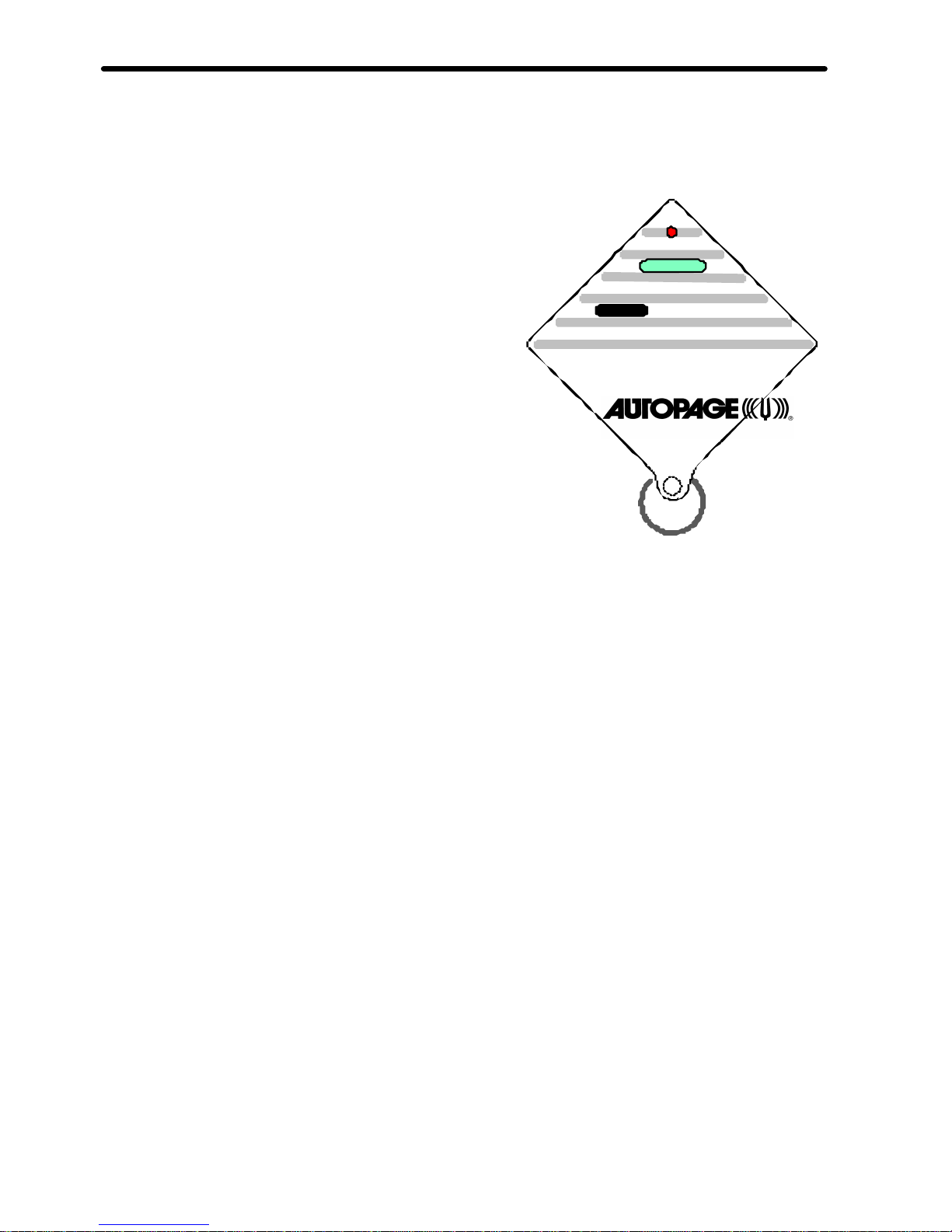

A. REMOTE CONTROL TRANSMITTER OPERATION

1. ARM/DISARM

TO ARM THE RF-302

Press the ON/OFF button once to arm.

The siren will chirp one (1) time, the

lights will flash, and all doors will lock.

(*)

TO DISARM THE RF-302

Press the ON/OFF button once to

disarm. The siren will chirp two (2) times, the lights will flash, and all

doors will unlock.(*)

NOTE(*): Your vehicle must be equipped with power door locks and

optional relays may be required to allow alarm control over the vehicle

door locks. Additionally, all doors will lock automatically each time the

ignition key is turned on, and unlock automatically each time the ignition

key is turned off. Please see Section (I) "IGNITION CONTROL POWER

DOOR LOCK SYSTEM".

2. TEMPORARY CHIRP DELETE FROM REMOTE

Upon approaching the vehicle (whether armed or disarmed) push the

AUX. button on the remote control transmitter for half (0.5) second, then

very quickly push the ON/OFF button on the transmitter to arm or disarm

in the usual manner. The chirp sound will be silenced only for this

particular operation. The sequence must be repeated each time if it is

desired to cancel the arm/disarm chirp sound.

RF-302

3. PANIC FUNCTION

The RF-302 remote control may be used as a remote panic switch to

trigger the siren in cases of emergency. To activate the PANIC

FUNCTION press and hold the ON/OFF button on the remote transmitter

for a minimum of 3 seconds. The siren will sound. To stop the PANIC

FUNCTION press the ON/OFF button on the transmitter.

4. THE PRE-WARNING SENSOR CIRCUIT (If installed)

The RF-302 offers an option to pre-warn possible violators with siren

chirps before triggering the alarm. The alarm will trigger with the third

violation within 15 seconds. Purchase of an optional sensor will be

required.

To delete the pre-warning sensor, press the button again within 5

seconds after arming. The siren will confirm deletion with a low chirp.

NOTE: Deleted sensor(s) will return to normal operation upon

disarming the RF-302. Sensor(s) deletion procedure must be followed

each time the RF-302 is armed. This operation deletes only the pre-

warning sensor of the alarm.

5. CHANGING THE REMOTE TRANSMITTER BATTERY

The RF-302 remote transmitter uses one (1) 12 volt miniature battery,

#EL12, #VR22, or Radio Shack #23-144. It will provide approximately

one year of operation before replacement is necessary.

RF-302

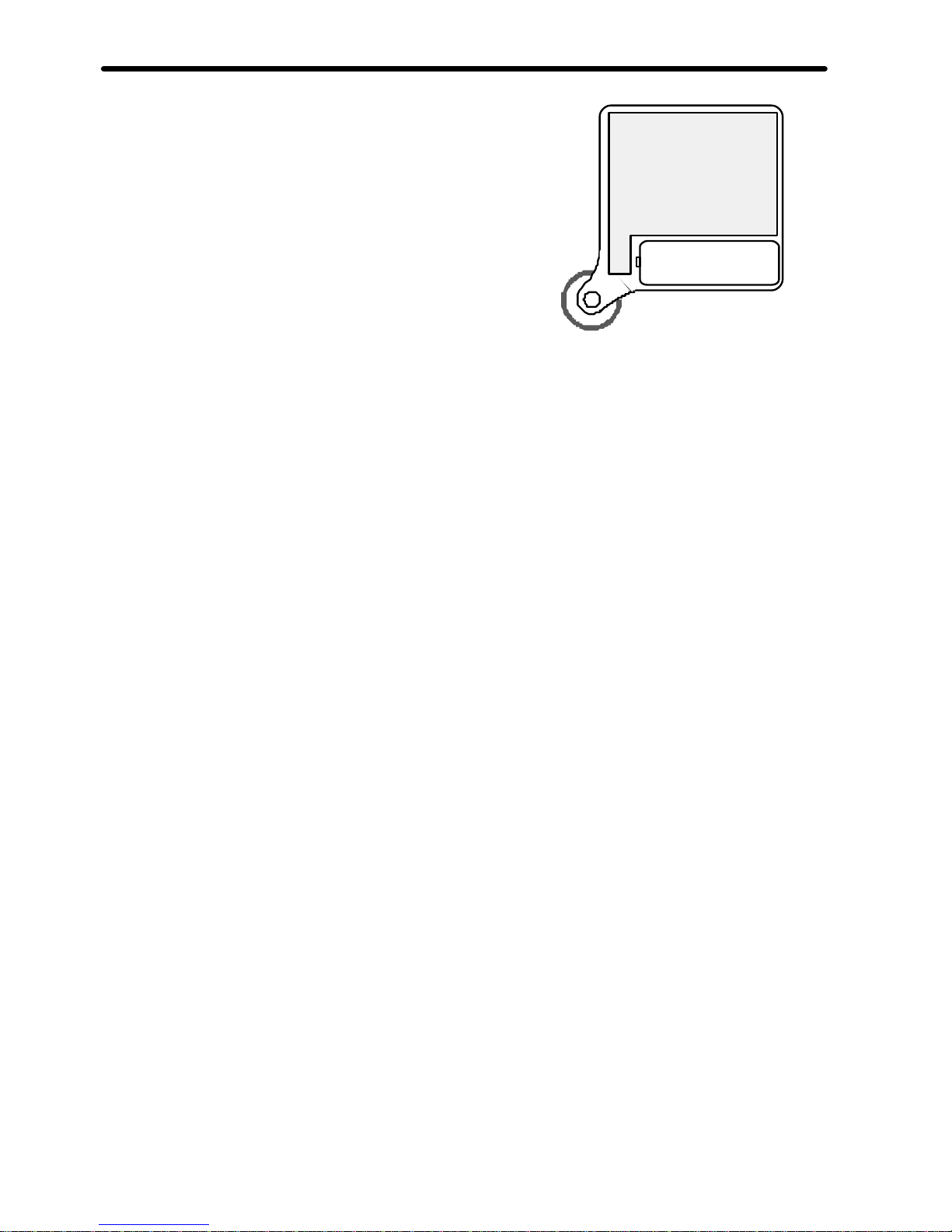

To replace the battery, carefully remove the

case screw located at the end of the remote

where the key ring attaches to the case.

Use asmall blade Phillips screwdriver.

Before removing the battery note the

direction of its terminals. Install the new

battery exactly the same, using caution so

as not to bend, or otherwise damage the

battery contacts. Replace the case cover and carefully tighten the screw.

Do not over-tighten the screw! Test the transmitter to insure it arms and

disarms the alarm.

B. LED STATUS INDICATOR OPERATION

1. LED OFF= The RF-302 is disarmed.

2. LED CONSTANT ON= Indicates open trigger circuit.

3. LED FAST FLASHING= Passive arming timer is counting down.

4. LED FLASHING= The RF-302 is armed.

5. LED FLASHING IN A 2 FLASH/HOLD SEQUENCE= Alarm breach.

NOTE: Unless a door is opened after disarming, the RF-302 will

automatically rearm in 60 seconds, and the LED will continue to flash.

See Section (G) AUTOMATIC RE-ARMING for details.

C. AUDIBLE AND VISUAL ALARM STATUS INDICATOR

1. 1 CHIRP WITH LIGHT FLASH= Alarm is armed.

2. 2 CHIRPS WITH LIGHT FLASH= Alarm is disarmed.

3. 4 CHIRPS WITH LIGHT FLASH & LED FLASHING IN A 2

FLASH/HOLD SEQUENCE= Alarm is disarmed and has been

breached in your absence.

D. VALET/OVERRIDE SWITCH

RF-302

NOTE: Both VALET and OVERRIDE functions are performed from the

same switch.

1. OVERRIDE FUNCTION

The OVERRIDE FUNCTION may be used if the RF-302 remote is lost or

inoperative. To operate the OVERRIDE FUNCTION, enter the vehicle

(siren will sound); switch the vehicle ignition to ON. Move the

VALET/OVERRIDE switch to ON; then OFF; the siren will stop. The RF-

302 will be disarmed. Quickly replace or service the remote transmitter

to insure continued vehicle protection.

2. VALET FUNCTION

The RF-302 may be placed into the VALET (stand-by) mode to allow for

vehicle service, car washing, or attendant parking without self arming

after the ignition is switched off, and without leaving the RF-302 remote

control with unauthorized individuals.

To operate the VALET FUNCTION turn the vehicle ignition to on and

move the VALET/OVERRIDE SWITCH to ON.

To return to normal operation turn the vehicle ignition to on and move the

VALET/OVERRIDE SWITCH to OFF.

3. KEYLESS ENTRY MODE

In the valet mode, the vehicle doors can be locked and unlocked using

the remote. However, there will be no chirp confirmation; it is strongly

recommended that the driver visually confirm that the doors are locked.

E. PASSIVE/MANUAL ARMING OPERATION

(Optional at installation)

Passive/Manual operations can be selectable if an optional toggle

switch is installed. Consult your installing dealer.

RF-302

1. PASSIVE ARMING

If you choose the PASSIVE (automatic) mode, the system must be

operated as below.

1. Switch OFF vehicle ignition, exit vehicle, and be sure all protected

openings are closed.

2. The LED STATUS INDICATOR will begin fast flashingand the

passive arming timer will begin counting down.

3. If you re-open the exit the LED will stop flashing.

4. Close the exit, and the LED will start flashing again.

5. The RF-302 will count down for 30 seconds. After 30 seconds,

the siren will chirp 1 time indicating the RF-302 has armed.

NOTE: If the optional remote power door locks feature is installed, the

doors will automatically lock 10 seconds after the PASSIVE arming cycle

is completed. This feature is available only if the ignition control power

door lock system is selected.

2. MANUAL ARMING

If you choose the MANUAL (active) arming mode, follow the steps below.

1. Switch off ignition, leave vehicle, and close all protected openings.

2. Press the ON/OFF button on the remote transmitter.

3. The siren will chirp 1 time. 5 seconds later the RF-302 will be fully

armed.

F. PASSIVE/MANUAL DISARMING OPERATION

RF-302

Approach the vehicle and press the ON/OFF remote transmitter button.

The siren will chirp 2 times and the lights will flash to indicate the RF-

302 is disarmed.

G. AUTOMATIC RE-ARMING

The RF-302 is equipped with an automatic re-arming circuit that will

return the alarm to a fully armed state if a door isnotopened within 60

seconds after disarming. This automatic re-arming circuit can be

eliminated at the time of installation.

H. BREACH WARNING

The RF-302 is equipped with BREACH WARNING to tell you, upon

disarming, if the alarm has been triggered in your absence. Press the

ON/OFF button on the remote transmitter. If a breach has occurred, the

siren will signal with 4 chirps, the lights will flash four times, and the

LED will be flashing in a 2 second flash/hold sequence.

I. IGNITION CONTROL POWER DOOR LOCK SYSTEM

When installed with remote power door locks, the vehicle's doors will

automatically lock when the ignition is switched on. The doors will

automatically unlock when the ignition is switched off. In order to avoid

any undesirable lock-out, the doors willnotlock if any door is left open.

This feature is optional at time of installation. If the ignition control door

lock system is not chosen, the doors will not lock in passive arming.

However, the doors will lock in manual arming and automatic re-arming.

J. TRIGGER TEST

After arming the RF-302 in either the PASSIVE or MANUAL mode, test

the system in the following manner.

RF-302

1. Open any door or other protected opening. The siren will sound

instantly, and the lights will flash.

2. If optional sensors have been installed, arm the RF-302 and test

according to the directions of the particular sensor installed.

If triggered in the armed condition, the RF-302 will sound its siren and

flash the lights for 60 seconds; then it will stop and automatically reset

and rearm. If the violation continues, the alarm will sound and lights will

flash for two 60 second cycles.

K. PROGRAMMING THE REMOTE TRANSMITTERS

The RF-302 includes two (2), 2 button mini remote control transmitters

which must be programmed to the alarm before any alarm function is

possible.

NOTE: Each time the programming mode is entered, all programmed

transmitter codes will be automatically deleted and must be re-

programmed. This is an important security feature. If any transmitter is

lost or stolen, enter the programming mode and re-program existing

transmitters. Transmitters can only be programmed by entering the

programming mode. Existing codes will remain in memory even if

power to the RF-302 is disconnected.

To program the RF-302 transmitters, follow the directions as written

below,in their exact order!

1. Flip the VALET/OVERRIDE switch to "ON" position.

2. Turn the ignition switch to "ON", then "OFF", then immediately

3. Flip the VALET/OVERRIDE switch "OFF", "ON/OFF", "ON/OFF". The

siren will chirp one (1) time.

RF-302

4. Turn the ignition switch "ON/OFF", "ON/OFF". The siren will chirp

one (1) time. You are now in the programming mode.

5. Press the ON/OFF button on one of the remote transmitters until the

alarm siren responds with a confirming chirp. The first transmitter is

now programmed.

6. Within five (5) seconds, press the ON/OFF button on the second

transmitter until the alarm siren responds with a confirming chirp.

The second transmitter is now programmed. NOTE:If the RF-302

does not receive a second code to learn within five (5) seconds, it

will automatically close the programming mode and resume normal

alarm functions. If this happens, it will be necessary to repeat steps

1 through 6 and re-program all transmitters.

If three or four transmitters are programmed, continue pressing the

ON/OFF button of the third and/or fourth transmitters.

7. The RF-302 can learn up to four remote transmitter codes. If later

optional third and forth transmitters are to be programmed, follow

sequence 1 through 6 and re-program all existing transmitters.

L. PROGRAMMING THE REMOTE TRANSMITTERS FOR

SECOND & THIRD VEHICLES

The RF-302 transmitters are capable of controlling separately installed

RF-302 or RF-501 alarm systems in two or three vehicles.

To code the RF-302 transmitters for two or three vehicles follow the

diagrams as shown below. Before multiple vehicle programming can be

achieved, it is necessary to enter the programming mode as described

in SECTION K.

1. TWO VEHICLE OPERATION

VEHICLE #1

Inhaltsverzeichnis

Andere Auto Page Autoalarmanlage Handbücher

Auto Page

Auto Page RF-1055KE Betriebsanleitung

Auto Page

Auto Page CAR-PRO CPX-2350 Bedienungsanleitung

Auto Page

Auto Page RF-503 Bedienungsanleitung

Auto Page

Auto Page RF-315 Bedienungsanleitung

Auto Page

Auto Page RF-425LCD Bedienungsanleitung

Auto Page

Auto Page RS-720LCD Bedienungsanleitung

Auto Page

Auto Page RF-700 Bedienungsanleitung

Auto Page

Auto Page C3-RS-915 LCD Bedienungsanleitung

Auto Page

Auto Page CPX-2300 Montage- und Bedienungsanleitung

Auto Page

Auto Page RS-900LCD Bedienungsanleitung

Auto Page

Auto Page Car-Pro CPX-2500 Bedienungsanleitung

Auto Page

Auto Page RF-350 rs Bedienungsanleitung

Auto Page

Auto Page Telematics and Tracking Module Bedienungsanleitung

Auto Page

Auto Page Car-Pro CPX-3600 Bedienungsanleitung

Auto Page

Auto Page Professional Vehicle Security System RF-315 Bedienungsanleitung

Auto Page

Auto Page RF-310 Bedienungsanleitung

Auto Page

Auto Page car-Pro CPX-2600 Bedienungsanleitung

Auto Page

Auto Page AutoPage RF-501 Bedienungsanleitung

Auto Page

Auto Page RF-410 Bedienungsanleitung

Auto Page

Auto Page RF-505 Bedienungsanleitung

Auto Page

Auto Page C3-RS-730 LCD Bedienungsanleitung

Auto Page

Auto Page RF-303 Bedienungsanleitung

Auto Page

Auto Page AP4000EX Technisches Datenblatt

Auto Page

Auto Page C3-RS-665-2W Bedienungsanleitung

Beliebte Autoalarmanlage Handbücher anderer Marken

Clifford

Clifford 3606X Bedienungsanleitung

Ultra Start

Ultra Start 2500M SERIES Bedienungsanleitung

Ultra Start

Ultra Start 650 Series Bedienungsanleitung

Audiovox

Audiovox Prestige Platinum+ APS-511C Bedienungsanleitung

Sparkrite

Sparkrite SRA8 Bedienungsanleitung

Viper

Viper 4708V Bedienungsanleitung

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Handbuch

Falcon

Falcon Predator XL3 Benutzerhandbuch

Audiovox

Audiovox Auto Security XR91 Betriebsanleitung

Clifford

Clifford Sabre II Bedienungsanleitung

CrimeStopper

CrimeStopper CS-8717 Kurzanleitung

Ultra Start

Ultra Start 450 SERIES Bedienungsanleitung

Scytek electronic

Scytek electronic Vectra X3 Bedienungsanleitung

Excalibur

Excalibur AL-1860-EDPB Bedienungsanleitung

Clifford

Clifford CYBER 2 Bedienungsanleitung

Gemini

Gemini 7057 Bedienungsanleitung

FlashLogic

FlashLogic FLRSBA PRESTIGE Bedienungsanleitung

Magicar

Magicar FAI-440 Bedienungsanleitung
