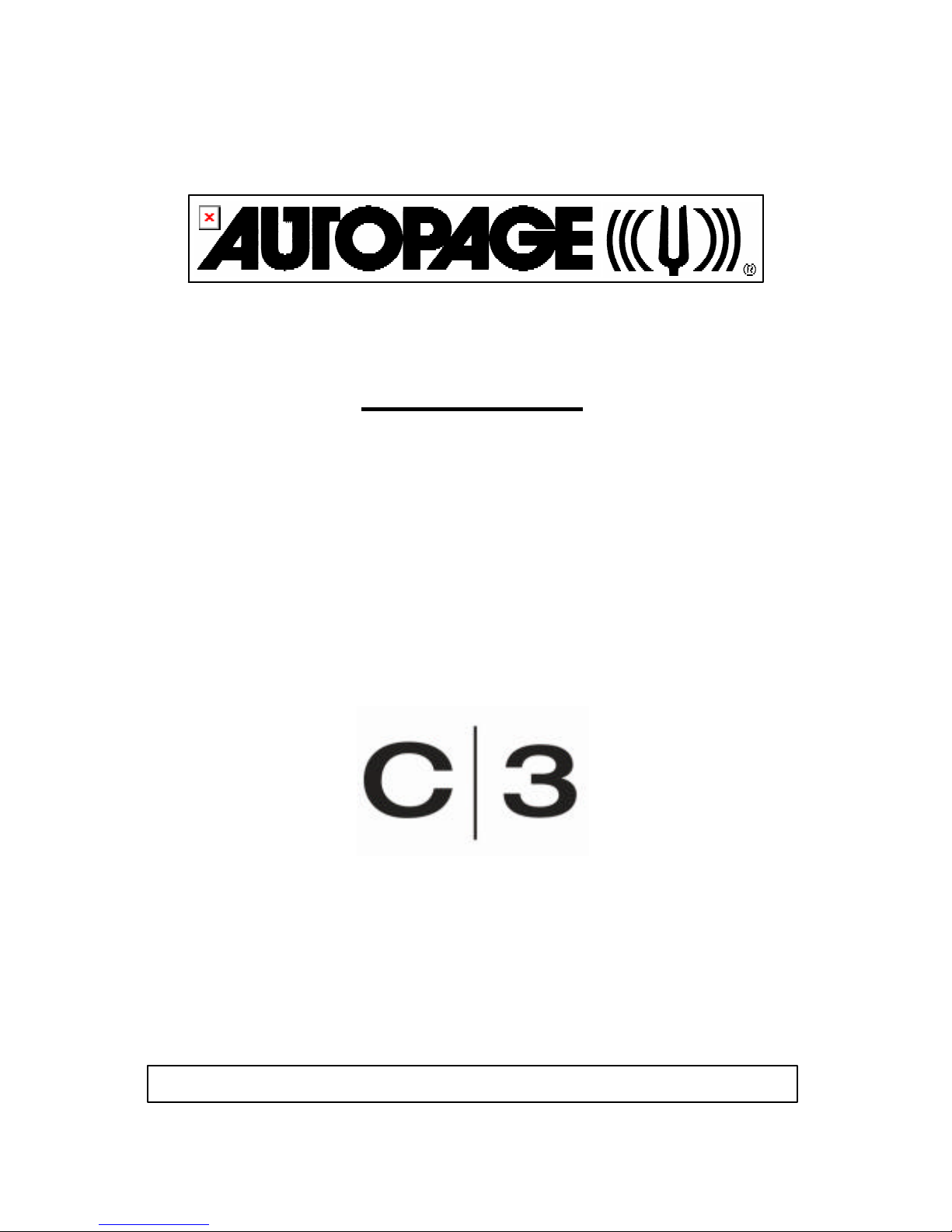

Auto Page C3-RS-665 Bedienungsanleitung

C3-RS-665

PROFESSIONAL REMOTE CAR STARTER

2CHANNEL SECURITY / ALARM SYSTEM

With Two Way Data Port

INSTALLATION MANUAL

Compatible

THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

HJKL

TABLE OF CONTENTS:

INSTALLATION WARNINGS

INSTALLATION DIAGRAM

Wiring Diagram

H7 16

Pin Wire H

arness

Wiring Description H1 Connector

Wiring Description H2 Connector

Wire Connector H3, H4, H6, H7 Connectors

Wiring Description H7 Connector

H3 Connector Valet Switch

H5 Door Lock Connector

H9 Serial Data Port connection RS

232

Remote Transmitter Programming

Feature ‘A’ Programming

Feature ‘B’ Programming

Feature ‘C’ Programming

Start Feature ‘D’ Programming

Tachometer Learn Type

RPM Learn

Voltage Check Type

Timer Check Type

Return to Factor

y Default

Shutdown Diagnostics

Test your Install

Neutral Safety Switch Test

Key Sensor Circuit

Tech Line

OPTIONAL EQUIPMENT:

XT-43 / Antenna Kit: This is an optional package that will enable your

unit to have two-way communications and paging capabilities with the

handheld remote. The optional kit includes a XT-43 LCD remote

transceiver as well as the TRX-76 two-way antenna module. Please see

your authorized Autopage dealer for information and pricing of this option.

INSTALLER WARNINGS

This Remote Starter with Alarm and Keyless Entry System has been

designed to be installed on fuel-injected vehicles with an automatic

transmission ONLY.

nNever install this remote starter on a manual transmission vehicle.

nThis system must be installed and wired through a safety switch so it

will not start in any forward or reverse gear.

nSome automatic transmission vehicles mainly older GM vehicles with

a purple starter wire have a mechanical-type park safety switch instead

of electrical safety switch. The mechanical type does not interrupt the

starter circuit when the transmission is in any gear and does not offer the

100% level of safety required for remote starting purposes. Therefore,

our system should never be installed on any vehicle that uses a

mechanical type park safety switch.

nOnce you install this system, you must verify that the vehicle will not

start in any forward or reverse gear, regardless of the type of vehicle.

nRead the operation manual for operating.

nDo not install any component near the brake, gas pedal or steering

linkage.

nSome vehicles have a factory installed transponder immobilizer

system that can severely complicate the installation. There is a

possibility that this system cannot be installed on some

immobilizer-equipped vehicles.

nMost vehicles have an SRS air bag system. Use extreme care and do

not probe any wires of the SRS system.

nDisconnect the car battery before beginning work on the vehicle.

nCheck behind panels before drilling any holes. Ensure that no wiring

harness or other components are located behind the panels that would

otherwise be damaged.

nDo not use conventional crimp lock, bullet on any wiring. Poor wiring,

i.e. taped joints will possibly introduce unreliability into the alarm system

and may result in false alarms or incorrect operation. We suggest

soldering all connection points.

nInstall the wiring neatly under carpets or behind trim to prevent

possible damage to wires.

INSTALLATION DIAGRAM:

C3-RS-665

H1 6 Pin Wht.

H2 5 PinH7 16 Pin White

Valet

ANT.

LED

RX-300A

Valet

Switch

Violet : Starter Output

Red : 12 Volt Input

Yellow. Ignition 1 Output

Pink : Ignition 2 Output

Brown ACC Output

LED Indicator

FUSE

Red/White : Parking light Input

FUSE

White : Parking light Output

Black : System Ground

Brown : Siren (+)

Red : System Power + 12 Volt

Blue : (-) Unlock

(+) Lock

Green : (-) Lock

(+) Unlock

Door Locks

Data

Orange Wire: (-) 500mA Grounded Output When Armed

White / Violet Wire: (+) Brake Switch Shut Down Input

Black/White Wire: (-) Neutral Safety Switch Input

Yellow Wire: (-) 200mA Ignition 3 Control Output

Blue / Black Wire: (-) 200mA Accessory 2 Control Output

Brown / Black Wire: (-) 200mA Ground When Running Output

White / RedWire: Tachometer Signal Input

White / Black Wire: (-) Negative Hood Pin Safety Shut Down

White Wire: (-) 200mA Dome Light Control Output

Gray Wire: (-) 200mA Channel 2 (Trunk) Output

PinkWire: 2-Step Unlock(Fatory Default)/Factory Dsrm/Sensor By-pass

Gray/Black Wire: (-) 200mA Starter 2 Output

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

Blue Wire:(-) Zone 2 Negative Hood/Trunk trigger

Green Wire: Zone 3 (-) Negative Door Pin Trigger

Violet Wire: Zone 3 (+) Positive Door Trigger

Shock

Sensor

WIRE DIAGRAM:

#H1 6 PIN HEAVY GAUGE WIRE HARNESS

20A

20A Red: Remote Start Power 1

Red: Remote Start Power 2

Violet: Starter (+) Output

Pink: Ignition 2 (+) Output

Yellow: Ignition 1 (+) Output

Brown: Acc/Heater (+) Output

#H2 5 PIN WIRE HARNESS

Red:

12v + Battery Power

Brown:

Siren

(

) Output

Black:

System Main Ground (

)

White:

Parking Light Relay Output

Red/White:

Parking Light Relay Power Input

#H5. 3 PIN DOOR LOCK CONNECTOR

1. Blue Wire

3. Green Wire

( -) Lock Pulse

( + ) Unlock Pulse

( -) Unlock Pulse

(+) Lock Pulse

#H7. 16 PIN MOLEX CONNECTOR:

WIRING

Keep wiring away from moving engine parts, exhaust pipes and

high-tension cable. Be sure to tape wires that pass through holes on the

firewall to prevent fraying.

CAUTION: Do not connect the wire harness to the control module until

all wiring to vehicle is complete.

H1: 6 PIN HEAVY GAUGE WIRING CONNECTIONS:

Remember that what the system does to start a vehicle is to duplicate the

functions of the ignition key switch! Below, we will explain the three basic

functions of the ignition switch. Since this installation will require analysis

of the ignition switch functions, we recommend making the three

connections below at the ignition switch harness directly.

Violet Wire—Starter Output

Careful consideration for the connection of this wire must be made to

prevent the vehicle from starting while in gear. Understanding the

difference between a mechanical and an electrical Neutral Start Switch

will allow you to properly identify the circuit and select the correct

OrangeWire: (-) 500mA Grounded Output When Armed

White / Violet Wire: (+) Brake Switch Shut Down Input

Black / White Wire: (-) Neutral Safety Switch Input

YellowWire: (-) 200mA Ignition 3 Control Output

Blue / Black Wire: (-) 200mA Accessory 2 Control Output

Brown / Black Wire: (-) 200mA Ground When Running Output

White / Red

Wire: Tachometer Signal Input

White / Black Wire: (-) Negative Hood Pin Safety Shut Down

WhiteWire: (-) 200mA Dome Light Control Output

Gray Wire: (-) 200mA Channel 2 (Trunk) Output

PinkWire: 2-Step Unlock(Fatory Default)/Factory Dsrm/Sensor By-pass

Gray / Black Wire: (-) 200mA Starter 2 Output

1 2 3 4 56 7 8

9 10 11 12 13 14 15 16

BlueWire:(-) Zone 2 Negative Hood/Trunk trigger

Green Wire : Zone 3 (-) Negative Door Pin Trigger

VioletWire: Zone 3 (+) Positive Door Trigger

installation method. In addition you will realize why the connection of

the safety wire is required for all mechanical switch configurations.

Failure to make this connection properly can result in personal injury

and property damage.

In all installations it is the responsibility of the installing technician to

test the remote start unit and assure that the vehicle can not start via

RF control in any gear selection other than park or neutral.

In both mechanical and electrical neutral start switch configurations, the

connection of the VIOLET wire will be made to the low current start

solenoid wire of the ignition switch harness. This wire has +12 volts

when the ignition switch is turned to the “START” (CRANK) position

only. This wire has 0 volts in all other ignition switch positions.

NOTE: This wire must be connected to the vehicle side of the starter

cut relay (when used). For the electrical neutral switch configuration,

this connection must be made between the starter inhibit relay (when

used) and the neutral safety switch as shown in the following diagram.

Failure to connect this wire to the ignition switch side of the neutral

safety switch can result in personal injury and property damage. SEE

NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.

Start Cut Relay

(When Used)

VIOLET

Wire

Closed in Park or

Neutral Only

Ignition

Switch

“Start”

“On”

Neutral Safety

Switch

“

Acc”

“Off” Starter

Red Wire (2) —+12V Power Input

Remove the two 20A fuses prior to connecting these wires and do not

replace them until the satellite has been plugged into the control

module. These wires are the source of current for all the circuits the

relay satellite will energize. They must be connected to a high current

source. Since the factory supplies (+) 12V to the key switch that is used

to operate the motor, it is recommended that these wires be connected

there.

Note: If the factory supplies two separate (+) 12V feeds to the ignition

switch, connect one RED wire of the satellite to each feed at the switch.

Yellow Wire –Ignition 1 Output

Connect the YELLOW wire to the ignition 1 wire from the ignition switch.

The ignition wire should receive “12 volts” when the ignition key is in the

“ON” or “RUN” and “START” or “CRANK” position. When the ignition is

turned “OFF”, the ignition wire should receive “0” voltage. The

YELLOW wire must be connected.

PINK Wire –Ignition 2 Output

Some vehicles have [2] ignition wires that must be power. Connect the

PINK wire to the ignition 2 wire from the ignition switch. The ignition

wire should receive “12 volts” when the ignition key is in the “ON” or

“RUN” and “START” or “CRANK” position. When the ignition is turned

“OFF”, the ignition wire should receive “0” voltage. If the PINK wire is

not used, cap the end of the wire.

Brown Wire –Accessory Output (Heater /AC Output)

Connect the BROWN wire to the accessory wire in the vehicle that

powers the climate control system.

An accessory wire will show + 12 volts when the ignition switch is

turned to the “ACCESSORY” or “ON” and “RUN” positions, and will

show 0 Volts when the key is turned to the “OFF” and “START” or

“CRANK” position. There will often be more than one accessory wire in

the ignition harness. The correct accessory wire will provide power to

the vehicle’s climate control system. Some vehicles may have separate

wires for the blower motor and the air conditioning compressor. In such

cases, it will be necessary to add a relay to power the second

accessory wire.

H2: 5 PIN WIRE HARNESS:

RED / WHITE WIRE –PARKING LIGHT RELAY INPUT —

The RED/WHITE wire is the input to the flashing parking light relay.

The connection of the RED/WHITE wire will determine the output

polarity of the flashing parking light relay.

If the vehicle you are working on has +12volt switched parking lights,

you don’t need connect this wire. This wire is already connected to

+12volt.

If the vehicle’s parking lights are ground switched, cut the RED/WHITE

wire, connect the RED/WHITE wire to chassis ground.

WHITE WIRE —PARKING LIGHT RELAY OUTPUT

(+12 V 10A OUTPUT) —

Connect the WHITE wire to the parking light wire coming from the

headlight switch. Do not connect the WHITE wire to the dashboard

lighting dimmer switch. (Damage to the dimmer will result). The

limitation of the WHITE wire is 10 AMP max. Do not exceed this limit or

damage to the alarm and parking relay will result.

BLACK WIRE —SYSTEM GROUND –

This is the main ground connection of the alarm module. Make this

connection to a solid section of the vehicle frame. Do not connect this

wire to any existing ground wires supplied by the factory wire loom,

make the connection to the vehicle’s frame directly.

BROWN WIRE –(+) 2A SIREN OUTPUT –

This wire is provides power to the supplied siren. Connect the Brown

wire to the Red wire of the siren. Connect the Black wire of the siren to

a stable chassis ground.

RED WIRE —SYSTEM POWER (+12V CONSTANT) —

The RED wire supplies power to the system. Connect this wire to a

stable constant +12 volt source.

H8.2 PIN WHITE CONNECTOR (THE LED STATUS INDICATOR):

The led indicator status should be mounted in a highly visible area such

as top of the dashboard, on top of the shifter console or on the dashboard

face. Leave at least 6mm space behind the mounting location for LED

housing. Once a suitable location is chosen, drill a 6mm hole. Run the

LED wires through the hole then press the 2 pin LED housing into place.

Route the LED wires to the control module.

H4. Black 4-PIN CONNECTOR: WINDSHIELD MOUNT ANTENNA

The RF Antenna/Receiver Red connector is to be plugged in the Black

4-pin port on the main unit. The connector is to be plugged into the RF

Antenna/ Receiver plug. Mount the antenna/receiver with provided double

sided tape to center of windshield above rear view mirror, route the

antenna lead along the windshield pillar under the vehicle’s interior

windshield molding. Be sure to avoid mounting the antenna directly

behind the metallic tinted portion of the windshield.

H6. 4 PIN ORANGE CONNECTOR FOR 2 STAGE IMPACT SENSOR

1.GreenWire / Warn Away Input

2.Blue Wire / Instant Ground Trigger

3.Black Wire / Negative

Red

Wire / + 12Volts

H7: 16-PIN MOLEX WHITE CONNECTOR WIRE HARNESS:

ORANGE WIRE –(-) 500ma GROUNDED OUTPUT WHEN

ARMED

This wire will become grounded when the alarm is armed. The

current capacity of this wire is 500mA. This output can control the

starter disable.

87a

IN4003 Diode

H7/1

: ORANGE wire

from control module

“Start”

“On”

Violet

wire

Cut

Yellow wire

White wire

“Acc”

“Off”

Starter

H1/1

VIOLET wire (Starter output)

form Heavy Gauge wire harness

Red wire to

Ignition Switch

YELLOW WIRE: (-) 200ma IGNITION 3 OUTPUT –

This wire provides a 200mA (-) ground output that becomes active 4

seconds before the remote start unit is initialized, and remains grounded

while running.

Ignition 3 output:

Some newer vehicles use a third ignition wire, which is required to start

and keep the vehicle’s engine running. If this is the case, wire an IGN 3

relay (not supplied) as shown below:

Do not connect any vehicle circuits together; they are isolated for a

reason.

Yellow Wire

Output 87a

Ignition 3 Wire From

Ignition Key Switch

+ 12 V Constant Fused

25A Capable

GM VATS KEY OVERRIDE:

If the vehicle has the General Motor VATS system installed, you will need

to by-pass the system while the vehicle is operating under the control of

the Remote Start Unit. To do this:

1. Measure the resistance of the resistor pellet on the ignition key then

select a resistor within 5% of the key’s value.

2. Locate the pair of VATS wires in the vehicle, usually a pair of thin gauge

wires running from the ignition switch to the VATS control module.

3. Connect the YELLOW wire from Remote Start Unit to Terminal #85 of

the relay. Connect terminal #86 of the relay to a fused +12 volt.

4. Cut (#1) wire (as shown), and connect the ignition switch side of the cut

Andere Handbücher für C3-RS-665

Inhaltsverzeichnis

Andere Auto Page Fernstartsystem Handbücher

Auto Page

Auto Page RSTKE-900 Bedienungsanleitung

Auto Page

Auto Page RF-1055KE Bedienungsanleitung

Auto Page

Auto Page autopage RS-850lcd Bedienungsanleitung

Auto Page

Auto Page RS-750lcd Bedienungsanleitung

Auto Page

Auto Page RS-615 Bedienungsanleitung

Auto Page

Auto Page TRX950 Bedienungsanleitung

Auto Page

Auto Page C3-RS-665 Bedienungsanleitung

Auto Page

Auto Page C3-RS-625 Bedienungsanleitung

Auto Page

Auto Page RS-650 Bedienungsanleitung

Auto Page

Auto Page RF-1055KE Bedienungsanleitung

Auto Page

Auto Page RS-725LCD Bedienungsanleitung

Auto Page

Auto Page C3-RS1100 OLED Bedienungsanleitung

Auto Page

Auto Page RSTKE-900 Bedienungsanleitung

Auto Page

Auto Page RST-1100 Bedienungsanleitung

Auto Page

Auto Page C3-RS-601 Bedienungsanleitung

Auto Page

Auto Page RS-602 Bedienungsanleitung

Auto Page

Auto Page Car-Pro CPX-RS1 Bedienungsanleitung

Auto Page

Auto Page Car-Pro CPX-RS2 Bedienungsanleitung

Auto Page

Auto Page RS-615 Bedienungsanleitung

Auto Page

Auto Page C3-RS-1000 OLED Bedienungsanleitung

Auto Page

Auto Page RS-662 Bedienungsanleitung

Auto Page

Auto Page RS-855lcd Bedienungsanleitung

Auto Page

Auto Page RS-610 Bedienungsanleitung

Auto Page

Auto Page RS-610 Bedienungsanleitung

Beliebte Fernstartsystem Handbücher anderer Marken

AstroStart

AstroStart 803U Bedienungsanleitung

Durite

Durite 0-649-20 Handbuch

EINHELL

EINHELL BT-PS 1000 Handbuch

Linear

Linear ACCESS AK-21 Technische Daten

Soundstream

Soundstream TARANTULA RS.2 Bedienungsanleitung

Jaycar Electronics

Jaycar Electronics MB3752 Bedienungsanleitung

Ultra Start

Ultra Start 72 Series Bedienungsanleitung

ADS

ADS FLASHLOGIC FLRSVW1 Bedienungsanleitung

Selecta

Selecta JS012 Bedienungsanleitung

Black Widow Security

Black Widow Security BW RAS 400 Bedienungsanleitung

Vector

Vector Power City DK080706 Beilage

Code Alarm

Code Alarm CA-535 Bedienungsanleitung

Ozito

Ozito OJS-800 Bedienungsanleitung

Profi-Partner

Profi-Partner 46387 Bedienungsanleitung

EZ STARTER

EZ STARTER EZ-45 Bedienungsanleitung

Viper

Viper 4204 Bedienungsanleitung

Essex Electronics

Essex Electronics KE-1701 Bedienungsanleitung

EINHELL

EINHELL EGS 3600 Handbuch
