Automatic Technology Axess Pro Series 1101 Kurzanleitung

Featuring TrioCode™Technology

Doc # 160034_01

Part # 13384

Released 05/03/14

Axess®Pro Series 1101

Commercial Overhead Garage Door Opener

2Axess Pro Series 1101 Owner Installation Instructions

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an

Automatic Technology (Australia) Pty Ltd industrial roller shutter opener. Automatic Technology (Australia) Pty Ltd hereby

further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any

person as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) industrial roller

shutter opener in accordance with these installation instructions.

WARNING: Electrical wiring must be in compliance with

your local building and electrical codes.

WARNING: It is vital for the safety of persons to follow

all instructions. Failure to comply with the installation

instructions and the safety warnings may result in serious

personal injury and/or property and remote control opener

damage. Please save these instructions for future reference.

NOTE: For full automatic operation a Safety Beam (Photo

Electric Beam Sensor) must be fitted to the logic console

with this opener. Failure to comply will void the warranty and

may cause serious personal injury and/or property damage.

Owner Installation Instructions Axess Pro Series 1101 3

Axess®Pro Series 1101

Commercial Overhead Garage Door Opener

Contents

1. Important Safety Instructions 4

2. Controller Input And Outputs 6

3. Set up Requirements 7

3.1 Kit Contents 7

4. Pre-Installation Requirements 8

4.1 Initial Check 8

4.2 Drive Unit Pre-assembly 8

5. Installation 9

6. Safety Beam Installation 10

6.1 Fitting the Safety Beam 10

6.2 Wiring the Safety Beam 10

6.3 Alignment 10

7. Powering up the Axess®1101 11

8. Setting Limits 12

8.1 Setting Travel Limits 12

8.2 Setting close travel limit 12

8.3 Setting open travel limit 12

8.4 Automatic limit adjustment and load profile 12

8.5 Pedestrian access position 12

8.6 Errors during setting of travel limit 12

9. Safety Obstruction Force Test 13

9.1 Testing Close Cycle 13

9.2 Testing Open Cycle 13

9.3 Recalculate Force Margins 13

10. Coding Transmitter 14

10.1 Coding Transmitter Button 14

10.2 Selecting Function Of The Button 14

10.3 Returning To Main Screen 14

11. Remotely Coding Transmitters 15

11.1 Selecting The Function To Be Coded 15

11.2 Activate Remote Code Set Mode 15

11.3 Removing the Battery From the Transmitter 15

12. Setting Pedestrian Position 16

12.1 Setting Pedestrian Position 16

12.2 Checking Pedestrian Position 16

12.3 Error Displays 16

13. Auto-Close Mode 17

13.1 Setting Up Standard Auto-Close 17

13.2 Safety Beam Triggered Auto Close 17

13.3 Pedestrian Auto-Close 17

13.4 Auto-Close After Obstruction: 17

14. Accessories Installation 18

14.1 Fitting Solenoid Or Magnetic Locks 18

14.2 Fitting Courtesy Lights 18

15. Specifications 19

16. Troubleshooting 20

17. Maintenance 21

17.1 Door Maintenance 21

17.2 Lubrication (every 3 - 6 months) 21

17.3 Door Service and Repair 21

17.4 Opener Maintenance 21

18. Appendix 22

A - Console Menu Structure 22

B - Viewing & Editing Parameters 25

C - Control Board Adjustments 26

D - Diagnostic Tools 28

E - Memory Tools 29

F - Transmitter Editing 30

G - Transmitter Management 31

Warranty and Exclusion of Liability 32

4Axess Pro Series 1101 Owner Installation Instructions

WARNING! • The door may operate unexpectedly, therefore do not allow

anything to stay in the path of the door.

• For Safety protection, a Safety Beam must be fitted with logic

console. Failure to comply will void the warranty and may result in

serious personal injury and/or property damage .

• The drive must not be used with a shutter incorporating a wicket door,

unless the drive cannot be operated with the wicket door open.

• The drive is intended to be installed at least 2.5m above the floor.

• DO NOT allow children to operate the opener. Any device that can

operate the opener, make sure it is out of reach of children and that

the doorway is in full view at all times. Serious personal injury and/or

property damage can result from failure to follow this warning.

• If the door is closing and is unable to re-open when obstructed,

discontinue use. Do not use a door with faulty obstruction sensing

• When using auto close mode, a Safety (Photo Electric) Beam must

be fitted correctly and tested for operation at regular intervals.

Extreme caution is recommended when using auto close mode.

All safety rules must be followed.

ELECTROCUTION! • Place opener in protected area so that it does not get wet.

• Do not spray with water .

• Disconnect the power cord from mains power before making any

repairs or removing covers. Only experienced service personnel

should remove covers from the opener.

• If the power supply cord is damaged, it must be replaced by an

Automatic Technology service agent or suitably qualified person.

• Electrical wiring must be compliance with the local building an

electrical codes.

The safety alert symbols below indicate a personal

safety or property damage instruction exists.

READ THESE INSTRUCTIONS CAREFULLY.

This automatic shutter opener is designed and tested to

offer safe service provided it is installed and operated in

strict accordance with the following safety rules. Failure

to comply with the following instructions may result in

death, serious personal injury or property damage.

1. Important Safety Instructions

Owner Installation Instructions Axess Pro Series 1101 5

1. Important Safety Instructions

CAUTION:

Emergency access • If your facility has no pedestrian entrance door, an emergency access device

should be installed.

Entrapment under

operating door • DO NOT operate the opener unless the door is in full view and free from objects

such as cars and children/people. Make sure that the shutter has finished moving

before entering or leaving the premises.

• Do not allow children to play with door controls or transmitters.

• In order for the opener to sense an object obstructing the door way, some force

must be exerted on the object. As a result the object, door and/or person may

suffer damage or injury.

• Ensure the door is in good working order by undertaking regular servicing.

• For ADDITIONAL SAFETY protection we STRONGLY recommend the fitting of a

Safety (Photo Electric) Beam.

• Safety beams must be installed if the closing force at the bottom edge of the door

exceeds 400N (40kg)

Installation • Frequently examine the installation, in particular cables, springs and mountings

for signs of wear, damage or imbalance. DO NOT use if repair or adjustment

is needed since a fault in the installation or an incorrectly balanced door may

cause injury. DO NOT attempt to repair the shutter yourself as hardware is under

extreme tension.

•The door must be well balanced and in good working order. door springs, brackets

and their hardware are under extreme tension and can cause serious personal injury.

Do not attempt to adjust them. A faulty door must be repaired by a industrial roller

door professional prior to opener installation.

• Remove or disengage all door locks and mechanisms prior to installation of the

opener.

• Ensure no parts of the door or installation extend over public paths or roads.

• After installation a full function test of the system and safety devices must be

done.

Security • Make sure the door is fully closed before leaving the driveway.

Entanglement in

moving door • Keep hands and loose clothing clear of door and opener at all times.

6Axess Pro Series 1101 Owner Installation Instructions

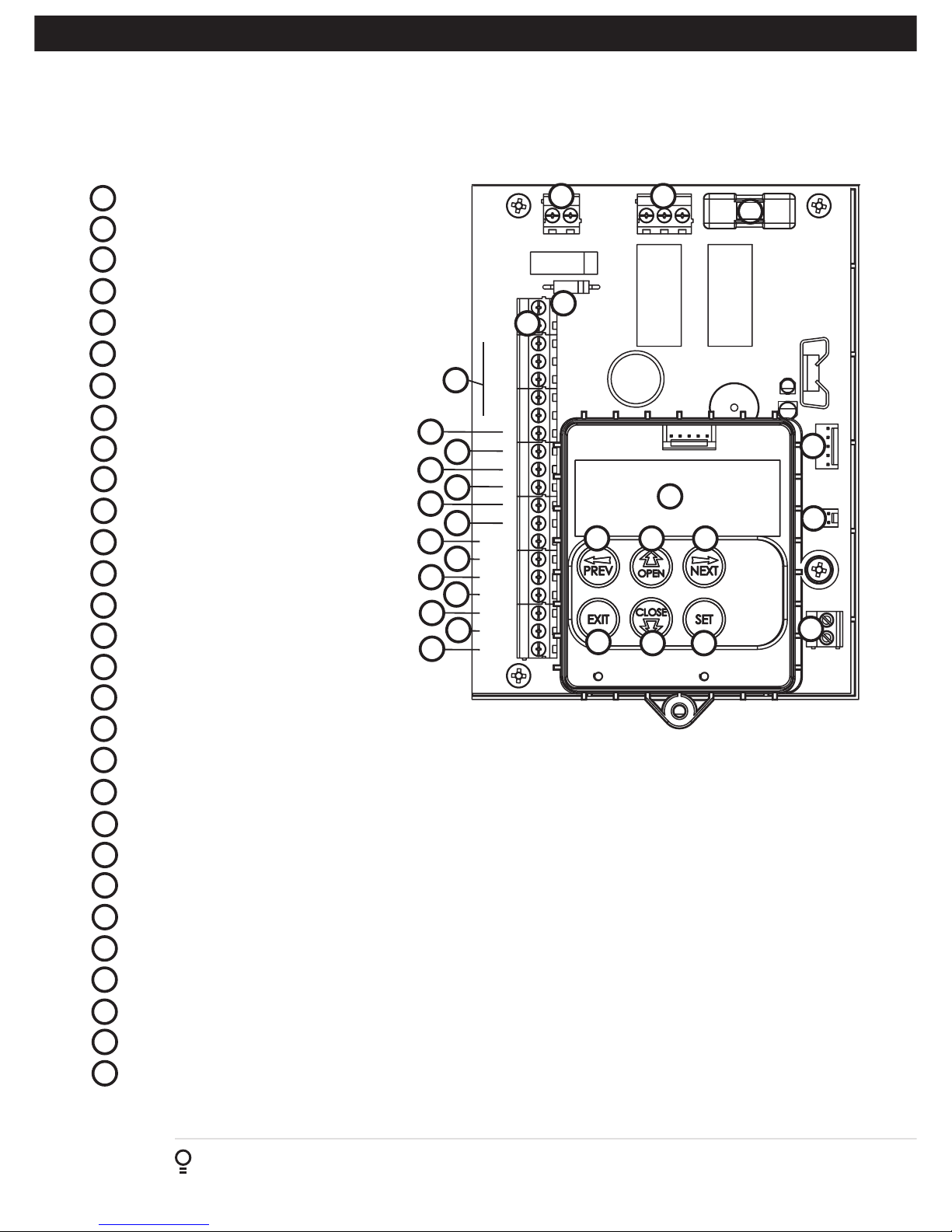

2. Controller Input And Outputs

+ − 1 2 3 4 5 V+ LGT LCK V+ IN V−

24VDC

DRIVE UNIT P.E BEAM

COM

OPN

STP

CLS

OSC

SWP

PED

RELAY OUTPUTS

Fig 2.1

24VDC+ output for powering accessories 3A(max)

24VDC- output for powering accessories 3A(max)

Drive unit connections

Com Terminal for light or lock interface relay drive

Light interface relay drive

Lock interface relay drive

V+ PE Beam power

PE Input Terminal

V- PE Beam Power

COM terminal for inputs terminals 11-16

OPN N/O input terminal

STP N/O input terminal

CLS N/O input terminal

OSC N/O input terminal

SWP N/O input terminal

PED N/O input terminal

Console Exit Button

Console Previous Button

Console Down/Close Button

Console Up/Open Button

Console SET Button

Console Next Button

Antenna Connector

Console Display

Motor Speed Control Connector

Programmer Interface Connector

3 Ampere 240 Volt Fuse

Motor Control Connector

24V AC Power Supply Input Terminal

2829

Owner Installation Instructions Axess Pro Series 1101 7

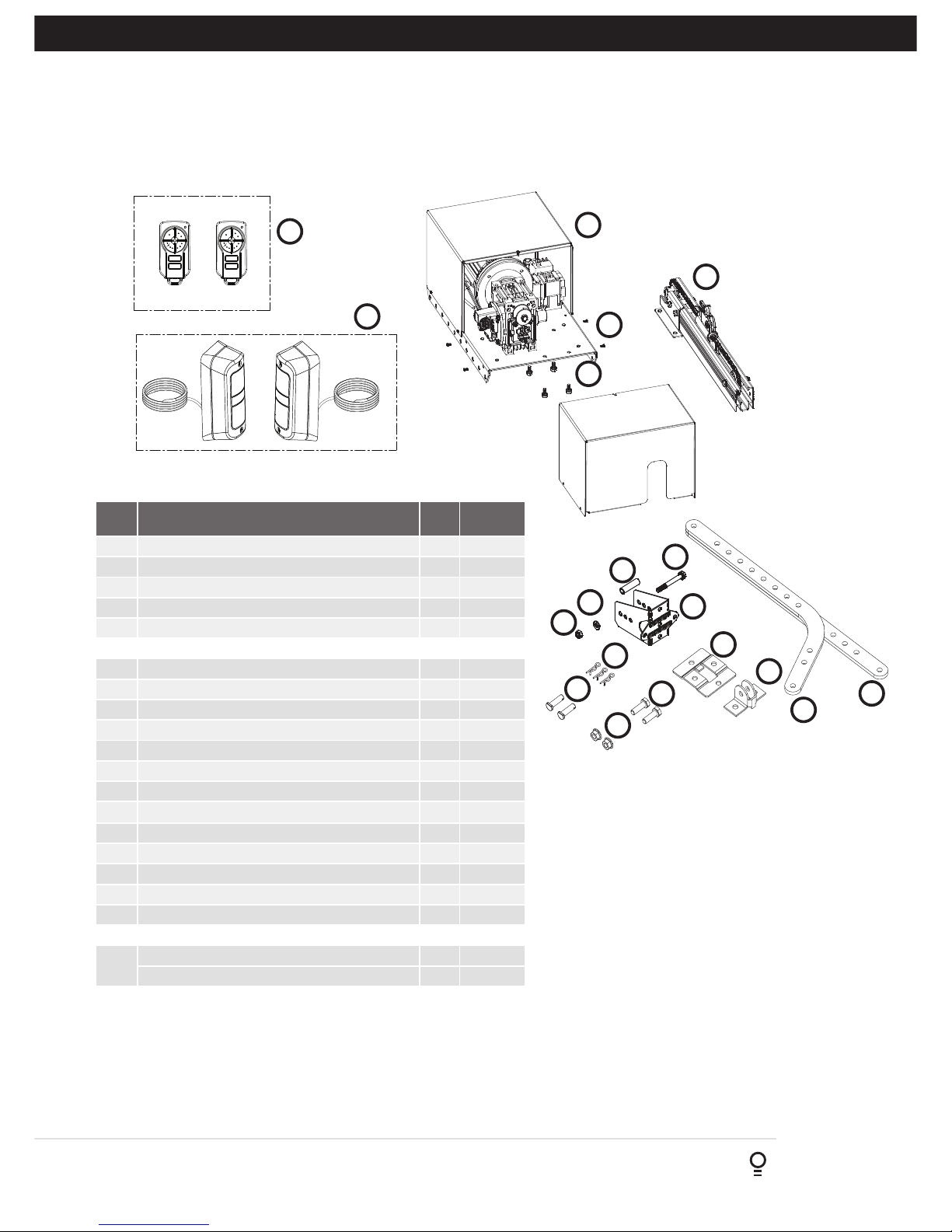

3. Kit Contents

Fig 3.1

ITEM DESCRIPTION QTY ORDER

CODE

1 POWER HEAD WV 3P 1101 1 92531

2 PTX-5V2 TC-128 TRANSMITTERS 2 61167

3 SAFETY BEAMS KIT PACK 1 61751

4 STRAIGHT ARM 1 62790

5 BENT ARM 1 62800

ACCESSORY PACK IPDO-2 (92520)

6 NILOCK NUT M8 1 10860

7 FLAT WASHER 1 11020

8 SLEEVE 081246 1 64385

9 HEX HEAD SCREW M8 X 70 1 10088

10 WALL BRACKET 1 62525

11 DOOR BRACKET LOCATOR 1 62515

12 DOOR BRACKET 1 62511

13 PIN SNAP SSP 8 ZNU 31080 3 10720

14 HEX HEAD SCREW M8 X 25 2 10110

15 CLEVIS PIN 0829 2 62551

16 HEX SERRATION FLANGE NUT M8 2 10148

17 HEX HEAD SCREW M8 X 16 4 10120

18 SPRING WASHER 4 10950

AXESS PRO TRACK KIT

19 AXESS PRO TRACK KIT 4M 1 92510

AXESS PRO TRACK KIT 5.85M 1 92511

8Axess Pro Series 1101 Owner Installation Instructions

4. Pre-Installation Requirements

The Axess®Pro Series 1101 is designed to operate most

commercial heavy duty and heavy residential overhead doors.

The door must be in good working condition and travel freely

in the guides.

4.1 Initial Check

Before commencing installation, check the following:

a. The door moves freely for the full travel in both directions.

b. The mounting must be a solid construction (concrete, brick

or steel) and must be able to withstand the full driving force

applied to the door.

c. There is a 240V 10 Amp power point located within one metre

of the drive unit.

d. Safety Beam must be installed. The Safety Beams should be

positioned as close to the door as practicable.

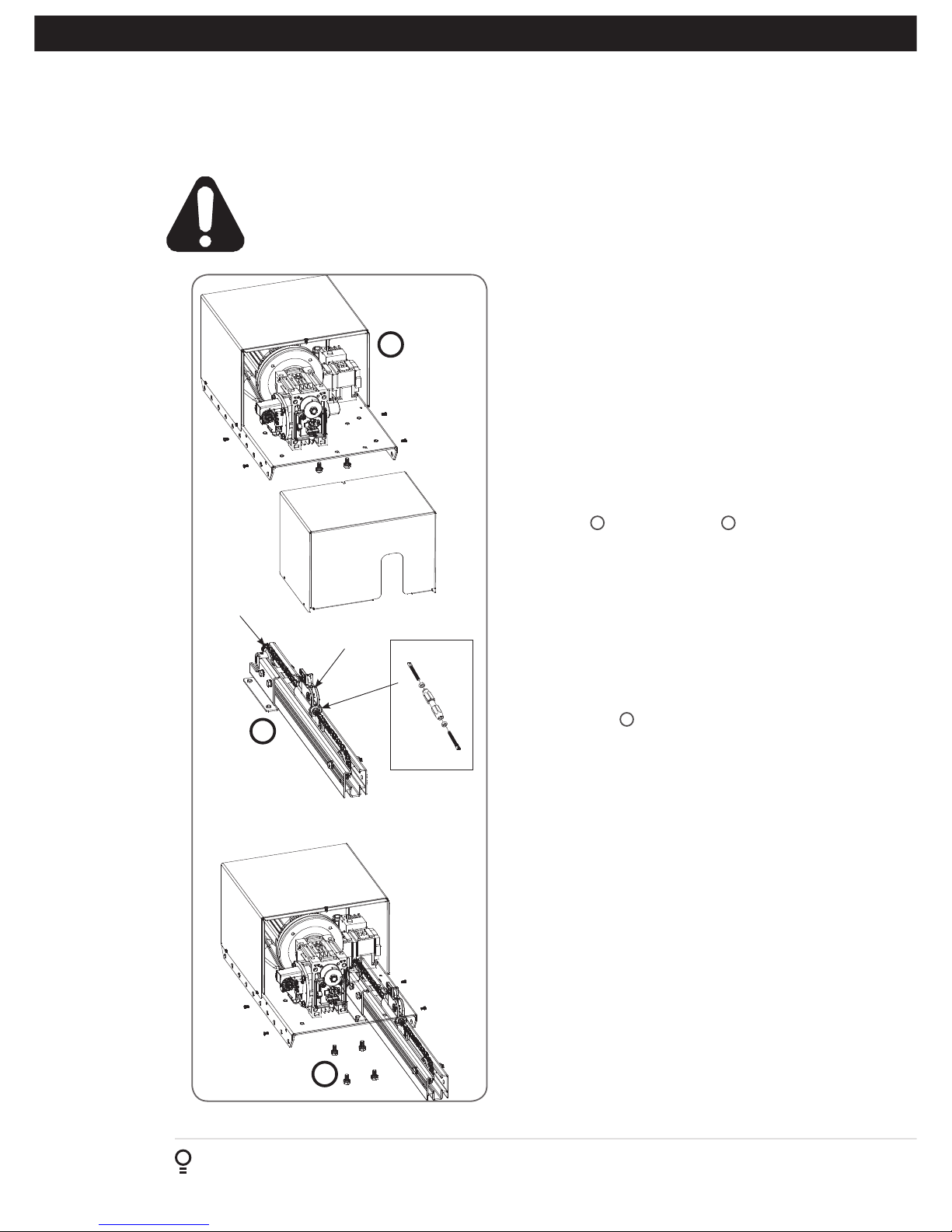

4.2 Drive Unit Pre-assembly

The drive unit 1and track assembly 19 are supplied as two

separate parts. The drive sprocket is part of the track assembly.

a. To connect track to the drive unit, remove the front cover.

b. Disconnect the trolley from the chain index (Fig 4.1).

c. Loosen tension on the chain. Do not disconnect the chain.

d. Locate the sprocket keyway with keyway on the Reducer and

slide it in place until the face of sprocket boss sits against the

shoulder on drive shaft of the reducer.

NOTE: The whole track has to slide with the sprocket. It can be

knocked on with a mallet or “helped” with a screwdriver.

e. Once the sprocket is in position, lock cap head screw.

f. Secure the track to drive unit with the four (4) M8 x 16

Hex Head screws 17 .

g. Tighten the chain and lock it with lock nuts.

h. Connect the front cover to the drive unit.

IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION

Warning: Incorrect installation can lead to severe injury.

Follow ALL installation instructions.

Fig 4.1

Drive Sprocket

Trolley Chain Index

Owner Installation Instructions Axess Pro Series 1101 9

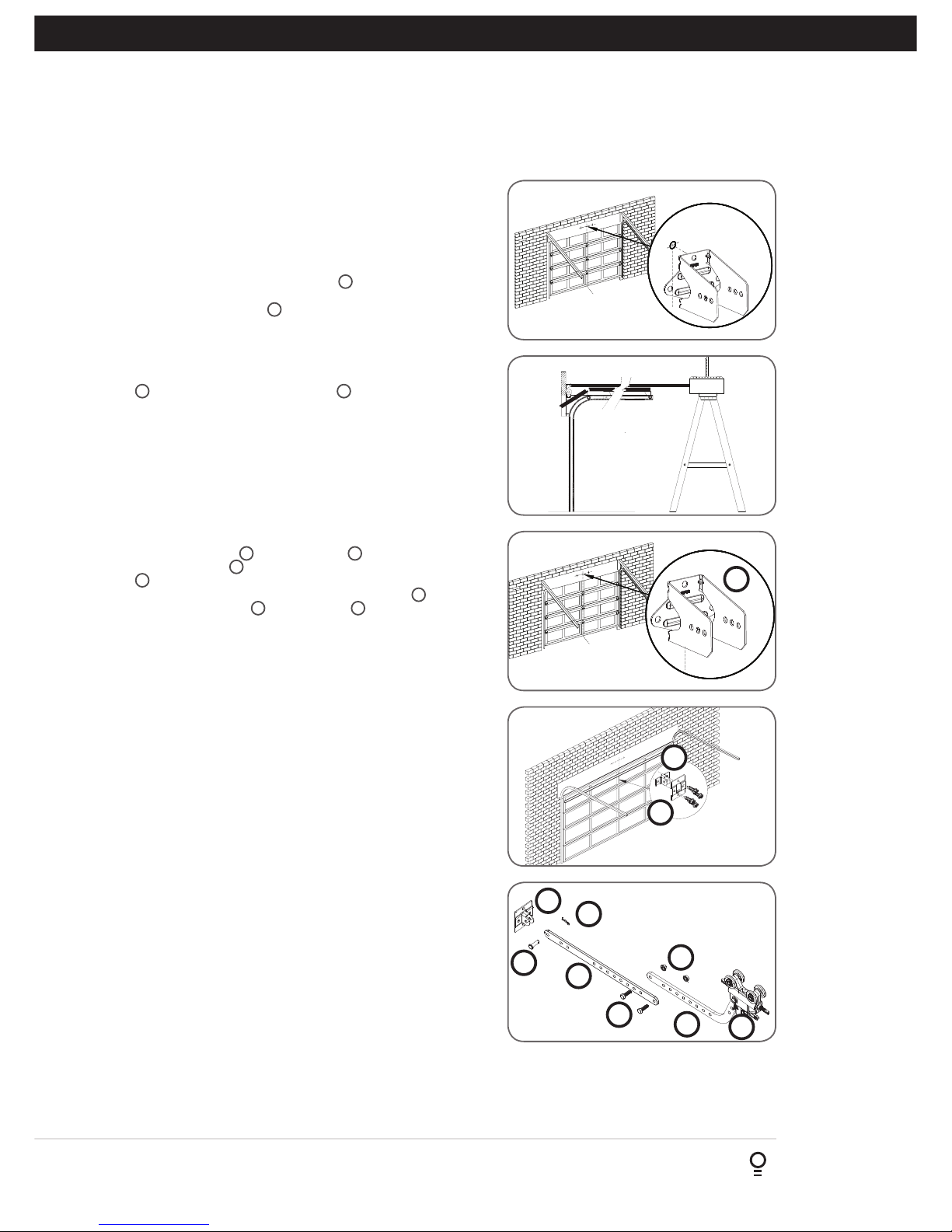

5.1 Mounting The Drive Unit

a. Determine the centre of the door and mark this point on the

wall above (Fig. 5.1).

b. Raise the door to the open position.

c. Rest the opener on a support above the top edge of the door

to allow for a 25mm gap between the shuttle and the door

(Fig. 5.2).

d. Mark the position of the wall bracket 10 on the wall above the

door (Fig. 5.3).

e. Secure the wall bracket 10 in place with loxins or appropriate

fasteners (not supplied).

f. Secure the opener to the ceiling above drive unit mounting

holes, with perforated angle or similar (not supplied). Do not

lock the screws at this stage.

g. The door bracket comes in two parts. The door bracket locator

11 is placed over the door bracket 12 and uses 4 mounting

holes for extra strength. Mount the door bracket to the centre

line of the door (Fig. 5.4), using M6 or equivalent screws (not

supplied) Alternatively it can be welded on steel doors.

NOTE: If in doubt about the strength of the door, reinforcement

may need to be added to the frame or panel where necessary.

Damage to the door panel may occur if the bracket is installed

incorrectly on a panel with insufficient strength. The door opener

warranty does not cover damage caused by the opener to the

door and/or door panel.

h. Assemble the bent 5and straight arm 4with two (2) M8 x 25

Hex Head Screw 14 and two (2) M8 Hex Serration Flange Nut

16 (Fig. 5.5).

i. Connect the assembled arm to the door bracket 12 and the

trolley by a clevis pin 15 and a pin snap 13 .

NOTE: The shuttle must be in disengage position. Always use

both the bent & straight arms. If installing on a door with bad

wave action, lengthening the arm even further will assist the door

operation by reducing the wave action.

5. Installation

Fig 5.1

Track

Door

Fig 5.2

Fig 5.3

Fig 5.4

Fig 5.5

Perforated angle

Trolley

515

10 Axess Pro Series 1101 Owner Installation Instructions

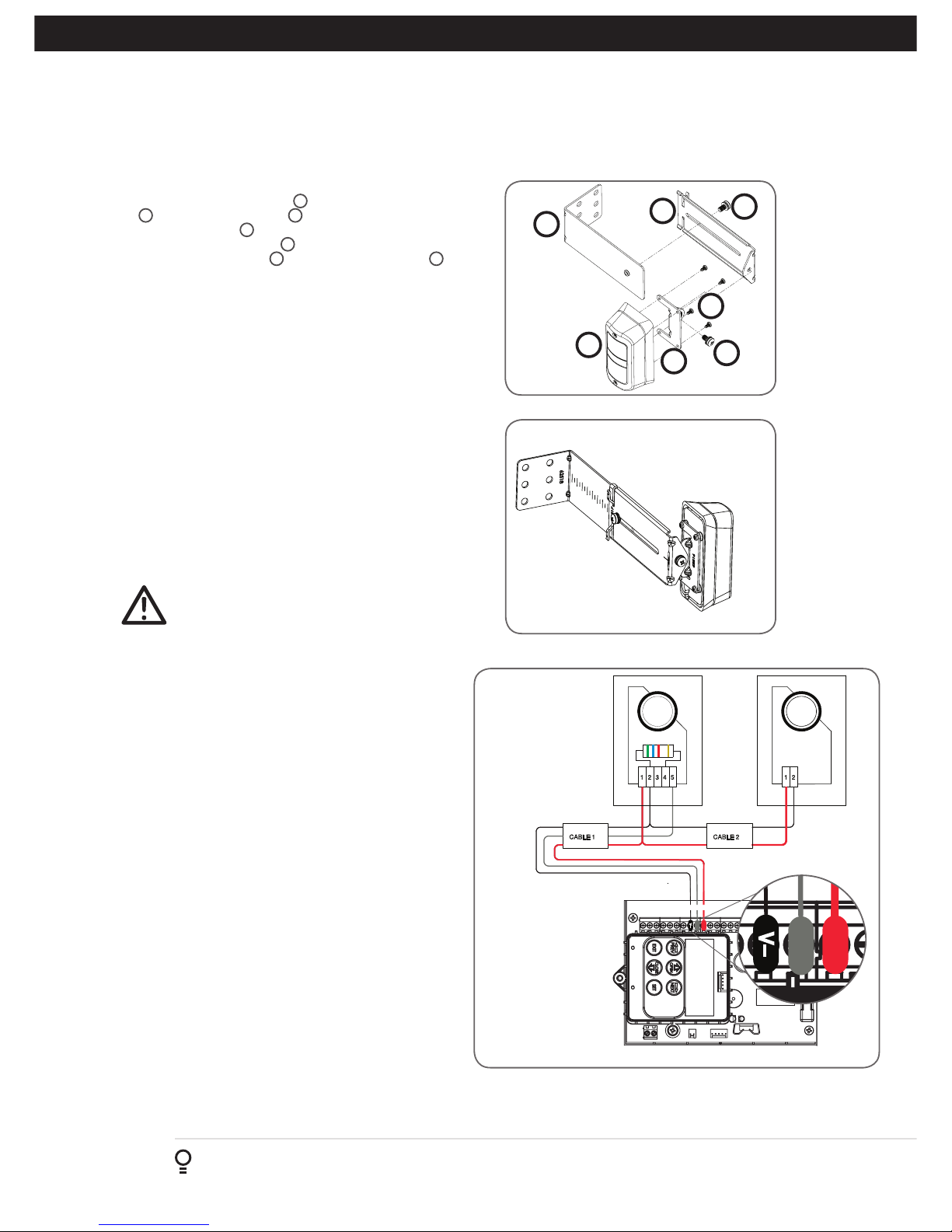

6. Safety Beam Installation

6.1 Fitting the Safety Beam

a. Attach the mounting bracket 4to the adjustment bracket

3with the pan head screw 6. (Fig. 6.1)

b. Attach the bracket 2 to the Safety Beam transmitter with

four M3 x 5 taptite screws 5 and attach the other side to

the adjustment bracket 3 with the pan head screw 6 .

(Fig. 6.2)

c. Repeat steps a and b to assemble the Safety Beam

receiver.

Locate the Safety Beam in a strategic location in the doorway.

Automatic Technology recommends that the sensor is placed

100mm above the floor level and as close as possible to the

shutter opening.

6.2 Wiring the Safety Beam

a. Connect a Resistor 5k6 ohms (Green Blue Red Gold)

to number 2 (two) and 4 (four) terminal on the Safety-2

receiver (Fig. 6.3). Make sure to align the beams correctly.

Follow the manual supplied with the Safety Beams.

b. Ensure you program the Axess®Pro Series 1101 to idenitfy

what type of Safety Beam you have installed.

i. Press NEXT to Navigate to Menu 7

ii. Press SET to display Menu 7.1 (for IN3).

iii. Use the UP and DOWN arrows to change the Safety

Beam type from two to three wires.

iv. Press SET to accept the selection.

CAUTION: Before plugging the opener in, check

the power cord for damage and ensure it cannot

become entangled in any moving parts

6.3 Alignment

a. Power up the Axess®Pro Series 1101 with the Safety Beam

connected. The green LED on the transmitter should turn

ON to indicate power is present.

b. If the receiver is connected to power and the red LED is

flashing while the green LED on the transmitter is on, the

transmitter and receiver are not aligned.

c. Make horizontal and/or vertical adjustment on the

transmitter and/or receiver until the red LED on the

receiver turns on, indicating alignment. Approaching

to the alignment is indicated by fast flashes on the red

receiver LED.

Fig 6.1

Fig 6.2

V+

V−

RED

BLUE

GREEN

GOLD

BLACK BLACK BLACK BLACK

YELLOW

RED

YELLOW

RED

++-

RED

SAFETY BEAM

Fig 6.3

V+

V−

RED

BLUE

GREEN

GOLD

BLACK BLACK BLACK BLACK

YELLOW

RED

YELLOW

RED

++-

RED

SAFETY BEAM

Andere Handbücher für Axess Pro Series 1101

Inhaltsverzeichnis

Andere Automatic Technology Garagentoröffner Handbücher

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology Dominator AM800 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-7v2 SecuraLift Bedienungsanleitung

Automatic Technology

Automatic Technology ATS Series Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-8v1 EasyRoller II Bedienungsanleitung

Automatic Technology

Automatic Technology SECURALIFT Kurzanleitung

Automatic Technology

Automatic Technology GDO-8 Shed Master Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-2 SecuraLife Bedienungsanleitung

Automatic Technology

Automatic Technology iOpener RD40 Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift Rhino Bedienungsanleitung

Automatic Technology

Automatic Technology Axess Pro Series 1101 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-10V3L2 Toro Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 v2 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-6 EasyRoller Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-8 Shed Master Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift GDO-9v3 Bedienungsanleitung

Automatic Technology

Automatic Technology 62717 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9 Dynamo Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology PA1000V1 Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9 ENDURO GEN2 Planungshandbuch

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Bedienungsanleitung

Automatic Technology

Automatic Technology SecuraLift GDO-7V1 Kurzanleitung

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Bedienungsanleitung

Beliebte Garagentoröffner Handbücher anderer Marken

Dorma

Dorma ES 90 Bedienungsanleitung

Garaga

Garaga SECURITY+ 3265GCM 1HP Bedienungsanleitung

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Bedienungsanleitung

Chase Doors

Chase Doors DuraShield Bedienungsanleitung

CSI

CSI Classic Bedienungsanleitung

HATO

HATO 120 Bedienungsanleitung

Chamberlain

Chamberlain Elite 3575S Bedienungsanleitung

Richmond

Richmond GTR156 Bedienungsanleitung

Raynor

Raynor 1280RGD Bedienungsanleitung

CAME

CAME F4000 Series Bedienungsanleitung

B&D

B&D Controll-A-Door 5 Bedienungsanleitung

BFT

BFT PRV AA SL Bedienungsanleitung

Craftsman

Craftsman 139.53924 Bedienungsanleitung

Chamberlain

Chamberlain MyQ 940ESTD Bedienungsanleitung

Westfalia

Westfalia 19 36 07 Bedienungsanleitung

Chamberlain

Chamberlain HD520EVP Bedienungsanleitung

Cardin

Cardin BL Series Bedienungsanleitung

Chamberlain

Chamberlain 8355 - 1/2 hp Bedienungsanleitung
