Avenview HBT2-C6POH-USB-SET Bedienungsanleitung

PRODUCT MANUAL

Model: HBT2-C6POH-USB-SET

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

Control Your Video

CAT5e/6 HDMI 2.0 Ethernet EXTENDER with

Audio Support (IR/RS232/ARC/OPTICAL)

The contents of this document are provided in

connection with Avenview Inc. (“Avenview”) products.

Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents

of this publication and reserves the right to make

changes to specications and product descriptions at

any time without notice. No license, whether express,

implied, or otherwise, to any intellectual property rights

is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale,

Avenview assumes no liability whatsoever, and disclaims

any express or implied warranty, relating to its products

of Avenview Inc. is strictly prohibited.

Rev. Changes Date

0.00 Initial Release 02/01/2018

Revision History

Rev.00 03/2018

www.avenview.com

TABLE OF CONTENTS

1. GETTING STARTED.................................................................1

1.1 IMPORTANT SAFEGUARDS.................................................1

1.2 SAFETY GUIDELINES....................................................2

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)..........2

2. INTRODUCTION....................................................................3

2.1 PACKAGE CONTENTS.....................................................4

2.2 BEFORE INSTALLATION..................................................4

2.3 APPLICATION DIAGRAM..................................................5

2.4 PANEL DESCRIPTION....................................................6

2.4.1 INPUT PANEL (TRANSMITTER, HBT2-C6POH-S) FRONT........................6

2.4.2 INPUT PANEL (TRANSMITTER, HBT2-C6POH-S) SIDE.........................6

2.4.3 INPUT PANEL (RECEIVER, HBT2-C6POH-R) FRONT...........................7

2.4.4 INPUT PANEL (RECEIVER, HBT2-C6POH-R) SIDE............................7

3. IR EXTENDERS.....................................................................8

4. INSTALLATION (HBT2-C6POH-USB-SET)...............................................9

5. GENERAL TROUBLESHOOTING.........................................................10

6. CABLE SPECIFICATION.............................................................11

7. SPECIFICATION...................................................................14

WARRANTY CARD...................................................................16

Rev.00 03/2018

www.avenview.com

1.2 SAFETY GUIDELINES

The HBT2-C6POH-USB-SET HDMI CAT5e/6 HDMI 2.0 Ethernet extender has been tested for conformance to safety

regulations and requirements, and has been certified for international use. However, like all electronic equipments, the

HBT2-C6POH-USB-SET should be used with care. Read the following safety instructions to protect yourself from possible

injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage

or other hazards.

Keep the device away from liquids.

Spillage onto the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on

to the housing, unplug the module immediately.

If the unit appears damagaed, have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

1.1 IMPORTANT SAFEGUARDS

• Any product on which the serial number has been defaced, modified or removed.

• Damage, deterioration or malfunction resulting from:

• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

• Repair or attempted repair by anyone not authorized by us.

• Any damage of the product due to shipment.

• Removal or installation of the product.

• Causes external to the product, such as electric power fluctuation or failure.

• Use of supplies or parts not meeting our specifications.

• Normal wear and tear.

• Any other causes which does not relate to a product defect.

• Removal, installation, and set-up service charges.

Please read instructions carefully before you use the device. Save this manual for future reference. Avenview warranty

certificate please refer to page #23

Warranty does not include:

SECTION 1 : GETTING STARTED

Rev.00 03/2018

www.avenview.com 1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

Warning Symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE ELECTRICAL

PARTS. THIS MAY RESULT IN ELECTRICAL SHOCK OR BURN.

THIS WARNING SYMBOL MEANS DANGER. WHEN THIS SYMBOL IS

PLACED, YOU ARE IN AN ENVIROMENT THAT CAN CAUSE

BODILY INJURY.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL VOID THE

WARRANTY AND CONTINUED USE OF THE PRODUCT.

THE CIRCUIT BOARDS ARE VERY SENSITIVE TO STATIC

DISCHARGE. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED

ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIRONMENT.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Avenview is

not responsible for any radio or television interference caused by using other than recommended cables and connectors or

by unauthorized changes or modifications to this equipment.

Rev.00 03/2018

www.avenview.com 2

Features

- Supports HDBaseT 2.0 specification over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft

- HDMI (with 3D & 4K@60Hz - YUV 4:2:0 support, HDCP 2.2 and DVI 1.0 compatible

- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, PoE and Control (Bidirectional

IR/RS-232 pass-through)

- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD,

Dolby Atmos and DTSHD Master Audio

- 1×USB 2.0 Mini-B port (on the transmitter), 2×USB 2.0 Type A ports (on

the receiver)

- Supports optical sampling rate up to 48kHz

- Supports external analog and digital audio extension including support for ARC (Audio Return Channel)

- Supports RS-232 baud rate from 110~115200bps

- Ultra thin design

2. INTRODUCTION

Avenview's HBT2-C6POH-USB-SET HDMI CAT.5e/6 HDMI 2.0 Ethernet extender is designed to extend 4K@60Hz 18GBPS

Content over 100 Meters ethernet cable. This unit includes two (2) units: Sender unit (TX) HBT2-C6POH-USB-S and Receiver unit

(RX) HBT2-C6POH-USB-R.

The HBT2-C6POH-USB-SET supports 4K 18 Gbps Content from source to Display. Video resolution supported is 4K@60 Hz

(4096x2160), 4k2k@60 (UHD 3840x2160) , 3D and full HD 1080p@60 Hz. The slim box type design can be easily installed in any

environment, behind the monitor and rack mounted on a rack shelf; this compact design gives the installer and user a complete

solution with the new trends in rack-mounted 4K sources streaming, network connected devices and new demand for Smart TV, ultra

HD monitors,, and content.

The HBT2-C6POH-USB-SET finds its way into market sectors such as Medical, Education, command & control environments and any

long distance extension application.

Rev.00 03/2018

www.avenview.com 3

2.2 BEFORE INSTALLATION

ATTENTION

• To prevent airflow restriction, allow clearance around the ventilation openings to be at least: ONE Inch (25.4 mm).

• Unauthorized changes or modifications could void the user's authority to operate the equipment.

• Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard

practices for preventing accidents.

• Place the product on an even and stable surface. If the product falls, it may cause an injury to a person or malfunction.

• Do not place the product in high temperatures (over 50°C), or low temperature (under 0°C) or high humidity.

• Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire.

• Do not twist or pull by force ends of the UTP /HDMI cable. It can cause malfunction.

• Keep the device away from water. If the unit becomes wet, power off immediately.

• Installation of the equipment must comply with local and national electrical codes.

• Take care when connecting units to the electrical power circuit, incase the maximum rated circuit is not overloaded

QTY

ITEM

HBT2-C6POH-USB-SET

POWER BRICK (48V/0.83A) + C7

POWER CORD

IR EXTENDER

IR BLASTER

PHOENIX CONTACT

MOUNTING BRACKETS

PRODUCT USER MANUAL

Before you start the installation of the HBT2-C6BPOC-SET, please ensure that the packaging has the listed items below.

2.1 PACKAGE CONTENTS

Rev.00 03/2018

www.avenview.com 4

Rev.00 03/2018

www.avenview.com

2.3 APPLICATION DIAGRAM

2.4.2 Input Panel (Transmitter, HBT2-C6POH-S) Side

1CAT5e/6/7 OUT: Connect to the Reciever unit with a

single CAT.5e/6/7 cable for transmission of all data signals.

LAN: Connect to an Ethernet supporting device or

to your local network.

3OPTICAL OUT: Connect to an audio receiver or

powered speaker set to reproduce audio signal from the

Recievers OPTICAL IN port.

4ARC OUT ON/OFF: Enables or disables support

for Audio Return Channel (ARC) signals from the

HDMI device connected to the Receiver.

5HDMI IN: Connect to HDMI source device such as

set-top box or media player.

2.4.1 Input Panel (Transmitter, HBT2-C6POH-S) Front

2.4 PANEL DESCRIPTION

1DC 48V/POWER LED: Plug the 48V DC power

supply into the unit and connect the adaptor to an AC

outlet. Green LED will illuminate.

AUDIO IN L/R: Connect to audio source

such as PC or CD player for audio

signal sending to Receiver’s AUDIO OUT L/R.

3IR IN 2: Connect to the supplied IR Extender cable

for IR signal reception.

5USB: Connect to a PC or Laptop to extend USB data

connection to the Receiver’s USB ports.

5RS-232 IN: Connect to a PC or serial control device

with USB to RS 232 cable for transmission of RS-232

commands. For receiving command from Receiver

side, the TX and RX pin must be reversed.

5SWITCH: This is reserved for firmware update use

only. Switch to the left for firmware update use,

under normal operation, leave the switch on right.

4IR OUT 1: Connect to the supplied IR Blaster cable

for IR signal transmission.

Rev.00 03/2018

www.avenview.com 6

2.4 PANEL DESCRIPTION (Cont)

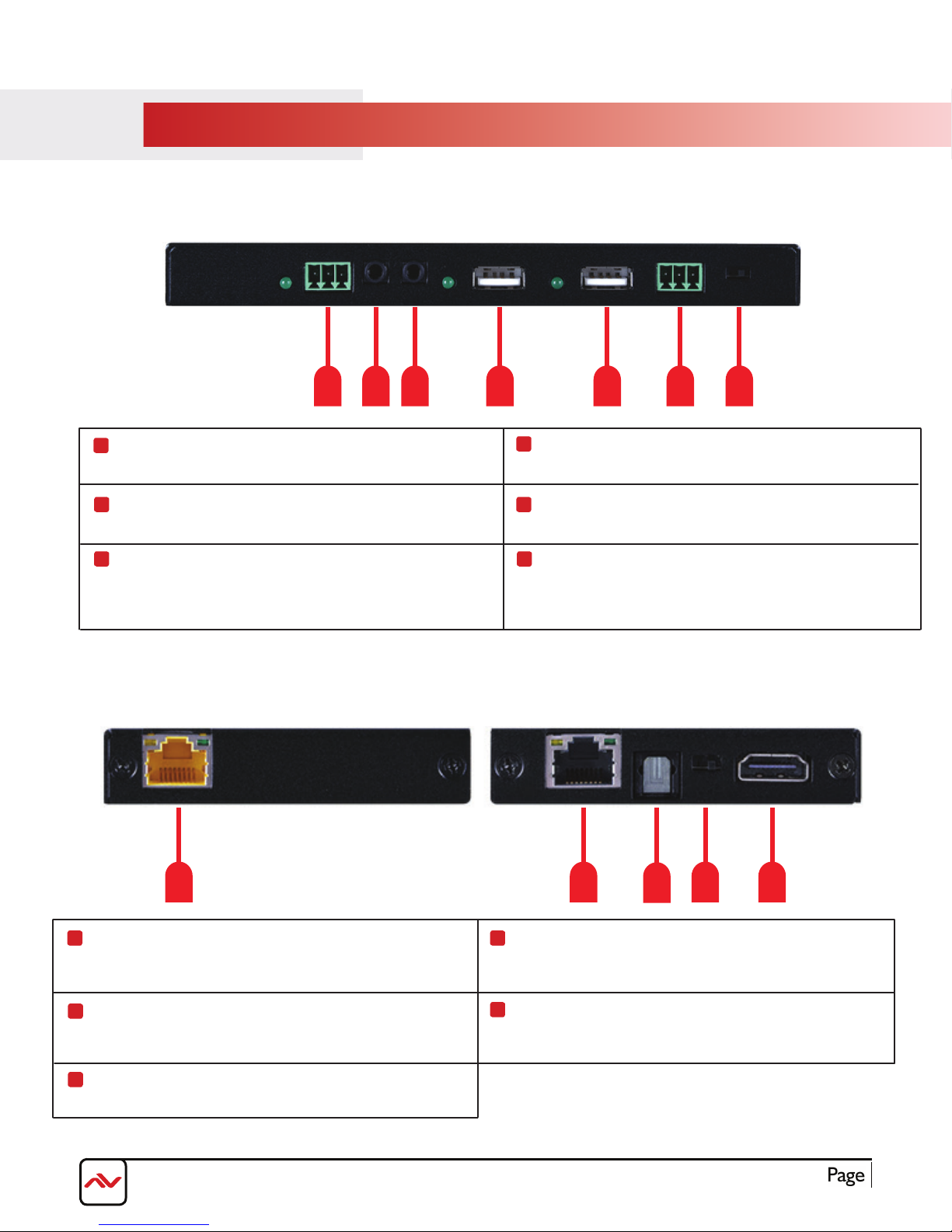

2.4.4 Input Panel (Receiver, HBT2-C6POH-R) Side

2.4.3 Input Panel (Receiver, HBT2-C6POH-R) Front

21 5

321 4 5 6

1AUDIO OUT L/R: Connect to speaker with RCA

input for audio signal output.

IR IN 1: Connect to the supplied IR Extender

cable for IR signal reception.

3IR OUT 2: Connect to the supplied IR Blaster

cable for IR signal transmission.

4USB IN: Connect to USB peripheral devices such as

keyboard and mouse.

5RS-232 OUT TX/RX: Connect to a device for RS232

control to receive commands from the Transmitter.

55SWITCH: This is reserved for firmware update

use only. Under normal operation, leave the switch to

the right.

1LAN: Connect to an Ethernet supporting device or

to your local network.

CAT5e/6/7 IN: Connect to the Transmitter unit with a

single CAT.5e/6/7 cable for transmission of all data

signals.

3OPTICAL IN: Connect to an audio source equipment

such as media player or set-top box to transmit audio

signal to the Transmitter OPTICAL OUT port.

4ARC IN/OPTICAL IN SWITCH: Allows you to

switch between sending audio to Transmitter from

ARC channel or Receivers OPTICAL IN port.

5HDMI IN: Connect to HDMI source device such

as a DVD or Blu-ray player.

Rev.00 03/2018

www.avenview.com 7

Andere Handbücher für HBT2-C6POH-USB-SET

Inhaltsverzeichnis

Andere Avenview Medienkonverter Handbücher

Avenview

Avenview C-VGA-DVI Bedienungsanleitung

Avenview

Avenview C-COMPVGA-HDM Bedienungsanleitung

Avenview

Avenview C-HDMI-COMPVGA Bedienungsanleitung

Avenview

Avenview HDM-C6IP4K-SET Bedienungsanleitung

Avenview

Avenview SC-HDM2-HD42K-A Bedienungsanleitung

Avenview

Avenview C-COMP-HDSDI Bedienungsanleitung

Avenview

Avenview SW-HVD-HDMA-4X1 Bedienungsanleitung

Avenview

Avenview C-HDSDI-HDMI Bedienungsanleitung

Avenview

Avenview HDM-C6MWIP4K-SET Bedienungsanleitung

Avenview

Avenview C-HDMI-COMPVGA Bedienungsanleitung

Avenview

Avenview SPLIT-HDM2-T4K-2 Bedienungsanleitung

Avenview

Avenview C-COMPVGA-HDMI Bedienungsanleitung

Avenview

Avenview HDM-SWITCHPRO-VW4 Gebrauchs- und Wartungshandbuch

Avenview

Avenview C-HDM-COMP Bedienungsanleitung

Avenview

Avenview C-COMP-HDM Bedienungsanleitung

Avenview

Avenview VGA-C5-SP-12 Bedienungsanleitung

Avenview

Avenview C-MDP-HDMI Bedienungsanleitung

Avenview

Avenview C-CVID-HDM Bedienungsanleitung

Avenview

Avenview HDM-C6MWIP-SET-V3 Bedienungsanleitung

Avenview

Avenview DVI-SPLITPRO-4X Bedienungsanleitung

Avenview

Avenview SC-HDM-HD42K Bedienungsanleitung

Avenview

Avenview C-VGA-DVI Bedienungsanleitung

Avenview

Avenview C-VGA-DVI Bedienungsanleitung

Avenview

Avenview HBT-C6POE-VGA-S Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
