Avision BS-1306S Bedienungsanleitung

Color Image Scanner

User’s Manual

Regulatory model: BS-1306S

manual-en-250-0856-E-FB510-v100

Avision Inc.

User’s Manual

Trademarks

Microsoft is a U.S. registered trademark of Microsoft Corporation.

Windows, Windows XP, Windows Vista, Windows 7 and Windows

8 are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

Energy Star®is a registered trademark of the U.S. government.

IBM, IBM PC are registered trademarks of International Business

Machines Corp.

Other brands and product names herein are trademarks or

registered trademarks of their respective holders.

reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language,

in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual, or otherwise, without the prior written

permission of Avision Inc.

Material scanned by this product may be protected by

government laws and other regulations such as copyright laws,

the customer is solely responsible for complying with all such

laws and regulations.

Warranty

The information contained in this document is subject to change

without notice.

Avision makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

fitness for a particular purpose.

Avision shall not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

User’s Manual

European Union Regulatory Notice

Products bearing the CE marking comply with the following EU

Directives:

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

Restriction of the use of certain hazardous substances (RoHS)

Directive 2011/65/EU

CE compliance of this product is valid if powered with the correct

CE-marked AC adapter provide by Avision.

This product satisfies the Class B limits of EN55022, EN55024,

safety requirements of EN 60950 and ROHS requirements of

EN50581.

*This machine is certified as Class 1 LED product. This means

that this machine does not produce hazardous laser radiation.

As an ENERGY STAR®Partner, Avision Inc. has

determined that this product meets the ENERGY

STAR guidelines for energy efficiency.

iii

User’s Manual

Disposal of Waste Equipment by Users in Private Union

This symbol on the product or on its packaging indicates that the

product can not be disposed of with your other household waste.

Instead it should be sent to appropriate facilities for recovery

and recycling in an effort to protect human health and the

environment. Fore more information about where you can drop

off your waste equipment for recycling, please contact your local

city office, your household waste disposal service or the shop

where you purchased the product.

System Requirements

CPU: Intel®Core™ 2 Duo or higher

Memory: 32 bit: 1 GB

64 bit: 2 GB

Optical Drive: DVD-ROM Drive

USB Port: USB port 2.0 (compatible with USB 1.1)

Compatible

Operating

System:

Microsoft Windows XP(SP3), Windows Vista,

Windows 7, Windows 8.x (32-bit/64-bit)

User’s Manual

Table of Contents

1. Installing the Scanner .............................................1-1

1.1 Preinstallation Information................................. 1-1

1.2 Checking the Package Contents.......................... 1-1

1.3 Installing the Scanner Driver.............................. 1-2

1.4 Connecting to the Computer .............................. 1-3

2. Completing Your First Scan......................................2-1

2.1 Placing Your Original......................................... 2-1

2.2 Verifying Your Scanner Installation...................... 2-2

2.3 A Glance of the User Interface............................ 2-6

3. Using the Scanner Properties Dialog Box.................3-1

3.1 Buttons on the Scanner Properties Dialog Box ...... 3-2

3.2 Showing or Hiding Tabs..................................... 3-4

3.3 The Image Tab................................................. 3-6

3.3.1 The Image Selection Box ........................ 3-7

3.3.2 Other Image Options.............................3-11

3.3.3 Scanning color images...........................3-23

3.3.4 Scanning grayscale images ....................3-23

3.3.5 Scanning B&W images...........................3-23

3.3.6 Editing Profiles .....................................3-24

3.4 The Compression Tab.......................................3-27

3.5 The Color Dropout Tab .....................................3-29

3.5.1 Color Dropout Selection.........................3-29

3.5.2 Other Color Dropout Options ..................3-37

3.6 The Paper Tab.................................................3-39

3.6.1 Cropping .............................................3-40

3.6.2 Other Paper Selection............................3-46

3.7 The Multi-Feed Detection Tab............................3-52

3.8 The Preview Tab..............................................3-56

3.9 The Enhancement Tab......................................3-57

User’s Manual

3.10 The Rotation Tab........................................3-63

3.11 The Separation Tab ....................................3-68

3.12 The Setting Tab .........................................3-72

3.13 The Imprinter Tab ......................................3-75

3.14 The Information Tab...................................3-79

4. Maintaining Your Scanner........................................4-1

4.1 Cleaning the Glass ............................................ 4-1

4.2 Frequently Asked Questions................................ 4-2

4.3 Technical Service .............................................. 4-3

5. Specifications ..........................................................5-1

Index...................................................................................a

User’s Manual

1. Installing the Scanner

1.1 Preinstallation Information

Keep the scanner out of direct sunlight. Direct exposure to

the sun or excessive heat may cause damage to the unit.

Do not install the scanner in a humid or dusty place.

Place the scanner securely on an even, flat surface. Tilted

or uneven surfaces may cause mechanical problems.

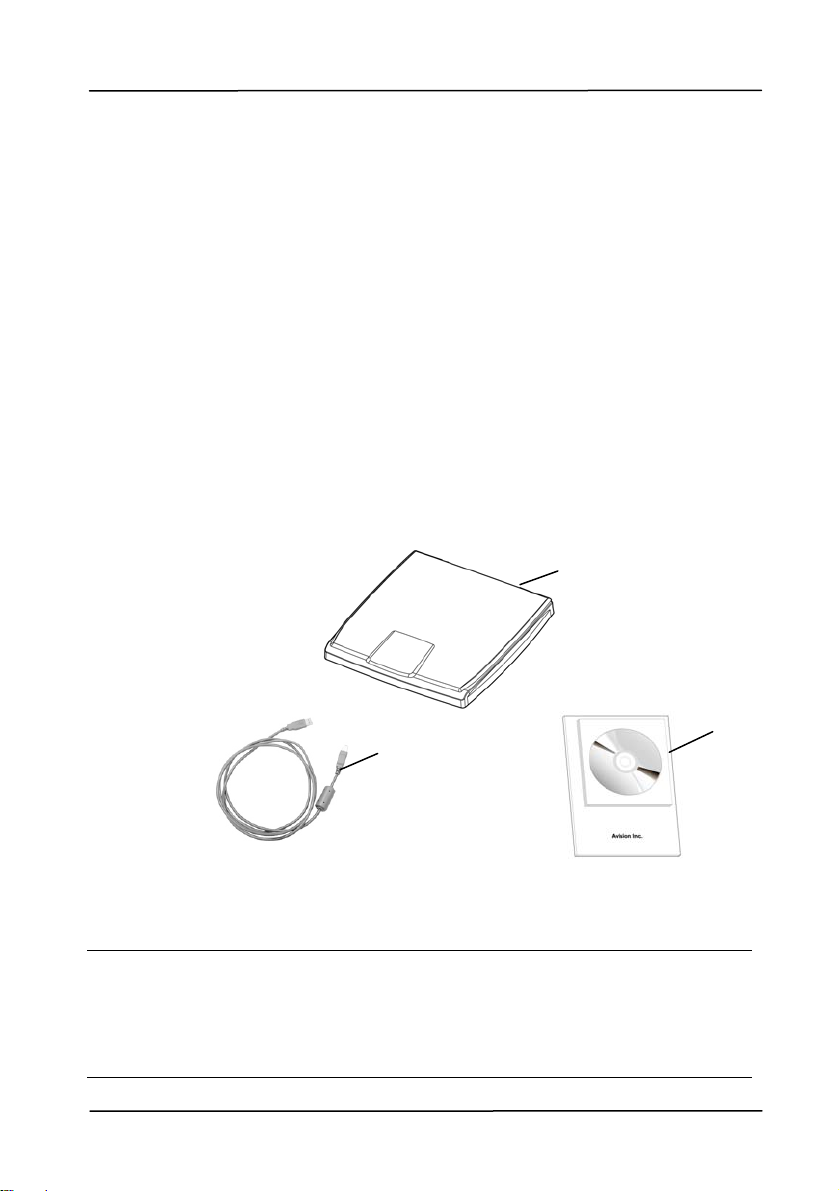

1.2 Checking the Package Contents

Gently open your box and check the package contents. If there

is anything missing or damaged, please call your dealer.

1. Scanner main unit

2. USB cable

3. Software CD/Quick guide

Note:

Please keep all the packing material in case you may have

to return the scanner for repair.

To access more service supports, visit www.avision.com to

2 3

1-1

User’s Manual

1.3 Installing the Scanner Driver

NOTE:

1. To ensure your computer can identify the USB scanner,

please install scanner driver first before connecting the

scanner to your computer.

2. The scanner driver contains TWAIN driver. If you are

running Windows XP or later, after the installation of

scanner driver is completed, this scanner allows you to scan

via a TWAIN user interface. Start your TWAIN-compatible

image editing software application to select a TWAIN.

1. Place the supplied CD-ROM onto your CD-ROM drive.

2. The software installation graphic appears. If not, run

“setup.exe”.

3. Click Install Scanner Driver to install the scanner driver

on your computer.

1-2

User’s Manual

1-3

1.4 Connecting to the Computer

1. Connect the square end of the USB cable to the USB port of

your scanner. Connect the rectangle end to the USB port

at the back of your computer.

2. The computer should detect a new USB device and prompt a

“New Hardware Found” message.

3. Follow the on-screen instructions and click the Next button

to complete the installation. When the certification screen

appears, click Continue Anyway to continue.

4. When the Finish dialog is prompted, click the Finish button.

User’s Manual

2. Completing Your First Scan

2.1 Placing Your Original

1. Open document cover.

2. Place your document with your text FACE DOWN on the

glass.

3. Make sure the upper left corner of your original near the

home position as marked in the scanner.

1. Document Cover

2. Document

3. Glass

4. Home Position

2-1
