B-K lighting CK Bedienungsanleitung

RELEASED

3-30-12

REFERENCE NUMBER

INS001114

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

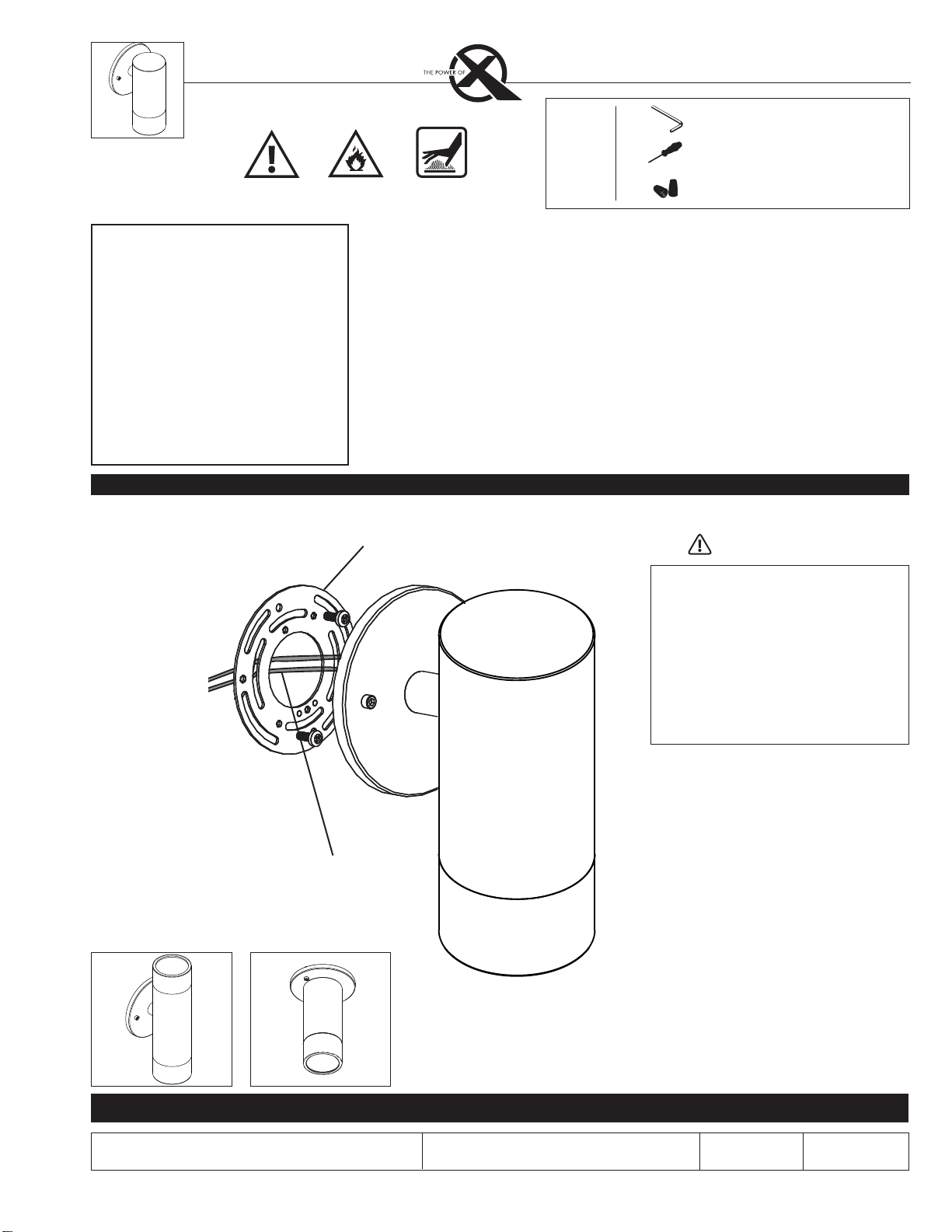

CK™/OL™/SM-DE™

Architectural Surface Installation

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

Warning Flammable Hot Surface

TOOLS

NEEDED:

By Others

5/32” Allen wrench

Phillips screwdriver

Wire connectors

(recommended silicone filled wire connectors)

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all Local

and Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel must perform all servicing or relamping of

this product.

• Before wiring to power supply and during servicing or relamping,

turn off power at fuse or circuit breaker before service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause an

unsafe condition. The use of damaged components may cause

an unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Do not block light emanating from product in whole or part,

as this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body. Do not touch the lamp at any time. Use

a clean, dry, soft cloth to handle the lamp. Oil from skin may

damage the lamp and cause it to rupture.

• Replace lamp only with correct wattage and type of lamp

marked on fixture label.

• All gaskets, o-rings and sealing surfaces must be kept clean

during installation and service; failure to do this may cause an

unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted lamp is HOT!

WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before replacing lamp.

Lamp gets HOT quickly! Contact only switch/plug when

turning on.

Do not touch hot lens, guard, or enclosure (see diagram/

picture).

Keep lamp away from materials that may burn.

Do no touch the lamp at any time. Use a soft cloth. Oil

from skin may damage lamp.

Do not operate the luminaire fitting with a missing or

damaged shield.

SAVE THESE INSTRUCTIONS

• Suitable for wet locations

REMOTE WIRING

LED Driver

Remote driver installations require inter-connected

wiring between the LED and driver (by others). Drivers

have specific wiring requirements between these

components. Driver manufacturers regularly recommend

the following wiring details for such installations:

• Do not exceed 50 foot overall wiring distance

using 12 gauge copper wire.

Failure to comply with specific wiring

requirements will void product warranty.

SM-DE

This set of instructions works for:

CK - Catskill™

OL - Olympic™

SM-DE - Denaii Surface

Downlight™

Universal Ring

18 Gauge Wire

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

PROJECT:

TYPE:

3167387

ETL LISTED

CONFORMS TO ANSI/UL STANDARD 1838,

CERTIFIED TO CSA STD C22.2 NO.250.7

CSA STD C22.2 TIL B-58A

RELEASED

3-30-12

REFERENCE NUMBER

INS001114

Phase 1 - Rough In

Installation of Back box

1. Install Conduit (by others) to be used with

this product.

2. Install junction box so that front face is flush

with finished wall or ceiling.

3. Connect box to conduit and pull wires for

connections (See wiring diagram).

Additional Info

• Please follow National and Local electrical codes for your area.

• 4” round cast box is provided with Five (5) 1/2” threaded hubs

for conduit entry (4 on sides and one on back of box).

• Suitable for through wire

• Suitable for installation into combustible materials.

• Rated for 90° C.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

3167387

ETL LISTED

CONFORMS TO ANSI/UL STANDARD 1838,

CERTIFIED TO CSA STD C22.2 NO.250.7

CSA STD C22.2 TIL B-58A

3. Mount fixture using two (2) #10-24 hex screw

to installed back box. Do not over tighten.

Phase 2 - Finish Installation of Fixture with Remote Driver.

1. Install universal mounting ring (supplied with

fixture) using #10-24 screws onto back box.

Align fixture mounting holes to final mounting

position.

2. Make two connections from remote driver to

LED source leads (18 gauge wire) using proper

wire connectors (By Others).

CK™/OL™/SM-DE™

Architectural Surface Installation

LINE (+)

FIXTURE

COM

POWER

SUPPLY

(-)

Wiring Diagram
