SCOPE OF MANUAL

This manual contains information concerning the

installation, operation and maintenance of the Model

2100R+ flow meter. To ensure proper performance of the

meter, the instructions given in this manual should be

thoroughly understood and followed.

Keep the manual in a readily accessible location for

future reference.

Changes and additions to the original edition of this

manual will be covered by a "CHANGE NOTICE"

supplied with the manual. The change notice will explain

any differences between the product described in this

manual.

Model 2100R+

TABLE OF CONTENTS

Page Page

Unpacking and Inspection................................. 1-1 OPERATION

General Specifications ...................................... 1-2 Recorder Status and Calibration Modes............ 3-1

INSTALLATION PROCEDURE Recorder Options and Error Screens................. 3-7

Enclosure Mounting ....................................... 2-1 Flow Meter Status and Calibration Modes........ 3-8

Wiring Connections.......................................... 2-2 Flow Meter Option Screens .............................. 3-15

Sensor Mounting............................................... 2-4 Chart Pen Zero & Span Adjustment ................. 3-16

Sensor Cable Connection.................................. 2-10 Hexadecimal Conversions................................. 3-19

Chart Installation and Pen Alignment............... 2-12 Illustrated Parts List.......................................... 3-21

To avoid damage in transit, Badger products are

shipped to the customer in special shipping containers.

Upon receipt of the product, perform the following

unpacking and inspection procedures:

NOTE: If damage to the shipping container is

evident upon receipt, request the carrier to be present

when the product is unpacked.

a. Carefully open the shipping container following

any instructions that may be marked on the box. Remove

all cushioning material surrounding the product and

carefully lift the product from the container.

UNPACKING &

INSPECTION

Retain the container and all packing material for

possible use in reshipment or storage.

b. Visually inspect the product and applicable

accessories for any physical damage such as scratches,

loose or broken parts, or any other sign of damage that

may have occurred during shipment.

NOTE: If damage is found, request an inspection by

the carrier's agent within 48 hours of delivery and file

a claim with the carrier. A claim for equipment

damage in transit is the sole responsibility of the

customer.

941181

03/96

1-1

GENERAL SPECIFICATIONS

Recorder:

2 line, 24 alphanumeric character per line Liquid Crystal Display. Displays

instantaneous flow rate, totalization, alarm indication and is used to program the

recorder through menu driven prompts.

DISPLAYS

Flow Meter:

2 line, 24 alphanumeric character per line Liquid Crystal Display. Displays

instantaneous flow rate, level, alarm indication and is used to program the flow

meter

through menu driven prompts.

RECORDING 12 inch circular chart with 24 hour, 7 day or 31 day selectable chart speed, single

disposable red ink pen.

PROGRAMMING Menu driven display prompt with 5 key tactile feedback keypad.

Recorder:

4-20 mADC signal into max. 1000 ohms

2 dry contact SPDT relays assignable to any of the following:

High or low alarms, contact integrator, loss of 4-20 mA signal,

EEPROM failure. Rated for 0.25 amp @ 120 VAC or 0.5 amp @ 24 VDC

OUTPUTS

Flow Meter:

4 dry contact SPDT relays assignable to any of the following:

High or low alarms, loss of echo, transmit failure, EEPROM failure,

overrange and loss of 4-20 mA signal.

Rated for 0.25 amp @ 120 VAC or 0.5 amp @ 24 VDC.

ENCLOSURE Indoor: NEMA 12, metallic; Outdoor: NEMA 4X, non-metallic

TEMPERATURE Indoor: 32° F to 150° F (0° C to 65° C)

LIMITS Outdoor: -40° F to 150° F (-40° C to 65° C)

POWER Standard: 117 VAC, 50/60 Hz +/- 10%, 20 watts

REQUIREMENTS Optional: 230 VAC, 50/60 Hz +/- 10%

Heater & Thermostat: 220 watts

Recording Indicating Totalization

Accuracy: +/- 0.5% of span +/- 1% or 1 LSD +/- 0.25%

Linearity: +/- 0.5% of span +/- 0.5%

PERFORMANCE Hysteresis: +/- 0.5% of span

Repeatability: +/- 0.5% of span

1-2

ENCLOSURE DESCRIPTION

The Model 2100R+ ultrasonic flow meter with circular

chart recorder is housed in either a NEMA 12 or NEMA 4X

enclosure.

The NEMA 12 enclosure is suitable for indoor use and

is designed to be panel mounted. It can be supplied with

heater and thermostat for indoor installations in buildings

that are not heated in the winter. Mounting hardware is

provided for panel mounting of the enclosure. Care

should be taken when selecting the mounting location so

that the recorder door can be opened completely for

access when changing charts.

INDOOR ENCLOSURE DIMENSIONS

The NEMA 4X enclosure is suitable for outdoor use

and can be wall or pole mounted. It comes equipped with

heater and thermostat. The door can be supplied with or

without a window. The door is provided with two

lockable latches. Caution should be used when mounting

the enclosure so that it is not exposed to direct sunlight. A

sun shield is recommended to prevent the temperature

inside the enclosure from reaching above the maximum

rating of the electronics (see temperature specification

under General Specifications). Viewing window is

optional.

INSTALLATION

OUTDOOR ENCLOSURE DIMENSIONS

16"

20"

7-7/8"

INDOOR PANEL MOUNTING

15-5/8"

19-3/16"

8-13/16"

7 "

Prior to mounting the enclosure, it is recommended that

the knockouts for the conduit fittings be removed. This

should be done with the enclosure resting on a solid

surface.

A hole 17-7/8" high by 14-1/4" wide is required for

inserting the enclosure in a panel. Slide the recorder into

the panel. Install the four mounting brackets into the slots

in the sides of the enclosure as shown below. Tighten the

mounting screws until the enclosure is secure to the panel.

14-1/4 "

17-7/8 " PANEL

OPENING

CUTOUT

MOUNTING

BRACKETS

4 EACH

2-1

OUTDOOR ENCLOSURE MOUNTING

The NEMA 4X outdoor enclosure is provided with four

mounting feet which are to be installed by the user at the

orientation desired. Pictured below is the installation

detail of the feet and the mounting hole dimensions.

If the outdoor enclosure has the window option, do not

mount facing the sun or install a sun shade to prevent

overheating of the electronics inside the enclosure.

MOUNTING FEET

14.55 "

17.03 "

10.40 "

20.96 "

WIRING CONNECTIONS

The indoor case has six 7/8" diameter knockouts for

use of 3/4" conduit connections. Three are located on the

bottom of the case and three on the back of the case. The

three you use will depend on whether you panel or wall

mount the enclosure. The outdoor enclosure has three

7/8" diameter knockouts located at the bottom of the case.

Local regulations for proper grounding and connection

of the power to the recorder should be strictly followed.

The power wires are connected to the terminals located

on the inside back of the enclosure (see Figure 2-1). To

gain access, open the enclosure door and loosen the two

screws at the top and bottom left side of the chart plate

and swing out the chart plate. The AC voltage for which

the unit has been set up for will be clearly marked near

the terminal strip. Verify that you are connecting the proper

voltage to the recorder. The terminal labeled H is the High

(black) wire, the terminal labeled N is the Neutral (white)

wire and the terminal labeled G is the Ground (green)

wire. The power wires from the terminal strip to the

recorder circuit board and the flowmeter power board are

prewired from the factory.

The terminal blocks on the recorder circuit board have

snap-on connectors. To connect the output wires for the

relays or 4-20 mA retransmission, pull off the connectors

from the terminal strips. Route the signal wires through

the wiring clips. Loosen the screws on the connectors.

Strip off about 1/4 inch of insulation from the wires.

Insert the wire into the proper connector and tighten the

screw securely. After connecting all of the wires to the

connector, snap the connector back on the terminal strip.

DRY CONTACT

RELAYS MAX

LOAD 250 MA

+4-20 MA

OUTPUT

C SW 1

C SW 2

TB5

RECORDER RELAY OUTPUT

2-2

+4-20 MA

OUTPUT

C SW 1

C SW 2

FACTORY WIRED

FROM 2100 4-20MA

AN1

AN2

AN3

NOT

USED

FREQ IN

PWR

117/230VAC

FACTORY

WIRED

TB1 1

TB5

TB4

TB3

TB2

HNG

117/230 VAC

CONNECTIONS

MODEL 2100

FLOWMETER

FIGURE 2-1

The recorder relay outputs are located on TB5 of the

recorder circuit board. The relays are assignable to

different functions. See the Recorder Operating Section

of this manual.

RECORDER 4-20 mADC OUTPUT

The 4-20 mADC output is a retransmitted output of the

flow signal which can be connected to other external

devices. The wiring connections must be connected in

series with the load, as shown above.

RELAY OUTPUTS - TB2 also is the terminal block

for the connections for the relay outputs. Terminal

connections 7 through 18 are used for the four relays

which are marked SW1, SW2, SW3 and SW4. These

relays are single pole double throw with a 1.0 amp 24

VDC or 0.5 amp 120 VAC current rating.

The wiring connections are marked on the printed

circuit board below the terminal block. Each relay

terminal is marked NC (normally closed), C (common)

and NO (normally open). The normally open and

normally closed positions are with the relay de-energized.

The relays are energized when they are tripped by the

assigned level or alarm. The relays can be assigned for

different functions which are explained in the Model

2100 Operation Section of this manual on Page 3-13.

MAX. 1000

OHM LOAD

FREQ IN

PWR

TB2 1

+4-20 MA

OUTPUT

C SW 1

C SW 2

TB5

2-3

FB-1 (FULL FACE)

SENSOR INSTALLATION

GENERAL DESCRIPTION

The Model 2100 FB-1 sensor has a PVC plastic

housing. The sensor is back filled with an epoxy resin.

The sensor head has a 3/4 inch NPT mounting nipple to

secure the sensor to the mounting bracket and attaching a

conduit fitting for routing the sensor cable back to the

electronic enclosure. Metallic conduit must be used to run

the sensor cable back to the electronics. The sensor must be

mounted level. An 'L' mounting bracket is supplied with

the sensor.

The sensor is supplied with 100 feet of triaxial cable.

The sensor can be ordered with 300 feet of continuous

cable, or additional cable (up to 1000 feet total) may be

spliced onto the cable from the sensor. Only Belden 9222

cable should be used.

A component change in the electronics is required

depending on the length of the cable. This is done at the

factory based on the amount of cable ordered with the meter.

The critical lengths of cable for the component change are

150 feet and 750 feet. If the user increases or decreases the

length of cable, and the length change steps above or below

the critical length points, the factory should be contacted for

information regarding the correct component change.

3 - 1/8 "

4 "

INSTALLATION

The meter is normally programmed at the factory to a

specific application. The sensor must be installed to the

proper mounting dimensions to ensure the accuracy of the

flow meter. Refer to the Data Sheet in the front of this

manual for these dimensions.

MOUNTING BRACKET

4 - 1/8 "

1/8 "

3/8 "

DIA. 1 -1/4 " 3 "

6 - 1/8 "

Mounting Hole

The dimension that is used when mounting the sensor is

the vertical calibrated (Vcal) mounting distance. This is

the distance from the surface of the fluid at no (zero)

flow, to the face (bottom) of the sensor. There are two

regions that make up the Vcal distance. These are the

sensor offset and the customer selected full scale

headrise.

2-4

Sensor

Offset

Customer

Selected

Full scale

Headrise

Vcal

Sensor

Mounting

Dimension

Level of fluid at no flow

6° Beam Angle

NOTE:

If sensor is exposed to sunlight, a sun shield should be used

The sensor offset is the distance from the maximum

level of the fluid to the face of the sensor. The minimum

offset is 12 inches.

The full scale headrise is the level of the fluid at the

customer's selected full scale flow for the flume or weir.

The minimum full scale headrise is 4 inches and the

maximum is 132 inches.

Therefore,

Sensor vertical mounting distance (Vcal) =

Customer full scale headrise + sensor offset

When the Model 2100 is programmed at the factory,

the Vcal is determined by taking the full scale headrise of

the maximum capacity of the flume or weir plus 12 inches

for the offset. This is done so that the flow meter can be

rescaled to a higher full scale flow in the future without

having to move the sensor. This is reflected on the

Mounting and Calibration Data Sheet in the front of the

manual by the Max. Capacity (Element) and Customer

Maximum Headrise. When the Customer Max. Flow is

less than the Max. Flow (Element) then the sensor offset

will be 12 inches plus the difference between Max. Flow

(Element) and the Customer Max. Headrise.

The other mounting dimension that is important is the

Horizontal (H) dimension. This is the horizontal distance

from a reference point on the flume or weir to the sensor.

Pages 2-6 through 2-9 show this dimension for the

commonly used flumes and weirs.

Another aspect that must be considered when mounting

the sensor is the distance of the sensor from the walls

2-5

of the structure in which the fluid is flowing. If the sensor

is too close to the wall, reflections may occur which could

cause inaccuracies in the level measurement. The beam

angle of the transmitted signal from the sensor face is a

maximum of 6 degrees. To determine the distance the

sensor must be mounted from the wall, multiply the Vcal

distance times 0.0524. This will give the distance required

from the wall to the sensor housing.

The exit hole for the sensor cable on the top of the

housing is a 3/4" NPT nipple which is used to mount the

sensor to the mounting bracket and connecting the

conduit for the cable. The cable must be run in metallic

conduit to prevent any stray noise interference from

affecting the meter's operation.

The mounting bracket provided with the sensor can be

mounted directly to the wall for Vcal distances of 60

inches or less. An extension or mounting brace to the

mounting bracket will be required for Vcal distances

greater than 60 inches.

When installing the sensor, it is imperative that it be

level. A level should be placed on top of the sensor and

adjustments made to the mounting bracket to ensure the

sensor face is level to fluid.

This completes the FB-1 sensor installation procedure.

Refer to the Electronic Wiring Section for connecting the

sensor cable to the electronics.

PARSHALL FLUME INSTALLATION

Vcal

FLOW

Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise

(in.) (in.) (in.) Min. Max. Max (in.)

2 11.00 21.46 60 210 9.46

3 12.00 30.21 85 850 18.21

6 16.00 30.29 180 1800 18.29

9 22.50 38.01 280 4500 26.01

12 35.25 42.70 375 7500 30.70

18 37.25 43.70 550 12000 31.70

24 39.25 43.47 700 16000 31.47

36 43.25 43.98 1100 25000 31.98

48 47.00 44.75 1350 35000 32.75

The H dimension is straight back from the entrance of the throat and not along the flume wall.

MANHOLE FLUME INSTALLATION

Vcal

FLOW

Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise

(in.) (in.) (in.) Min. Max. Max (in.)

4 5.75 17.86 45 90 5.86

6 7.75 20.94 60 250 8.94

8 9.75 24.32 75 550 12.32

10 11.75 27.58 80 1000 15.58

12 13.75 29.99 100 1500 17.99

2-6

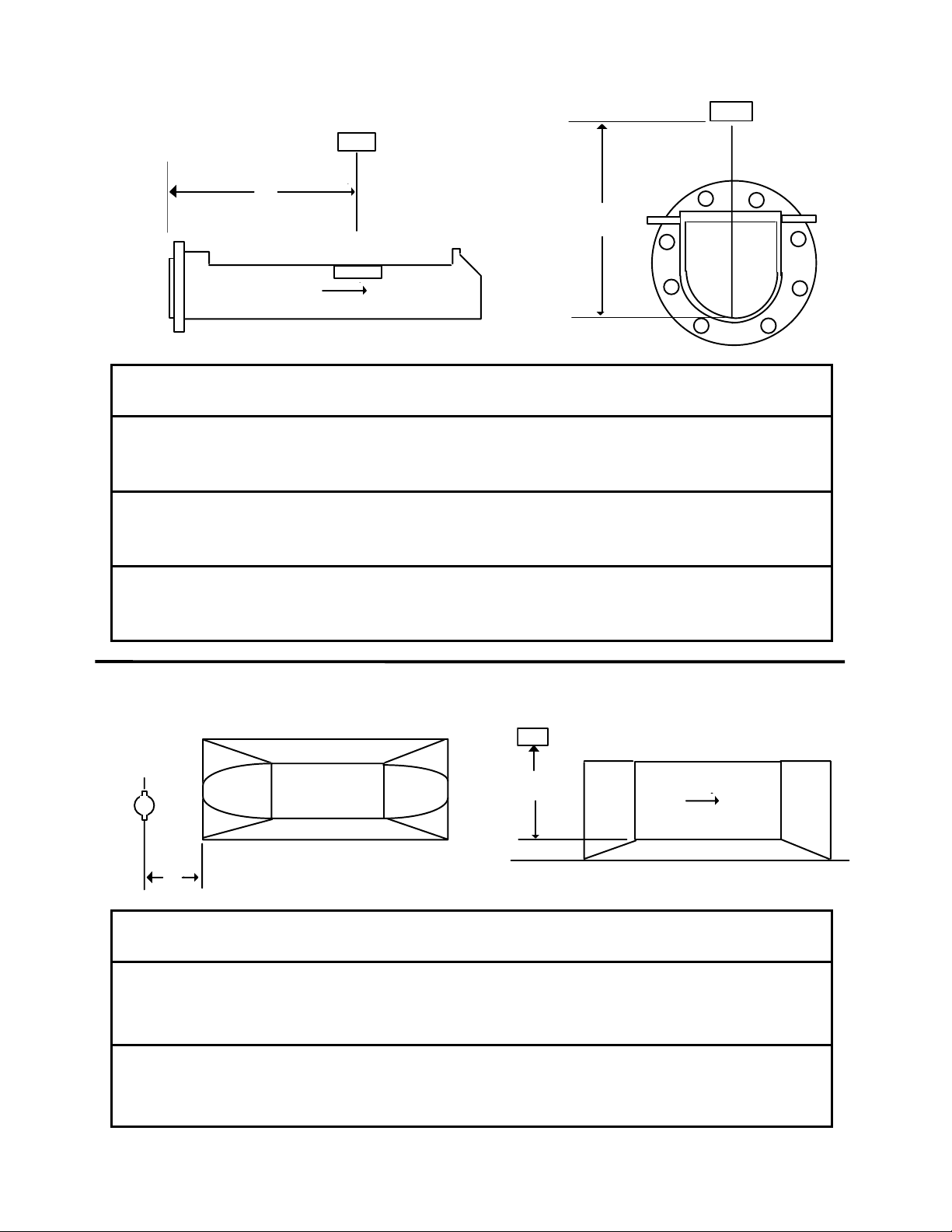

OPEN FLOW NOZZLE INSTALLATION

Vcal

FLOW

Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise

(in.) (in.) (in.) Min. Max. Max (in.)

6 21.00 16.79 125 180 4.79

8 23.00 18.66 150 400 6.66

10 25.00 10.77 165 800 8.77

12 29.00 21.55 145 1100 9.55

14 31.00 24.75 85 1600 12.75

16 35.00 25.87 100 1900 13.87

18 38.00 28.16 85 2600 16.16

20 40.00 30.78 90 3400 18.78

24 46.00 35.07 95 7000 23.07

PALMER-BOWLUS FLUME INSTALLATION

Vcal FLOW

Size H Dim. Vcal Full Scale (GPM) Full Scale Head Rise

(in.) (in.) (in.) Min. Max. Max (in.)

6 3.00 17.16 130 200 5.16

8 4.00 18.77 145 400 6.77

10 5.00 20.46 175 700 8.46

12 6.00 22.15 200 1100 10.15

15 7.50 24.96 220 2000 12.96

18 9.00 27.13 270 3000 15.13

21 10.50 29.85 300 4500 17.85

24 12.00 32.77 325 6500 20.77

2-7

Inhaltsverzeichnis

Andere Badger Meter Messgerät Handbücher

Badger Meter

Badger Meter Recordall Compound Series Bedienungsanleitung

Badger Meter

Badger Meter LM-OG-P2 Advanced Bedienungsanleitung

Badger Meter

Badger Meter IOG Series Bedienungsanleitung

Badger Meter

Badger Meter Blancett 1100 Series Bedienungsanleitung

Badger Meter

Badger Meter Hedland EZ-View Bedienungsanleitung

Badger Meter

Badger Meter epm-3 Bedienungsanleitung

Badger Meter

Badger Meter Dynasonics DXN Series Gebrauchs- und Pflegehandbuch

Badger Meter

Badger Meter RCM 2000 Bedienungsanleitung

Badger Meter

Badger Meter Dynasonics TFX-500w Bedienungsanleitung

Badger Meter

Badger Meter ER-9 Bedienungsanleitung

Badger Meter

Badger Meter ModMAG M2000 Bedienungsanleitung

Badger Meter

Badger Meter MultySonic 8000 Bedienungsanleitung

Badger Meter

Badger Meter Recordall RTR Orion 3-Wire Installations- und Benutzerhandbuch

Badger Meter

Badger Meter Dynasonics TFX-5000 Bedienungsanleitung

Badger Meter

Badger Meter Data Industrial 3000 Series Bedienungsanleitung

Badger Meter

Badger Meter Blancett 1100 Series Bedienungsanleitung

Badger Meter

Badger Meter Dynasonics DXN Bedienungsanleitung

Badger Meter

Badger Meter ModMAG M1000 Bedienungsanleitung

Badger Meter

Badger Meter Recordall Turbo Series Bedienungsanleitung

Badger Meter

Badger Meter ModMAG M1000 Bedienungsanleitung

Badger Meter

Badger Meter M-series Bedienungsanleitung

Badger Meter

Badger Meter FC-5000 Bedienungsanleitung

Badger Meter

Badger Meter ORION Mobile Read Installationsanleitung

Badger Meter

Badger Meter ModMAG M-Series M7600 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
