Baumatic BFWE1420W Bedienungsanleitung

BFWE1420W

Washing

Machine

USER MANUAL FOR YOUR BAUMATIC

BFWE1420W

Washing Machine

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference.

DD 20/12/06

Contents

Environmentalnote 4

Important safety information 5 – 6

Specifications 7

Descriptionoftheappliance 8

Controlpanel 9

LCDdisplay 10

Programoptions 10-11

Detergentdrawer 12

Preparing the wash cycle 13

Preparing your garments for washing 13

A selection of wash care symbols 14

Detergentsandconditioners 15

Washprogramchart 16

Washprogramguidance 17

Selectingawashprogram 18

At the end of the wash cycle 19

Cancelling a wash program 19

Changingawashprogram 20

Delaystartfeature 21-22

Spinselectionbutton 22-23

Maintenance and cleaning 23

Indailyuse 23

Controlpanel 23

Detergentdrawer 24

The washing machine drum 24

Door 24

Error code failure system 25-26

General troubleshooting 27

Poorwashresults 28

Cleaning the drain pump filter 29

Installation 30

Removing the transit bolts 30

Positioning and levelling the appliance 31

Watersupply 32

Wateroutlet 32

Powersupply 33

Baumatic Ltd. Conditions of Guarantee 34

Contactdetails 35

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Technical

Department.

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one of its authorized service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your washing machine.

oIf you notice that the mains cable is damaged. The appliance

must not be used. The same applies if you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components of the machine.

oThe appliance should be turned off and isolated from the mains

supply, before either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out of the

electrical socket.

oThe machine should not be sprayed with water.

oThe glass of the porthole door may become hot during the higher

temperature wash programs.

oThe machine should be allowed to cool before carrying out an

emergency drain or cleaning the drain filter.

oIt is possible for small animals to chew either mains cables or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be followed.

oIt is obligatory for the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oBefore the first use of the appliance, we advise that a 95

degree cotton wash is completed. No garments should be

placed inside the machine; however a small amount of

detergent must be used.

During Use

oIt is recommended that the appliance is unplugged and the

water supply is turned off after the machine is used.

oThis appliance is only designed to wash normal domestic

washloads. If you use your washing machine in any other way or

it is incorrectly used, then Baumatic accepts no liability for any

damage that might be caused and any guarantee will be void.

oNo attempt should be made to alter or modify the specifications

of this appliance.

oThe detergents that you place in this appliance should be

suitable for automatic washing machines. With regards to dosage

levels, the detergent manufacturer’s recommendations should be

followed.

oYou should not wash garments that have been in contact with

flammable materials.

oYour washing machine should not be used for dry cleaning.

oIf you use either dyes or bleaching agents inside this machine,

then you should consult with the manufacturer of these products

to make sure they are suitable for use in your washing machine.

Baumatic cannot be held responsible for any damages that may

result.

Child Safety

oYour washing machine should only be used by adults. You should

not allow children in the area of the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible for a child or pet to gain access to the

washing machine through the porthole door. Therefore please

check the drum before using the appliance.

oAny packaging that is removed from the machine should be kept

away from children.

oAll detergents should be kept out of children’s reach in a safe

place.

Specifications

915 wash programs

95.5kg wash load

91400 rpm maximum spin speed

9Drum size- 47 litres

9Electronic control with LCD display

9Delay start timer with remain time indicator

96 Option buttons: Spin speed reduction

Easy ironing

Extrarinse(2levels)

Rapidwash

Intensivewash

9Unbalance control system

9Foam protection

9Suspend the clothes in water option

9Overflow protection

9Door closed indicator

9Door safety lock

9Tilted and stainless steel drum

9Adjustable feet

9Error code failure system

9Aqua Spray rain shower effect. This additionally showers the

wash load throughout the wash cycle. It helps to improve the

wash and rinsing efficiency.

9Cold water fill only

Dimensions Energy efficiency

Height : 850mm Energy rating A

Width : 596mm Washing performance A

Depth : 540mm Water extraction performance B

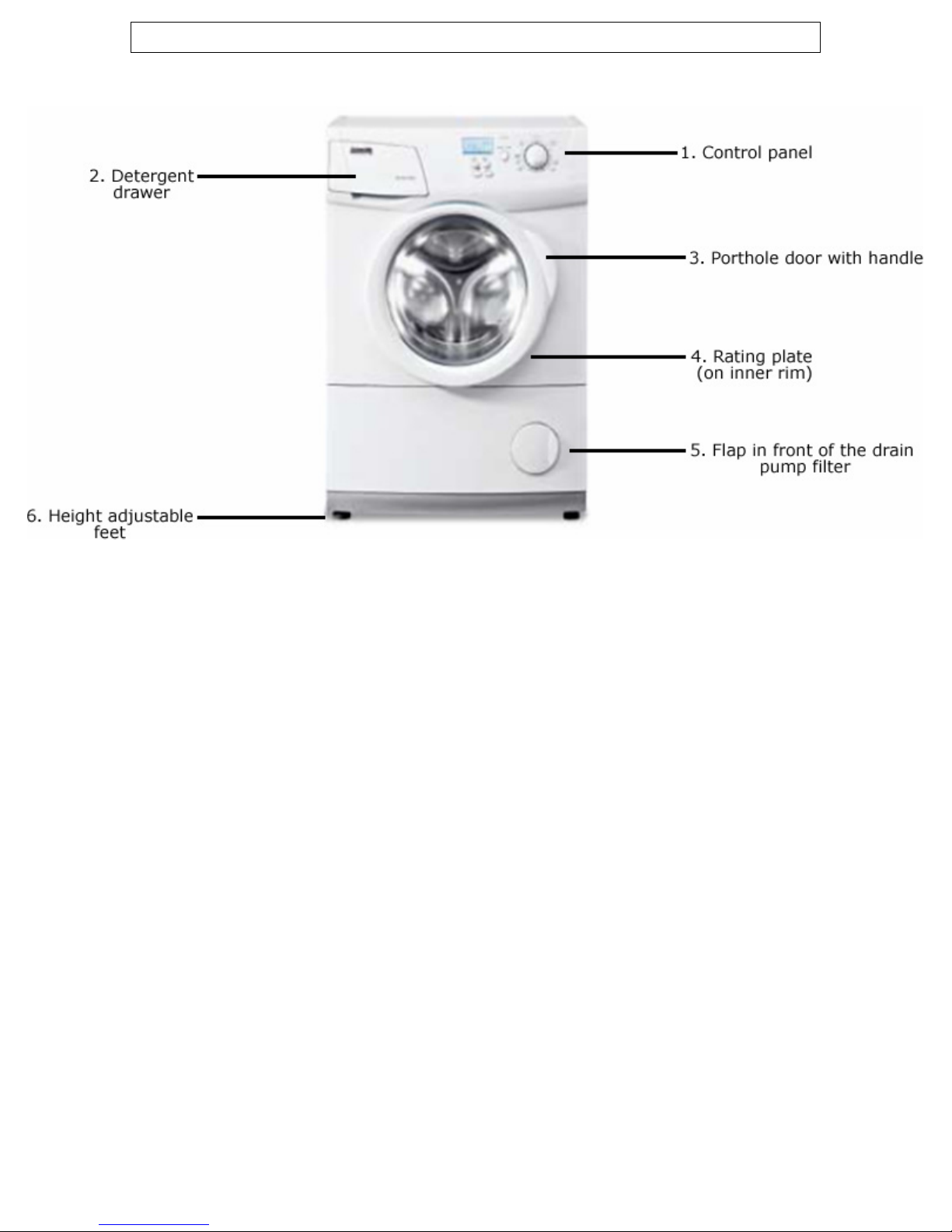

Description of the appliance

1Control panel

2Detergent drawer

3Porthole door with handle

4Rating plate (on inside rim of porthole door)

5Flap in front of the drain pump filter

6Height adjustable feet

CONTROL PANEL

Wash program selection knob

This control knob allows you to select the wash program of your

choice.

Start/Stop button

Once a wash program has been selected, this button should be

pressed to start the wash cycle.

LCD display

1. LCD display

2. Easy ironing symbol

3. Rapid wash symbol

4. Intensive wash symbol

5. Spin speed indicator

6. Wash cycle end symbol

7. Spin selected indicator

8. Rinsing levels indicator

9. Delay start selected indicator

10. Washing phase indicator

11. Wash program progress indicator

12. Wash cycle start symbol

13. Wash time indicator and error codes display

Program options

¾These buttons need to be pressed after a wash

program has been selected, but before the wash

program has been started.

Spin selection

You can select a different spin speed from the one automatically

selected by the machine for a particular wash program. On the

majority of wash cycles it is not possible to increase the spin speed

from the one originally selected by the appliance.
