Baumatic BWM50 Bedienungsanleitung

BWM50 5 kg

BWM70 7 kg

Top loading washing

machine

USER MANUAL F R Y UR BAUMATIC

BWM50 5 kg

BWM70 7 kg

Top loading washing

machine

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

GS 09/05/12

Contents

Environmental note 5

Important safety information 6 – 8

Specifications 8 – 12

Dimensions 9

Control panel 10

Detergent drawer 11

Bleaching agents 11

So tener 12

Preparing the wash cycle 12 - 13

Preparing your garments or washing 12 - 13

A selection o wash care symbols 13

Selecting a wash program 14 – 18

Detergent 14

Choosing a wash program 14

Selecting a wash temperature 14 - 15

Setting the program eatures 15

Selecting a water level 15 – 16

Washing load size 16

Beginning the wash program 16

Delay start 17

Sa ety lock 17

Imbalance control 18

Maintenance and cleaning 18 - 23

In daily use 18

Control panel and washing machine cabinet 18

Detergent drawer 19

The washing machine drum 19

Cleaning the ilter 19 - 20

Removing stains 21

Stain removal rules 21

Stain removal guide 21 - 22

Poor wash results 23

Installation 24 – 30

Locating your washing machine 24

Adjusting the height o the appliance 25

Installing the spacers 25 - 26

Installing the bottom cover 26

Connecting to the mains water supply 27

Connecting to the water outlet 28 - 29

Power supply 29 - 30

Be ore irst use maintenance wash 30

Error code failure system 30 - 31

General troubleshooting 32 - 33

Contact details 34

Environmental note

Important safety information

Your safety is of the utmost importance to

Baumatic Please make sure that you read this

instruction booklet before attempting to install or

use the appliance If you are unsure of any of the

information contained in this booklet, please

contact the Baumatic Advice Line

General Safety

oRepairs to your appliance must only be carried out by a

Baumatic engineer or one o its authorised service agents. Any

attempt by an inexperienced person to repair the appliance,

could result in injury or damage to your washing machine.

oI you notice that the mains cable is damaged. The appliance

must not be used The same applies i you notice that the

worktop, control panel or base area is damaged. As this could

allow access to the internal components o the machine.

oThe appliance should be turned o and isolated rom the mains

supply, be ore either cleaning or maintenance work is attempted.

oThe mains cable must not be used to pull the plug out o the

electrical socket.

oThe machine should not be sprayed with water.

oThe machine should be allowed to cool be ore carrying out an

emergency drain or cleaning the drain ilter.

oIt is possible or small animals to chew either the mains cable or

water hoses, which could cause an electric shock hazard.

Installation

oThe installation instructions contained within this user manual

should be ollowed.

oIt is obligatory or the completed installation to comply with all

relevant building regulations and local water authority

requirements.

oThe machine should not be installed near open lames or in wet

areas.

During Use

oIt is recommended that the appliance is unplugged and the

water supply is turned o a ter the machine is used.

oThis appliance is only designed to wash normal domestic wash

loads. I you use your washing machine in any other way or it is

incorrectly used, then Baumatic accepts no liability or any

damage that might be caused and any guarantee will be void.

oNo attempt should be made to alter or modi y the speci ications

o this appliance.

oThe detergents that you place in this appliance should be

suitable or automatic washing machines. With regards to dosage

levels, the detergent manu acturer’s recommendations should be

ollowed.

oYou should not wash garments that have been in contact with

lammable materials.

oYou should not wash raincoats, bike covers, eather items,

stretch cotton products or other waterproo clothing in the

machine.

oYour washing machine should not be used or dry cleaning.

oI you use either dyes or bleaching agents inside this machine,

then you should consult with the manu acturer o these products

to make sure they are suitable or use in your washing machine.

Baumatic cannot be held responsible or any damage that may

result.

oThe lid should not be opened when the machine is spinning. The

machine will stop spinning when the lid is opened but the tub will

not stop turning immediately. DO NOT place any clothes,

objects or parts o your body in the tub while it is spinning.

Child Safety

oYour washing machine should only be used by adults. You should

not allow children in the area o the machine unsupervised. You

should not let them touch the controls or play with the appliance.

oIt could be possible or a child or pet to gain access to the

washing machine through the porthole door. There ore please

check the drum be ore using the appliance.

oAny packaging that is removed rom the machine should be kept

away rom children.

oAll detergents should be kept out o a child’s reach and in a sa e

place.

Specifications

1) Lid

2) Frame

3) Filter

4) Interior drum

5) Machine body

6) Control panel

7) Adjustable eet

8) Rear control board

9) Inlet valve

10) Power cord

11) Back cover

12) Drain pipe

13) Base

14) Drum

o5 programs

o5 kg wash load (BWM50)

o7 kg wash load (BWM70)

o720 rpm maximum spin speed (BWM70)

o660 rpm maximum spin speed (BWM50)

oLED display

oDelay start

oWash temperature control

oSa ety lock

oImbalance control system

oAdjustable eet

BWM70

Appliance dimensions

Height: 920 mm

Width : 560 mm

Depth: 565 mm

BWM50

Appliance dimensions

Height: 900 mm

Width: 540 mm

Depth: 545 mm

For uture re erence please record the ollowing in ormation which can

be ound on the rating plate and the date o purchase which can be

ound on your sales invoice.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

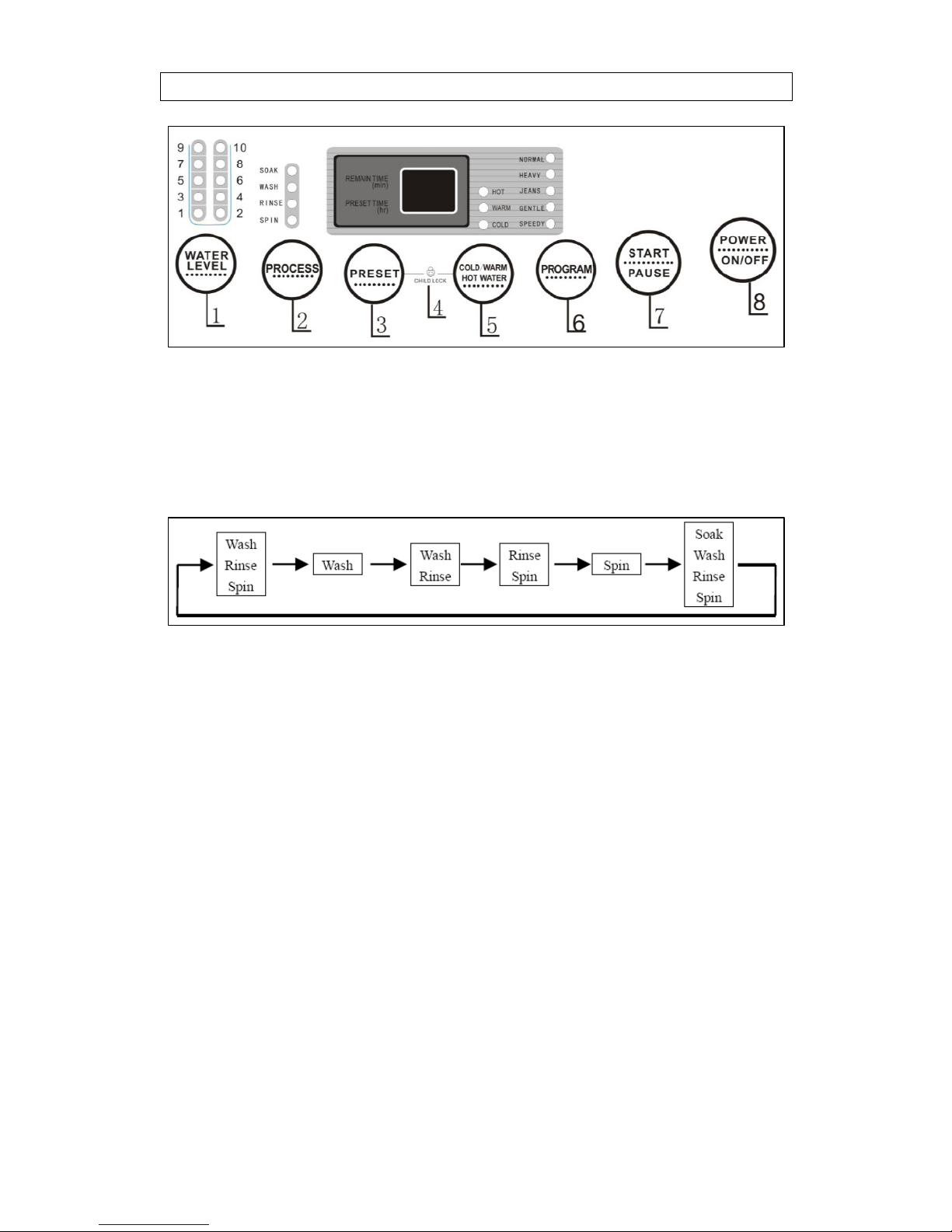

Control panel

1) Water level button: Use this button to select the appropriate

water level according to the volume o laundry.

2) Process button: Press this button to set the eatures o the

wash program. Each press o the button will scroll through the

ollowing choices.

3) Preset button: Use this button to program a delayed start to

the wash cycle.

4) Safety lock buttons: Use these buttons simultaneously to

activate and deactivate the sa ety lock.

5) Water temperature button: Press this button repeatedly to

choose the required washing temperature. You can select COLD,

WARM or HOT.

6) Program button: Press this button repeatedly to set the

desired wash program. You can choose rom the ollowing

options.

SPEEDY







GENTLE







JEANS







HEAVY







NORMAL

7) Start / pause button: Press this button to begin a wash

program or to pause a program that is currently in progress.

8) Power ON / OFF button: Use this button to turn the washing

machine on and o . I a program is not set within 5 minutes o

turning the machine on, it will switch o automatically.
