Dear customer,
Congratulations on your purchase of a Bazooka CSW high-performance
subwoofer. At Bazooka we are fanatics about accurate music
reproduction. Your selection of our products for your sound system
indicates that quality sound is also important to you too. At SAS, we
take great pride in manufacturing revolutionary audio products, and
through the years of engineering expertise, hand craftsmanship and
critical testing procedures, we have created the CSW high-performance
series of subwoofers. We hope that you will take as much pride in
owning and using one of these high-quality audio products as we do
designing and manufacturing them.
When properly installed and operated, your Bazooka CSW subwoofer
will give you years of clean uninterrupted sound reproduction.
Therefore, we urge you to take a few minutes to carefully read through
this manual. It will explain how to properly build an enclosure to
optimize performance and longevity of the subwoofer.
Sound can be deceiving. Over time your hearing comfort level adapts
to higher volumes of sound. What may have sounded normal can
actually be too loud and harmful to your hearing. Guard against this by
setting your equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear
comfortably, clearly and without distortion.
Once you have established a comfortable “sound level”, make a
note of this position and do not go above this setting
Taking a minute to do this will help prevent your hearing from being
damaged and allow you to enjoy listening to music throughout your
lifetime.
1
CALCULATING ENCLOSURE VOLUME
It is difficult to give exact box dimensions that are universal for all cars
and trucks. It is for this reason that you must be able to calculate the
space in which you have available in order to achieve the proper air
volume required. It is recommended to build your enclosure from 3/4”
thick MDF (medium density fiberboard). Make sure the enclosure is
sealed air tight.
Calculating External Volume
1.) To calculate box volume, measure the outside Width x Height x
Depth of the enclosure.
Example 12” x 14” x 9” = 1512”.
2.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”.
Example 1512 1728 = .875 Cubic feet.
Calculating Internal Volume
1.) To calculate the internal (net) volume of the above box you must
first multiply the thickness of the wood you are using by Two (2).
Example 3/4” x 2 = 1.5”.
2.) Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5
3.) Multiply the new totals (H x W x D)
Example: 10.5 x 12.5 x 7.5 = 984.375
4.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”
Example 984.375 1728 = .5696 Cubic feet.
2
PRODUCT SPECIFICATIONS
CSW1004
Free Air Resonance. (FS) 30
Total Q of driver @ FS including all resistance. (Qts) .44
Q of driver @ FS including non electrical resistance only. (Qms) 4.11
Q of driver @ FS including electrical resistance only. (Qes) .49
The driver's compliance expressed as an equivalent (Vas) 2.25
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .75
The DC resistance of the driver's voice coil (ohms). (Re) 3.4
RMS Power Handling (Standard/ With Liquid Cooling) (W) 150/250
Max Power handling (Standard/ With Liquid Cooling) (W) 300/300
The driver's voice coil inductance (millihenries). (Le) 1.7
The drivers sensitivity (dB @ 1W 1M). (Sens) 88
CSW1204
Free Air Resonance. (FS) 30
Total Q of driver @ FS including all resistance. (Qts) .44
Q of driver @ FS including non electrical resistance only. (Qms) 4.19
Q of driver @ FS including electrical resistance only. (Qes) .49
The driver's compliance expressed as an equivalent (Vas) 2.78
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) .75
The DC resistance of the driver's voice coil (ohms). (Re) 3.6
RMS Power Handling (Standard/ With Liquid Cooling) (W) 150/250
Max Power handling (Standard/ With Liquid Cooling) (W) 300/300
The driver's voice coil inductance (millihenries). (Le) 2.2
The drivers sensitivity (dB @ 1W 1M). (Sens) 89
3
Ported Enclosure
Box Volume *1.7 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 4 Inches
Port Length 10.6 Inches
* Box is given as internal air volume including port and driver displacement.
CSW1004 RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.60 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5Hz 10 50 100 500 1000
1000
0
dB
Frequency
Frequency
6
12
-6
-12
-12
-18
-24
F3 = 36
F3 = 36
4
Ported Enclosure
Ported Enclosure
Sealed Enclosure
Sealed Enclosure
5Hz 10 50 100
100
500
500
1000
1000
0
dB
Frequency
Frequency
6
12
-6
-12
-18
-24
F3 = 62
F3 = 62
CSW1004 Amplitude Response (dB/Hz)
CSW1004 Amplitude Response (dB/Hz)
CSW1004 Amplitude Response (dB/Hz)
CSW1004 Amplitude Response (dB/Hz)
Maximum Power
Handling 250 Watts
Maximum Power
Handling 300 Watts
Ported Enclosure
Box Volume *2.0Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 4 Inches
Port Length 8.23 Inches
* Box is given as internal air volume including port and driver displacement.
CSW1204 RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.97 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
CSW1204 Amplitude Response (dB/Hz)
CSW1204 Amplitude Response (dB/Hz)
Sealed Enclosure
Sealed Enclosure
5Hz 10 50 100
100
500
500
1000
1000
0
dB
Frequency
Frequency
6
12
-6
-12
-18
-24
F3 = 60
F3 = 60
CSW1204 Amplitude Response (dB/Hz)
CSW1204 Amplitude Response (dB/Hz)
Ported Enclosure
Ported Enclosure
5Hz 10 50 100 500 1000
1000
0
dB
Frequency
Frequency
6
12
-6
-12
-12
-18
-24
F3 = 36
5
Maximum Power
Handling 300 Watts
Maximum Power
Handling 250 Watts

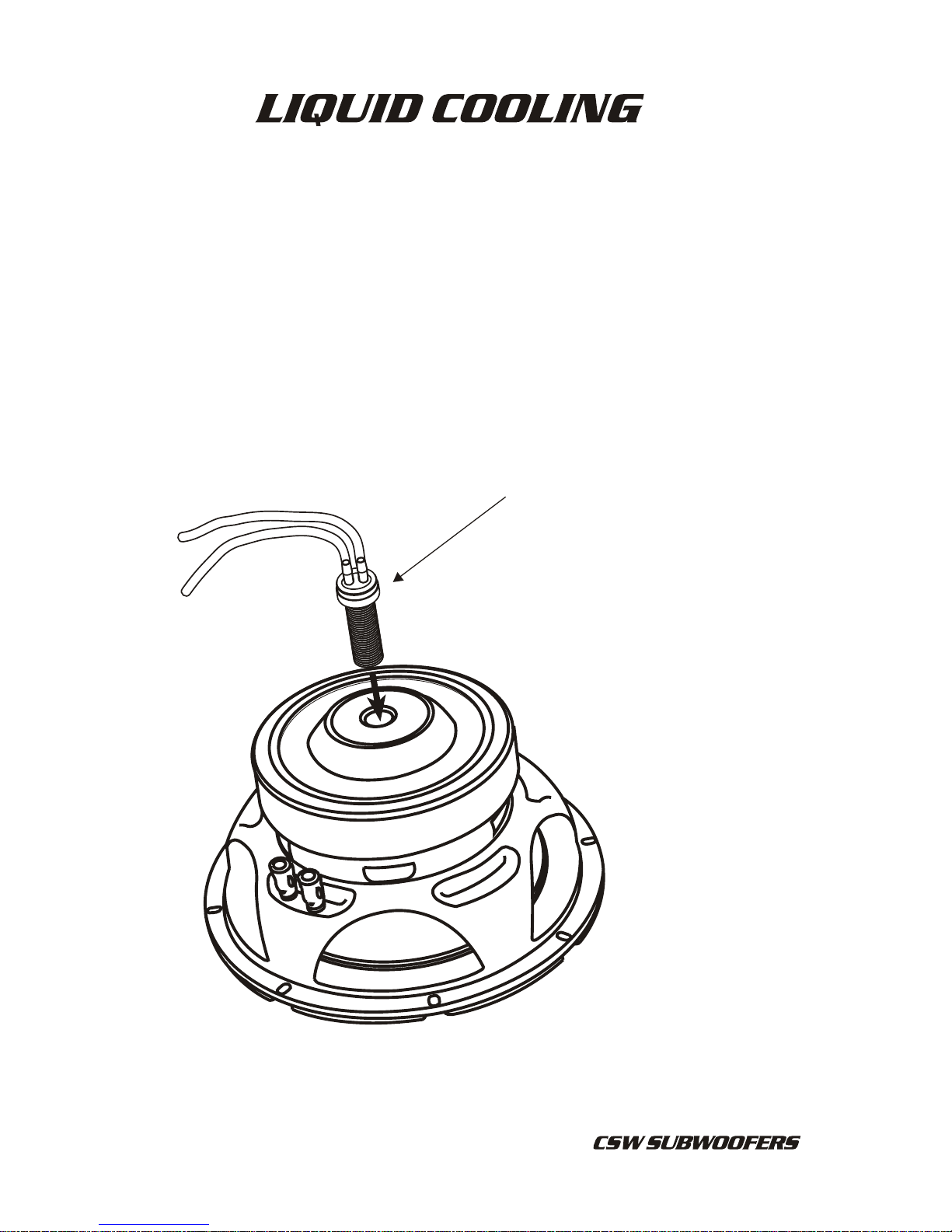

The innovative design of the CSW component Woofers allows
you to liquid cool the voice coil motor assembly for maximum
power handling capability. With the addition of the CHIL
PLUG and the CHIL KIT from your local dealer, or directly from
SAS, you can easily add liquid cooling to your CSW Series
Component Woofer.
6
CHIL Plug
Utilizing the optional CHIL
plug can increase the CSW
woofers power handling
up to 50%.
Manual By
www.extremeconcepts.com
CSW Manual Rev 2.10.02
