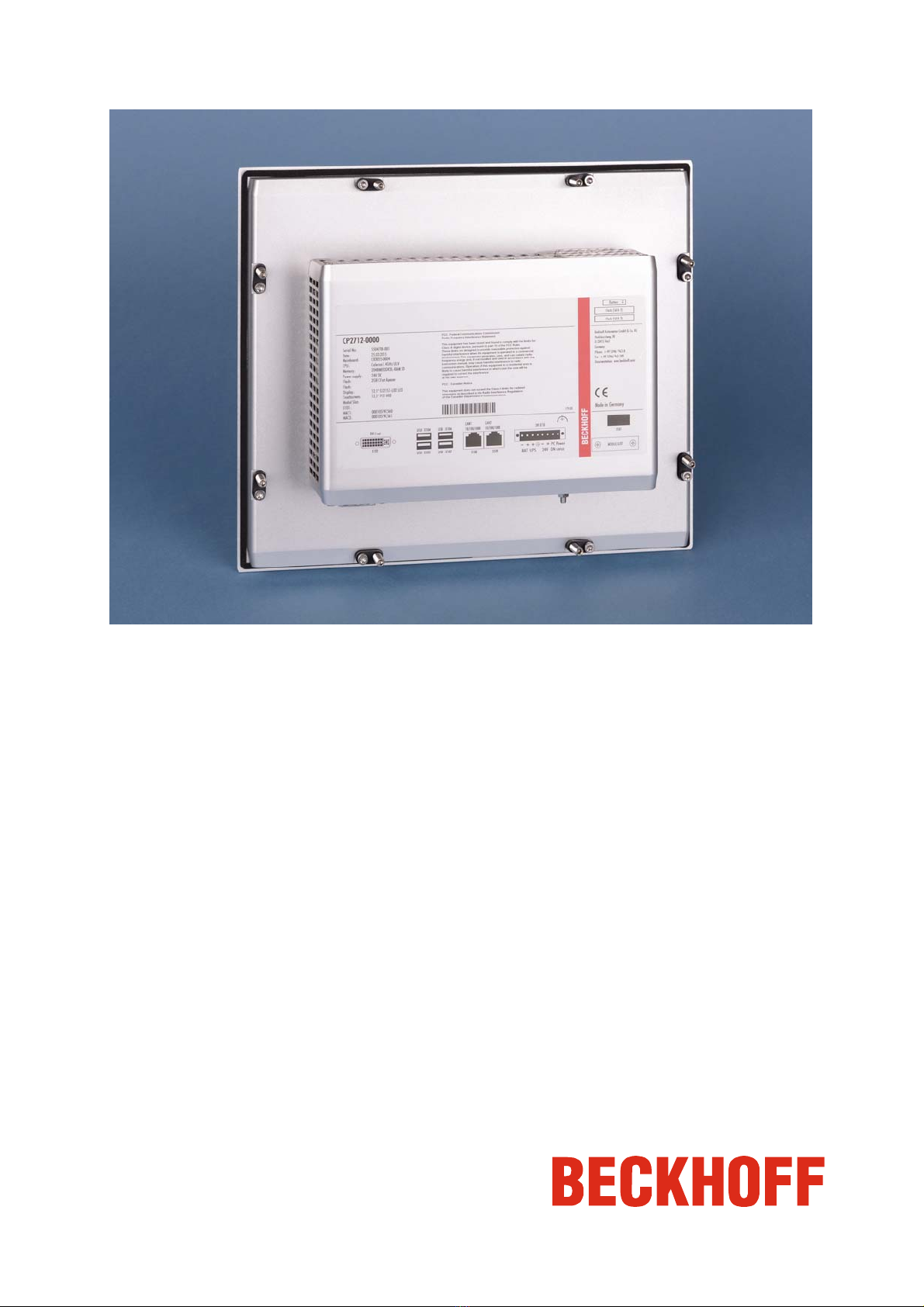

Beckhoff CPX2719 Bedienungsanleitung

Installation and Operating instructions for

CP27xx

Fanless multi-touch built-in Panel PC

Version: 1.0

Date: 2015-09-25

StockCheck.com

Table of contents

1Foreword 4

1.1 Notes on the Documentation 4

1.1.1 Liability Conditions 4

1.1.2 Trademarks 4

1.1.3 Patent Pending 4

1.1.4 Copyright 4

1.1.5 State at Delivery 4

1.1.6 Delivery conditions 4

1.2 Description of safety symbols 5

1.3 Basic safety measures 6

1.4 Operator’s obligation to exercise diligence 7

1.4.1 National regulations 7

1.4.2 Procedure in the event of a fault 7

1.4.3 Operator requirements 7

2Product Description 8

2.1 Product overview 8

2.2 Appropriate Use 9

2.3 Access to the connectors 9

2.4 Interfaces 10

2.4.1 DVI-I out (Digital Visual Interface) (X103) 10

2.4.2 USB output (X104 - X107) 10

2.4.3 Network connection LAN1, LAN2 (X 108, X109) 10

2.4.4 Power Supply (X110) 10

2.4.5 Ground connection (Ground) 10

2.5 Access to the battery and the CFast card slots 11

2.6 Extension for PCIe plug-in cards 11

2.6.1 Access to the module slot 11

3Installation 12

3.1 Transport and Unpacking 12

3.1.1 Transport 12

3.1.2 Unpacking 12

3.2 Installation in the control cabinet 13

3.2.1 Preparation of the control cabinet 13

3.2.2 Installation in a control cabinet wall 13

3.2.3 Mounting of the Panel PC 14

3.3 Power Supply of the Industrial PC 15

CP27xx 1

StockCheck.com

Table of contents

3.3.1 Beckhoff power supply technology 15

3.3.2 Pin assignment of the connector 16

3.4 Fitting the power supply cable 17

3.5 Connecting Power Supply 18

3.5.1 Cable Cross Sections 18

3.5.2 Check voltage rating and connect 18

3.5.3 Configuration for shutting down the PC 18

3.5.4 PC_ON and Power Status functions 18

3.5.5 UPS output 19

3.5.6 UPS output function 19

3.5.7 Wiring diagram 19

3.6 Connecting the Panel PC 20

3.6.1 Connecting cables 20

3.6.2 Earthing measures 20

4Operating Instructions 21

4.1 Switching the Panel PC on and off 21

4.1.1 Switching on 21

4.1.2 Shutting down and switching off 21

4.1.3 First switching on and driver installation 21

4.2 Operation 21

4.3 Servicing and maintenance 22

4.3.1 Cleaning 22

4.3.2 Maintenance 22

4.3.3 Replacing the battery on the motherboard 22

4.4 Emergency procedures 22

4.5 Shutting down 22

4.5.1 Disposal 22

5UPS Software Components (optional) 23

5.1 Installation on the PC 23

5.2 Help files 23

6Troubleshooting 24

7Assembly dimensions 25

8Technical Data 26

9Appendix 27

9.1 Beckhoff Support and Service 27

9.1.1 Beckhoff branches and partner companies 27

9.1.2 Beckhoff company headquarters 27

9.2 Approvals for USA and Canada 28

2CP27xx

StockCheck.com

Table of contents

9.3 FCC Approvals for the United States of America 28

9.4 FCC Approval for Canada 28

CP27xx 3

StockCheck.com

Foreword

1 Foreword

1.1 Notes on the Documentation

This description is only intended for the use of trained specialists in control and automation engineering

who are familiar with the applicable national standards. It is essential that the following notes and

explanations are followed when installing and commissioning these components.

The responsible staff must ensure that the application or use of the products described satisfy all the

requirements for safety, including all the relevant laws, regulations, guidelines and standards.

1.1.1 Liability Conditions

The documentation has been prepared with care. The products described are, however, constantly under

development. For that reason the documentation is not in every case checked for consistency with

performance data, standards or other characteristics. In the event that it contains technical or editorial

errors, we retain the right to make alterations at any time and without warning. No claims for the

modification of products that have already been supplied may be made on the basis of the data, diagrams

and descriptions in this documentation.

All pictures shown in the documentation are exemplary. Illustrated configurations can differ from standard.

1.1.2 Trademarks

Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®and XFC®are registered

trademarks of and licensed by Beckhoff Automation GmbH.

Other designations used in this publication may be trademarks whose use by third parties for their own

purposes could violate the rights of the owners.

1.1.3 Patent Pending

The EtherCAT Technology is covered, including but not limited to the following patent applications and

patents: EP1590927, EP1789857, DE102004044764, DE102007017835 with corresponding applications

or registrations in various other countries.

The TwinCAT Technology is covered, including but not limited to the following patent applications and

patents: EP0851348, US6167425 with corresponding applications or registrations in various other

countries.

1.1.4 Copyright

©Beckhoff Automation GmbH & Co. KG.

The reproduction, distribution and utilization of this document as well as the communication of its contents

to others without express authorization are prohibited. Offenders will be held liable for the payment of

1.1.5 State at Delivery

All the components are supplied in particular hardware and software configurations appropriate for the

application. Modifications to hardware or software configurations other than those described in the

documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.

1.1.6 Delivery conditions

In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply.

4CP27xx

StockCheck.com

Foreword

1.2 Description of safety symbols

The following safety symbols are used in this operating manual. They are intended to alert the reader to

the associated safety instructions.

Acute risk of injury!

DANGER

If you do not adhere the safety advise adjoining this symbol, there is immediate

danger to life and health of individuals!

Risk of injury!

WARNING

If you do not adhere the safety advise adjoining this symbol, there is danger to life and

health of individuals!

Hazard to individuals!

CAUTION

If you do not adhere the safety advise adjoining this symbol, there is obvious hazard to

individuals!

Hazard to devices and environment

Attention

If you do not adhere the notice adjoining this symbol, there is obvious hazard to

materials and environment.

Note or pointer

Note

This symbol indicates information that contributes to better understanding.

CP27xx 5

StockCheck.com

Foreword

1.3 Basic safety measures

Before the Panel PC is switched off, software that is running must be properly closed.

Otherwise it is possible that data on the storage medium is lost. Please read the section Switching the

Panel PC on and off.

Switch off all parts of the equipment, then uncouple the Panel PC

Warning

Before opening the housing, and whenever the Panel PC is not being used for control

purposes (such as during functional checks after a repair), all parts of the equipment

must first be switched off, after which the Panel PC is to be disconnected from the

equipment.

Disconnect the device by unplugging the connectors on the rear side of the Panel PC.

Items of equipment that have been switched off must be secured against being switched on again.

Do not exchange any parts when under power

Warning

When components are being fitted or removed, the supply voltage must be switched

off.

Fitting work on the Panel PC can result in damage:

• if metal objects such as screws or tools fall onto operating circuit boards

• if connecting cables internal to the Panel PC are removed or inserted during

operation.

6CP27xx

StockCheck.com

Foreword

1.4 Operator’s obligation to exercise diligence

The operator must ensure that

• the product is only used as intended (see chapter Product Description)

• the product is in a sound condition and in working order during operation

• the product is operated, maintained and repaired only by suitably qualified and authorized

personnel

• the personnel is instructed regularly about relevant occupational safety and environmental

protection aspects, and is familiar with the operating manual and in particular the safety notes

contained herein

• the operation manual is in good condition and complete, and always available for reference at the

location of the product.

Do not open the housing of the Panel PC!

Note

For technical support contact Beckhoff Service.

1.4.1 National regulations

Depending on the type of machine and plant in which the Panel PC is used, national regulations

governing the controllers of such machines will apply, and must be observed by the operator. These

regulations cover, amongst other things, the intervals between inspections of the controller. The operator

must initiate such inspections in good time.

1.4.2 Procedure in the event of a fault

In the event of faults at the Panel PC, the list in the section Troubleshooting can be used to determine the

measures to be taken.

1.4.3 Operator requirements

Anyone who uses the Panel PC must have read these operating instructions and must be familiar with all

the functions of the software installed on the Industrial PC to which he has access.

CP27xx 7

StockCheck.com

Product Description

2 Product Description

2.1 Product overview

Fanless multi-touch built-in Panel PC

The CP27xx built-in Panel PC series is characterised by a modern operating concept with multi-touch

display as well as an advanced, elegant device design. It is designed for installation in the front of a

control cabinet. The CP27xx combine reliable Beckhoff Control Panel design with state-of-the-art

Industrial PC technology. The right display size is available for every application. With their highly

integrated 3½-inch motherboards, the CP27xx built-in Industrial PCs represent a high-performance

platform for machine construction and plant engineering applications.

The multi-touch built-in Panel PCs offer the following benefits:

• aluminium housing with glass front

• all connectors at the bottom of the rear side, all components easily accessible

• 2 slots for CFast cards, accessible from outside

• 1 connector bracket to lead out interfaces of the motherboard at the connection section

• pull-out clamping levers for fast installation without loose parts

• protection class front side IP 65, rear side IP 20

• multi-finger touch screen

• TFT display in eight sizes.
