Behringer FD300 Bedienungsanleitung

ULTRA FEEDBACK/DISTORTION FD300

Thank you for showing your confidence in us by purchasing the BEHRINGER ULTRA

FEEDBACK/DISTORTION FD300. This effects pedal produces endless feedback and

sustain at any volume by simply pressing down the pedal. The additional distortion circuit

gives you super-thick and hard distortion with great dynamic response.

1. CONTROLS

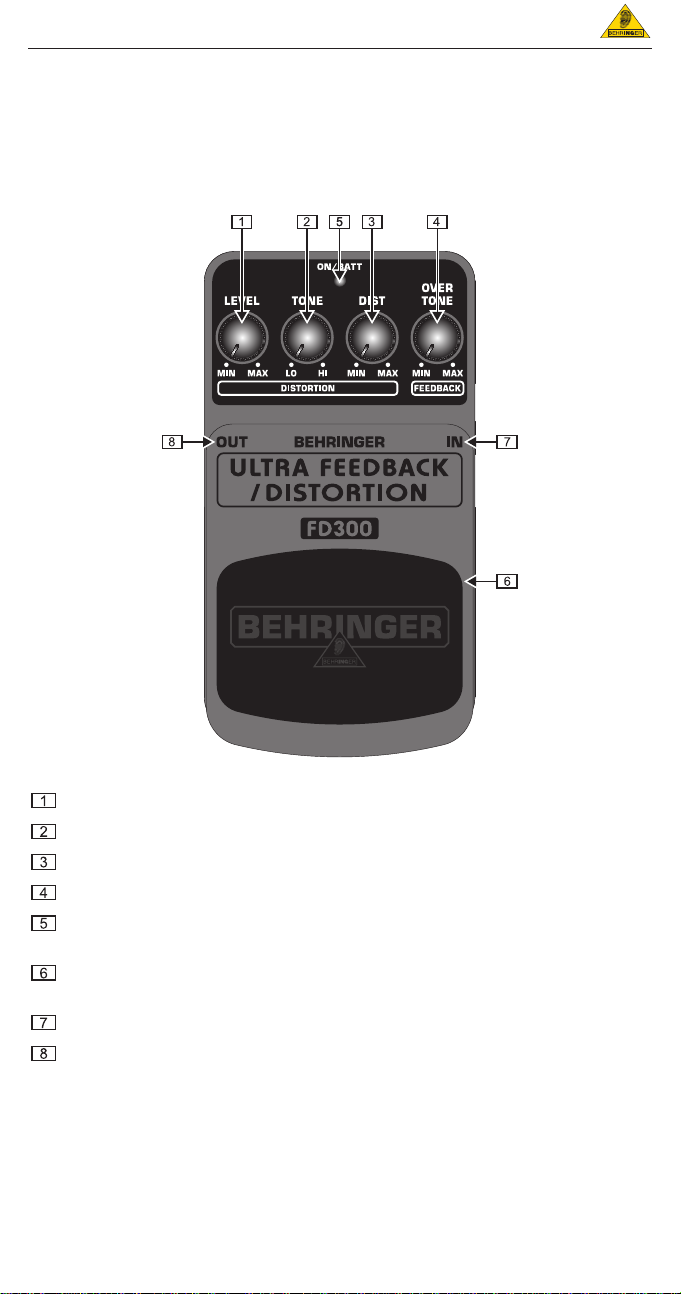

Top view

The LEVEL control adjusts the output level.

The TONE control allows you to shape your overall sound.

The DISTORTION control adjusts the intensity of the distortion effect.

The OVERTONE control adjusts the amount of overtones causing feedbacks.

The ON/BATT LED illuminates when the effect is activated. It also serves as a

battery level indicator.

A quick step on the footswitch will activate/deactivate the distortion effect. Add

feedback/sustain to the signal as long as you keep the pedal pressed.

Use this 1/4" TS IN connector to plug in the instrument cable.

The 1/4" TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or

replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove

the pedal cover. Be careful not to scratch the unit.

The FD300 has no on/off switch. As soon as you insert the plug into the IN

connector, the FD300 is on. When not in use, remove the plug from the IN

connector. This extends the life of the battery.

The SERIAL NUMBER is located at the underside.

ULTRA FEEDBACK/DISTORTION FD300

2. WARRANTY

For our current warranty terms, please refer to our website at http://www.behringer.com.

3. SPECIFICATIONS

In Connector 1/4" TS

Impedance 500 kΩ

Out Connector 1/4" TS

Impedance 1 kΩ

Power supply 9 V_, 100 mA regulated

BEHRINGERPSU-SB

USA/Canada 120 V~, 60 Hz

Europe/U.K./Australia 230 V~, 50 Hz

China 220 V~, 50 Hz

Korea 220 V~, 60 Hz

Japan 100 V~, 50/60 Hz

Power connector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Power consumption 30 mA

Dimensions (H x W x D) approx. 54 mm (2 1/8") x 70 mm (2 3/4") x 123 mm (4 4/5")

Weight approx. 0.33 kg (0.73 lbs)

BEHRINGERisconstantlystriving tomaintain thehighest professionalstandards. Asa resultof theseefforts, modificationsmay

bemadefromtimetotimeto existingproductswithoutpriornotice.Specificationsand appearancemaythereforedifferfromthose

listedorshown.

4. SAFETY INSTRUCTIONS

Donotusenearwater, orinstallnearheatsources.Useonlyauthorizedattachments/accessories.Donotserviceproductyourself.

Contactourqualifiedservicingpersonnel forservicingor repairs, especiallywhenpower supplycord orplugis damaged.

Noutilizarcerca de aguaoinstalar cerca defuentesde calor. Utilicesóloaccesorios y aditamentosautorizados.No intenté

repararel productousted mismo.Contacte anuestro personaltécnicocualificadoparaservicioyreparaciones,especialmente

cuando la fuente o el cable de alimentación estén dañados.

Не эксплуатируйте прибор вблизи от источников воды и тепла. Применяйте только авторизованные дополнительные

устройства. Никогда не ремонтируйте прибор самостоятельно. Ремонт может производить только квалифицированный

специализированный персонал, особенно при повреждениях сетевого провода или сетевой вилки.

Die deutsche Anleitung ist erhältlich @ www.behringer.com

Manuel francophone en téléchargement sur www.behringer.com

Manualen españoldisponible enwww.behringer.com

Manualiitaliani disponibili@ www.behringer.com

Русскоязычное руководство @ www.behringer.com

Polska instrukcja dostępna jest pod adresem @ www.behringer.com

Nederlandsehandleiding beschikbaar@ www.behringer.com

Suomenkielinen käyttöohje saatavilla osoitteesta www.behringer.com

Svensk manual finns tillgänglig på www.behringer.com

Dansk vejledning findes på @ www.behringer.com

Manualportuguês disponível @ www.behringer.com

Åëëçíéêü åã÷åéñßäéï õðÜñ÷åé äéáèÝóéìï óôç äéåýèõíóç www.behringer.com

Technicalspecificationsandappearancesubjectto changewithout notice.Theinformationcontainedhereiniscorrectatthetime

ofprinting. BEHRINGERacceptsnoliabilityfor anyloss whichmaybesufferedbyanyperson whorelieseitherwhollyorinpart

uponanydescription, photograph orstatementcontainedherein. Colours andspecificationmay vary slightlyfromproduct.

Productsaresoldthroughour authorised dealers only.Distributorsand dealers are not agentsofBEHRINGER and have

absolutelynoauthoritytobindBEHRINGERbyanyexpressorimplied undertakingor representation.Nopartofthismanualmay

bereproducedortransmittedinanyformorby anymeans,electronicormechanical,includingphotocopying andrecordingofany

kind,foranypurpose,withouttheexpresswrittenpermissionofBEHRINGERInternationalGmbH.BEHRINGER,theBEHRINGER

Hanns-Martin-Schleyer-Str.36-38, 47877Willich-MünchheideII,Germany.Tel.+492154 92060,Fax+492154 92064903
